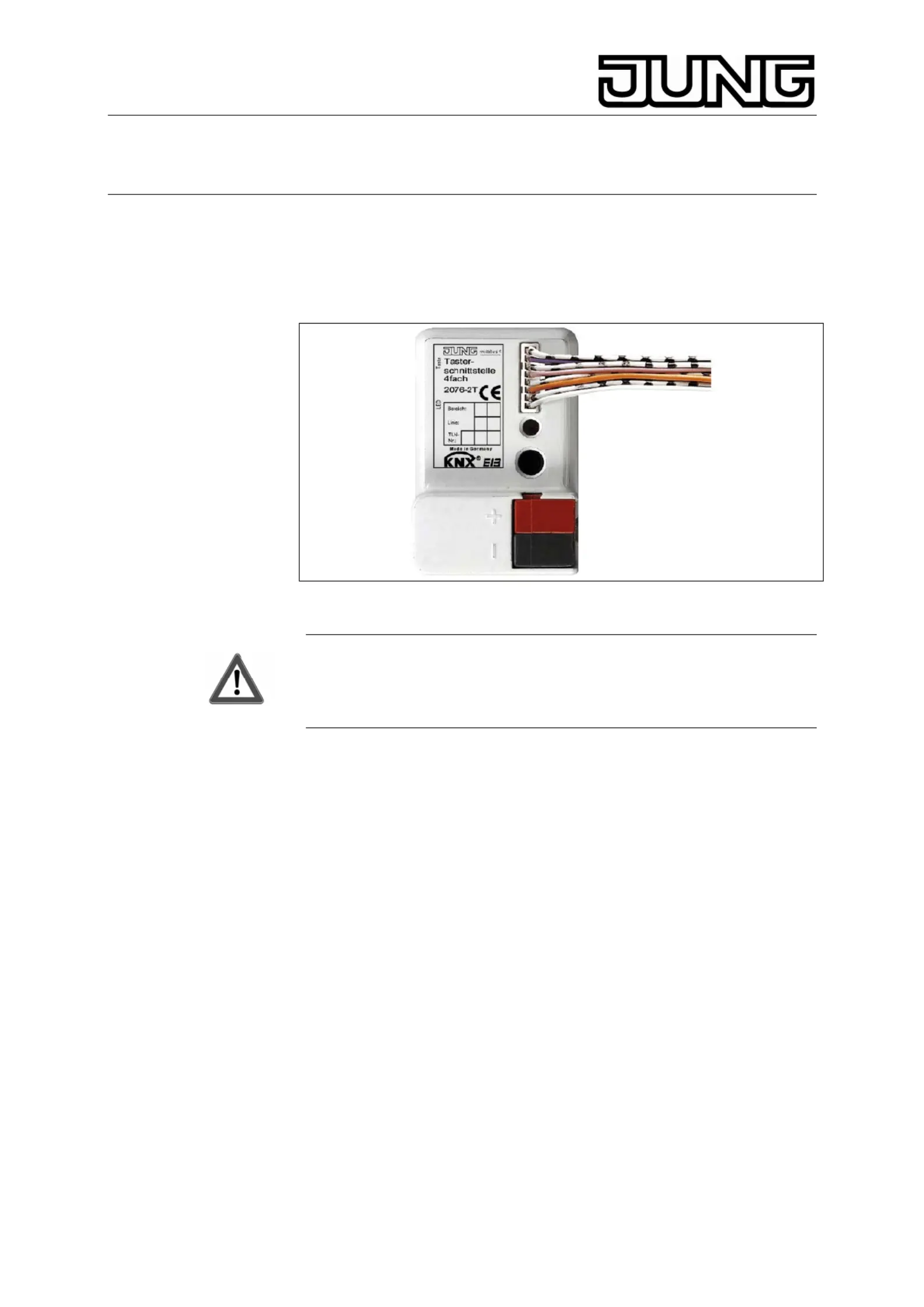

Side 1/5

KNX Pushbutton interface

Ref-no.: 2076-2T

2076-4T

Operating Instructions

2-channel pushbutton interface

4-channel pushbutton interface

1. Safety warnings

Electrical equipment must be installed and fitted by qualified

electricians only and in strict observance of the relevant accident

prevention regulations. Failure to observe any of the installation

instructions may result in irreparable damage, in fire and in other

hazards.

2. System information

This unit is a product of the instabus-EIB-System and corresponds to the

EIBA Guidelines.

Detailed technical knowledge acquired in instabus training courses is a

prerequisite for the understanding of the system.

The functions of the device are software-dependent.

Detailed information on the software and the functions implemented and

the software itself are available from the manufacturer’s product data

bank.

Planning, installation and commissionning of the device are effected with

the help of EIBA-certified software.

The updated product database and the technical description are available

in the Internet under www.jung.de.

Stand: Jun-08 825 238 13

KNX Pushbutton interface

Ref.-no.: 2076-2T

2076-4T

3. Function

The 2-channel and 4-channel pushbutton interfaces are equipped with

2/4 independent channels which – depending on parameterization – may

be used as inputs or alternatively also as outputs (channels 1 or 2 only).

The pushbutton interfaces can evaluate at their potentialfree inputs up to

2/4 pushbutton / switch states with a common reference potential and

send the corresponding telegrams over the instabus EIB.

The telegrams may be telegrams for switching or dimming, for

blind/shutter control or for value transmitter applications (dimming value

transmitter, light-scene extension, temperature or brightness value

transmitters).

Moreover, switch or pulse counters are available (2-channel type: 1

counter, 4-channel type: 2 counters).

As an alternative, channels 1 and 2 can control up to 2 light-emitting

diodes (LED) as independent outputs.

To increase the output current (see technical data), these channels can

also be connected in parallel with the same parametrization.

The outputs are protected against short circuits, overload and wrong

polarity.

4. Safety warnings

The connection of 230 V signals or other external voltages to the

inputs is not permitted!

The voltage potentials of the connecting lines for the contacts and

the LEDs are not electrically separated from the the bus voltage.

Connect ONLY potential-free pushbuttons / switches to the inputs.

5. Fitting instructions

To prevent EMC-related interference, do not run the lines to the inputs

(D) in parallel with lines lines carrying mains voltage or with lines feeding

loads.

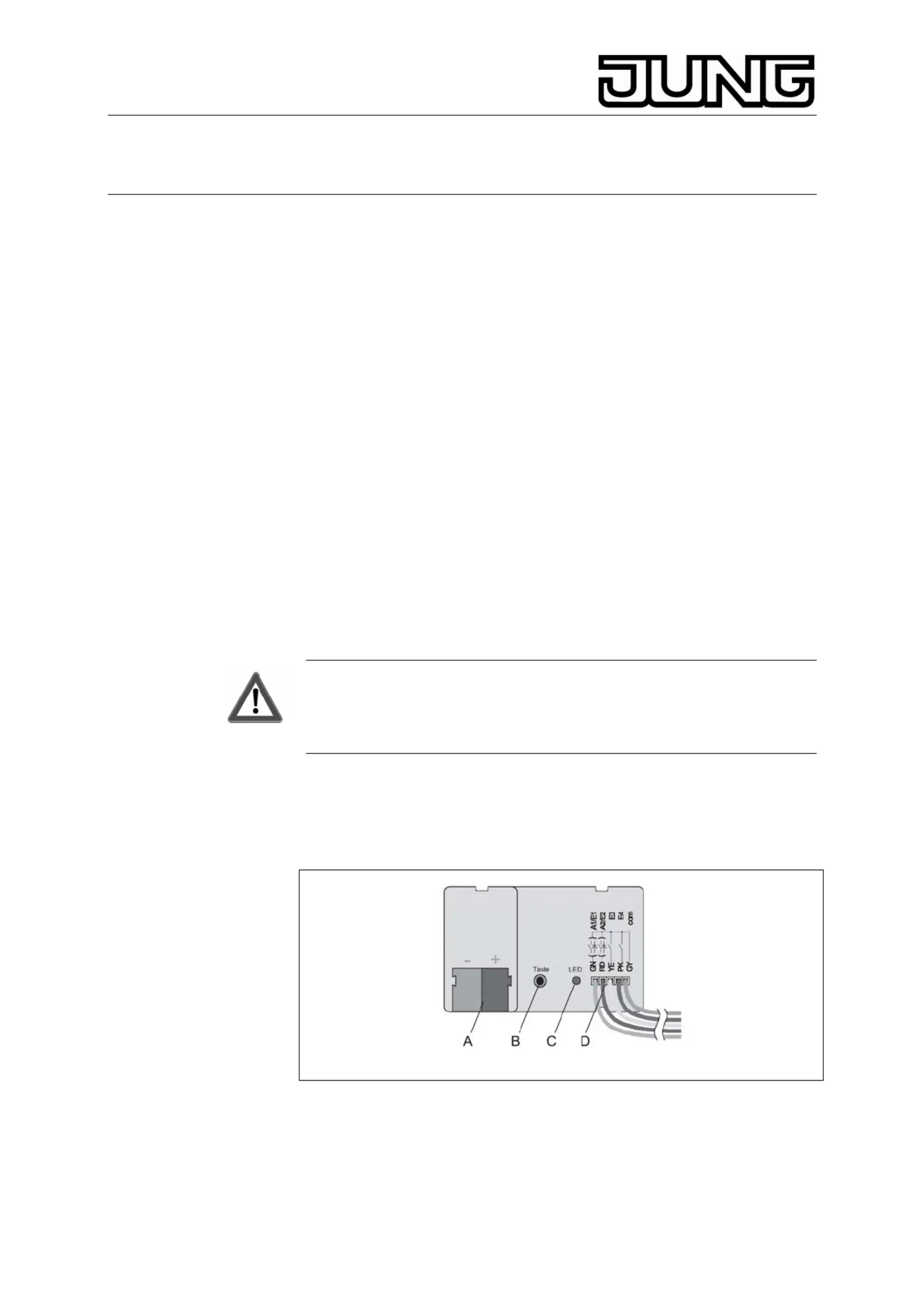

Figure 1

Fig. 1:

The bus is connected with bus connecting terminal (A).

The physical address is programmed by means of programming button

(B) and programming LED (C).
