LED pilot light

03/20181/2

0024019801

LED pilot light

Ref.-no.: LEDKO6TX24

Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled persons.

Serious injuries, re or property damage possible. Please read and follow manual fully.

Danger of electric shock. Always disconnect before carrying out work on the devise or load.

These instructions are an integral part of the product, and must remain with the end customer.

2 Structure of the device

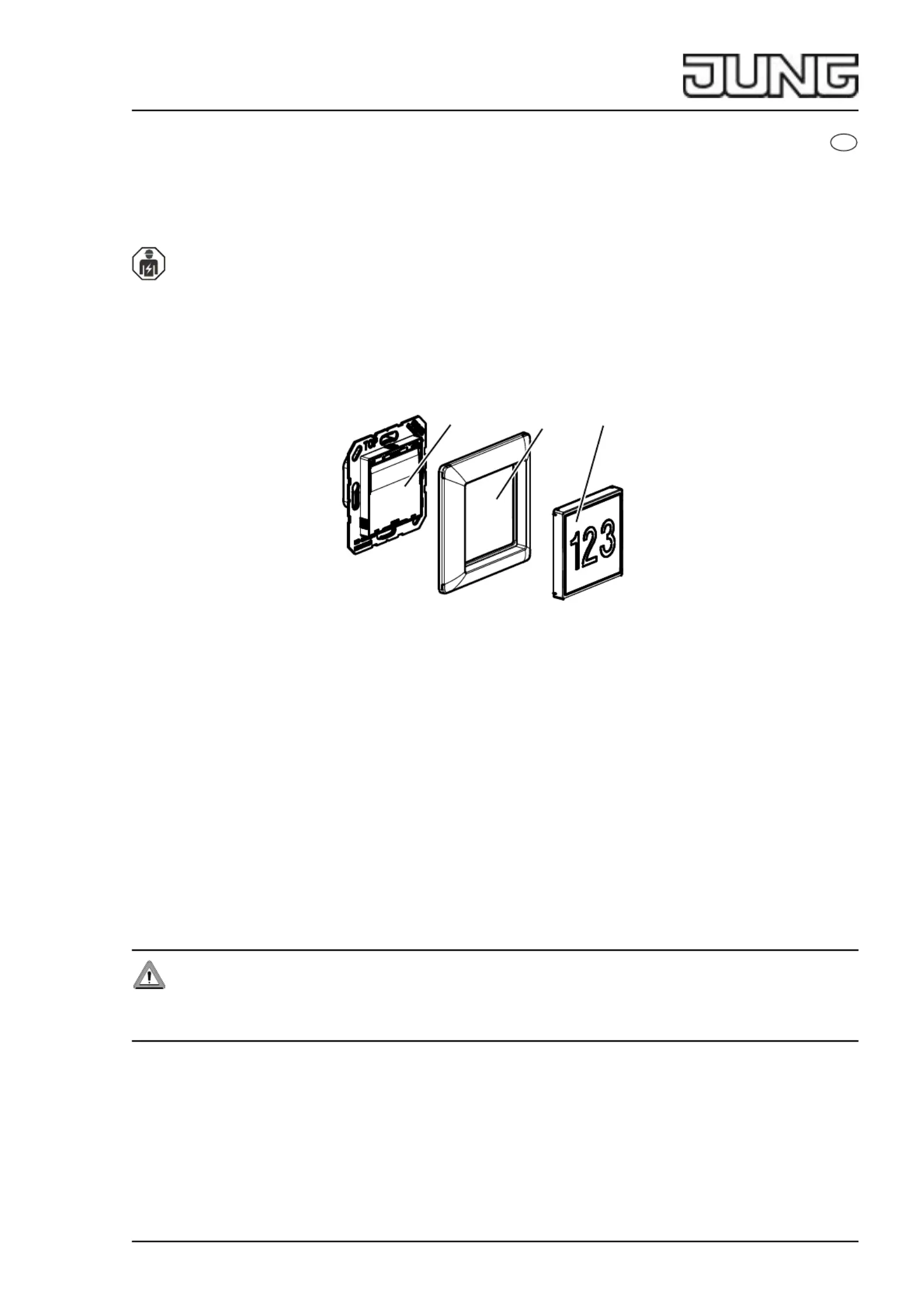

Fig. 1: Structure of the device

(1) LED insert

(2) Frame

(3) Cover

3 Function

Intended purpose

- LED pilot light for use in dry indoor areas

- Installation in appliance box according to DIN 49073

Product characteristics

- Custom label, symbols or text

- Backlight in white, red, green or orange

- Colour change via separate switch

4 Information for electrically skilled persons

Installation and electrical connection

DANGER

Electric shock from touching live parts in the installation environment.

An electric shock can be fatal.

Before working on the device, disconnect the power and cover live parts in the area.

LED pilot light

03/20182/2

0024019801

• Connect the divice according to wiring diagram (g. 2).

DC 24 V SELV

2 1

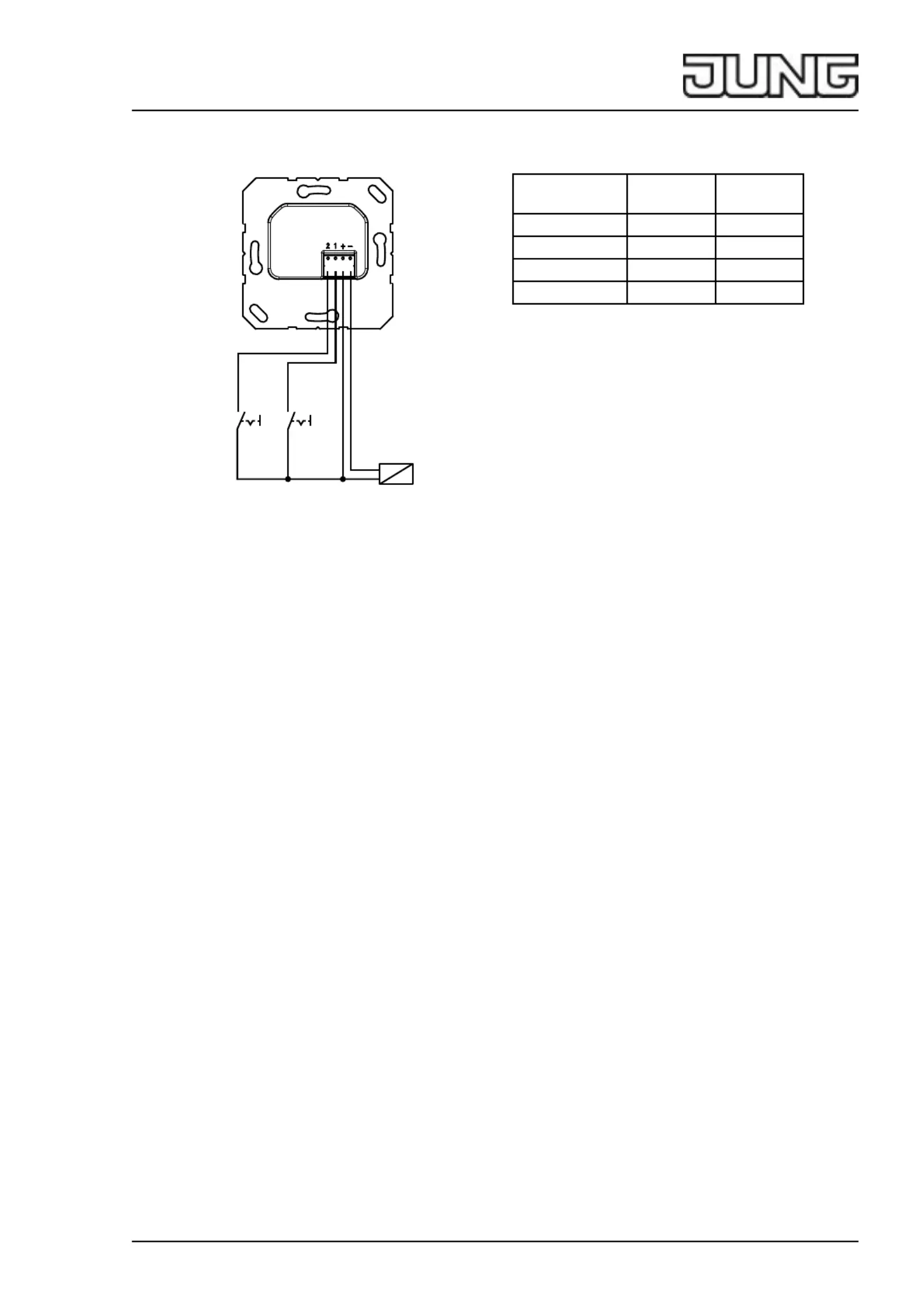

Fig. 2: Wiring diagram

LED-colour\

connection

terminal 1 terminal 2

white - -

green DC 24 V -

red - DC 24 V

orange DC 24 V DC 24 V

Table 1: Terminal assignment LED-colour

• Install the device.

• Install frame and cover onto the device.

Technical data

Rated voltage DC 24 V SELV ±10 %

Rated power < 1.5 W

Ambient temperature -5 ... +45 °C

Connection Female connector

Wago PicoMax 3.5

Typ 2091-1124

0.5 ... 1.5 mm²

5 Accessories

2-gang switch 505KO5VEUM24

Cover ACUKO6TX..

LSCUKO6TX..

iThe covers are individually lasered. Before ordering the covers, specify individual design under gt.jung.de.

6 Warranty

The warranty follows about the specialty store in between the legal framework as provided for by law.

ALBRECHT JUNG GMBH & CO. KG

Volmestraße 1

58579 Schalksmühle

GERMANY

Tel. +49 2355 806-0

Fax +49 2355 806-204

kundencenter@jung.de

www.jung.de
