Side 1/4

For warranty information please visit: kichler.com/warranty

IS-16193-USREV 4-APR-2022

We’re here to help 866-558-5706

Hrs: M-F 9am to 5pm EST

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment o and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC INFORMATION

CAUTIONS

SAFETY INSTRUCTIONS

READ THIS FIRST

KEEP THESE INSTRUCTIONS

CAUTION – RISK OF SHOCK:

Disconnect Power at the main circuit breaker panel or main fusebox before

starting and during the installation.

WARNING:

This fixture is intended for installation in accordance with the National Electrical

Code (NEC) and all local code specifications. If you are not familiar with code

requirements, installation by a certified electrician is recommended. Failure

to adhere to these codes and instructions may result in serious injury and/or

property damage and will void the warranty.

CLEANING:

• Always be certain that electric current is turned o before cleaning.

• Only a soft damp cloth should be used. Harsh cleaning products may damage

the finish.

1. WARNING: This fixture is not to be installed within 10 feet (3M) of a pool, spa or fountain.

2. This fixture is to be used only with a power unit (transformer) rated a maximum of 300 W (25

AMPS) 15 volts.

3. The unit low voltage cable shall:

a) be protected by routing in close proximity to the luminaire or fitting, or next to a building

structure such as a house or deck;

b) not be buried except for a maximum 6 inches (15.2 cm) in order to connect to the main low

voltage cable; and

c) have the length cut o so that it is connected to a connector within 6 inches (15.2 cm) from a

building structure, a luminaire, or fitting.

4. Direct burial rated wire is to be buried a minimum of 6” (152mm) beneath the surface of the ground.

NOTE: If additional Direct Burial wire is needed, contact your local Kichler® landscape distributor.

• 8 GA wire can be purchased in length of 250’ (76 M), 15503-BK.

• 10 GA wire can be purchased in length of 250’ (76 M), 15504-BK.

• 12 GA wire can be purchased in lengths of 100’ (30 M), 15501-BK; 250’ (76 M), 15502-BK; 500’ (152M),

15505-BK; and 1000’ (304 M), 15506-BK.

5. Fixture shall not use a tungsten halogen lamp unless the fixture is marked for use with such lamps.

6. Wiring connections must be made with approved/listed wire connection device(s) suitable for the

application. Do not exceed manufacturers’ wiring combination specifications for size and quantity

of conductors.

CAUTION

WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE OR

LOW VOLTAGE), CARE SHOULD BE TAKEN TO KEEP CLEAR OF POTENTIALLY

COMBUSTIBLE MATERIALS.

WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE LEAVES,

PINE NEEDLES, GRASS CLIPPINGS, MULCH, OR ANY DEBRIS THAT HAS

ACCUMULATED ON THE LIGHT BULB, LENS, OR BODY OF THE FIXTURE.

1. TURN OFF POWER.

2. Determine desired location for mounting fixture.

3. At desired location, hammer stake into ground. To avoid damage to stake, place a board on top

of stake or use a rubber mallet. If ground is hard and stake is dicult to install, make a crosscut in

ground using a flat shovel.

4. Clear away area in ground at wireway opening in stake.

5. Unassemble cowl from fixture. Cowl is removed by loosening the thumb screw.

6. Install lamp (pure white lamp provided for 16193AZT and 16193BKT) to socket inside accent light.

NOTE: Use caution when installing. Hold lamp by outer housing. DO NOT touch glass envelope

inside. If this happens, clean lamp with denatured alcohol and a lint free cloth.

7. (Optional for 16193AZT and 16193BKT):

If additional beam spread is desired, place beam expander (textured lens) into cowl, dot side facing

outwards. Add amber lens inside the cowl if a warmer output is desired. If both beam expander

and amber lens are desired, first place beam expander into cowl, and then place amber lens.

With the beam expander and/or amber lens installed, place lens retainer into cowl. Make sure the

retainer is lying flat on the lens and is snug in the cowl.

NOTE: To ensure best performance of beam expander and/or amber lens, operate this fixture

with the lamp provided. Creating the desired lighting eect is dependent on using this fixture with

the lamp originally included.

8. Install cowl onto accent light housing and then tighten the thumb screw.

9. Route fixture cable through wireway opening and install fixture in stake. Care should be taken

to ensure wire is not twisted. Aim fixture in desired direction and secure by tightening locknut. If

necessary, use wrench or pliers for final tightening of nut.

10. Adjust angle of accent light by loosening swivel adjustment screw.

11. Make wire connections using supplied wire nuts following instructions on bag.

INSTALLATION INSTRUCTIONS

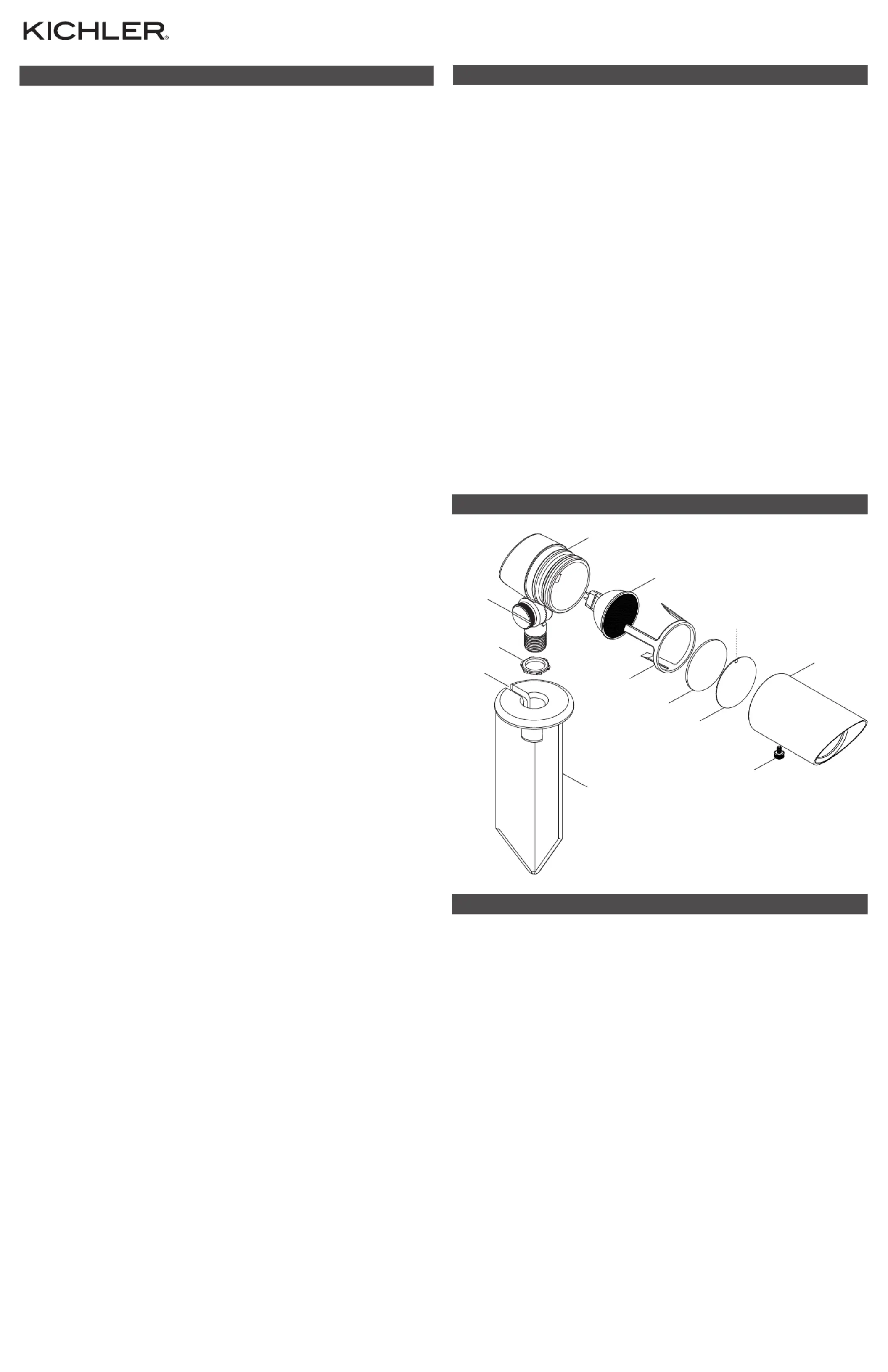

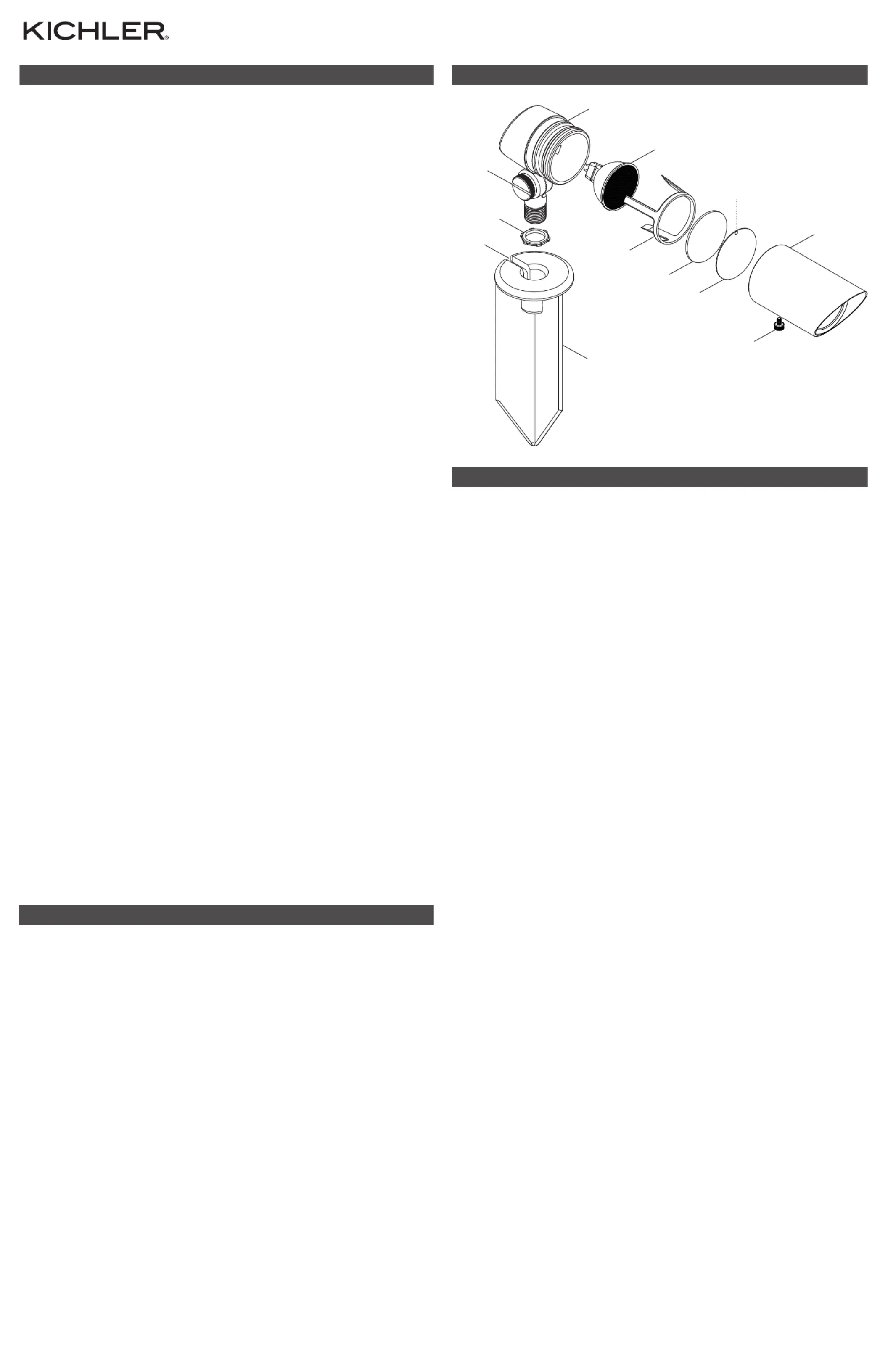

FIXTURE DIAGRAM

THUMB SCREW

COWL

AMBER LENS

BEAM EXPANDER

NOTE: DOT SIDE

FACES OUTWARD

LENS RETAINER

STAKE

SWIVEL

ADJUSTMENT

SCREW

WIREWAY

OPENING

LAMP

FIXTURE

LOCKNUT

INSTRUCTIONS PERTAINING TO A RISK OF FIRE,OR INJURY TO PERSONS

IMPORTANT SAFETY INSTRUCTIONS

Lighted lamp is HOT!

WARNING — To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn o / unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch / plug when turning on.

3. Do not touch hot lens or cowl.

4. Do not remain in light if skin feels warm. (Light is intense, it may cause “sunburn”.)

5. Do not look directly at lighted lamp.

6. Keep lamp away from materials that may burn.

7. Use only with wattage and lamp marked on fixture.

8. Do not touch the inner glass envelope of the lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

9. Do not operate the fixture with a damaged or missing lens.
