1) Slip loop at top of arm over hook on top trim.

2) Pass ﬁxture wire at end of length of chain through hole in

small loop attached to canopy.

3) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the ﬁxture or room that

you are working on.

c) Place the wall switch in the “OFF” position. If the ﬁxture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

4) Thread hexnut onto threaded pipe so that 5 threads are

exposed above hexnut. Thread that end of threaded pipe

into mounting strap and tighten hexnut against mounting strap.

5) Run another hexnut down threaded pipe almost touching

ﬁrst hexnut. Now screw threaded pipe into mounting strap.

Mounting strap must be positioned with extruded thread

faced into outlet box. Threaded pipe must protrude out the

back of mounting strap. Screw third hexnut onto end of

threaded pipe protruding from back of mounting strap.

6) Attach mounting strap to outlet box. (Screws not provided)

7) Connect safety cable assembled to canopy to mounting

strap. (This will allow for ﬁxture to be supported while wire

connections are made.)

8) Grounding instructions: (See Illus. A or B).

A) On ﬁxtures where mounting strap is provided with a

hole and two raised dimples. Wrap ground wire from

outlet box around green ground screw, and thread into

hole.

B) On ﬁxtures where a cupped washer is provided. Attach

ground wire from outlet box under cupped washer and

green ground screw, and thread into mounting strap.

If ﬁxture is provided with ground wire. Connect ﬁxture

ground wire to outlet box ground wire with wire connector.

(Not provided.) After following the above steps. Never

connect ground wire to black or white power supply wires.

9) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

10) Push ﬁxture to ceiling, carefully passing threaded pipe

through hole in canopy.

11) Thread ﬁnial onto threaded pipe. Tighten ﬁnial to secure

ﬁxture to ceiling.

GREEN GROUND

SCREW

CUPPED

WASHER

OUTLET BOX

GROUND

FIXTURE

GROUND

DIMPLES

WIRE CONNECTOR

(NOT PROVIDED)

OUTLET BOX

GROUND

GREEN GROUND

SCREW

FIXTURE

GROUND

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black White

*Parallel cord (round & smooth) *Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)

are used. The neutral wire is square shaped

or ridged and the other wire will be round in

shape or smooth (see illus.)

Neutral Wire

Date Issued: 9/18/15 IS-43824-US

SEE OTHER SIDE FOR SPANISH TRANSLATIONS.

VEA EL OTRO LADO DE TRADUCCIONES AL ESPAÑOL.

We’re here to help 866-558-5706

Hrs: M-F 9am to 5pm EST

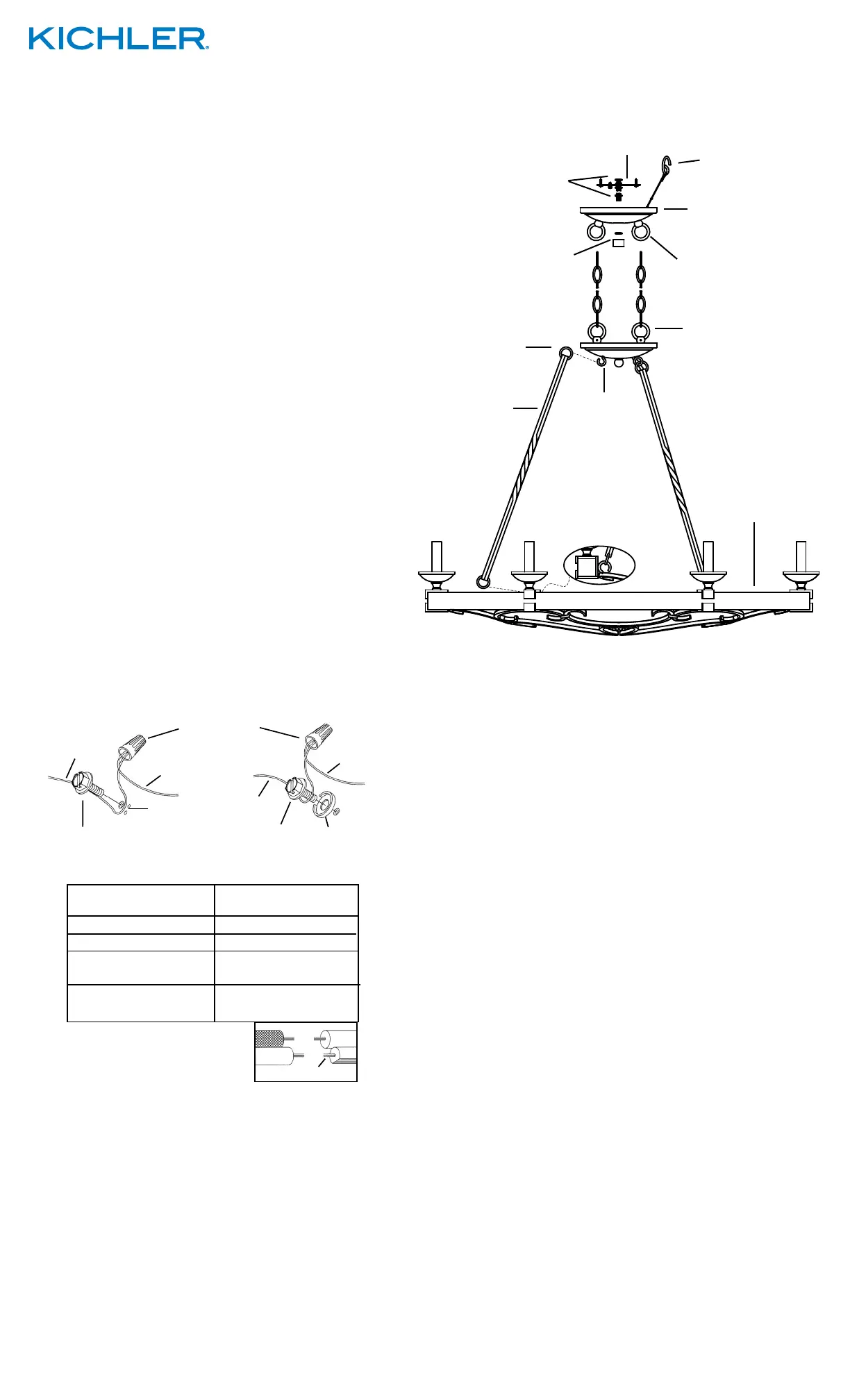

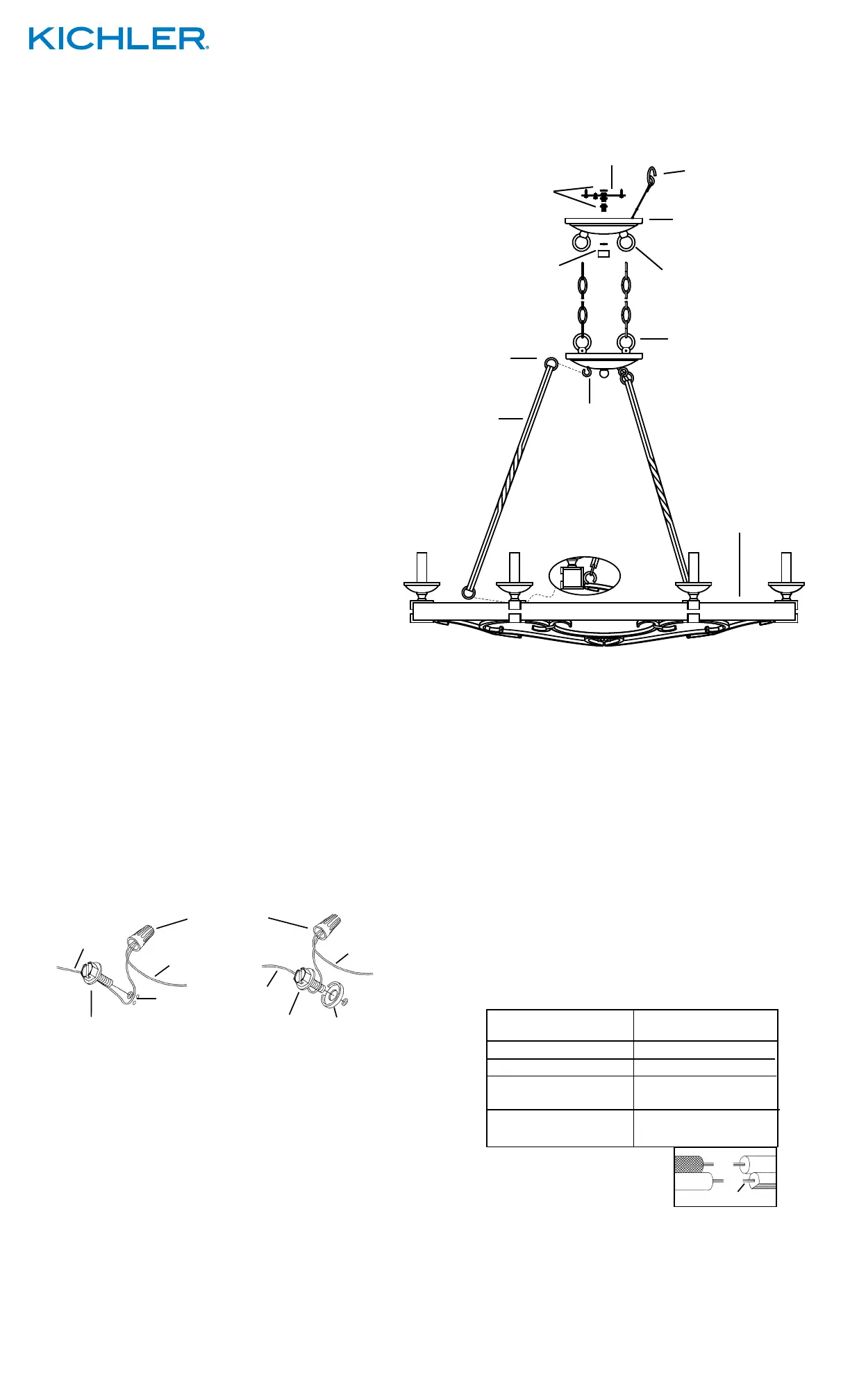

FINIAL

CAPUCHÓN

MOUNTING STRAP

ABRAZADERA DE MONTAJE

CANOPY

ESCUDETE

SMALL LOOP

ANILLO PEQUEÑA

HEXNUT

TUERCA HEXAGONAL

SAFETY CABLE

CABLE DE

SEGURIDAD

LARGE LOOP

ANILLO GRANDE

ARM

BRAS

RING

ANILLO

LOOP

ANILLO

HOOK

GANCHO
