User Manual
HyperX Cloud Stinger Core Headset
Find the language and latest documentation for your HyperX Cloud Stinger Core Headset here.
HyperX Cloud Stinger Core Headset Installation Guide
Simplied Chinese . . . . .
Traditional Chinese . . . .
. . . . . . . . . . . . For instructions in English
. . . . . . . . . . . . . . . . . . Para instrucciones en Español
. . . . . . . . . Für Anleitungen in Deutsch
. . . . . . . . . . . . . . . . . . Pour des instructions en Français
. . . . . . . . . . . . . . . . . . Per le istruzioni in Italiano
. . . . . . . . . . . . Por as instruções em Português
. . . . . . . . . . . . . . . . . . Instrukcje w jezyku Polskim
. . . . . . . . . . . . . . . . . . Для инструкции на Pусском
. . . . . . . . . . . . . . . . . . Turkce talimatlar icin
. . . . . . . . . . . . . . . . . . Japanese
. . . . . . . . . . . . . . . . . . Korean
. . . . . . . . . . . . . . . . . . Thai
. . . . . . . . . . . . . . . . . . Vietnamese
Document No. HSCSC001.A01480HX-
HyperX Cloud Stinger Core Headset
Page 1 9 of
HyperX Cloud Stinger Core Headset
Part Numbers:
HX HSCSC BK- -
Document No. HSCSC001.A01480HX-
HyperX Cloud Stinger Core Headset
Page 2 9 of
T C ABLE OF ONTENTS
Overview .................................................................................................................................. 3
In-line audio control operation .................................................................................................. 4
Usage (PS4™ & PS4™ Pro) .................................................................................................... 5
Usage (Xbox One™) ................................................................................................................ 6
Usage (Nintendo Switch™) ...................................................................................................... 7
Usage (mobile device) ............................................................................................................. 8
Headset Specifications ............................................................................................................. 9
Document No. HSCSC001.A01480HX-
HyperX Cloud Stinger Core Headset
Page 3 9 of

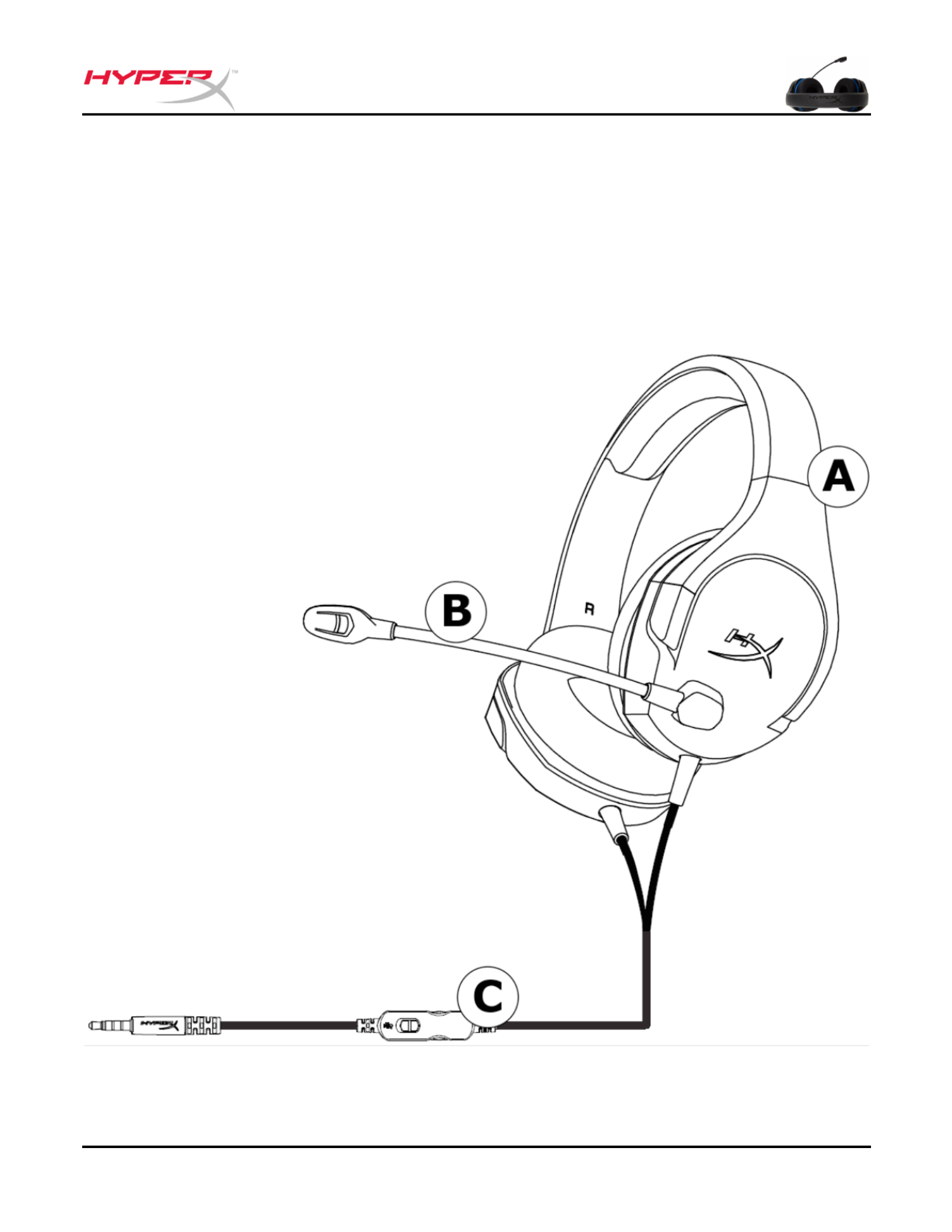

Overview
A. Headband adjustment slider
B. Rotating noise cancellation mic
C. In-line audio control
Document No. HSCSC001.A01480HX-
HyperX Cloud Stinger Core Headset
Page 4 9 of

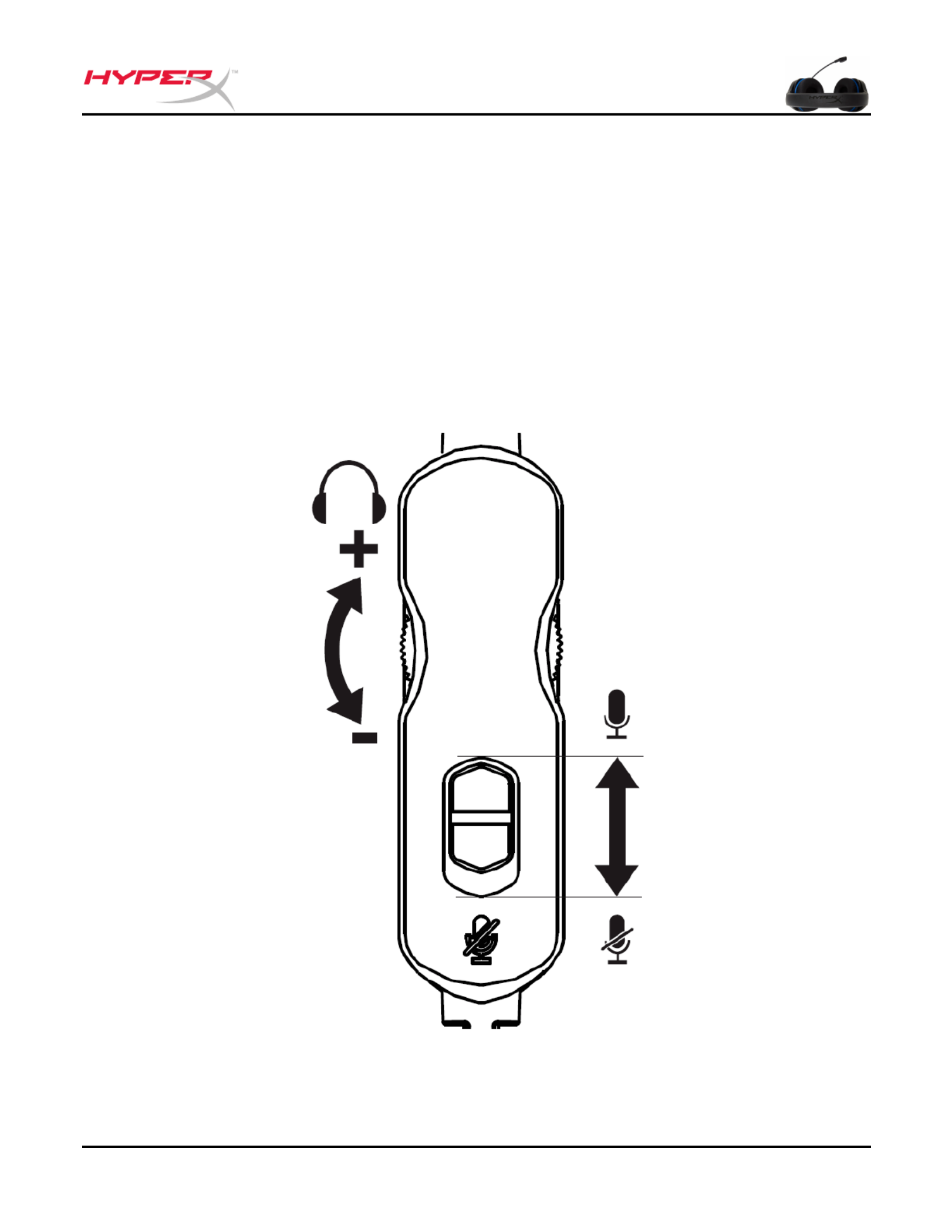

In line audio co- ntrol operation
The in-line audio control contains a volume wheel to adjust the headphone output volume and
a microphone mute slider to mute the microphone.
To increase the headset volume, rotate the volume wheel clockwise (towards the + sign). To
reduce the volume, rotate the volume wheel anticlockwise (towards the – sign).
To mute the microphone, slide the microphone mute button to the down position. To activate
the microphone, slide the microphone mute button to the up position.
Microphone
Active
Microphone
Mute
Headphone
Volume
Document No. HSCSC001.A01480HX-
HyperX Cloud Stinger Core Headset
Page 5 9 of

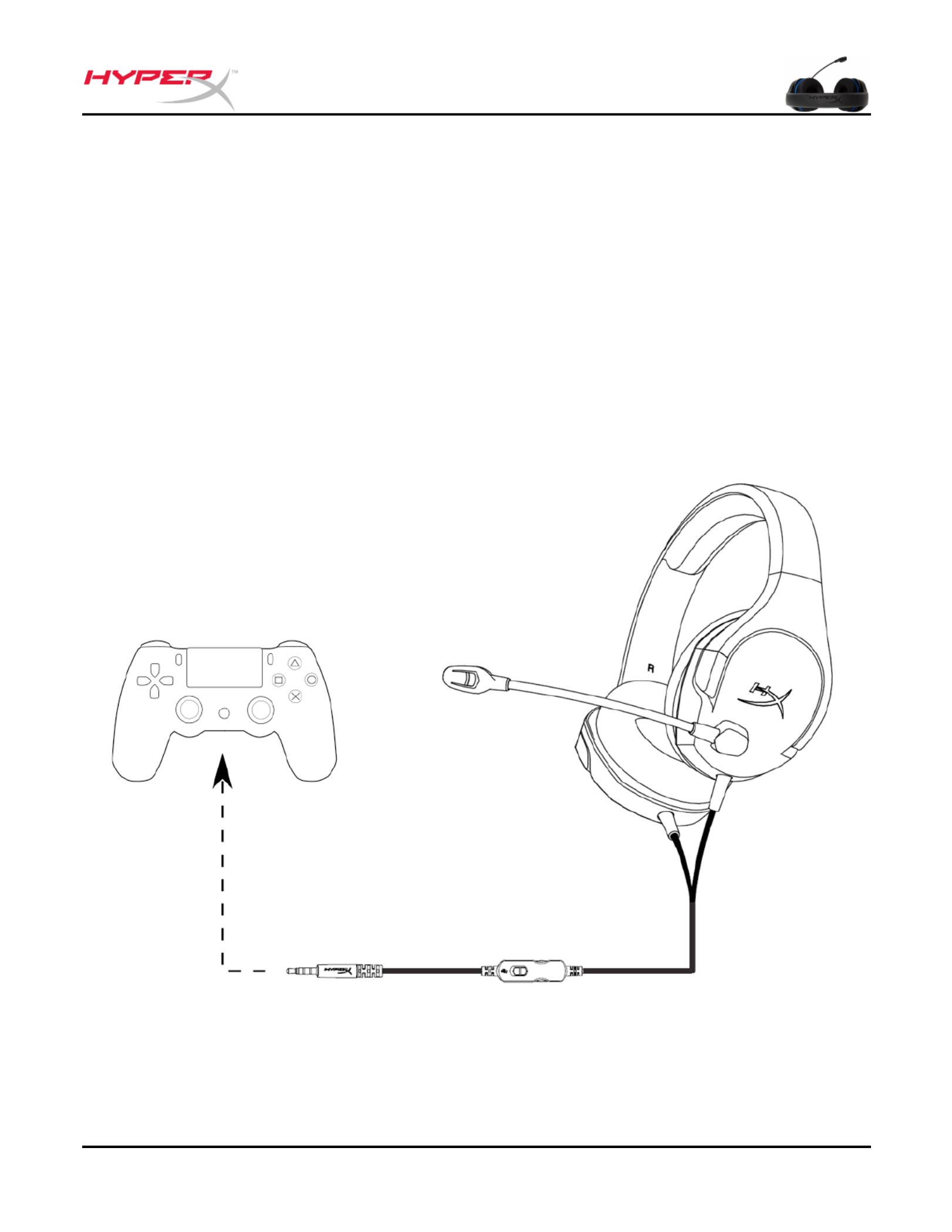

Usage (PS4™ & PS4™ Pro)
To use the headset with PlayStation™ 4 (PS4™), connect the 3.5mm plug on the headset
directly to the PS4™ game controller and follow these steps:
1. Turn on your PS4™ game console.
2. Navigate to the ‘Settings’ menu and select it.
3. Highlight the ‘Devices’ menu option and select it.
4. Scroll down to ‘Audio Devices’ and select it.
5. Choose ‘Output to Headphones’ and select ‘All Audio’’.
Using with PS4™
Document No. HSCSC001.A01480HX-
HyperX Cloud Stinger Core Headset
Page 6 9 of

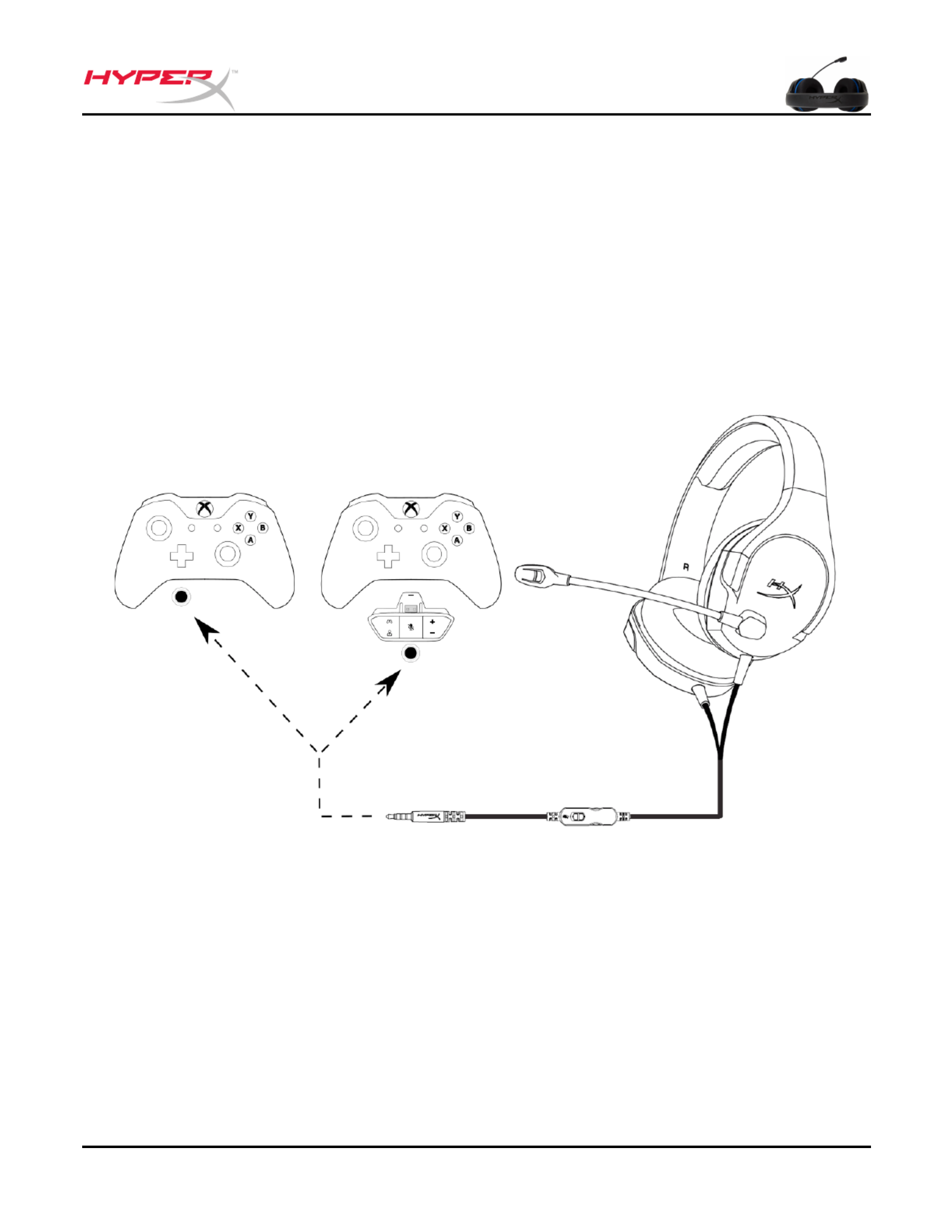

Usage (Xbox One™)
To use the headset with Xbox One ™, connect the 3.5mm plug on the headset directly to the
3.5mm jack on the Xbox ™ One controller
* If your Xbox One ™ controller does not have a 3.5mm jack, you will need the Xbox One ™ Stereo
Headset adapter (sold separately) that plugs into the Xbox One ™ controller (pictured below).
Using with Xbox One ™
*
Document No. HSCSC001.A01480HX-
HyperX Cloud Stinger Core Headset
Page 9 9 of
Headset Specifications
Headphone
Driver: Dynamic, 40mm with neodymium magnets
Type: Circumaural, closed back
Frequency response: 20Hz-20,000Hz
Impedance: 16 Ω
Sound pressure level: 99dBSPL/mW at 1kHz
THD: < 2%
Weight: 215g
Cable length and type: Headset (1.3m)
Connection: Headset - 3.5mm plug (4 pole)
Microphone
Element: Electret condenser microphone
Polar pattern: Noise-cancelling
Frequency response: 50Hz-18,000 Hz
Sensitivity: -41.5dBV (0dB=1V/Pa,1kHz)
N.º de documento HSCSC001.A01480HX-
Auriculares HyperX Cloud Stinger Core
Página 1 9 de
Auriculares HyperX Cloud Stinger
Core
Números de referencia:
HX HSCSC BK- -
N.º de documento HSCSC001.A01480HX-
Auriculares HyperX Cloud Stinger Core
Página 2 9 de
Í NDICE
Visión general .......................................................................................................................... 3
Modo de control de audio integrado en el cable ...................................................................... 4
Uso (PS4™ & PS4™ Pro) ........................................................................................................ 5
Uso (Xbox One™) .................................................................................................................... 6
Uso (Nintendo Switch™) .......................................................................................................... 7
Uso (dispositivos móviles) ........................................................................................................ 8
Especificaciones de los auriculares ......................................................................................... 9
N.º de documento HSCSC001.A01480HX-
Auriculares HyperX Cloud Stinger Core
Página 3 9 de
Vis ión general
A. Ajuste deslizante de la diadema
B. Micrófono giratorio con cancelación del
ruido
C. Control de audio integrado en el cable
N.º de documento HSCSC001.A01480HX-
Auriculares HyperX Cloud Stinger Core
Página 4 9 de

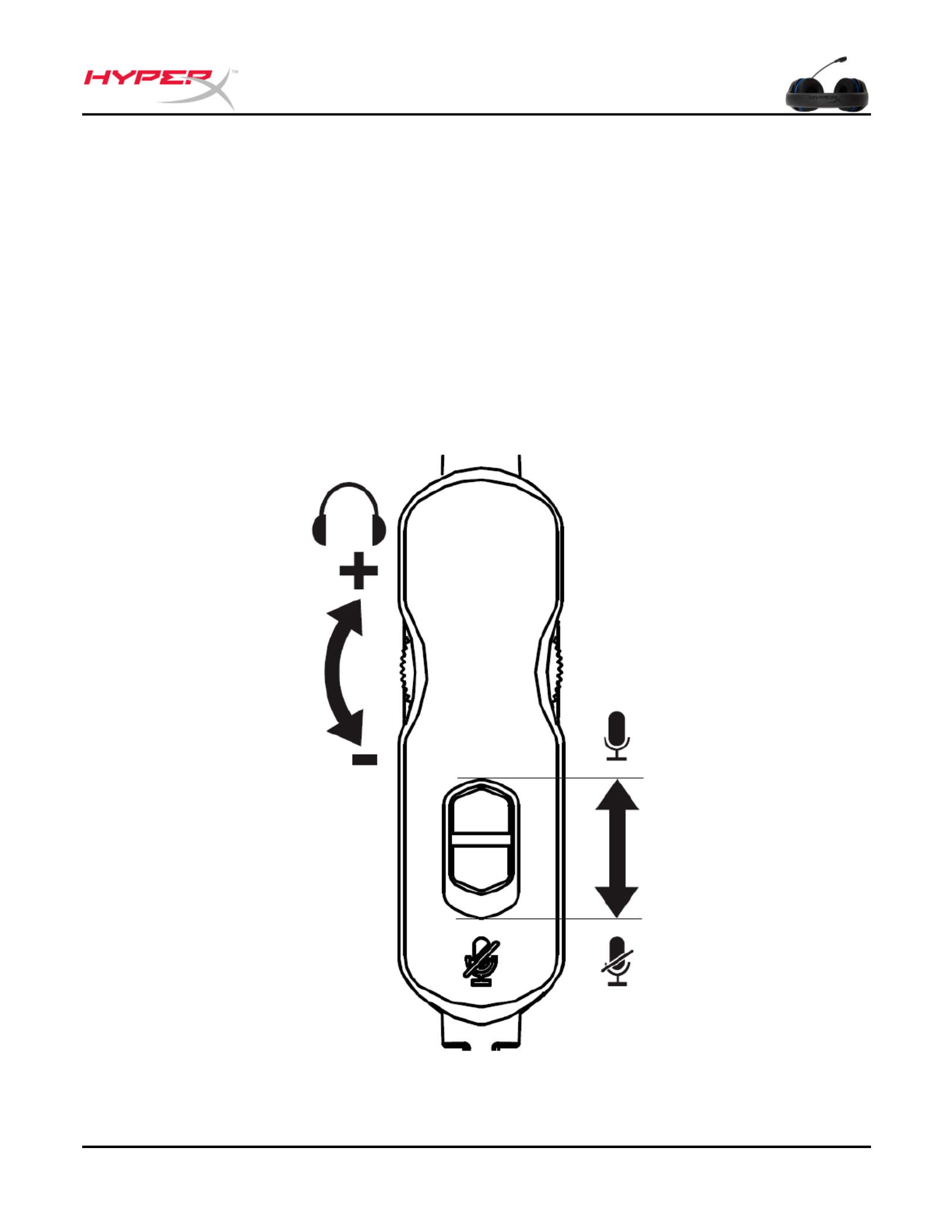

Modo de control de audio integrado en el cable
La caja de control de audio incluye una rueda de control de volumen para ajustar el volumen
emitido por los auriculares y un silenciador del micrófono para silenciar el micrófono.
Para aumentar el volumen de los auriculares, gira la rueda de volumen hacia el signo más "+"
(hacia la derecha). Para bajar el volumen, gira la rueda de volumen hacia el signo menos "–"
(hacia la izquierda).
Para silenciar el micrófono, desliza el botón de silencio del micro hacia abajo. Para activar el
micrófono, desliza el botón de silencio del micro hacia arriba.
Micrófono
Activo
Micrófono
Silencio
Auriculares
Volumen
