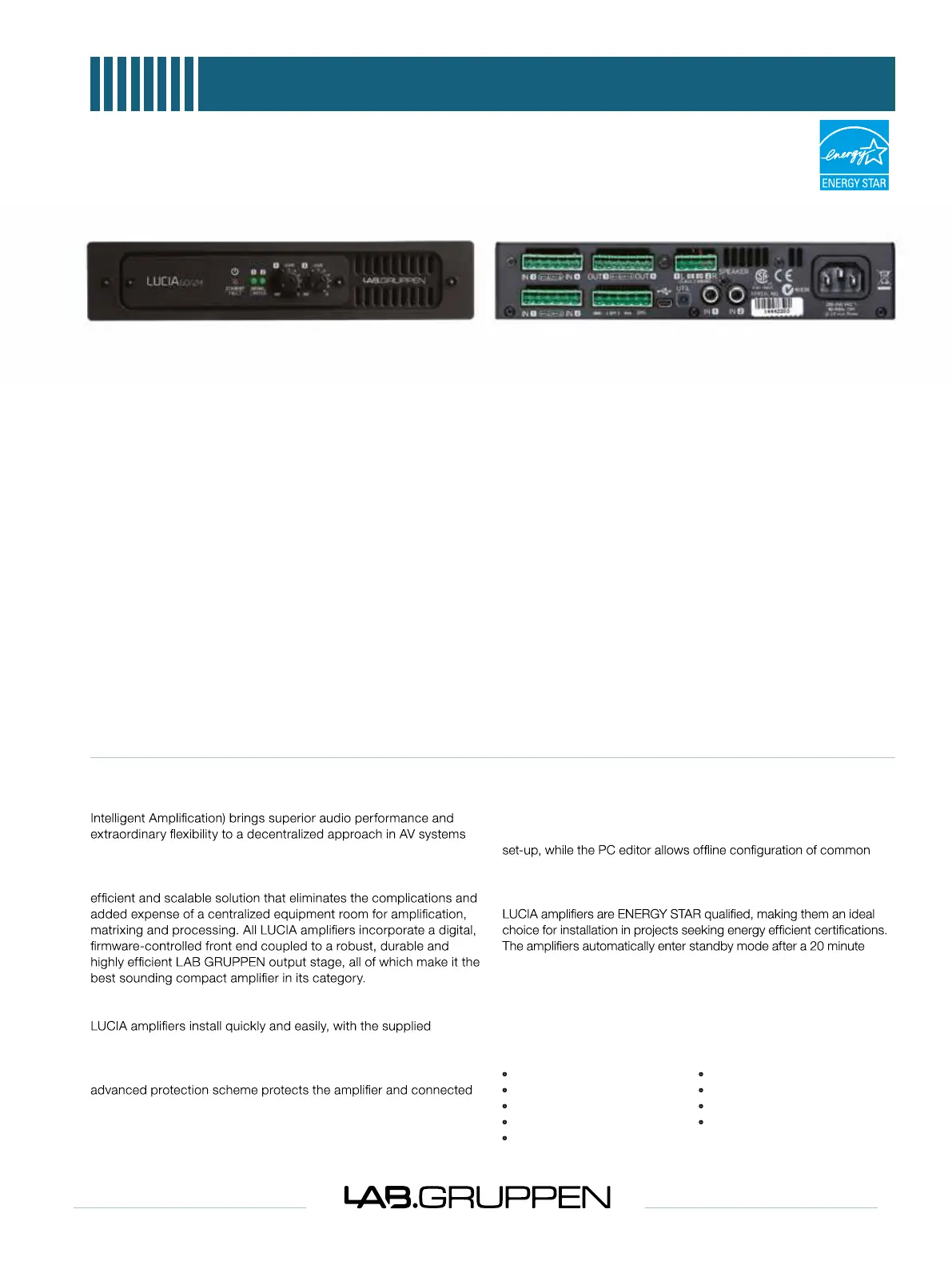

▸ Maximum output power across range of loads – 2 x 30 W

into 8, 4 or 2 ohms

▸ Comprehensive DSP features – Per channel presets for

high-pass filter, parametric EQ, multi-band compressor,

and look-ahead limiter

▸ Automatic Dynamic Loudness Contouring™ – DSP

automatically adapts to optimize performance at any output level

▸ Optimized presets – Available for specific loudspeaker models

▸ Auto Load Sense™ – Proprietary auto-set VPL™ (Voltage Peak

Limiter) for optimum performance with any connected load

▸ 4 x 4 mix matrix – Route input signals internally to amplifier or to

line-level outputs

▸ Configuration software – Windows and Mac software wizard

for initial set-up, and advanced editor for preset configuration

(LUCIA connection via USB)

▸ RS232 – Remote control and monitoring from third party

control solutions

▸ GPIO – Remote control (e.g. wall panel) for channel switching,

level control and integration with paging systems

▸ Efficient Class D amplifier – Patented design for low distortion

and minimal heat dissipation

▸ Compact form factor – Half-rack, 1U chassis and supplied

bracket for discreet on-wall mounting (e.g. behind

display screens)

▸ Intelligent fan control – Silent operation at idle and at lower

output levels

▸ Fail-safe operation – Comprehensive short circuit, thermal,

and under-voltage protection

▸ Universal power supply – Operates at 100 - 240 V AC

(50 or 60 Hz)

▸ ENERGY STAR® qualified – Conforms to latest specification

energy efficiency standards

Great sound, ﬂexibility and ease of use

LAB GRUPPEN’s innovative LUCIA (Localized Utility Compact

design. Power, processing, control and I/O are conveniently placed

exactly where they are needed. In many AV applications requiring

consistent, high quality audio output, LUCIA offers a logical, cost-

Fast installation, reliable operation

wall-mount bracket enabling discreet on-wall placement behind

video displays. All connections are via Euroblock screw terminals,

and level setting is available on front-panel potentiometers. An

loudspeakers from potential damage caused by clipping, thermal

overload, or extreme low line voltage.

Integrated mix-matrix and DSP

A versatile 4 x 4 mix-matrix and comprehensive DSP features

eliminate the need for external mixers and processors in many

applications, saving time and money. A software wizard facilitates fast

presets that can be quickly downloaded to multiple units via USB.

Green credentials

period with no signal input, consuming less than 1 watt. Automatic

power-up occurs within two seconds after an input signal is sensed.

•

Retail outlets

• Bars & restaurants

• Entertainment venues

• Corporate board rooms

• Classrooms

• Multimedia spaces

• Hotel reception/lobbies

• Museums & galleries

• Small corporate event

spaces

Applications

W W W . L A B G R U P P E N . C O M

Presets available at launch for selected Tannoy loudspeakers including the industry

leading CMS Series in-ceiling systems

LUCIA® 60/2M

Technical Data

LUCIA: Localized Utility Compact Intelligent Ampliﬁcation

W W W . L A B G R U P P E N . C O M

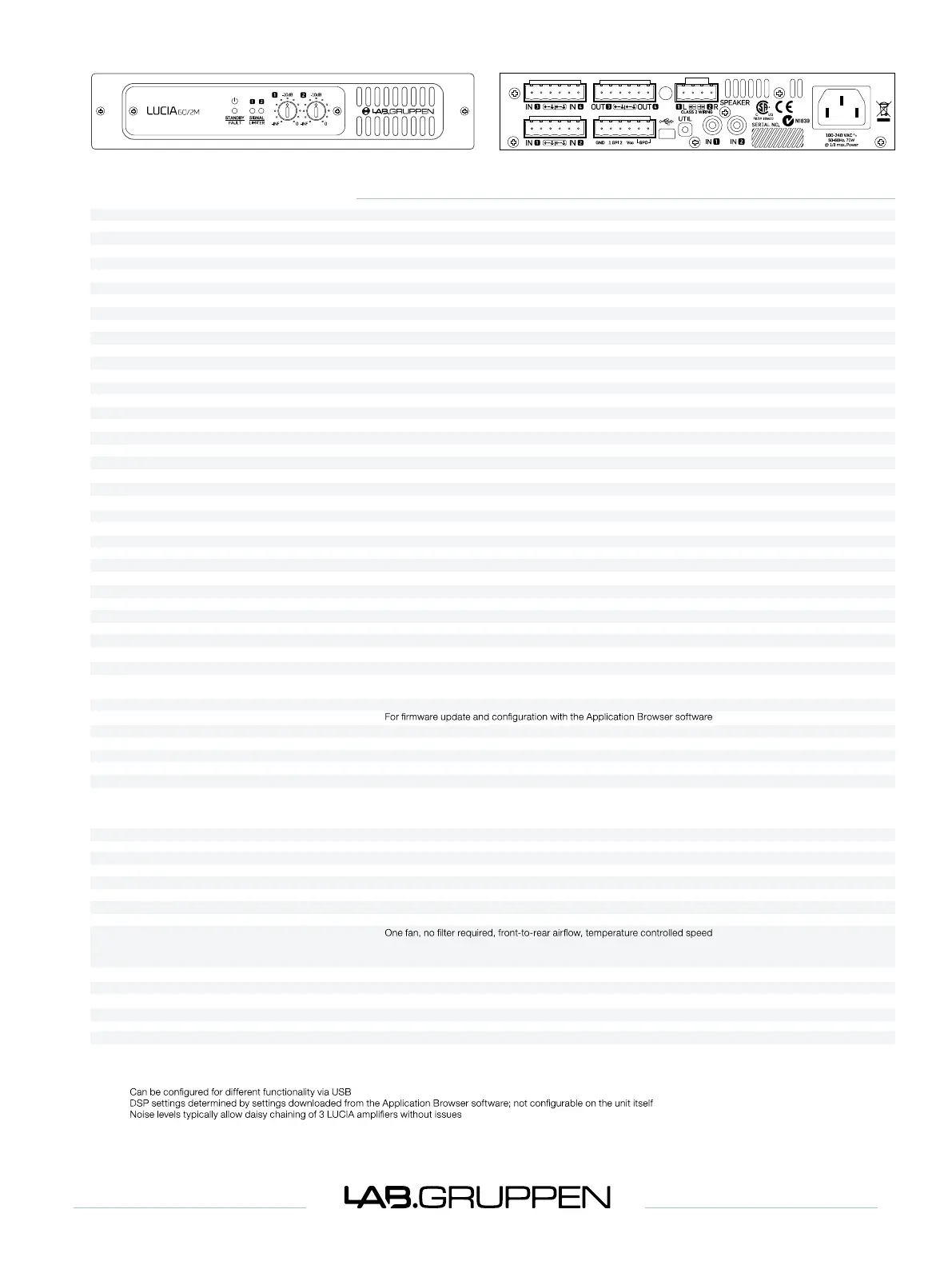

Speciﬁcations LUCIA 60/2M

General

Number of powered channels 2

Total output all channels driven 60 W

Max output voltage per channel

21.9 V peak

Max. output current per channel 3.9 Arms

Max. Output Power (all ch.’s driven)

2 ohms 30 W

4 ohms 30 W

8 ohms 30 W

16 ohms 15 W

Performance

THD 20 Hz - 20 kHz at 1 W into 8 ohms <0.3%

THD at 1 kHz and 1 dB below clipping <0.2%

Signal To noise ratio into 8 ohms >95 dBA

Channel separation (Crosstalk) at 1 kHz >60 dB

Frequency response 5 Hz - 22 kHz

Input impedance 10 kOhm

Input common mode rejection, CMR 40 dB

Gain, Sensitivity and Limiters

VPL for 8 ohm mode

21.9 V peak

VPL for 16 ohm mode

21.9 V peak

VPL for 4 ohm mode 15.5 V peak

VPL for 2 ohm mode 11 V peak

Sensitivity, balanced input

4 d

Bu / 1.23 Vrms

Sensitivity, RCA input -2 dBu / 0.62 Vrms

Input headroom for clip, balanced

12 dBu / 3.09 Vrms

Input headroom for clip, RCA

6 dBu / 1.55 Vrms

Connectors and buttons

Input connectors (per ch.) 3-pin detachable screw terminals, electronically balanced

Input connectors (ch 1 & 2) Unbalanced RCA type

Output connectors (per ch.) 2-pin detachable screw terminals

Line-level output connectors (ch. 3 & 4) 3-pin detachable screw terminals, electronically balanced

GPI (power control input)

2 channels of voltage sense type. 4 pins in a detachable screw terminal. Default for gain.

GPO (power state output)

Contact closure type, 2 pins in a detachable screw terminal

Default for external monitoring of fault/protection/power off

RS232 Can be controlled and monitored by third parties via RS232 using both the GPI pins

USB

Cooling Can stay off if the sustained power average stays below 2 x 6 W and the surrounding

temperature is below 25 degrees C

Auto mode The power state is controlled automatically with the audio signal

Level adjustment (per channel)

Front panel potentiometer, detented from -inf to 0 dB

Processing Features

Inputs processing block

4 EQ sections per input

Mix matrix routing block

4 in - 4 out mix-matrix controllable from GPI

Output processing block

4 EQ sections per output (presets available for many loudspeakers)

User adjustable output look ahead limiter

ADLC (Adaptive ISO 226 compensation)

Two line level outputs

Each capable of driving 10 LUCIA devices in parallel

Latency from any input to any output User adjustable from 9.15 to 137 ms

Power

Nominal voltage 100 - 240 VAC

Operating voltage 85 - 265 VAC

Standby consumption <1 W

Mains connector IEC inlet

Dimensions

W: 216 mm (8.5”), H: 44 mm (1.7”), D: 280 mm (11”)

Weight 1.9 kg (4.2 lbs.)

Finish Black aluminum front and black steel chassis

Approvals CE, CSA, CCC, PSE, FCC, ENERGY STAR

Note 1): Into 8 ohms and higher

Note 2): An analog soft limit will be engaged on the input above this level to reduce the clip distortion

Note 3):

Note 4):

Note 5):

All specifications are subject to change without notice.

Item no. TDS-LUCIA602M_V1 - 09.25.2017

Produkt Specifikationer

Mærke:	Lab Gruppen
Kategori:	Modtager
Model:	LUCIA 60/2M
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	216 mm
Dybde:	280 mm
Højde:	44 mm
Vægt:	1900 g
Produktfarve:	Sort
Equalizer:	Ja
Strømforbrug (standby):	1 W
Materiale:	Aluminium, Steel
Frekvensområde:	5 - 22000 Hz
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	2.0 kanaler
Certificering:	CE, CSA, CCC, PSE, FCC, Energy Star
LED-indikatorer:	Ja
Højpasfilter:	Ja
Bæredygtighedscertifikater:	ENERGY STAR
Formål:	Hjem
klirfaktor (THD):	0.3 %
Signal/støjforhold:	95 dB
Forstærker klasse:	D
Spidseffekt pr. kanal:	30 W
Højttalere tilslutningstype:	Euroblok
Indgangsimpedans:	10000 ohm (Ω)
Kølingstype:	Aktiv
Linie indgående (RCA):	2
Krydstale (1 kHz):	60 dB
Rackkapacitet:	1U
