T E C H N I C A L D A T A

Hardware

Power supply Integrated power supply unit (110–230 V, 50–60 Hz)

Power consumption max. 65 watts

Environment Temperature range 0–40°C, humidity 10–90%; non-condensing

Housing Robust metal housing, 19“ 1 HU (442 x 44 x 300 mm > W x H x D),

network connectors on the front

Number of fans 2

Interfaces

SFP+ 8 * SFP+ 1 / 10 Gbps, downlink ports for aggregation of subordinate access switches;

ports 7 & 8 congurable by software as stacking ports

TP Ethernet 2 * TP Ethernet 1 / 2.5 / 5 / 10 Gbps, for use as additional downlink ports or for connection to

a NAS or router, congurable as stacking ports

Console 1 each RJ-45 / micro USB

USB 1 * USB

Declaration of Conformity

Hereby, LANCOM Systems GmbH | Adenauerstrasse 20/B2 | D-52146 Wuerselen, declares that this device is in com-

pliance with Directives 2014/30/EU and 2014/35/EU. The full text of the EU declaration of conformity is available at the

following internet address: www.lancom-systems.com/ce/

Package Content

Documentation Quick Reference Guide (DE/EN), Installation Guide (DE/EN)

Mounting brackets 2 mounting brackets for rack mounting

Cables 1 IEC power cord, 1 serial conguration cable, 1 micro USB conguration cable

M O U N T I N G A N D C O N N E C T I N G T H E D E V I C E

c SFP+ ports 1G / 10 G

Off Port inactive or disabled

Green Link 10 Gbps

Green, blinking Data transfer, link 10 Gbps

Orange Link 1 Gbps

Orange, blinking Data transfer, link 1 Gbps

Conguration interfaces RJ-45 & micro USB (Console)

Connect the conguration interface a via the included serial

conguration cable to the serial interface of the device you want

to use for conguring / monitoring the switch. Alternatively use the

interface with the included micro USB cable.b

USB interface

Connect a USB stick to the USB interface to store general

conguration scripts or debug data.

You can also use this interface to upload a new rmware.

SFP+ interfaces 1G/10G

Insert suitable LANCOM SFP+ modules into the SFP+ interfaces

1 to 8. Choose cables which are compatible with the SFP+

modules and connect them as described in the SFP modules

mounting instructions

www.lancom-systems.com/SFP-module-MI.

TP Ethernet interfaces 1G/2.5G/5G/10G (combo ports)

Connect the interfaces 9 to 10 via high quality CAT.6 Ethernet

cables to your PC or a LAN switch.

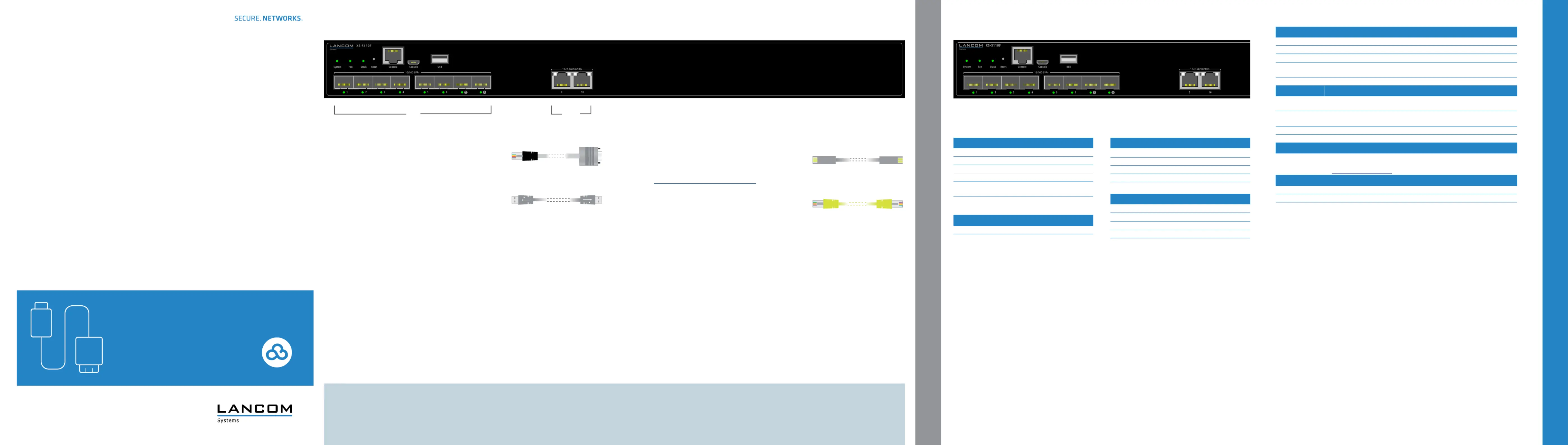

LANCOM XS-5110F

Quick Reference Guide

C ud eadylo -r

Please observe the following when setting up the device

AThe mains plug of the device must be freely accessible.

ADo not rest any objects on top of the device and do not stack multiple devices.

A Keep the ventilation slots of the device clear of obstruction.

AMount the device into a 19” unit in a server cabinet using the provided screws and mounting brackets.

b Reset button

~5 sec. pressed Device restart

7~12 sec. pressed Conguration reset and device restart

Before initial startup, please make sure to take notice of the information regarding the intended use in the enclosed installation guide!

Operate the device only with a professionally installed power supply at a nearby power socket that is freely accessible at all times.

b c

a System / Fan / Stack

System: green Device operational

System: red Hardware error

Fan: red Fan error

Stack: off No connection

Stack: green As master device: port activated and

connected to slave device

Stack: orange As slave device: port activated and con-

nected to master device
