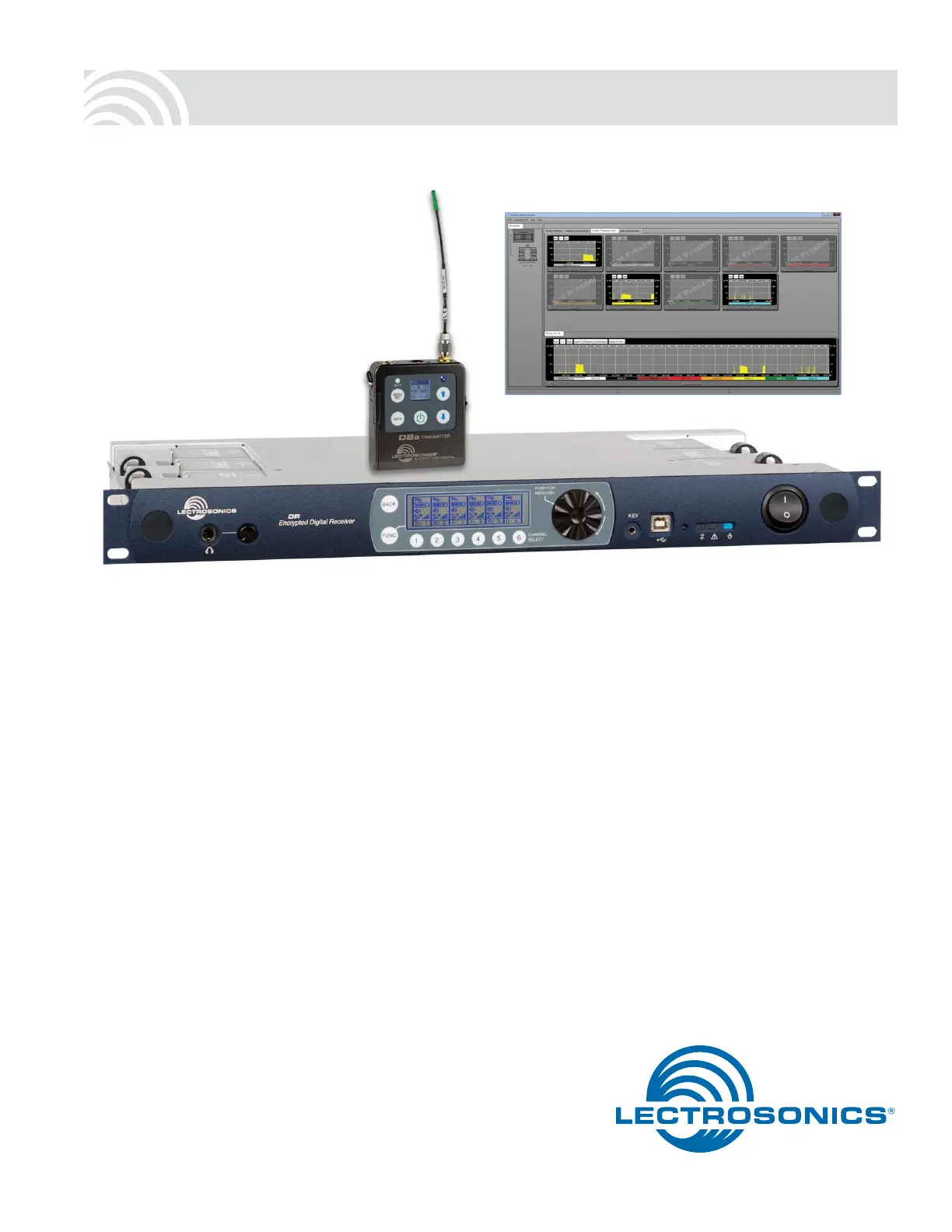

DSW System

Encrypted Digital Wireless System

TECHNICAL DATA

Rio Rancho, NM, USA

www.lectrosonics.com

• Six-channel modular design

• Built-in wideband antenna multicoupler with

loop-thru for additional receivers

• 256-bit encryption - AES 256-CTR

• Transmitter tunes entire frequency range

• Extended operating range

• Analog and AES-EBU audio outputs

• Ethernet interface

• USB interface

• RS-232 serial interface

• Includes PC software for Windows/Mac

A completely new digital architecture was developed for

the DSW wireless system. Extended operating range

rivals the best analog and Digital Hybrid Wireless

sys-

tems, with remarkable audio quality and only 2.5 ms of

latency. The system operates on standard UHF FCC Part

74 frequencies (TV channel band).

The DR receiver is a modular, six-channel design with

a host mainframe that contains the DSP, microproces-

sor, antenna multicoupler and control interface. Receiver

modules are installed on either side of the mainframe.

Antenna ports on the rear panel accept input from

remote antennas, with a “loop-thru” output to another

mainframe using the internal multicoupler. A kit is also

available to mount antenna inputs (BNC connectors) on

the front panel, with a coaxial cable routed inside the

mainframe chassis to a rear panel location.

The DBa belt pack transmitter is encased in a solid ma-

chined aluminum housing with a membrane switch panel

and backlit LCD interface. The servo bias input circuitry

will work with a wide variety of microphones and line

level sources, Input gain is adjustable over a wide range

in 1 dB steps to optimize the signal to noise ratio and

dynamics of the audio.

DR Receiver Rear Panel

DR Receiver Front Panel

Modular Versatility

Individual receiver modules are nested on both sides

of the mainframe assembly. The modules tune across a

25.6 MHz range and can be positioned in any of the six

pockets in the chassis. Delrin retaining clips keep the

modules securely in place.

Front Panel Antenna Mounts

Convenient when the receiver is installed in a rack mount

transit case.

Headphone Monitor

Monitor individual or a mix of any number of channels.

Volume knob recesses into from panel.

LCD and Control Panel

Easy navigation of numerous setup parameters is pro-

vided by a backlit LCD, membrane pushbuttons and a

rotary control wheel.

Encryption Key Interface

Encryption key transfer and complete transmitter setup is

accessed through a TRS mini-jack connection.

Front Panel USB Port

A standard USB interface is provided on the front panel

for the PC interface.

LED Indicators

Operational and power status is indicated by three LEDs.

Antenna Ports

Antenna inputs and outputs to an additional mainframe

allow “stacking” of up to three mainframes with a single

pair of antennas.

Audio Outputs

Six XLR jacks provide analog and AES-EBU outputs in

various conﬁgurations as labeled on the rear panel.

Ethernet Port

Network connection is provided through a standard RJ-

45 jack.

AES Word Clock

The mainframe can provide the master clock sync signal,

or sync to an external clock.

RS-232 Port

Control with third party devices is enabled through an

RS-232 serial port.

Power Supply

The mainframe is powered by 10 to 18 VDC from an

external 4 amp source.

( )

AES

WORD

CLOCK

ANT

PWR

AES

5 & 6

AES

3 & 4

AES

1 & 2

ANT

PWR

The modules are fan

cooled for reliable op-

eration when installed

in racks with limited

ventilation. Unused

modules installed in

the mainframe can be

powered on and off

with the software or

front panel controls.
