IMPORTANT

INSTRUCTIONS

1. Read and understand all instructions. Follow all

warnings and instructions marked on the product.

2. Do not use this product near water e.g., near a —

tub, wash basin, kitchen sink or laundry tub, in a

wet basement, or near a swimming pool.

3. Never push objects of any kind into this product

through openings, as they may touch dangerous

voltage s.

4. SAVE THESE INSTRUCTIONS.

SAFETY

INFORMATION

1. Never install communications wiring or

components during a lightning storm.

2. Never install communications components in wet

locations unless the components are designed

specifically for use in wet locations.

3. Never touch uninsulated wires or terminals unless

the wiring has been disconnected at the network

interface.

4. Use caution when installing or modifying

communications wiring or components.

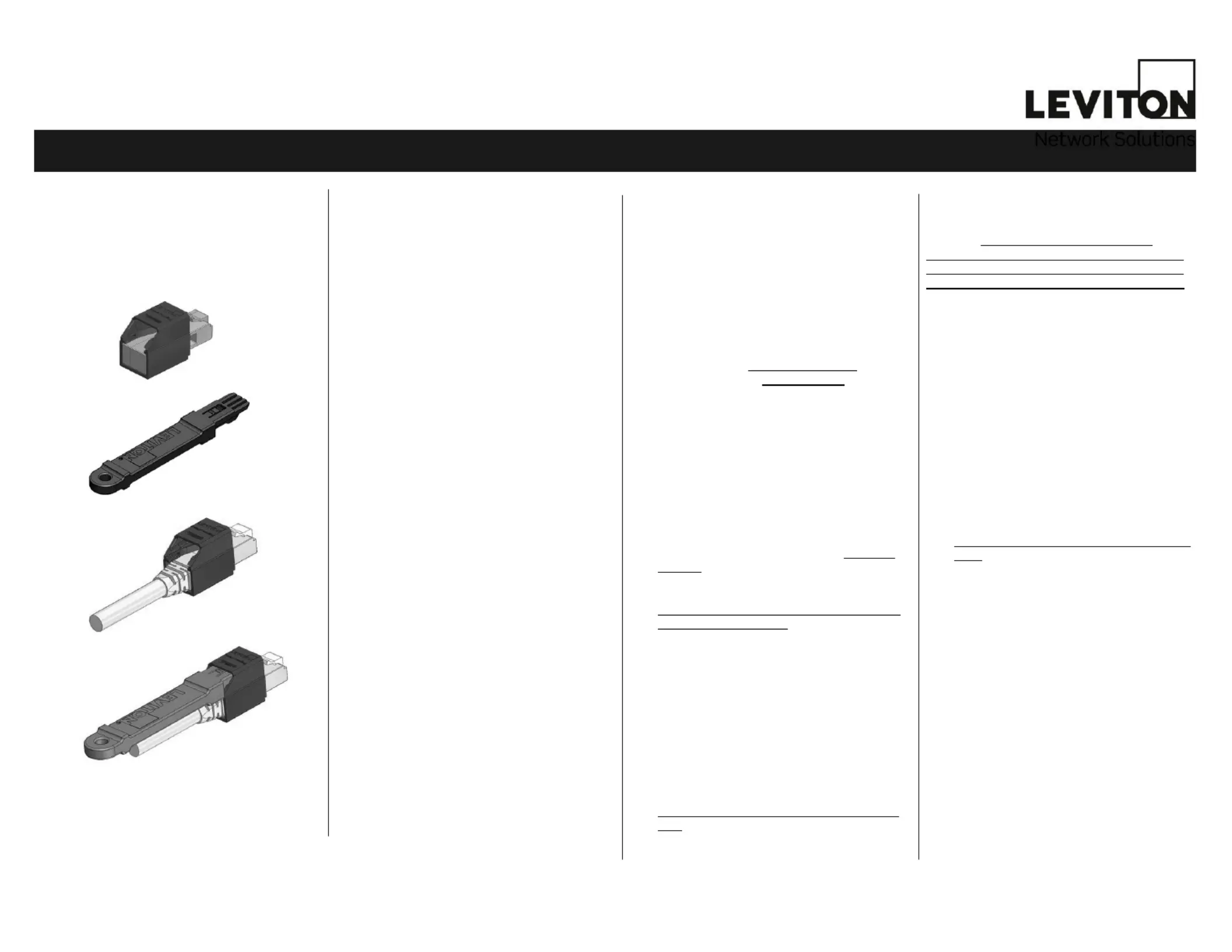

The Leviton Secure RJ System consists

of three basic parts:

1. Secure RJ Patch Cord (See Image C) –

available in Category 6 or Category 6A. It is

a regular data patch cord assembly with

Secure Housings covering the plugs at each

end. Standard product is available with red,

white, or blue cable jacket, and in lengths of

5, 10, or 20 feet (approx. 1.5, 3, or 6

meters). The Secure Housings at the ends

of the cords are available in 8 colors. Each

color of housing is uniquely keyed .

 Custom length and dierent color cable jacket

Secure RJ Patch Cords are available

through Leviton’s Make- -Order (MTO) to

program. Cords with just one end

congured for Secure RJ are also available.

Please contact your Manufacturer’s

Representative or Leviton Network

Solutions Inside Sales Department

(1.800.722.2082) for a quote on custom

product.

2. Secure RJ Extraction Tool (See Image B) –

The Extraction tool is available in the same

8 colors as the Secure Housings on the

ends of the Secure RJ Patch Cords. The 8

colors of Extraction Tool are each also

uniquely keyed to match the keying patterns

of the Secure Housings. A same-color

Extraction Tool is required to remove a

Secure RJ Patch Cord from the data port

or jack.

 Additionally, there is a Master Extraction Tool

available, which is a dierent color than the

other Extraction Tools. The Master

Extraction Tool will allow the removal of any

Secure RJ component from a data port or

jack.

3. Secure RJ Port Blocker (See Image A) –

This port blocking device is available in the

same 8 colors as the other parts. It also

requires a same-color Secure RJ Extraction

Tool (or the Master Extraction Tool) for

removal from a data port or jack.

Use of the Leviton Secure RJ System:

Caution: Before plugging any Secure RJ

component into a data port or jack be sure that

a same- lor extraction tool is available for the co

removal of the Secure RJ device from the jack!

1. Ensure that the correct data-rated patch

cord is being used: Category 6 or

Category 6A. (Use a Category 6 Secure

RJ Patch Cord if Secure RJ functionality is

desired in a Category 5e installation).

2. Use of Secure RJ Patch Cord Plug the –

Secure RJ Patch Cord into any data port

or jack, just as a regular data patch cord

would be used. Use cords with common-

colored Secure Housings to identify or

segregate dierent data networks, to

identify tenants in a shared data facility,

etc.

3. Use of Secure RJ Port Blocker – Plug the

Secure RJ Port Blocker into any data port

or jack. Use the port blocker device to

protect, reserve, identify, or secure unused

ports in a data installation. Example: A

data network is connected with Secure RJ

Patch Cords with red Secure Housings at

the ends. There is a need to reserve ports

for future expansion of the “Red” network.

Use red Secure RJ Port Blockers to

reserve these ports.

4. Use of the Secure RJ Extraction Tool (See

Image D) Observe that the Secure RJ –

Extraction Tool has a “Cord Here”

designation on one side. This side goes

next to the patch cord. Insert the keyed

end of the Extraction Tool into the rear of a

same-color Secure Housing. When the

Extraction Tool clicks into place, gently pull

back to remove the Secure RJ Patch Cord

from the jack. The same tool works for

extracting Secure RJ Patch Cords and

Secure RJ Port Blockers. The Master

Extraction Tool will remove any Secure RJ

device.

SRJ6*, SRJA*, SRJPB,

SRJET, SRJMT

Secure RJ System

Instructions for Use

2011 © Leviton Manufacturing Co., Inc.

Customer Support: 800-824-3005

International: 425-486-2222

Web: www.leviton.com

PK-93744- - - 10 02 0A
