INTERNET CONNECTIVITY KIT

MODEL 41A7928-3

To prevent possible SERIOUS INJURY or DEATH from electrocution:

• Be sure power is NOT connected BEFORE installing door control.

• Connect ONLY to 7-28 VOLT low voltage wires.

To prevent possible SERIOUS INJURY or DEATH from a closing garage

door:

• Install door control within sight of garage door, out of reach of

children at a minimum height of 5 feet (1.5 m), and away from ALL

moving parts of door.

• NEVER permit children to operate or play with door control push

buttons or remote control transmitters.

• Activate door ONLY when it can be seen clearly, is properly adjusted,

and there are no obstructions to door travel.

• ALWAYS keep garage door in sight until completely closed. NEVER

permit anyone to cross path of closing garage door.

• DO NOT install this door control on garage door opener systems

controlling one-piece or swing doors.

To provide an adequate visual alert, the garage door opener light bulb(s)

MUST be a minimum of 40 Watt (or equivalent).

WARNING

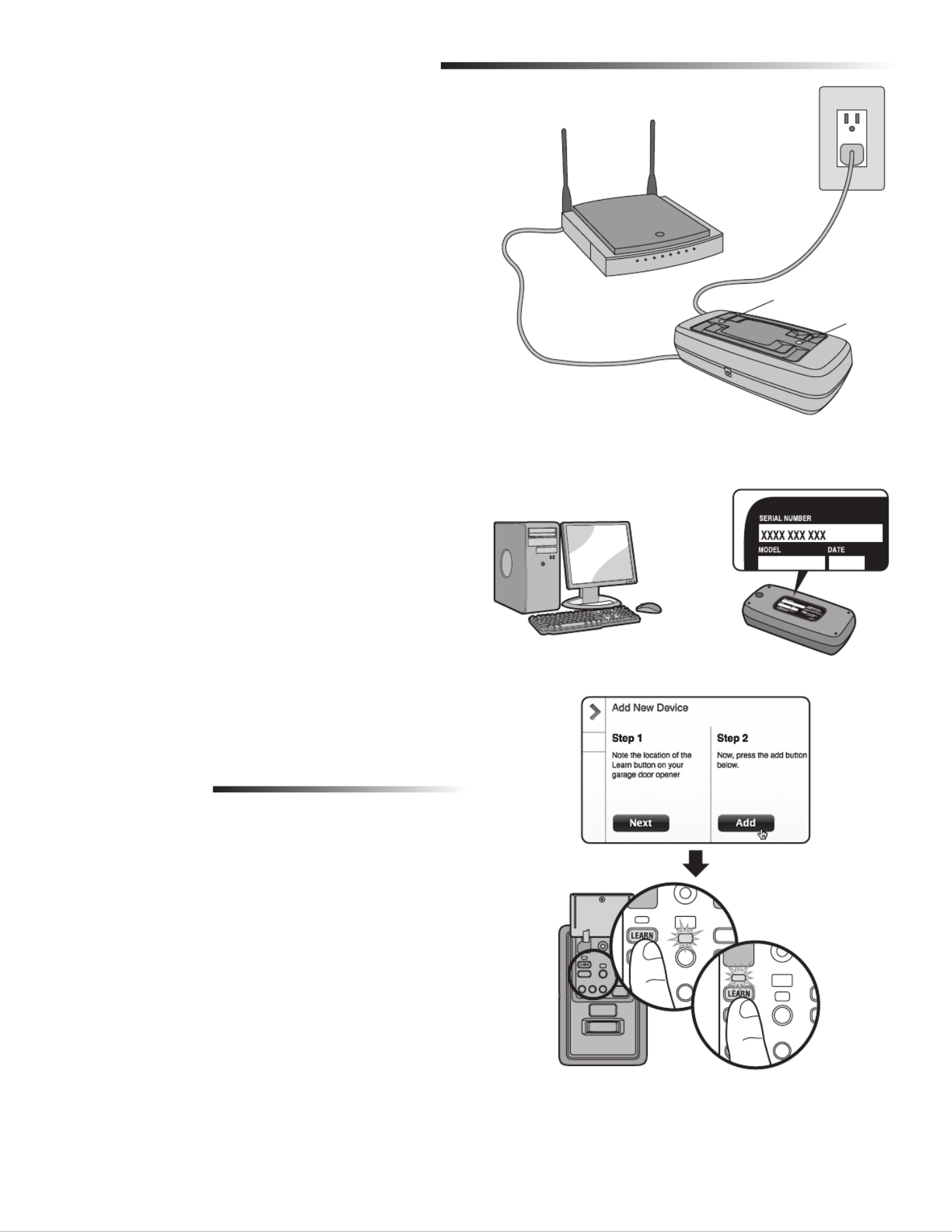

This kit includes the myQ® Control Panel model 41A7928-3 and the

Chamberlain® Internet Gateway model CIGBU. The myQ Control Panel is

intended to be installed with Security:™ Garage Door Openers

manufactured between 1998 and present. The myQ Control Panel is NOT

compatible with Security: 2.0™ Garage Door Openers. DO NOT install this

door control on garage door opener systems controlling one-piece or swing

doors.

APPLICATION

The myQ Control Panel offers a quick and convenient way to add Security

2.0™ and myQ technology to your existing garage door opener. myQ

technology uses a 900MHz signal to provide two-way communication

between the garage door opener and myQ enabled accessories. When

programmed to the Chamberlain® Internet Gateway you can monitor and

control your garage door from any internet enabled computer or

smartphone. You may program up to 12 Security 2.0™ remote controls,

2 Security 2.0™ keyless entries and a combination of 16 myQ

accessories to the myQ control panel. For full compatibility, see page 4.

OVERVIEW

Install the control panel in place of the existing door control. Due to power

consumption the control panel cannot be used in conjunction with another

wired door control connected to your garage door opener. If an additional

door control is needed, the can be wireless door control model 41A7773-1

programmed to the control panel. To program the 41A7773-1 to the control

panel, follow the remote control programming steps. When in battery back-

up mode, any feature using unattended operation such as Timer-to-Close,

closure from a garage door and gate monitor or remote operation utilizing

the Chamberlain®

Internet Gateway will be disabled.

1. Disconnect all electrical and battery power (if applicable) to the

garage door opener.

2. Remove the existing door control from the wall.

3. Note the polarity of the wires connected to the existing door control.

• Label the wire connected to the RED terminal.

• Label the wire connected to the WHITE terminal.

Disconnect the wires from the existing door control.

4. Connect the wires to the new myQ Control Panel. Make sure the

polarity is correct.

• Red wire to the R terminal.

• White wire to the W terminal.

5. Mount the control panel to the wall.

6. Reconnect power. The yellow command LED and the red learn LED

will blink quickly for up to 5 minutes as the control panel recharges.

When the control panel is operational, the yellow command LED will

glow steadily.

7. To test the control panel, press the push bar to activate the garage

door opener.

INSTALL THE Q CONTROL PANELmy

Existing Door Control

Discard, donate

or recycle

Wire from RED

terminal

Connect

RED wire to

R terminal

Wire from

WHITE

terminal

Connect

WHITE

wire to W

terminal

myQ Control Panel

• If the yellow command LED does not turn on, reverse the wires

connected to the R and W terminals of the control panel. Replace

wire if necessary.

• If yellow and red LEDs are blinking slowly, the control panel is not

compatible with your garage door opener.

• If the yellow and red LEDs are blinking quickly, the control panel is

charging, and may take up to 5 minutes to become operational.

TROUBLESHOOTING
