1. CREATE A NEW myQ®
Business FACILITY
1. A. If existing facility: Skip to Step 3.
B. IF new facility: On the left navigation bar,
click Dashboard, then Facilities tab. Click the Add
New Facility button.
2. Choose Community or Commercial Facility and
click Continue.
3. Confirm your selection of Community or
Commercial facility and click Confirm.
4. Enter the Facility information and click Save.
4. ADD ANOTHER DOOR
(OPTIONAL)
1. On the left navigation bar, click Dashboard,
then Facilities tab.
2. Click the desired facility.
3. Click the Device Management tab and select
the CAP2D.
4. Click on the Door Settings tab next to the
Controller Settings.
5. Click the Add Door button.
6. Enter the name of the door.
7. Click Save.
NOTE: Each CAP2D supports 2 doors.
5. ADD CREDEN TIALS
1. On the left navigation bar, click Credentials.
2. Click the Add Credential button to add
transmitters, RFID tags, cards, etc.
individually or in bulk to the Facility.
3. Click Save.
NOTE: A credential must be associated to a
person for it to be active.
6. INVITE FACILITY OWN ER
AND ADMINISTRATORS
1. From the People menu, click the Add Person
button.
2. Enter their first and last name, email, select a
role, and click Save.
3. Check [x] Send myQ Business Invite.
The person will receive an email invite to log into
the Facility with rights determined by their role.
The ranking of the roles are Dealer Owner and
Facility Owner have the most control, followed by
Dealer Manager, Facility Manager, Dealer Tech,
and Access Manager.
2. SELECT A SUBSCRIPTION
PLAN
1. Click profile name in upper right corner then
select Billing.
2. Select a subscription Plan.
3. Enter payment information and select monthly or
yearly payments.
3. ADD CAP2D TO THE
FACILITY
The Control Panel # (CP#) is located on the
bottom of the CAP2D.
1. On the left navigation bar, click Facility, then
click Device Management
2. Click the "Add Devices" button
3. Click, "+" next to the CAP2D option on,"Select
a device to add"
4. Enter the CP # (format: XXX-XX-XXXXX) and
name the CAP2D.
5. Click Save.
Q U I C K S T A R T
G U I D E
C A P 2 D
IF YOU DO NOT HAVE ACCESS TO my Q ® B usi nes s™
PLEASE CALL LIFTMASTER CU STO MER CA RE AT
800- 32 3- 2276 TO SETUP AN ACCOUNT.
8. CONN ECT POWER
If using PoE (Power over Ethernet), skip to the
next step. Otherwise, move the PoE jumper from
the PoE setting and connect a 12 VDC transformer
(1.5 Amps min.) to the power input connector and
plug the transformer into a 120V AC outlet after all
connections have been made.
7. ADD PEOPLE
LiftMaster offers a database import service. Go to
http://support.dealer.liftmaster.com and click on
the Email Question button to initiate a database
import. Select myQ® Business TM for the product in
the Email Question dialog box.
1. From the People menu, click the Add Person
Button.
2. Add staff, residents, and vendors. This includes
phone number(s), entry code(s), credentials,
group(s), and activation dates.
3. Click Save.
NOTE: A person must be in a group to access any
entrances in the community.
FULL INSTALLATION MANUAL CAN BE DOWNLOADED
AT L I FTM A STE R . CO M / CA P2 D .
GO TO: , FOR Y O U TU B E . CO M /L IF TM A S TE R S U PP O R T
INSTALLATION AND PROGRAMMING V IDEOS.

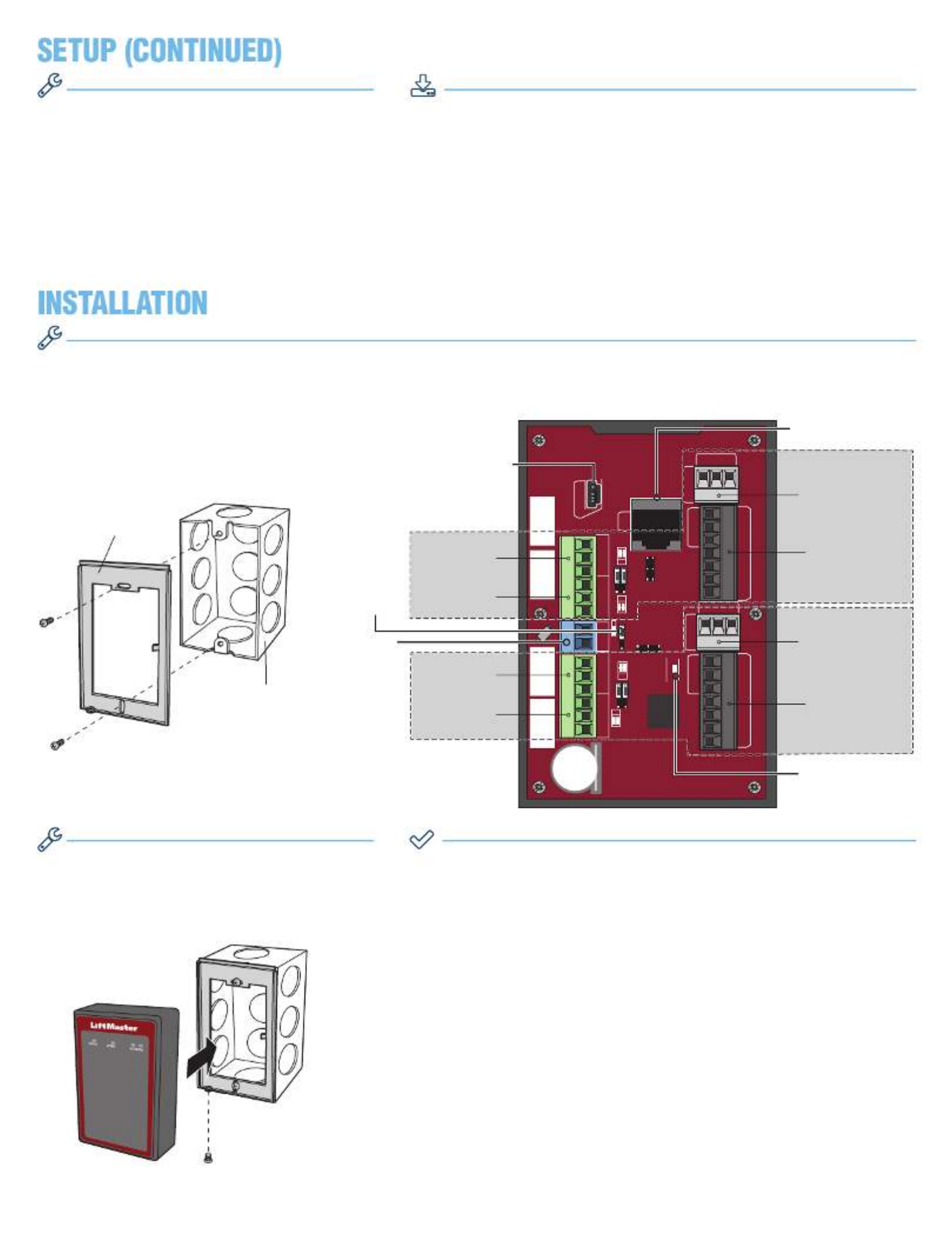

3. INSTALL THE CAP 2 D
1. Make sure all the wiring is tucked into the electrical box.
2. Slide the CAP2D onto the bracket and secure with the
screw on the bottom of the CAP2D.
4. VAL ID ATE P R OP E R OP ERATION
Test each credential type and ensure proper behavior of each gate/door connected to
CAP2D.
Bracket
Electrical Box
LAN
ADMIN
DRY
RLY1
WET
PSE1
PoEDRY
WET
RLY2
HRTBT
REA DER 1
IO 1
REX
COM
DOOR
RED GRN 12V BUZ GND D1 D0
IO 2
REX
COM
DOOR
REA DER 2
RED GRN 12V BUZ GND D1 D0
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
-12IN+
ADMINISTRATIVE USB
DOOR 1DOOR 2
Auxiliary
Relay 1
REQUEST TO EXIT
STATUS
WIEGAND INPUT
REQUEST TO EXIT
STATUS
WIEGAND INPUT
POWER
CONFIG
JUMPER
EXTERNAL
12V POWER
LAN/PoE Connector
LOCAL HEARTBEAT
LED
Primary
Relay 1
Auxiliary
Relay 2
Primary
Relay 2
1. MOU N T T HE B R A CK ET
1. Install an electrical box in the desired mounting location.
2. Remove the bracket from the back of the CAP2D.
3. Mount the bracket to the electrical box.
NOTE: CAP2D is not designed to be installed in outdoor locations
subject to rain, moisture/condensation, and dust. A suitable NEMA
enclosure is recommended for outdoor applications.
2. CON N ECT ACCE SS CON T R O L WIR IN G
Route all required wiring into the CAP2D and make necessary connections.
9. CON N ECT TO IN T E R N E T
Connect an Ethernet cable to the CAP2D’s LAN port (if using
a PoE port the CAP2D will power up). CAP2D uses DHCP
by default. If a static IP is required, see the full instruction
manual.
Power on the CAP2D. The network LED will turn blue when
properly connected to a router or switch.
10. D O WN LO AD D ATAB ASE
Confirm setup prior to installation.
Test a valid credential and ensure the relay fires.
Confirm transaction appears in myQ® Business activity log.
Disconnect power and Internet after settings have been confirmed.
