Side 1/10

Part no.:

| DESCRIPTION

36467

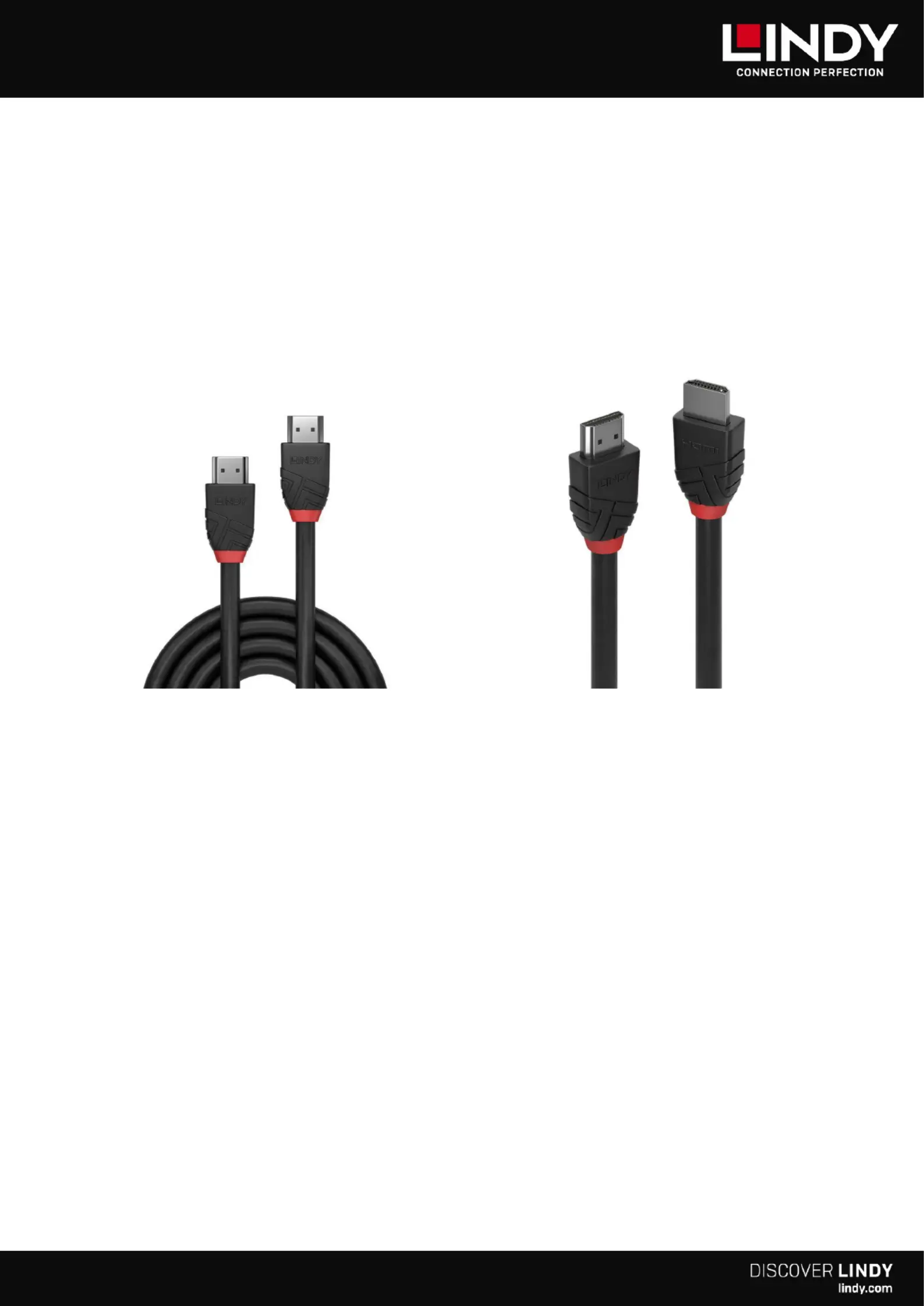

7.5m Standard HDMI Cable, Black Line

HDMI Male to Male

Entry Level Standard HDMI 2.0 cable for home and small oﬃce applications

Supports UHD resolutions up to 4096x2160@30hz 4:4:4 8bit

Robust PVC housing, Nickel Connectors, 24k gold plated contacts

Triple shielded cable, corrosion resistant copper coated steel 28AWG conductors

10 year warranty

From the lines cable connectivity concept developed by Lindy, Black Line Standard HDMI cables are fully featured, entry level high

resolution connection solutions, perfect for home and small oﬃce use.

Black Line Standard HDMI cables feature triple shielded construction with 28AWG copper coated steel conductors for premium

performance and corrosion resistance. Nickel connectors and gold ashed contacts maintain signal integrity and reliability. ﬂ

UHD resolutions up to 4K 4096x2160@30Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32

channel audio and Dolby True HD.

The HDMI 2.0 speci cation is supported for 10.2Gbps bandwidth capacity in cable lengths up to 15m.ﬁ

Black Line HDMI cables are available in lengths from 0.5m to 15m

•

| TECHNICAL DATA SHEET



Connectors

Connector A: HDMI Type A Male

Connector B: HDMI Type A Male

Housing Material: PVC

Connector Plating: Nickel

Pin Construction: Phosphor bronze

Pin Plating: Gold Flash

Dimensions (approx.) WxDxH: 19.2x34.1x10.6mm (0.76x1.34x0.42in)

Cable Construction

Length: 7.5m (24.60ft)

Standard: Standard HDMI

Colour: Black

Type: Round

Jacket Diameter: 7mm (0.27in)

Jacket Material: PVC

Conductor Material: Copper Coated Steel

Conductor Gauge: 28AWG

Shielding: Aluminum Foil

Speci cationsﬁ

Supported Bandwidth: 10.2Gbps

Maximum Resolution: 4096x2160@30Hz 4:4:4 8bit

Nominal Attenuation:300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz

<20dB

Minimum Bend Radius: 70mm (2.75in)

Operating Temperature: -10°C - 80°C (14°F - 176°F)

Storage Temperature: -10°C - 80°C (14°F - 176°F)

ATC Approved: No

Miscellaneous

Packaging Type: Polybag

Warranty (Years): 10

Product Compliance: RoHS, Reach, UL

Purchasing Information

No.: 36467

EAN: 4002888364683

This product is also available in otherlengths

36470 - 0.5m (1.64ft)

36471 - 1m (3.28ft)

36472 - 2m (6.56ft)

36473 - 3m (9.84ft)

36474 - 5m (16.44ft)

36467 - 7.5m (24.60ft)

36468 - 10m (32.80ft)

36469 - 15m (49.21ft)

•

| TECHNICAL DATA SHEET



Produkt Specifikationer

Mærke:	Lindy
Kategori:	Kabler til computere og periferiudstyr
Model:	36467
Produktfarve:	Sort
Understøttede videotilstande:	2160i
Opbevaringstemperatur (T-T):	-10 - 80 °C
Driftstemperatur (T-T):	-10 - 80 °C
Pakketype:	Polybag
Understøttede grafikopløsninger:	4096 x 2160
Kabellængde:	7.5 m
Bæredygtighedscertifikater:	REACH, RoHS, UL ECOLOGO
Maksimal opdateringshastighed:	30 Hz
HDMI-version:	2.0
Overholdelse af bæredygtighed:	Ja
Stik 1:	HDMI Type A (Standard)
Stik 2:	HDMI Type A (Standard)
Stik 1 køn:	Hanstik
Stik 2 køn:	Hanstik
Stikforbindelse kontakter plettering:	Nikkel
Dataoverførselshastighed:	10.2 Gbit/sek.
Kabeltype:	Rundt kabel
Stik 1 formfaktor:	Lige
Stik 2 formfaktor:	Lige
Kabeldiameter:	7 mm
Magnetisk afskærmet:	Ja
AWG-ledningsstørrelse:	28
Kabelmateriale:	Kobberbelagt stål (CCS)
HDMI Ethernet-kanal:	Ja
Kabel kappemateriale:	Nylon/polyvinylchlorid (PVC)
Materiale til stikhus:	Polyvinylchlorid (PVC)
Farveprøvetagning:	4:4:4
Tilslutningsmateriale:	Nikkel
Stik 1 dimensioner (BxDxH):	19.2 x 34.1 x 10.6 mm
Stik 2 dimensioner (BxDxH):	19.2 x 34.1 x 10.6 mm
Bøjeradius (min.):	70 mm
Skjold materiale:	Aluminium
