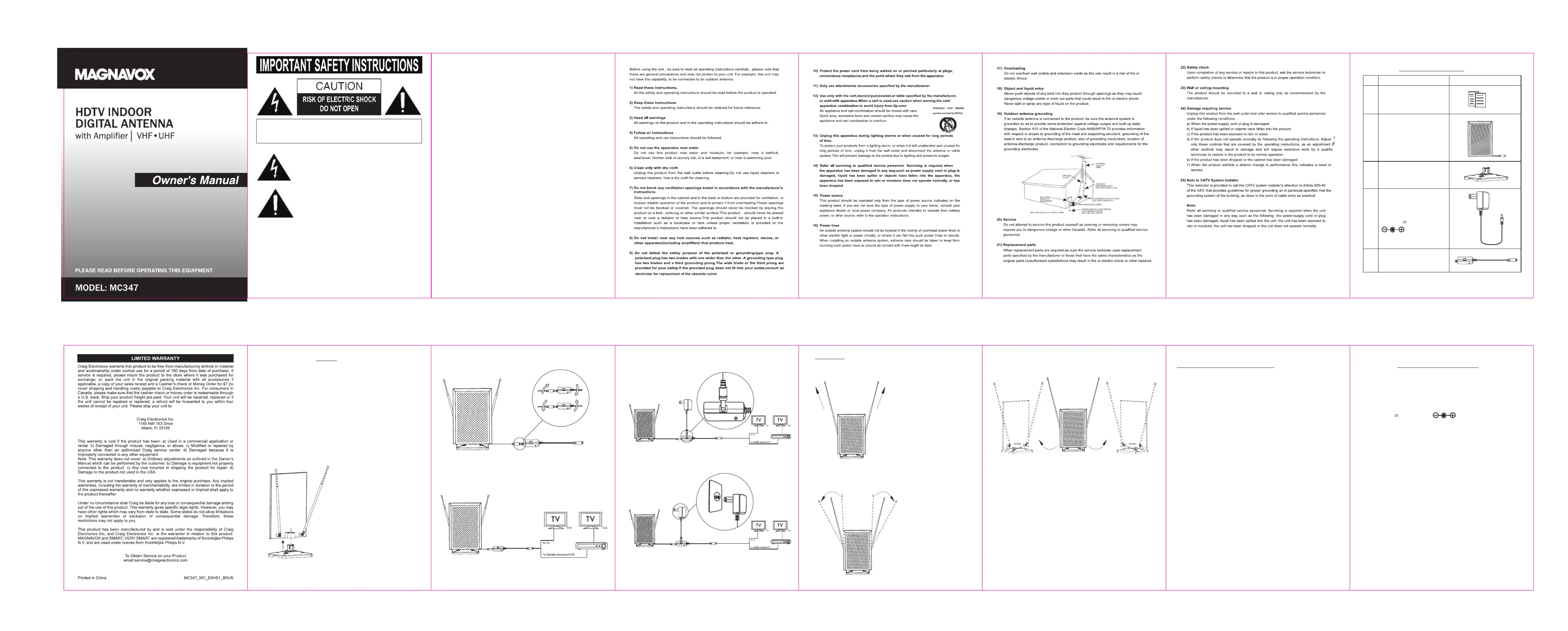

封面

尺寸：90*120mm

封面

反面

正面

SET UP:

1 2

3 4 5 6

CAUTION: TO REDUCE THE ELECTRIC SHOCK, DO NOT REMOVE

THE COVER (OR BACK). NO USER SERVICEABLE PART INSIDE,

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DANGEROUS VOLTAGE: The lighting flash with

arrowhead symbol within an equilateral triangle is

intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that

may be of sufficient magnitude to constitute a risk of

electric shock to persons.

ATTENTION: The exclamation point within an equilateral

triangle is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

WARNING: USE UNDER SUPERVISION OF AN ADULT

DUE TO LONG CORD

This unit has a long cord that can be easily tripped on or pulled on,

causing injury. Please make sure it is arranged so that it will not drape

over a tabletop, etc. Where it can be pulled on by children or tripped

over accidentally.

FCC NOTICE:

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or

more of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

● Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING:

To assure continued operation, follow the attached installation

instructions and use only shield cables when connecting to other

devices. Changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority to

operate the equipment.

Determine the signal strength:

Before Installation, determine the best location for optimum reception.It is

important for the antenna to have an unobstructed path to the transmitter.

For best results, ensure the antenna faces the location of the transmitter.

Notes:

● Choose a location near a window which gives the antenna a clear

view of the transmitter.

● Place the antenna away from the metal surface to avoid interference.

Installation & Connection:

1. Install the Main Unit into the Plastic Stand as the illustrated below:

2. Connect the Detachable Amplifier to the coaxial cable from the Main

unit as the illustrated below:

3. Connect the coaxial cable from the Detachable Amplifier to your

Television ; Satellite Receiver and/or Video Cassette Recorder

as the illustrated below:

4. Connect the round plug from the AC/DC Adapter to the DC IN Jack on

the Detachable Amplifier as the illustrated below:

5. Connect the AC/DC Adapter to wall outlet having AC 110-120V, 60Hz

as the illustrated follows, the power on indicator on the Detachable

Amplifier and the Main Unit will illuminate.

Note: For energy saving, if you will not watching the Television for an

extended period of time. Unplug the AC/DC Adapter from the wall outlet.

RECEIVING:

For VHF：

● Extend the VHF rod antenna to the longest possible length as the

illustrated below:

● Turn the TV to the desired channel/station. Move the VHF rod

antenna in different directions until the reception is achieved

as the illustrated below:

For UHF:

Turn the TV to the desired channel/station. Turn the Main Unit in different

directions until the reception is achieved as the illustrated below:

PACKAGE INCLUDES:

9 1210 11

SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO

CHANGE WITHOUT NOTICE

FREQUENTLY ASKED QUESTIONS:

Q: Can this antenna receive digital or work with Analogue

(NTSC) and Digital (ATSC) broadcasts?

A: Yes, this antenna is designed to receive Analogue

(NTSC); Digital (ATSC) and HDTV broadcasts in the

UHF & VHF bandwidths.

Q: Where should I place the antenna in order to get the best

reception possible?

A: Choose a location near a window which gives the antenna a clear view

of the transmitter. Place the antenna away from the metal surface to

avoid interference.

13 14

GENERAL SPECIFICATIONS:

Clockwise

to tight

Counterclockwise

to loose

Frequency Coverage: VHF: 40 – 230 MHz

UHF: 470 – 860 MHz

Impedance of antenna: 75 Ω

Type of antenna: F type

Power source of Detachable Amplifier:

DC 12V, 50 mA, (Center Positive)

SAT/VCR

QTY

Description Image

User’s Manual

Main Unit

Plastic Stand

AC/DC Adaptor

Input: AC 110-120V~, 60Hz; 25mA

Output: DC 12V, 50 mA,

(Center Positive)

Detachable Amplifier
