©COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
iBEAMUSA.comiBEAM Vehicle Safety Sytems ®REV. 04/06/2020 INSTTE-190
Attention! When testing the aftermarket
equipment, ensure that all factory equip-
ment is connected before cycling the key to
ignition.
TE-190
INSTALLATION INSTRUCTIONS
#IBEAMSAFETY
Wiring 2 .....................................................................
Specs 3 .......................................................................
TABLE OF CONTENTS
TOOLS REQUIRED
• Wire stripper
• Tape
• Digital Multi-meter
• Cutter
Universal 190° Wide Angle
Adjustable Camera
Visit for more detailed informatuon about the product. iBEAMUSA.com
Product Features
• Wide viewing angle
• Resolution: 600 TV Lines
• Water resistant - IP69K
• Mirror image - switchable
• Selectable parking lines
• Camera lens - adjustable

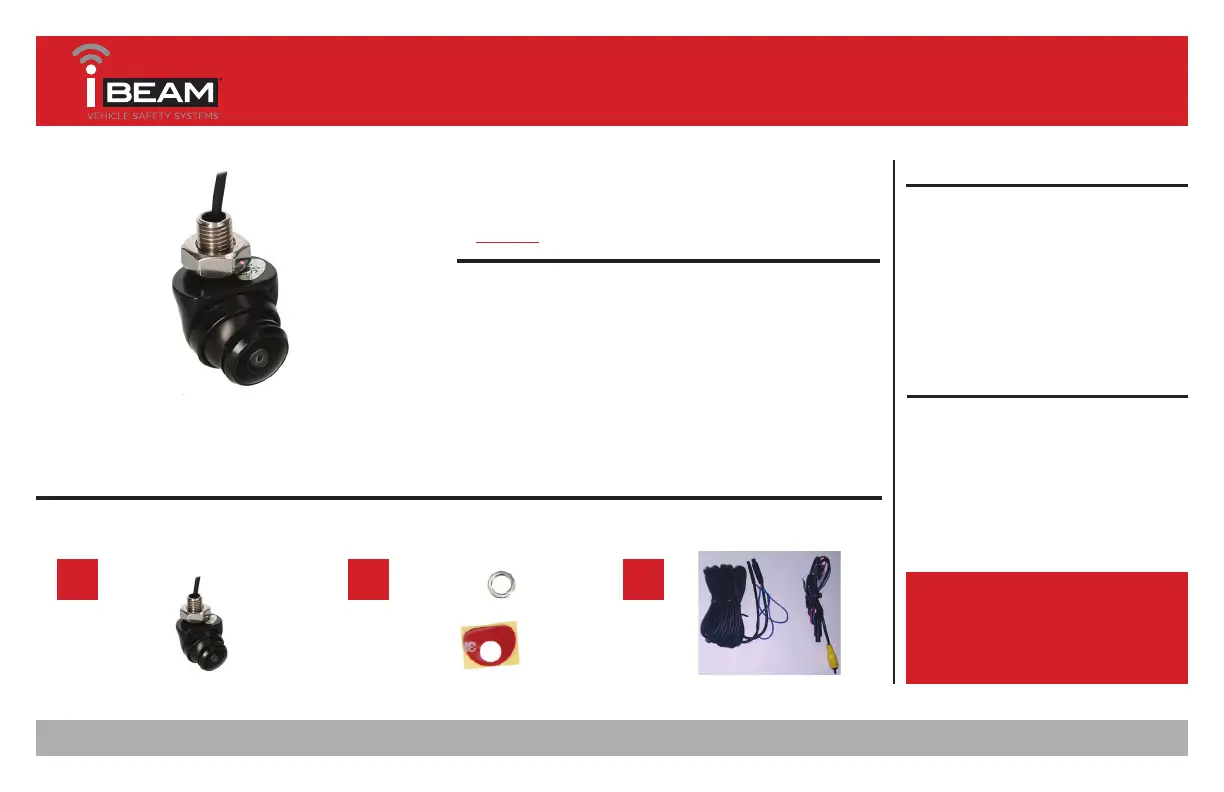

Part Components
A) Camera B) Accessories C) Harness
A B C
1.800.221.0932
|
iBEAMUSA.com
2
Camera Wiring/Install
(Figure A)
1. Find a desirable location to mount the
camera. Make sure this location is away
from moving objects and has a clear
visual of the desired view wanted from
the camera.
2. Drill a 8 mm size hole for the bolt and
wiring to be ran into the vehicle. Secure
the camera with the provided nut.
3. Connect the wires to the designated
sources below. Verify with a multi-meter
that the correct wire is being used
• RED wire to 12V reverse or accessory
if desired
• BLACK wire to chassis ground
4. Run the extention wire to the location
where the visual will be displayed, ex.
aftermarket radio or monitor.
5. There are two loops located on the
camera wire.
• GREEN loop - Parking lines on/off
• BROWN loop - Mirror/normal image
NOTE: Figure B shows adjustablity of camera.
(Figure A)
(Figure B)
WIRING/INSTALL
