• Simplifies millwork cabinet design

• Shortens installation & service time

• Rack can be mounted from 3” to 40” off floor

• Available with 26”, 20” and 16-1/2” frame depths

• Articulating cable carriers provide effective

cable management

• Frame heights from 10 spaces (17-1/2”) or

15 spaces (26-1/4") to 43 spaces (75-1/4")

• Service stand is quick and simple to install

• Ball bearings allow smooth roll out

• 650 lb. weight capacity with proper weight distribution

96-055M / rev 9 / 2-22-12 / AXS System for Millwork

The AXS system allows an entire bay of equipment to pull out for

easy installation or service. The telescoping service stand and tracks

disconnect for storage.

AXS System shown

installed in millwork

in service position

96-055M / rev 9 / 2-22-12

AXS System For Millwork & In-Wall

Patented EIA compliant 19” slide-out equipment rack for millwork installation shall be Middle

Atlantic Products model #__ (refer to chart). Rack shall have __ useable rackspaces, overall

height of __”, and a useable depth of __” (refer to chart). Rough-in millwork dimensions shall

have a minimum depth of __” (refer to chart) with a 1/2” setback, overall width of __” (refer to

specs) and a weight capacity of 650 lbs. with proper weight distribution. Rack shall be constructed

of the following materials: top, base, caster brackets, and horizontal braces shall be 13-gauge

steel with black powder coat finish, rack uprights shall be 11-gauge steel rackrail with tapped

10-32 mounting holes in universal EIA spacing. Rackrail shall be finished in black e-coat with

marked rackspaces, top and bottom trim panels shall be 11-gauge aluminum with a black brushed

and anodized finish. Cable carrier shall be constructed of the following materials: cable carrier

and lower hinges shall be constructed of 16-gauge steel, center hinge shall be constructed of

10-gauge steel and cable carrier shall be finished in a black powder coat. Rack top shall have

openings to accept up to 2 fans, model # AXS-FAN (one fan) or AXS-FAN-K (two fans). Service

tracks and stands shall be constructed of a 13-gauge steel frame with an aluminum extrusion.

Service tracks for AXS, SAX and AXS-xx-26 systems shall be model # TRACK50 with a 50” track

length and 48” rack frame extension depth. Service Tracks for AX-SX and SSAX systems shall be

model # TRACK25 with a 25” track length and 25” rack frame extension depth. Service stand

shall be model # TRACKL (for 2-1/4” - 3-1/4” mounting height off floor), TS310 (for

3”-11” mounting height off floor), TS1022 (for 10”-22” mounting height off floor)

and TS1640 (for 16”- 40” mounting height off floor). Rack shall be GREENGUARD Indoor Air

Quality Certified for Children and Schools. Rack shall be RoHS EU Directive 2002 / 95 / EC

compliant. Rack shall be manufactured by an ISO 9001 and ISO 14001 Registered Company.

Rack shall be warrantied to be free from defects in material or workmanship for a period

of 3 years.

OPTIONS

• Optional slim fan for AXS systems shall be model # AXS-FAN. Kit with 2 fans shall be model

# AXS-FAN-K

• Optional 20" and 26" full-depth front and rear mount AXS rackshelf shall be model # SH-5A

(fits AXS, AX-SX, SAX and SSAX), SH-5A-26 (fits AXS-XX-26)

• Optional cable management tray shall be model # AXS-WT25 (fits AX-SX, SSAX), AXS-WT50

(fits AXS, SAX)

• Brush gasket shall require 19-5/8” rough-in opening width and shall be model # BG17

• Gasket and guide to center rack and protect millwork requires 19-5/8” rough-in opening

width and shall be model # AXS-GGxx (xx=depth of rack; 16, 20, 26)

AX-SXR Rotating Slide-Out System

for millwork and in-wall

installations, please see A&E

specification # 96-01000

Also available

US Patent # 5, 443, 312 EIA/TIA Compliant

EXCEPTIONAL SUPPORT & PROTECTION™

C U S T O M I Z A B L E S P E C I F I C AT I O N C L I P S AV A I L A B L E AT M I D D L E A T L A N T I C C O M.

Features

C U S T O M I Z A B L E S P E C I F I C AT I O N C L I P S AV A I L A B L E AT M I D D L E A T L A N T I C C O M.

US: New Jersey • California • Illinois • Voice: 973-839-1011 Fax: 973-839-1976 • middleatlantic.com

Canada: Ontario • British Columbia • Voice: 613-836-2501 Fax: 613-836-2690 • middleatlantic.ca

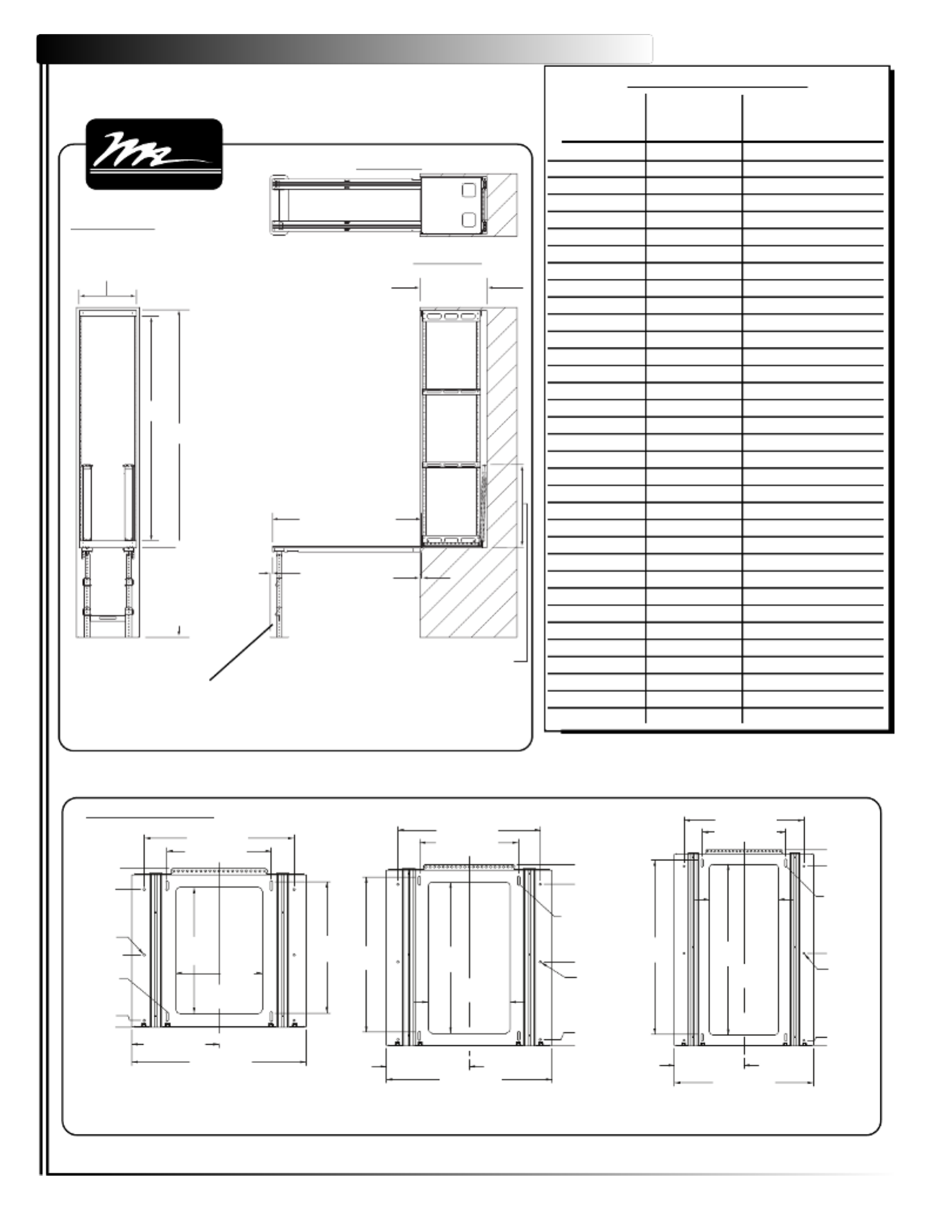

Architects’ and Engineers’ Specifications

SIDE VIEW

FRONT VIEW

NOTE: Service stand TS1022 and TS1640 in

outer-most position will extend .517” beyond

track, TS310 will extend 4.743” beyond track,

TRACKL does not extend beyond track.

19-1/4 [489] min. finished opening width without gasket

TOP VIEW

.518 [13]

TS1022/

TS1640 and

4.743 [120]

TS310 .50 [13] min.

2.50 [63] max.

set back

Track 25 = 25.00 [635]

(used with AX-SX / SSAX)

Track 50 = 50.00 [1270]

(used with AXS / SAX /

AXS-xx-26)

AXS-xx-26 = 28.00 [711]

AX-SX = 17.00 [432]

AXS = 28.00 [711]

SSAX = 17.00 [432]

SAX = 28.00 [711]

AXS-xx-26 = 28.50 [724] min.

AX-SX = 22.50 [572] min.

AXS = 22.50 [572] min.

SSAX = 19.00 [483] min.

SAX = 19.00 [483] min.

includes 1/2 set back

see

service

stands

chart

MILLWORK SPECIFICATIONS

* When using optional gasket and guide kit, 3/8” must be added

to millwork opening height.

** AX-SX & SSAX only

SAX-XX, SSAX-XX

(frame depth = 16.5”) AXS-XX, AX-SXR-XX, AX-SX-XX

(frame depth = 20”) AXS-XX-26

(frame depth = 26”)

Specifications for AXS System

All dimensions in inches [Bracketed dimensions are in millimeters]

19-5/8 [498] when using optional gasket

A A B

# OF USEABLE USEABLE RACK MILLWORK OPENING

RACKSPACES HEIGHT (in.) HEIGHT (in.)*

**10 17-1/2 [444] 22-3/16 [568]

**11 19-1/4 [489] 23-15/16 [608]

**12 21 [533] 25-11/16 [653]

**13 22-3/4 [578] 27-7/16 [697]

**14 24-1/2 [622] 29-3/16 [741]

15 26-1/4 [667] 30-15/16 [786]

16 28 [711] 32-11/16 [837]

17 29-3/4 [756] 34-7/16 [875]

18 31-1/2 [800] 36-3/16 [919]

19 33-1/4 [845] 37-15/16 [964]

20 35 [889] 39-11/16 [1011]

21 36-3/4 [934] 41-7/16 [1053]

22 38-1/2 [978] 43-3/16 [1097]

23 40-1/4 [1022] 44-15/16 [1142]

24 42 [1067] 46-11/16 [1186]

25 43-3/4 [1112] 48-7/16 [1231]

26 45-1/2 [1156] 50-3/16 [1275]

27 47-1/4 [1200] 51-15/16 [1319]

28 49 [1244] 53-11/16 [1364]

29 50-3/4 [1289] 55-7/16 [1408]

30 52-1/2 [1334] 57-3/16 [1453]

31 54-1/4 [1378] 58-15/16 [1497]

32 56 [1423] 60-11/16 [1545]

33 57-3/4 [1467] 62-7/16 [1586]

34 59-1/2 [1512] 64-3/16 [1631]

35 61-1/4 [1556] 65-15/16 [1675]

36 63 [1600] 67-11/16 [1720]

37 64-3/4 [1645] 69-7/16 [1764]

38 66-1/2 [1689] 71-3/16 [1809]

39 68-1/4 [1734] 72-15/16 [1853]

40 70 [1778] 74-11/16 [1898]

41 71-3/4 [1823] 76-7/16 [1942]

42 73-1/2 [1867] 78-3/16 [1986]

43 75-1/4 [1912] 79-15/16 [2031]

Middle Atlantic Products, Inc.

Middle Atlantic Products

16.50 [419.1] 16.50 [419.1]

11.5 [292.1] 11.5 [292.1]

16.50 [419.1]

11.5 [292.1]

14.43

[366.5] 18.00

[457.2]

24.00

[609.6]17.5

[444.5]

23.5

[596.9]

9.5

[241.3]

9.5

[241.3]

21.05

[534.6]

18.75

[476.3]

4X Ø.28 [7.1] X

1.13 [28.6] OB

4X Ø.28

[7.1] X

1.13 [28.6]

13.93

[353.8]

17.48

[443.9]

15.18

[385.6]

6X Ø.28

[7.1]

6X Ø.28

[7.1]

6X Ø.28

[7.1]

.75

[19.1] .75 [19.1]

27.05

[687]

24.75

[628.7]

9.75

[247.7]

12.75

[323.9]

4X Ø.28

[7.1] X 1.13

[28.6]OB

7.97 [202.3]

.75 [19.1]

0 [0]

0 [0] 0 [0]

9.5

[241.3]

9.59 [243.7]

19.19 [487.4] 9.59 [243.7]

19.19 [487.4]

9.59 [243.7]

19.19 [487.4]

BASE DIMENSIONS
