MODEL NUMBER:
MFEP26VA-N
MFEP35VA-N
MFEP50VA-N
MFEP70VA-N
MFEP80VA-N
USER MANUAL
Room Air Conditioner
Warn oing n tices: Before u ro ct, se rsing this p du plea ea and t is mh ual nd a SAFE ANUTY M AL(if any)carefully
and keep it for fu re referencetu . The design a i and spec fic ti ns o are t subject o chang withe out prior notice for
produ mprct i ovemen Ct. onsult with yo le our dea r r manuf turac er fo e .r d tails
The ram diag above s fo reference se ke is ju t r . Plea ta the ea app ranc ae of the actu l product a ss the tandard.


01
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please
read this manual thoroughly to ensure that you know how to operate the
features and functions that your new appliance oers in a safe way.
CONTENTS
0 1
0 2
0 6
0 7
0 8
10
19
27
23
29
30
32
32
39
49
54
54
51
55
31
THANK YOU LETTER
SAFETY PRECAUTIONS
SPECIFICATIONS
PRODUCT OVERVIEW
PRODUCT INSTALLATION
Install Your Indoor Unit
Install Your Outdoor Unit
Refrigent Piping Connection
Air Evacuation
Electrical And Gas Leak Checks
Test Run
Packing And Unpacking The Unit
OPERATION INSTRUCTIONS
Indoor Unit Display
Remote Control Operation
CARE AND MAINTENANCE
TROUBLESHOOTING
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT
DISPOSAL AND RECYCLING
DATA PROTECTION NOTICE

It’s really important you read Safety Precautions Before Operation and Installation
Incorrect installation due to ignoring instructions can cause serious damage or injury.
The seriousness of potential damage or injuries is classified as either a WARNING
or CAUTION.
SAFETY PRECAUTIONS
Read these operating instructions carefully and attentively before using/commis-
sioning the unit and keep them in the immediate vicinity of the installation site or
unit for later use!
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
persons due to voltage.
Warning
The signal word indicates a hazard with a medium level of risk
which, if not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which,
if not avoided, may result in minor or moderate injury.
Attention
The signal word indicates important information (e.g. damage to prop-
erty), but not danger.
Observe instructions
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
Explanation of Symbols
02
WARNING
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children
without supervision(European Union countries).
This appliance is not intended for use by persons(including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety. Children should be supervised to ensure that
they do not play with the appliance.

ELECTRICAL WARNINGS
If an abnormal situation arises (like a burning smell), immediately turn o the unit
and disconnect the power. Call your dealer for instructions to avoid electric shock,
fire or injury.
Do not insert fingers, rods or other objects into the air inlet or outlet. This may
cause injury, since the fan may be rotating at high speeds.
Do not use flammable sprays such as hair spray, lacquer or paint near the unit.
This may cause fire or combustion.
Do not operate the air conditioner in places near or around combustible gases.
Emitted gas may collect around the unit and cause explosion.
Do not operate your air conditioner in a wet room such as a bathroom or laundry
room. Too much exposure to water can cause electrical components to short
circuit.
Do not expose your body directly to cool air for a prolonged period of time.
If the air conditioner is used together with burners or other heating devices,
thoroughly ventilate the room to avoid oxygen deficiency.
In certain functional environments, such as kitchens, server rooms, etc., the use of
specially designed air-conditioning units is highly recommended.
Do not allow children to play with the air conditioner. Children must be supervised
around the unit at all times.
●
●
●
●
●
●
●
●
●
Only use the specified power cord. If the power cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
The product must be properly grounded at the time of installation, or electrical
shock may occur.
For all electrical work, follow all local and national wiring standards, regulations,
and the Installation Manual. Connect cables tightly, and clamp them securely to
prevent external forces from damaging the terminal. Improper electrical
connections can overheat and cause fire, and may also cause shock. All electrical
connections must be made according to the Electrical Connection Diagram
located on the panels of the indoor and outdoor units.
All wiring must be properly arranged to ensure that the control board cover can
close properly. If the control board cover is not closed properly, it can lead to
corrosion and cause the connection points on the terminal to heat up, catch fire,
or cause electrical shock.
Disconnection must be incorporated in the fixed wiring in accordance with the
wiring rules.
Do not pull power cord to unplug unit. Hold the plug firmly and pull it from the
outlet. Pulling directly on the cord can damage it, which can lead to fire or electric
shock.
Do not modify the length of the power supply cord or use an extension cord to
power the unit.
Do not share the electrical outlet with other appliances. Improper or insucient
power supply can cause fire or electrical shock.
Keep power plug clean. Remove any dust or grime that accumulates on or around
the plug. Dirty plugs can cause fire or electric shock.
If connecting power to fixed wiring, an all-pole disconnection device which has at
least 3mm clearances in all poles, and have a leakage current that may exceed
10mA, the residual current device(RCD) having a rated residual operating current
not exceeding 30mA, and disconnection must be incorporated in the fixed wiring ‘
in accordance with the wiring rules.
●
●
●
●
●
●
●
●
●
●
WARNING FOR PRODUCT USE
03

●
●
●
●
●
●
WARNINGS FOR PRODUCT INSTALLATION
Installation must be performed by an authorized dealer or specialist. Defective
installation can cause water leakage, electrical shock, or fire.
Installation must be performed according to the installation instructions.
(In North America, installation must be performed in accordance with the
requirement of NEC and CEC by authorized personnel only).
Improper installation can cause water leakage, electrical shock, or fire.
Contact an authorized service technician for repair or maintenance of this unit.
This appliance shall be installed in accordance with national wiring regulations.
Only use the included accessories, parts, and specified parts for installation.
Using non-standard parts can cause water leakage, electrical shock, fire, and can
cause the unit to fail.
Install the unit in a firm location that can support the unit’s weight. If the chosen
location cannot support the unit’s weight, or the installation is not done properly,
the unit may drop and cause serious injury and damage.
Install drainage piping according to the instructions in this manual. Improper
drainage may cause water damage to your home and property.
For units that have an auxiliary electric heater, do not install the unit within 1
meter (3 feet) of any combustible materials.
Do not install the unit in a location that may be exposed to combustible gas leaks.
If combustible gas accumulates around the unit, it may cause fire.
Do not turn on the power until all work has been completed.
When moving or relocating the air conditioner, consult experienced service
technicians for disconnection and reinstallation of the unit.
How to install the appliance to its support, please read the information for details
in "indoor unit installation" and "outdoor unit installation" sections .
TAKE NOTE OF FUSE SPECIFICATIONS
The air conditioner’s circuit board (PCB) is designed with a fuse to provide
overcurrent protection. The specifications of the fuse are printed on the circuit board ,
such as : T3.15AL/250VAC, T5AL/250VAC, T3.15A/250VAC, T5A/250VAC,
T20A/250VAC, T30A/250VAC,etc.
NOTE: For the units with R32 refrigerant , only the blast-proof ceramic fuse can be
used.
UV-C lamp(Applicable to the unit contains an UV-C lamp only)
This appliance contains a UV-C lamp. Read the maintenance instructions before
opening the appliance.
Do not operate UV-C lamps outside of the appliance.
Appliances that are obviously damaged must not be operated.
Unintended use of the appliance or damage to the housing may result in the
escape of dangerous UV-C radiation. UV-C radiation may, even in small doses,
cause harm to the eyes and skin.
Before opening doors and access panels bearing the ULTRAVIOLET RADIATION
hazard symbol for the conducting USER MAINTENANCE, it is recommended to
disconnect the power.
The UV-C lamp can not be cleaned, repaired and replaced.
UV-C BARRIERS bearing the ULTRAVIOLET RADIATION hazard symbol should
not be removed.
This appliance contains an UV emitter. Do not stare at the light
source.
WARNING
04
●
●
●
●
●
●
●
●
●
●
●

Turn o the air conditioner and disconnect the power if you are not going to use
it for a long time.
Turn o and unplug the unit during storms.
Make sure that water condensation can drain unhindered from the unit.
Do not operate the air conditioner with wet hands. This may cause electric shock.
Do not use device for any other purpose than its intended use.
Do not climb onto or place objects on top of the outdoor unit.
Do not allow the air conditioner to operate for long periods of time with doors or
windows open, or if the humidity is very high.
●
●
●
●
●
●
●
Do not clean the air conditioner with combustible cleaning agents. Combustible
cleaning agents can cause fire or deformation.
Turn o the device and disconnect the power before cleaning. Failure to do so
can cause electrical shock.
Do not clean the air conditioner with excessive amounts of water.
●
●
●
CAUTION
CLEANING AND MAINTENANCE WARNINGS
05
●
●
●
●
●
Note about Fluorinated Gasses(Not applicable to the unit using R290 Refrigerant)
This air-conditioning unit contains fluorinated greenhouse gasses. For specific
information on the type of gas and the amount, please refer to the relevant label on
the unit itself or the “Owner's Manual - Product Fiche ” in the packaging of the
outdoor unit. (European Union products only).
Installation, service, maintenance and repair of this unit must be performed by a
certified technician.
Product uninstallation and recycling must be performed by a certified technician.
For equipment that contains fluorinated greenhouse gases in quantities of 5 tonnes
of CO2 equivalent or more, but of less than 50 tonnes of CO2 equivalent, If the
system has a leak-detection system installed, it must be checked for leaks at least
every 24 months.
When the unit is checked for leaks, proper record-keeping of all checks is strongly
recommended.
●
●
●
●
●
WARNING FOR USING R32/R290 REFRIGERANT
2
2
2
2
2
When flammable refrigerant are employed, appliance shall be stored in a well -
ventilated area where the room size corresponds to the room area as specifiec for
operation.
For R32 frigerant models:
Appliance shall be installed, operated and stored in a room with a floor area larger
than 4m .
For R290 refrigerant models, appliance shall be installed, operated and stored in a
room with a floor area larger than:
<=2.6kW units: 17.33m
>2.6kW and <=3.5kW units: 25.4m
>3.5kW and <=5.2kW units: 34.67m
>5.3kW and <=7.1kW units: 47.33m
Reusable mechanical connectors and flared joints are not allowed indoors.

06
SPECIFICATIONS
MFEP26VA-N
MFEP26VA-W
Product Model
Power source
Cooling capacity
Heating capacity
Rated current
Rated power input
Outdoor unit
resistance class
2.60kW
2.70kW
10.5A
2300W
MFEP35VA-N
MFEP35VA-W
3.50kW
3.65kW
10.5A
2300W
MFEP50VA-N
MFEP50VA-W
5.00kW
5.30kW
15.0A
3200W
220-240V~ 50Hz, 1Ph
IP24
MFEP70VA-N
MFEP70VA-W
Product Model
Power source
Cooling capacity
Heating capacity
Rated current
Rated power input
Outdoor unit
resistance class
7.00kW
8.80kW
17.5A
4050W
MFEP80VA-N
MFEP80VA-W
8.00kW
9.00kW
17.5A
4050W
220-240V~ 50Hz, 1Ph
IP24

Gloves Screwdriver &
wrench
Goggles & masks Vinyl tape
It would be perfect you had these tools
07
Wall Mounting Plate
(1) (2)
Power Cable(some units)
Refrigerant Piping
Signal Cable
Remote Controller
Drainage Pipe
Louver
Remote controller Holder
(not supplied)
Air Filter(Pull it upwards)
Front Panel
Outdoor Unit Power Cable
(some units)
1
2
3
4
5
6
7
8
9
10
11
910
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may
be slightly dierent. The actual shape shall prevail.
NOTE ON ILLUSTRATIONS:
3
6
7
8
11
1
5
2
4

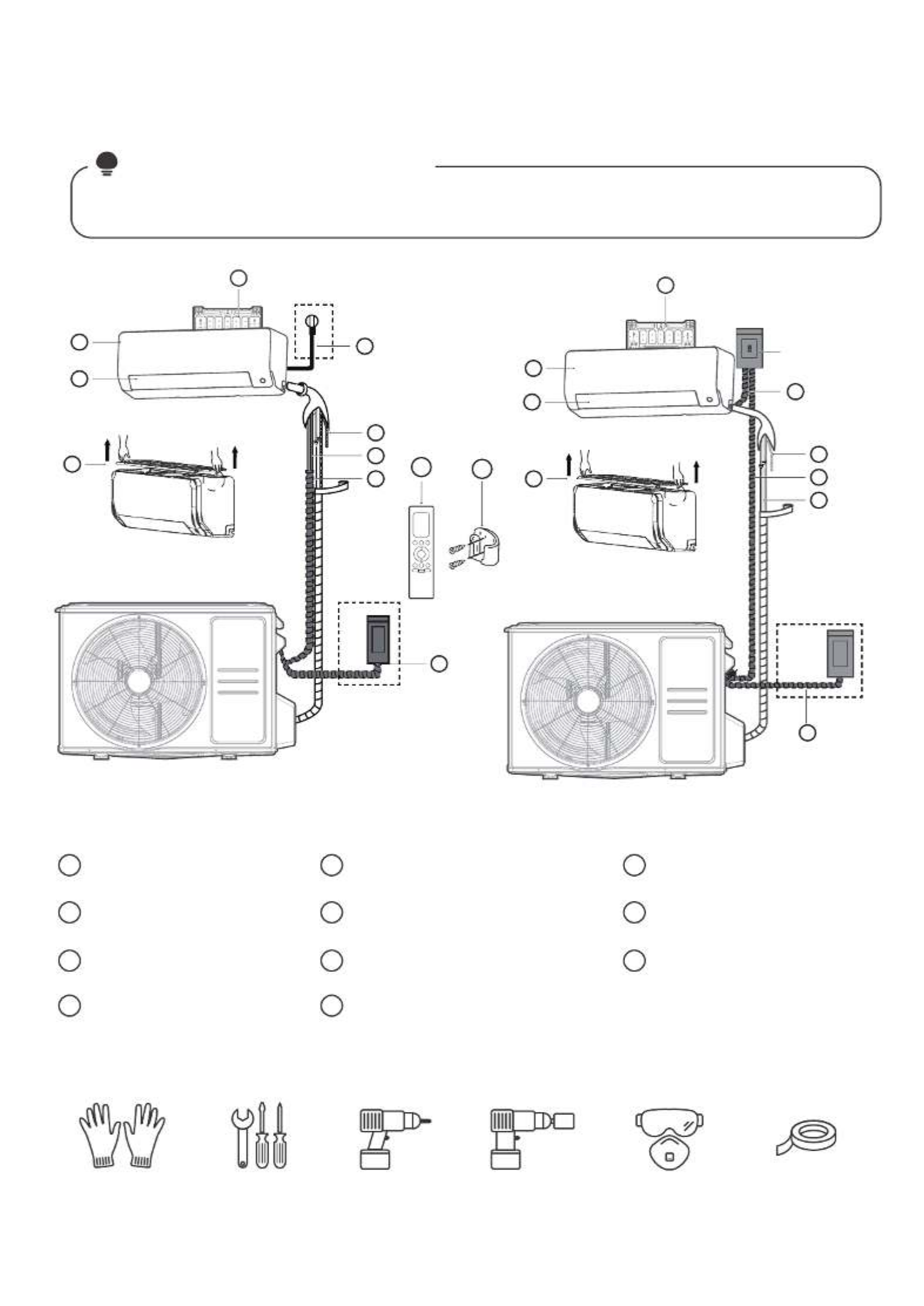

PRODUCT OVERVIEW
Air-break
switch
3
1
6
7
8
11
2
4
5
Hammer
drill
Core drill

PRODUCTION INSTALLATION
ACCESSORIES

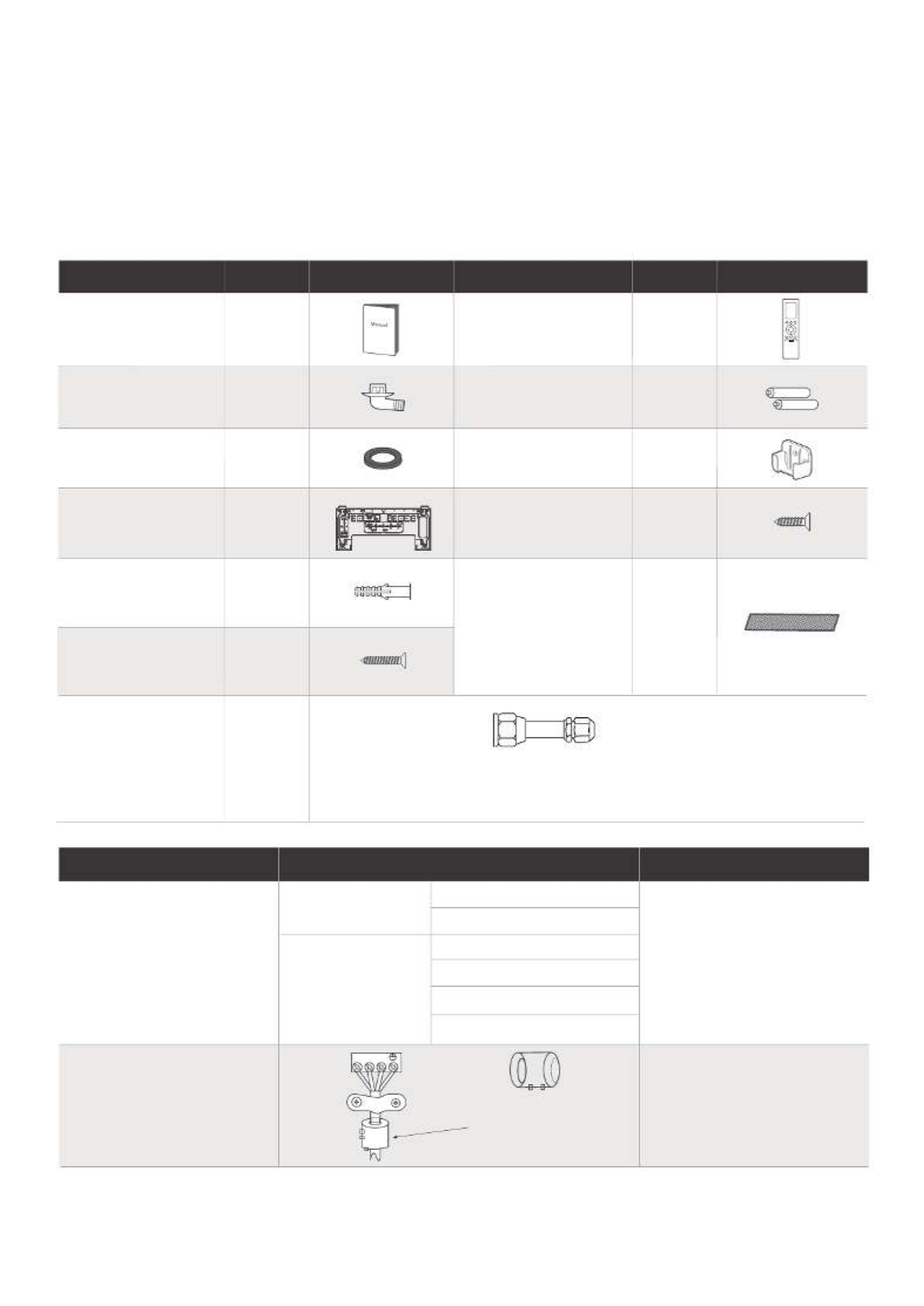

The air conditioning system comes with the following accessories. Use all of the installation parts and
accessories to install the air conditioner. Improper installation may result in water leakage, electrical
shock and fire, or cause the equipment to fail. The items are not included with the air conditioner must
be purchased separately.
Magnetic ring and belt
Varies by model
(if supplied ,please refer to
the wiring diagram to install
it on the connective cable. )
Pass the belt through
the hole of the Magnetic
ring to fix it on the cable
1 2 3
Name Shape Quantity(PC)
(Need to be installed on
the back of main air filter
by the authorized
technician while installing
the machine)
Mounting plate
fixing screw
Remote controller
Fixing screw for
remote controller
holder(purchase
separately)
Remote controller
holder(purchase
separately)
Drain joint
(for cooling &
heating models)
Seal
(for cooling &
heating models)
Mounting plate
Manual
Parts you must purc hase
separately. Consult the dealer
about the proper pipe size of
the unit you purchased.
Connecting pipe
assembly
Liquid side
Gas side
Φ
6.35( 1/4 i n)
Φ
9.52( 3/8in)
Φ
9.52( 3/8in)
Φ
12.7( 1/2in)
Φ
16( 5/8in)
Φ
19( 3/4in)
2-3
1
1
1
Anchor
1
2
1
2
Battery
Small Filter 1~2
(depending
on models)
5~8
(depending
on models)
5~8
(depending
on models)
Name of Accessories Name of AccessoriesQ’ty(pc) Shape Q’ty(pc) Shape
08
FRO EDGE O HOLE CEN ER:50mm
FRO EDGE O HOLE CEN ER:100mm
150
100 100
100
50
50 50
2
2
2
4
4 4
RE O AND
LI UID AS
BUBBLE
LE EL
mm inch
mm
inch
1
Transfer connector
(Φ19( 3/4in) transfer
to Φ16( 5/8in). Packed
with the indoor unit,
the North America
market 33K hyper heat
unit only. )
NOTE: In North America market, when 33K hyper heat indoor unit matches with
multi-zone condensers, you must purchase pipe with liquid side Φ9.52( 3/8in) and
gas side Φ16( 5/8in).The transfer connector need to be installed on the indoor unit
gas side to meet the pipe size.

09

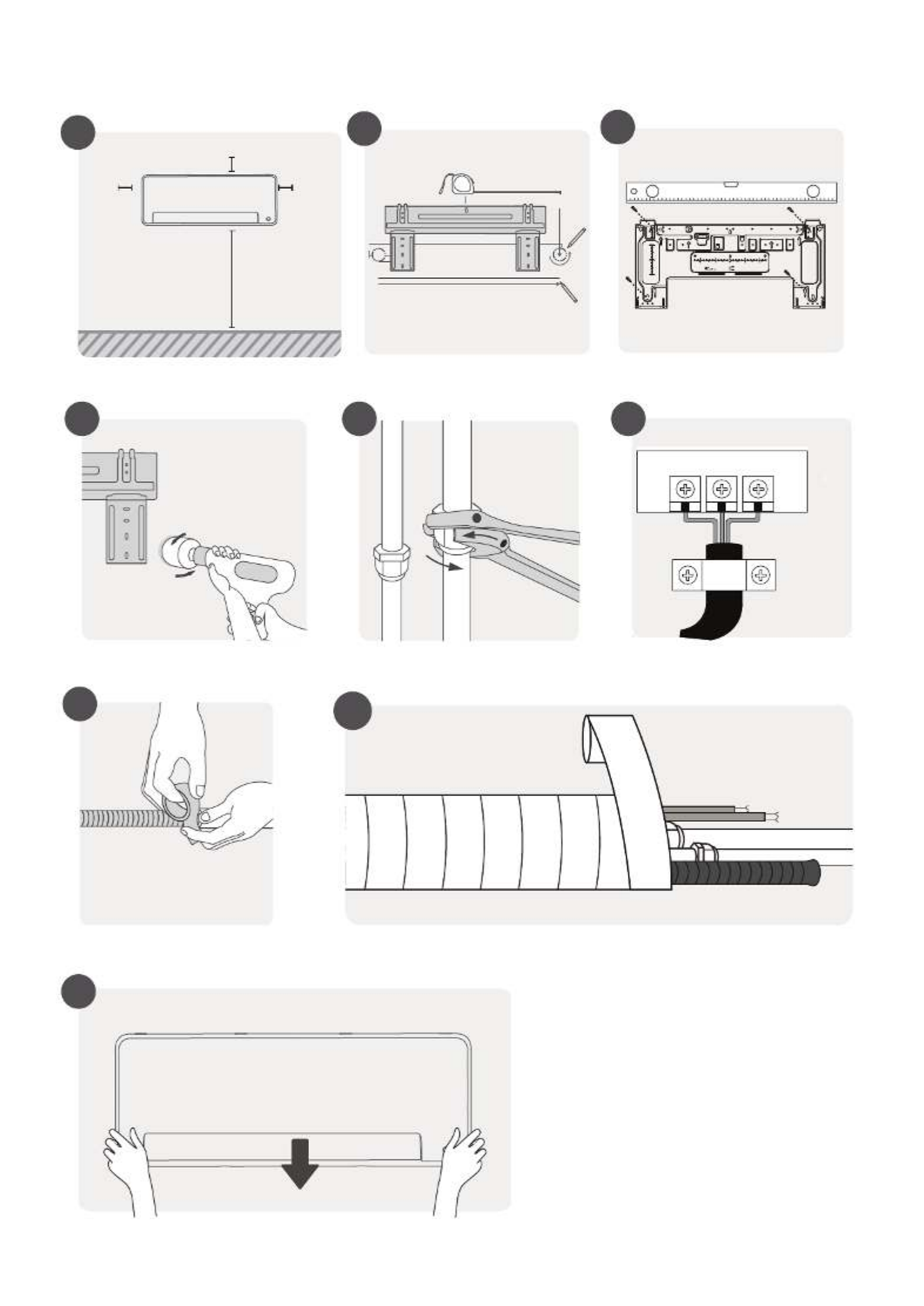

INSTALLATION SUMMARY - INDOOR UNIT
Drill Wall Hole
Mount Indoor Unit
Wrap Piping and Cable
(Not applicable for some locations in North America )
Connect Piping
Prepare Drain Hose
Connect Wiring
(Not applicable for some
locations in North America )
4 5 6
7
9
8
Select Installation Location
1
Determine Wall Hole Position
2
Attach Mounting Plate
3
12cm
(4-3/4")
12cm
(4-3/4")
2.3m (7/8")
FROM EDGE TO HOLE CENTER:50mm
FROM EDGE TO HOLE CENTER:100mm
150
100 100
100
50
50 50
2
2
2
4
4 4
6
RECOMMAND
LIQUID GAS
BUBBLE
LEVEL
mm inch
mm
inch
Distance from ceiling is determinded
by the installation method.
≥≥
≥

Before installing the indoor unit, refer to the label on the product box to make sure that the
model number of the indoor unit matches the model number of the outdoor unit.
The following are standards that will help you choose an appropriate location for the unit.

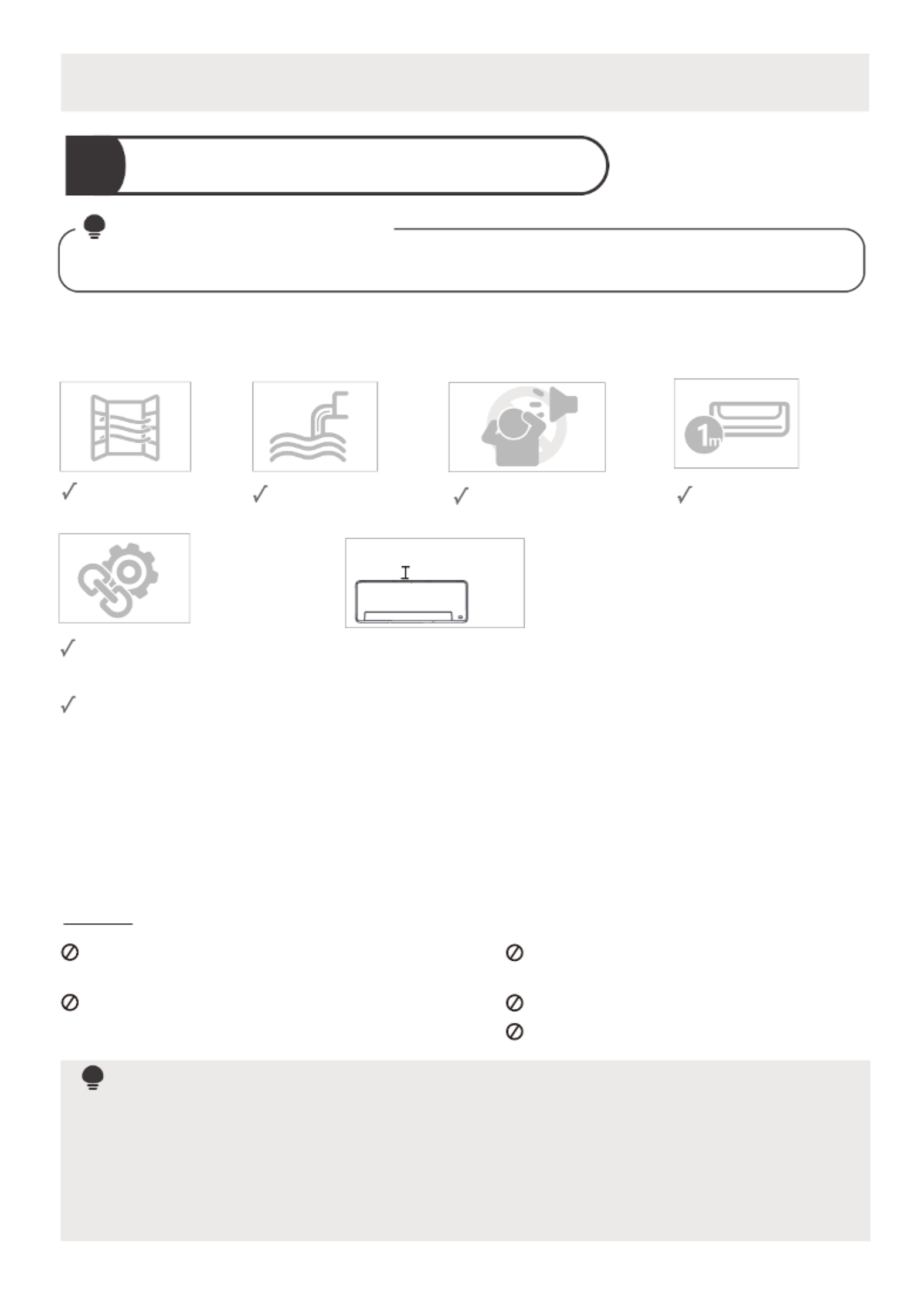

Proper installation locations meet the following standards:
Good air circulation Convenient drainage Noise from the unit will
not disturb other people.
Firm and solid—the
location will not vibrate
Strong enough to support
the weight of the unit
A location at least one
meter from all other
electrical devices (e.g.,
TV, radio, computer)
DO NOT install unit in the following locations:
Near any source of heat, steam, or
combustible gas
Near flammable items such as curtains or
clothing
Near any obstacle that might block air
circulation
Near the doorway
In a location subject to direct sunlight
Install You Indoor Unit
Select installation location
1
10
NOTE
NOTE: FOR PRODUCT INSTALLATION
: Prior to installation
If there is no fixed refrigerant piping:
While choosing a location, be aware that you should leave ample room for a wall hole (see
Drill wall hole for connective piping step) for the signal cable and refrigerant piping that
connect the indoor and outdoor units. The default position for all piping is the right side of
the indoor unit (while facing the unit). However, the unit can accommodate piping to both
the left and right.
Distance from ceiling is determinded
by the installation method.
If no need the back holder to prop up the unit:
Finishing the pipe and cable connections before mount the
indoor unit on the wall. If the instllation height is limited, 5cm
from the ceiling is allowable, but this can lower product
performance. To ensure enough space to install and remove
the top air filter, keep at least 10cm or more from the ceiling.
Need the back holder to prop up the unit:
If connecting pipe and cable with front panel open, the
minimum distance from ceiling is 22cm or more, if
connecting pipe and cable without front panel(remove it) ,
the minimum distance from ceiling is 11cm or more.

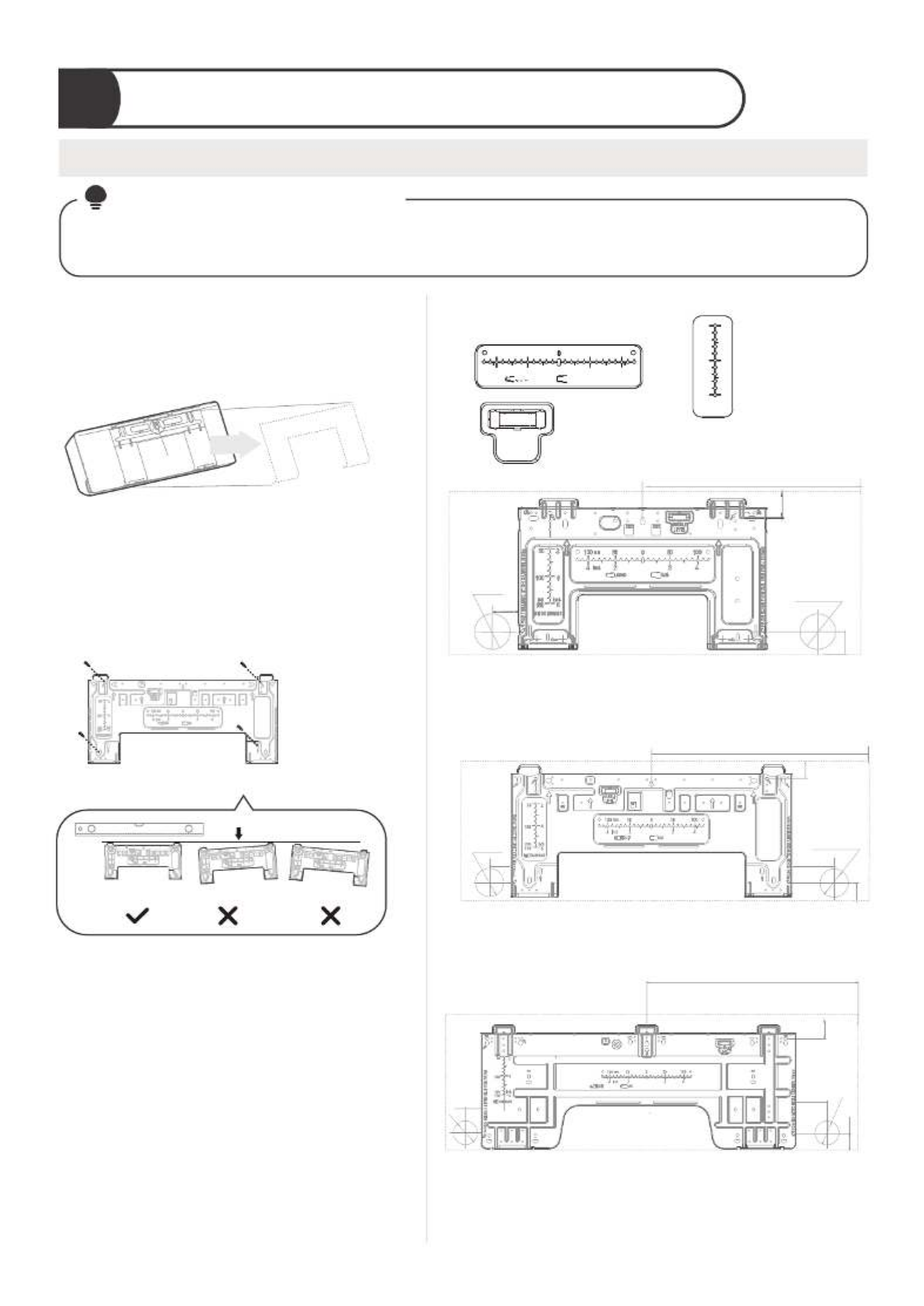

Determine wall hole location
Correct orientation of Mounting Plate
Remove the screw that attaches the
mounting plate to the back of the
indoor unit.
Secure the mounting plate to the wall
with the screws provided. Make sure
that mounting plate is flat against
the wall.
Drill wall hole for connective piping
2
Screw
Step 1:
Step 3:
Step 2:
Confirm the mounting plate you own.
Determine the location of the wall hole based
on the position of the mounting plate. The
dotted rectangular box on the right figure
shows the size of your product.
The size of the wall hole is determined by the connective pipes. When the size of the gas side
connective pipe is 16mm(5/8") or more, the wall hole should be 90mm(3-9/16"). For the size of
connective pipe is less than 16mm(5/8"), the wall hole should be 65mm(2-1/2").
NOTE : The wall hole size
11
Φ
Φ
Indoor unit dimensions(WxH):
795mm(31in)x295mm(11.6in)
Indoor unit dimensions(WxH):
965mm(38in)x322mm(12.7in)
Indoor unit dimensions(WxH):
1140mm(44.8in)x370mm(14.6in)
Unit: mm(inch)
CAUTION: For the convenience of installation,
there are bubble level, carved dimensions on
the mounting plate.The Bubble level on the
mounting plate can’t be removed. If it is broken,
make sure to clean up the leaking liquid.
Vertical direction
ruler
Horizontal direction ruler
Φ
50(1.9) 95(3.7)
120(4.7)
570.7(22.5)
70(2.8)
50(1.9)
pipe hole
65(2.5)
Φ
pipe hole
65(2.5)
Φ
pipe hole
90(3.54)
Φ
pipe hole
90(3.54)
Φ
pipe hole
65(2.5)
50(1.9)
Φ
pipe hole
65(2.5)
490(19.3)
425(16.7)
50(1.9)
40(1.6)
40(1.5)
60(2.4)
51(2.0)
BUBBLE
LEVEL
150
100
50 2
4
6
RECOMMAND
mm inch
100 100
50 50
224 4
LIQUID GAS
mm
inch
40(1.6)

Drill wall hole
Using a 65mm (2.5") or 90mm(3.54")
core drill(depending on models ), drill a
hole in the wall. Make sure that the hole
is drilled at a slight downward angle, so
that the outdoor end of the hole is lower
than the indoor end by about 5mm to
7mm (3/16-5/16"). This will ensure
proper water drainage.
Place the protective wall cu in the hole.
This protects the edges of the hole and
will help seal it when you finish the
installation process.
12
When drilling the wall hole, make sure to avoid wires, plumbing, and other
sensitive components.
CAUTION
Φ 90mm
(3-9/16 )"
Φ 65mm
(2-1/2 )"
Step 1:
Step 2:
Using a 65mm (2-1/2") or 90mm(3-9/16")
core drill(depending on models )
Wall
Indoor Outdoor
5-7mm
(3/16-5/16")
Drill the wall hole
Place the protective wall cu in the hole.
wall hole.
the protective
wall cu
If the wall is made of brick, concrete, or similar material, drill 5mm-diameter (0.2in-diameter) holes in
the wall and insert the sleeve anchors provided. Then secure the mounting plate to the wall by
tightening the screws directly into the clip anchors.
NOTE : FOR CONCRETE OR BRICK WALLS

Prepare refrigerant piping
Based on the position of the wall hole relative
to the mounting plate, choose the side from
which the piping will exit the unit. You have four
options for the exit direction of the piping.
Four angles to exit
the piping
connect the indoor unit’s refrigerant piping to
the connective piping that will join the indoor
and outdoor units. Refer to the Refrigerant
Piping Connection section of this manual for
detailed instructions.
CAUTION
Be extremely careful not to dent or damage the piping while bending them
away from the unit. Any dents in the piping will aect the unit’s performance.
Install refrigerant pipe & drain hose
3
13
Step 1:
Step 4:
The refrigerant piping is inside an insulating sleeve attached to the back of the unit. You must prepare
the piping before passing it through the hole in the wall.
NOTE
Left-hand
side
Left rear
Right rear
Right-hand
side

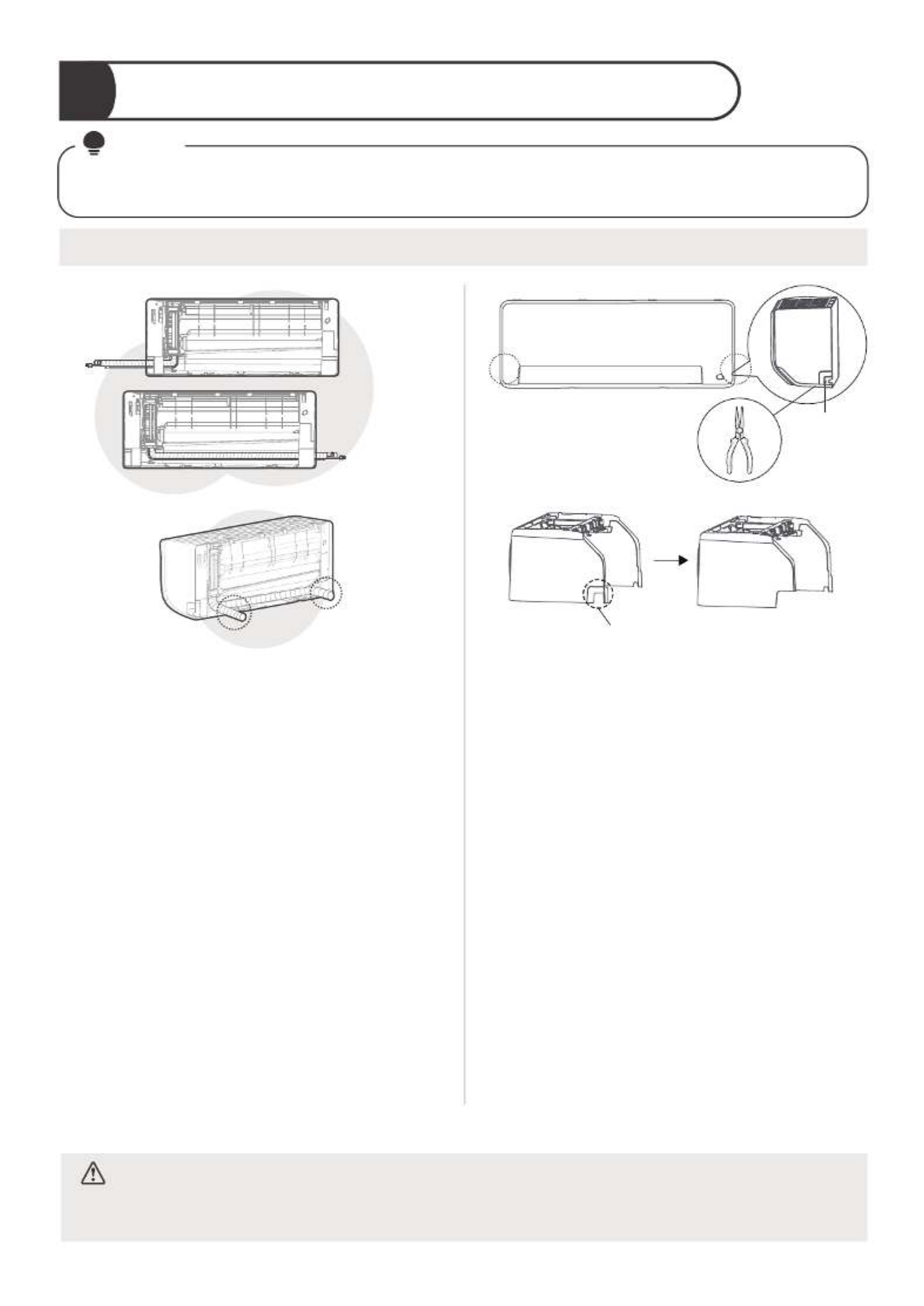

If the wall hole is behind the unit, keep the
knock-out panel in place. If the wall hole is to
the side of the indoor unit, remove the plastic
knock-out panel from that side of the unit.Use
needle nose pliers if the plastic panel is too
dicult to remove by hand.
Knock-out
Panel(cut
depending
on the actual
size needed)
Knock-out Panel on
the left & right side
Step 2:
Step 3:
needle nose pliers
When choose Left-hand side or Right-hand
side piping, please make sure that the pipes
come out horizontally so as not to aect the
lower panel installation.
NOTE ON PIPING CONNECTING
In some locations of US, a conduit tube must be
used to connect the cable. To ensure an enough
space for the pipes running and the machine is
against the wall after installation, It is
recommended to attach the drain hose to the
right-hand side (when you’re facing the back of
the unit).
If need to cut the big size plastic
panel, cut as shown above.
Use the holder at the back of the unit to
prop up the unit, giving you enough room
to connect the refrigerant piping, signal cable,
and drain hose.

14
If refrigerant piping is already embedded in the wall, do the following:

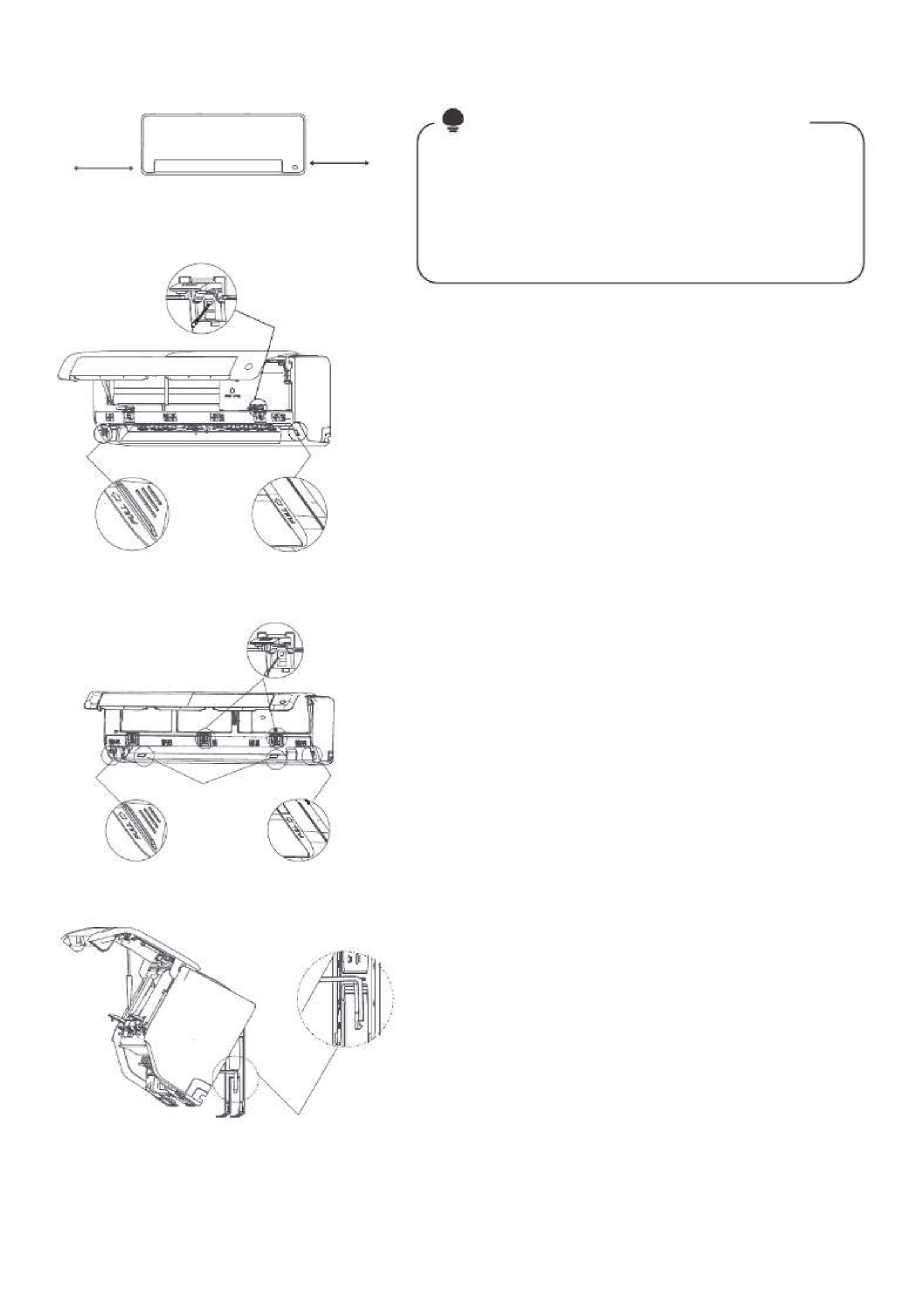

Move to left or right
30-50mm
( )1-3/16~2in
30-50mm
( )1-3/16~2in Keep in mind that the hooks on the mounting plate are
smaller than the holes on the back of the unit.
If you find that you don’t have ample room to connect
embedded pipes to the indoor unit, the unit can be
adjusted left or right by about 30-50mm (1.18-1.96in),
depending on the model.
NOTE : UNIT IS ADJUSTABLE
●
●
●
●
●
●
●
Model A
Open the cover
and unscrew the
screw
Model B
Open the cover
and unscrew the
screws
Unscrew the
screws
Use the holder at the back
of the unit against on the
mounting plate to prop up
the unit
Open and fix the position of the panel, then, open the
covers of the two lock blocks, unscrew the screw
showed in the picture (Model A & Model B), then hold
both sides of the lower panel in the place marked
“PULL”, pull it upwards to release the buckles, then
take the lower panel down.
Use the holder at the back of the unit to
prop up the unit, giving you enough room
to connect the refrigerant piping, signal cable,
and drain hose.
Connect drain hose and refrigerant piping (refer to
Refrigerant Piping Connection section of this manual
for instructions).
Keep pipe connection point exposed to perform the
leak test (refer to Electrical Checks and Leak Checks
section of this manual).
After the leak test, wrap the connection point with
insulation tape.
Release the holder that is propping up the unit.
Using even pressure, push down on the bottom half
of the unit. Keep pushing down until the unit snaps
onto the hooks along the bottom of the mounting
plate.

15

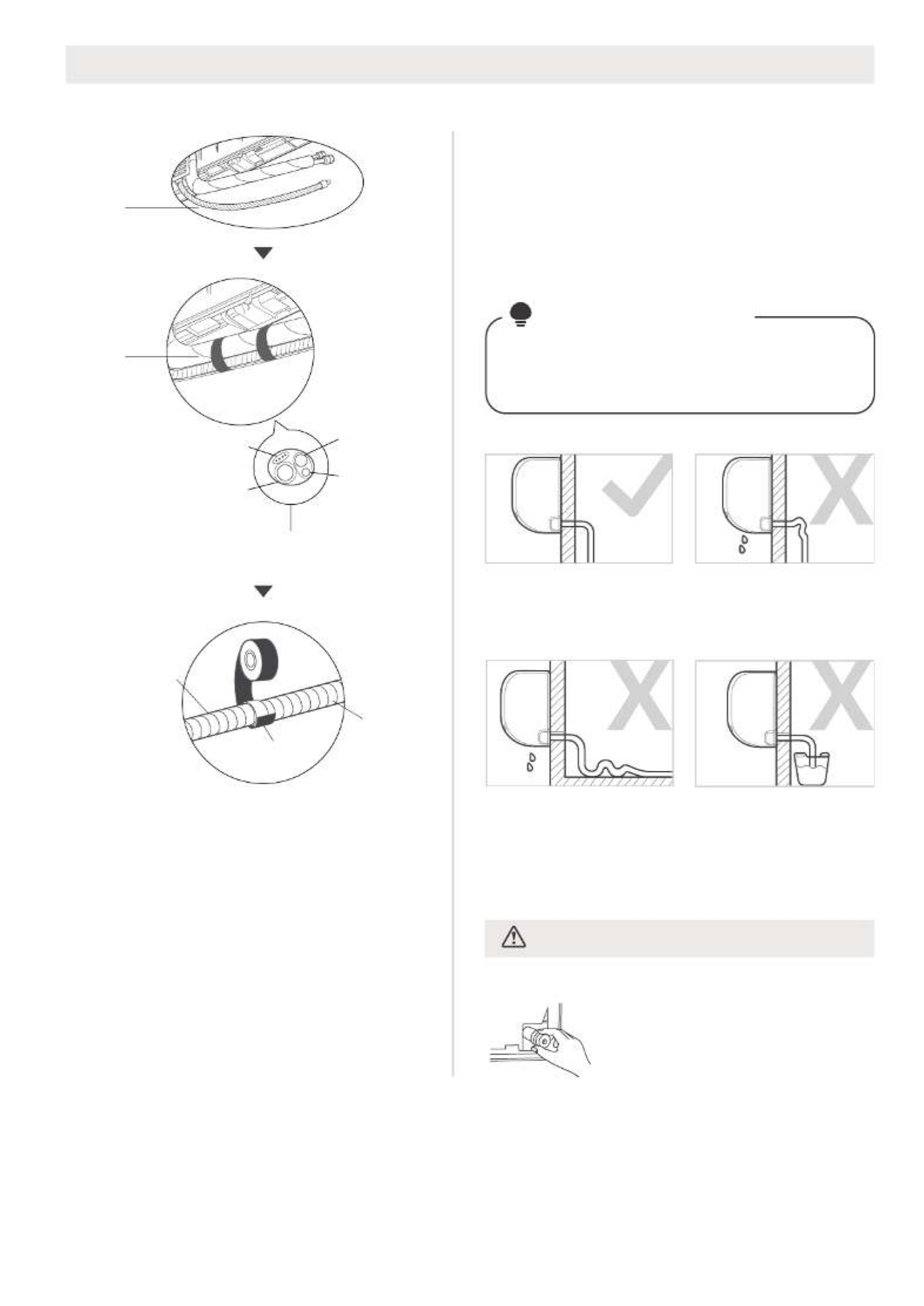

PLUG THE UNUSED DRAIN HOLE
To prevent unwanted leaks you
must plug the unused drain hole
with the rubber plug provided.
CORRECT
Make sure there are no
kinks or dent in drain hose
to ensure proper drainage.
NOT CORRECT
Kinks in the drain hose
will create water traps.
NOT CORRECT
Do not place the end of
the drain hose in water or
in containers that collect
water. This will prevent
proper drainage.
NOT CORRECT
Kinks in the drain hose
will create water traps.
CAUTION
For the portion of the drain hose that will
remain indoors, wrap it with foam pipe
insulation to prevent condensation.
Remove the air filter and pour a small amount
of water into the drain pan to make sure that
water flows from the unit smoothly.
●
●
The drain hose can be attached to the left
or right side To ensure proper drainage, .
attach the drain hose on the same side that
your refrigerant piping exits the unit. Attach
drain hose extension (purchased separately)
to the end of drain hose.
Wrap the connection point firmly with
Teflon tape to ensure a good seal and to
prevent leaks.
●
Step 1:
Make sure to arrange the drain hose
according to the following figures.
NOTE ON DRAIN
HOSE PLACEMENT
Connect drain hose
Drain
hose
Make sure the drain hose
is at the bottom
vinyl
tape
Connecting
cable
Gas side
piping
Liquid side
piping
Drain
hose
Vinyl tape(narrow)
Drain pipe
extension
Drain
pipe

Electrical work preparation
4
16
Connect signal and power cables
The signal cable enables communication between
the indoor and outdoor units. You must first
choose the right cable size before preparing it for
connection.
Cable Types(Not applicable for North America)
• Indoor Power Cable (if applicable):
H05VV-F or H05V2V2-F
• Outdoor Power Cable: H07RN-F or H05RN-F
• Signal Cable: H07RN-F
Minimum Cross-Sectional Area of
Power and Signal Cables (For reference)
Rated Current of
Appliance (A)
Nominal Cross-Sectional
Area (mm )2
> 3 and ≤ 6 0.75
> 6 and ≤ 10 1
> 10 and ≤ 16 1.5
> 16 and ≤ 25 2.5
> 25 and ≤ 32 4
> 32 and ≤ 40 6
CHOOSE THE RIGHT CABLE SIZE
The size of the power supply cable, signal
cable, fuse, and switch needed is determined
by the maximum current of the unit. The
maximum current is indicated on the nameplate
located on the side panel of the unit. Refer to
this nameplate to choose the right cable, fuse,
or switch.
DO NOT MIX UP LIVE AND NULL WIRES
This is dangerous, and can cause the air
conditioning unit to malfunction.
BEFORE PERFORMING ANY ELECTRICAL WORK, READ THESE REGULATIONS
BEFORE PERFORMING ANY ELECTRLCAL OR WIRING WORK, TURN OFF
THE MAIN POWER TO THE SYSTEM.
●
●
WARNING
1. All wiring must comply with local and
national electrical codes, regulations
and must be installed by a licensed
electrician.
2. All electrical connections must be
made according to the Electrical
Connection Diagram located on the
panels of the indoor and outdoor units.
3. If there is a serious safety issue with
the power supply, stop work imme-
diately. Explain your reasoning to the
client, and refuse to install the unit until
the safety issue is properly resolved.
4. If connecting power to fixed wiring, a
switch or circuit breaker that disconn-
ects all poles and has a contact sepa-
ration of at least 1/8in (3mm) must be
incorporated in the fixed wiring. The
qualified technician must use an
approved circuit breaker or switch.
5. Only connect the unit to an individual
branch circuit outlet. Do not connect
another appliance to that outlet.
6. Make sure to properly ground the air
conditioner.
7. Every wire must be firmly connected.
Loose wiring can cause the terminal to
overheat, resulting in product
malfunction and possible fire.
8. Do not let wires touch or rest against
refrigerant tubing, the compressor, or
any moving parts within the unit.
9. To avoid getting an electric shock,
never touch the electrical components
soon after the power supply has been
turned o. After turning o the power,
always wait 10 minutes or more before
you touch the electrical components.
10. Power voltage should be within
90-110% of rated voltage. Insucient
power supply can cause malfunction,
electrical shock, or fire.
WARNING
All wiring must be performed strictly in
accordance with the wiring diagram
located on the back of the Indoor Unit’s
front panel.

1. Open and fix the position of the panel,
then, open the covers of the two lock
blocks, remove the screw , then hold
both sides of the lower panel in the place
marked “PULL”, pull it upwards to release
the buckles, then take the lower panel
down(please refer to Page 14).
2. Open the wire box cover on the right side
of the unit. This will reveal the terminal block.
3. Unscrew the cable clamp below the terminal
block and place it to the side.
4. Facing the back of the unit, remove the plastic
panel on the bottom left-hand side.
5. Feed the signal wire through this slot, from
the back of the unit to the front.
6. Facing the front of the unit, connect the wire
according to the indoor unit’s wiring diagram,
connect the u-lug and firmly screw each wire
to its corresponding terminal.
7. After checking to make sure every connection
is secure, use the cable clamp to fasten the
signal cable to the unit. Screw the cable clamp
down tightly.
8. Replace the wire cover on the front of the
unit, and the plastic panel on the back.
In North America
17
NOTE: Choose the cable type according to the
local electrical codes and regulations. Please
choose the right cable size according to the
Minimum Circuit Ampacity indicated on the
nameplate of the unit.
First open the front panel, then remove
the lower panel.
Terminal
block
open the
Wire cover
Rat bae(some units)
Knock-out
panel
Cable
clamp
NOTE: If the size of the cable is too big,
remove the middle small plastic knock-out
panel to create a slot through which the cable
can exit. If you want to remove the chassis or
drain hose, please remove the rat bae first.
NOTE: For North America products, first
remove the knok-out panel to create a slot
through which the conduit tube can install.
Then make the cable through the conduit
tube and connect to the indoor unit.

DRAIN HOSE MUST BE ON BOTTOM
Make sure that the drain hose is at the bottom of the bundle. Putting the drain hose at the top of the bundle
can cause the drain pan to overflow, which can lead to fire or water damage.
When wrapping the bundle, keep the ends of the piping unwrapped. You need to access them to test for
leaks at the end of the installation process (refer to Electrical Checks and Leak Checks section of this
manual).
DO NOT WRAP ENDS OF PIPING
18
Wrap piping & Cables
5

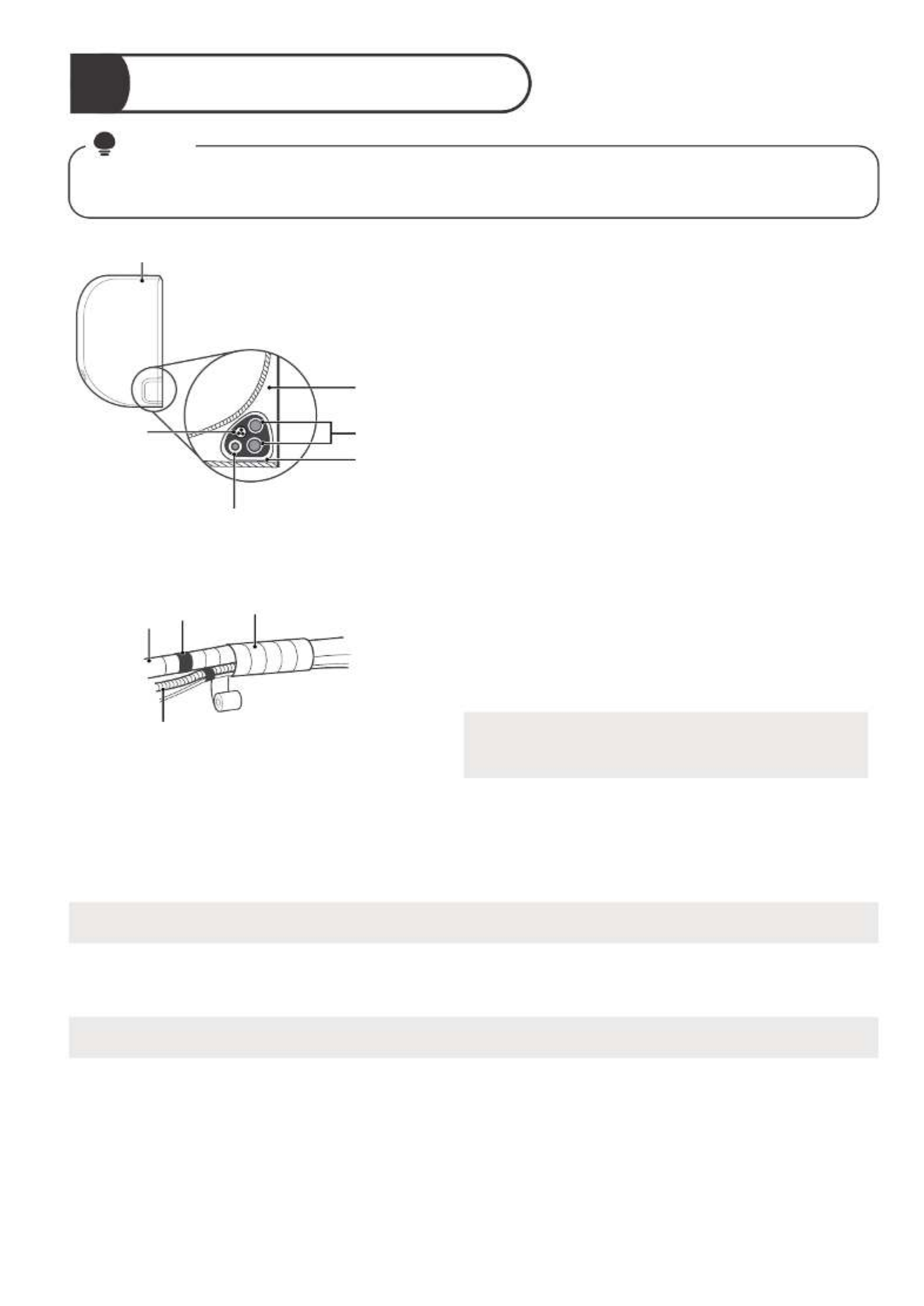

Do not intertwine signal calbe with
other wires
While bundling these items together,do not intertwine
or cross the signal cable with any other wiring.
Bundle the drain hose, refrigerant pipes, and signal
cable as shown in the figure(Not applicable for some
locations in North America ).
Using insulation tape, wrap the refrigerant pipes,
signal wire and drain hose tightly together.
Double-check that all items are bundled.
Using adhesive vinyl tape, attach the drain hose to
the underside of the refrigerant pipes.
NOTE
Before passing the piping, and drain hose and the signal cable through the wall hole, you must bundle
them together to save space, protect them, and insulate them.
Space behind
unit
Signal
wire
Indoor Unit
Refrigerant
piping
Drain hose
Insulation
tape
Step 1:
Step 2:
Step 3:
Drain hose
Vinyl tape
(narrow)
Pipe
Wrap with
insulation tape

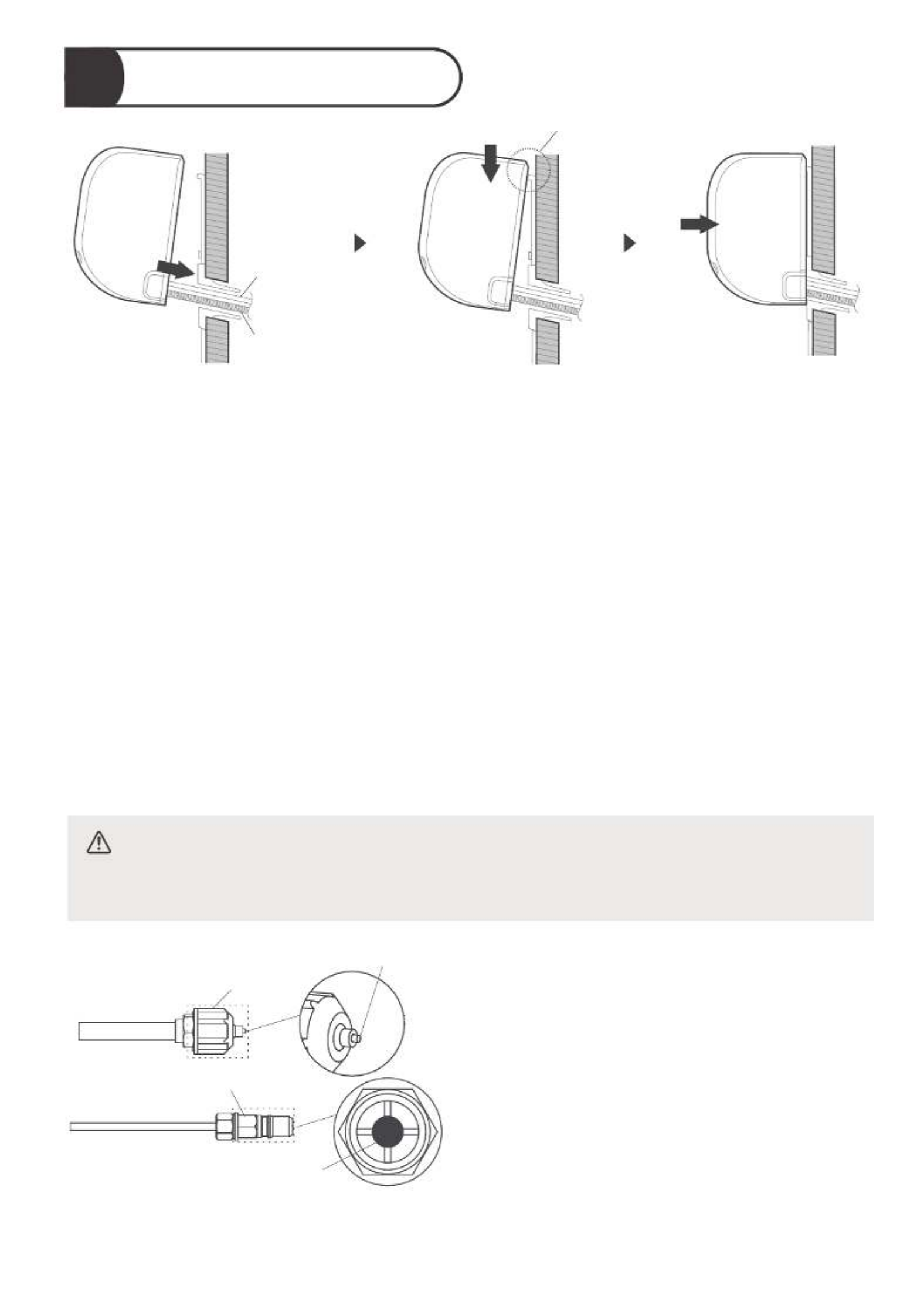

Mount indoor unit6
19
If you have already passed the refrigerant piping through the hole in the wall, proceed to Step 4.
Otherwise, double-check that the ends of the refrigerant pipes are sealed to prevent dirt or foreign
materials from entering the pipes.
Slowly pass the wrapped bundle of refrigerant pipes, drain hose, and signal wire through the hole
in the wall.
Hook the top of the indoor unit on the upper hook of the mounting plate.
Check that unit is hooked firmly on mounting by applying slight pressure to the left and right-hand
sides of the unit. The unit should not jiggle or shift.
Using even pressure, push down on the bottom half of the unit. Keep pushing down until the unit
snaps onto the hooks along the bottom of the mounting plate.
Again, check that the unit is firmly mounted by applying slight pressure to the left and the right-hand
sides of the unit.
Put pipes in wall hole Hook it and press down
lightly to secure
Check that the unit is
firmly mounted
Drain
hose
Connecting
cable
Hook it
CAUTION

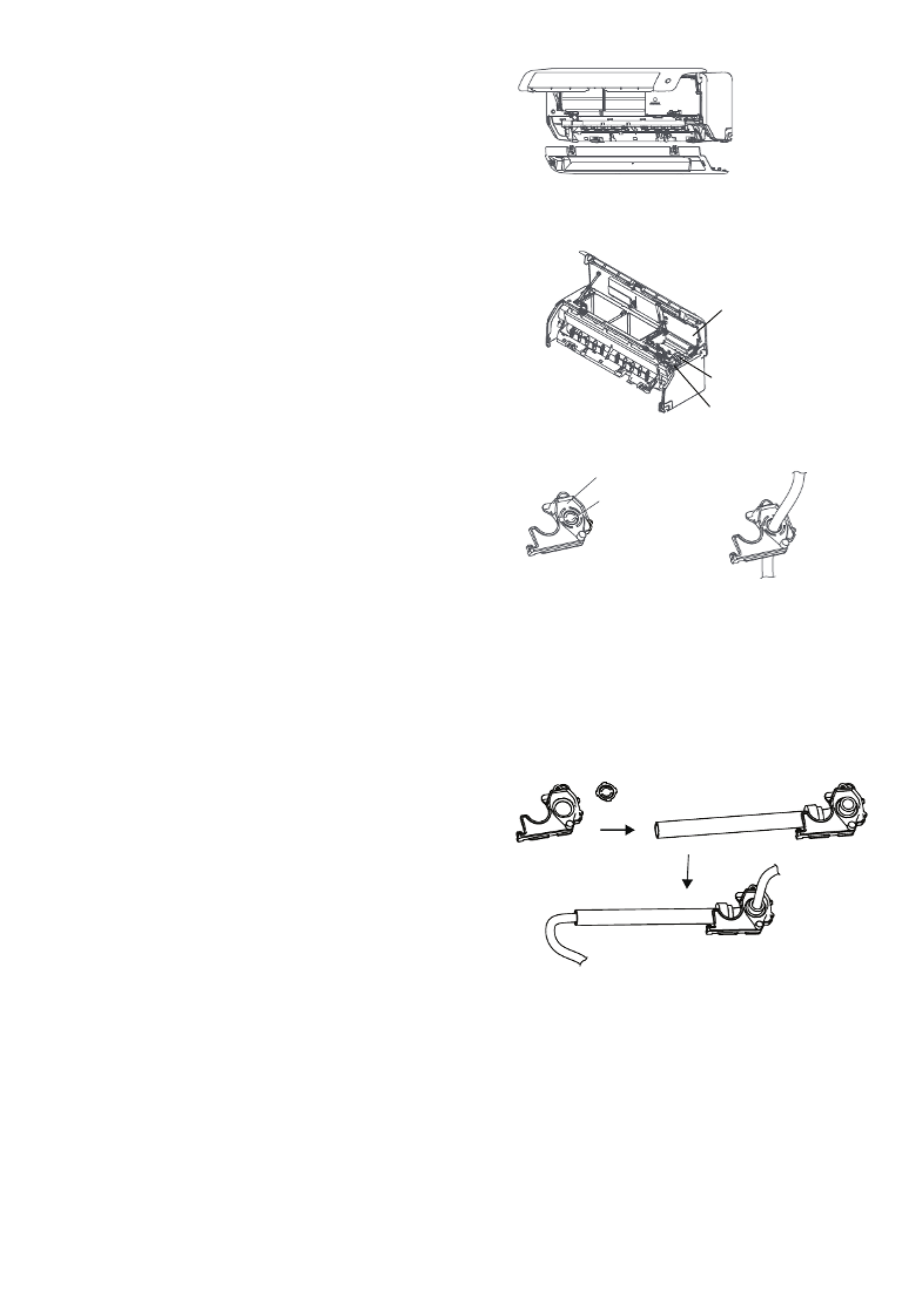

For the units adopt the following pipe connectors, please strictly perform the
piping work in accordance with the following instructions.
Connector A
Connector B
Cross-shape
part
Red point
protruding Before performing the refrigerant piping
connection, always wear work gloves and
goggles, and remember that the connectors
A and B are not allowed to face people directly.
Keep pressing the cross-shape part of connector
B with a tool for about 5~10 seconds until the
red protuding point of connector A retracts
completely.
Remove connectors A and B, then perform
the refrigerant piping connection between
indoor unit and outdoor unit.
●
●
●
●
●
●
●
If you installed new connective piping to the outdoor unit, do the following:
●
●
●

Install Your Outdoor Unit
Select installation location
Before installing the outdoor unit, you must choose an appropriate location. The following are
standards that will help you choose an appropriate location for the unit.

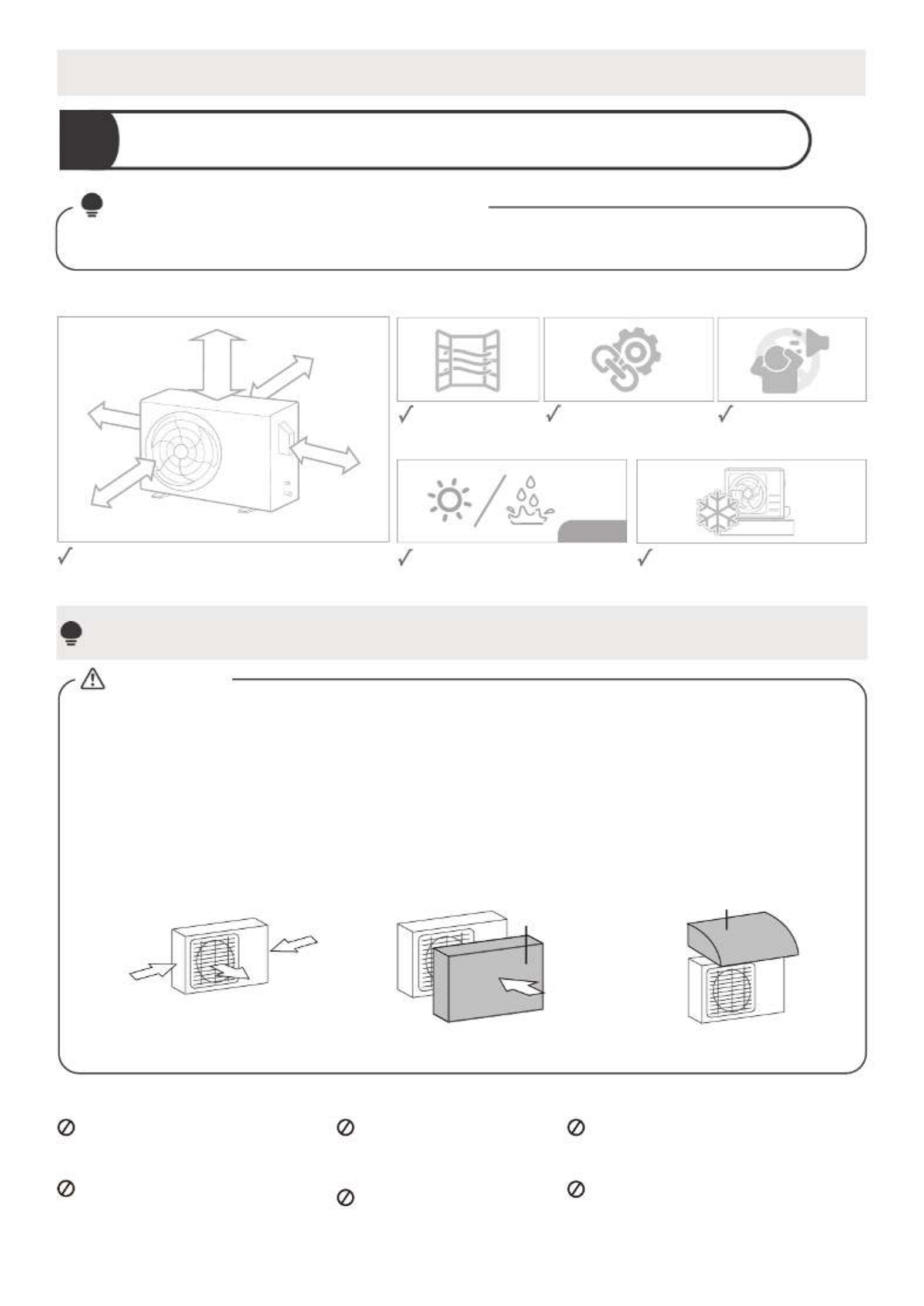

Proper installation locations meet the following standards:
Firm and solid—the
location can support the
unit and will not vibrate.
Protected from prolonged periods
of direct sunlight or rain.
Where snowfall is anticipated, take
appropriate measures to prevent
ice buildup and coil damage.
DO NOT install unit in the following locations:
Near an obstacle that will
block air inlets and outlets.
Near a public street, crowded
areas, or where noise from
the unit will disturb others.
Near animals or plants
that will be harmed
by hot air discharge.
Near any source of
combustible gas.
In a location that is exposed to large
amounts of dust
In a location exposed to a excessive
amounts of salty air.
1
NOTE
Install the unit by following local codes and regulations , there may be dier slightly between
dierent regions.
NOTE
: PRIOR TO INSTALLATION
60cm(24")
above
60cm(24")
on right
200cm(79")
in front
30cm 12"( )
on left
30cm 12"( )
from back wall
Good air circulation
and ventilation.
Meets all spatial requirements shown in Installation
Space Requirements above.
Noise from the unit
will not disturb other
people.
Long-term
Strong
wind
Strong
wind
Strong
wind
Wind Baffle
If the unit is frequently exposed to heavy rain or snow:
Build a shelter above the unit to protect it from the rain or snow. Be careful not to obstruct air flow
around the unit.
If the unit is frequently exposed to salty air(seaside):
Use outdoor unit that is specially designed to resist corrosion.
90° angle to the
direction of the wind
Build a wind Bae
to protect the unit
Build a shelter
to protect the unit
If the unit is exposed to heavy wind:
Install unit so that air outlet fan is at a 90° angle to the direction of the wind. If needed, build a barrier
in front of the unit to protect it from extremely heavy winds. See Figures below.
CAUTION:
SPECIAL CONSIDERATIONS FOR EXTREME WEATHER
Shelter
20

Install drain joint(Heat pump unit only)2
21
Seal
In cold climates, make sure that the drain hose is as vertical as possible to ensure swift water drainage.
If water drains too slowly, it can freeze in the hose and flood the unit.
NOTE : IN COLD CLIMATES

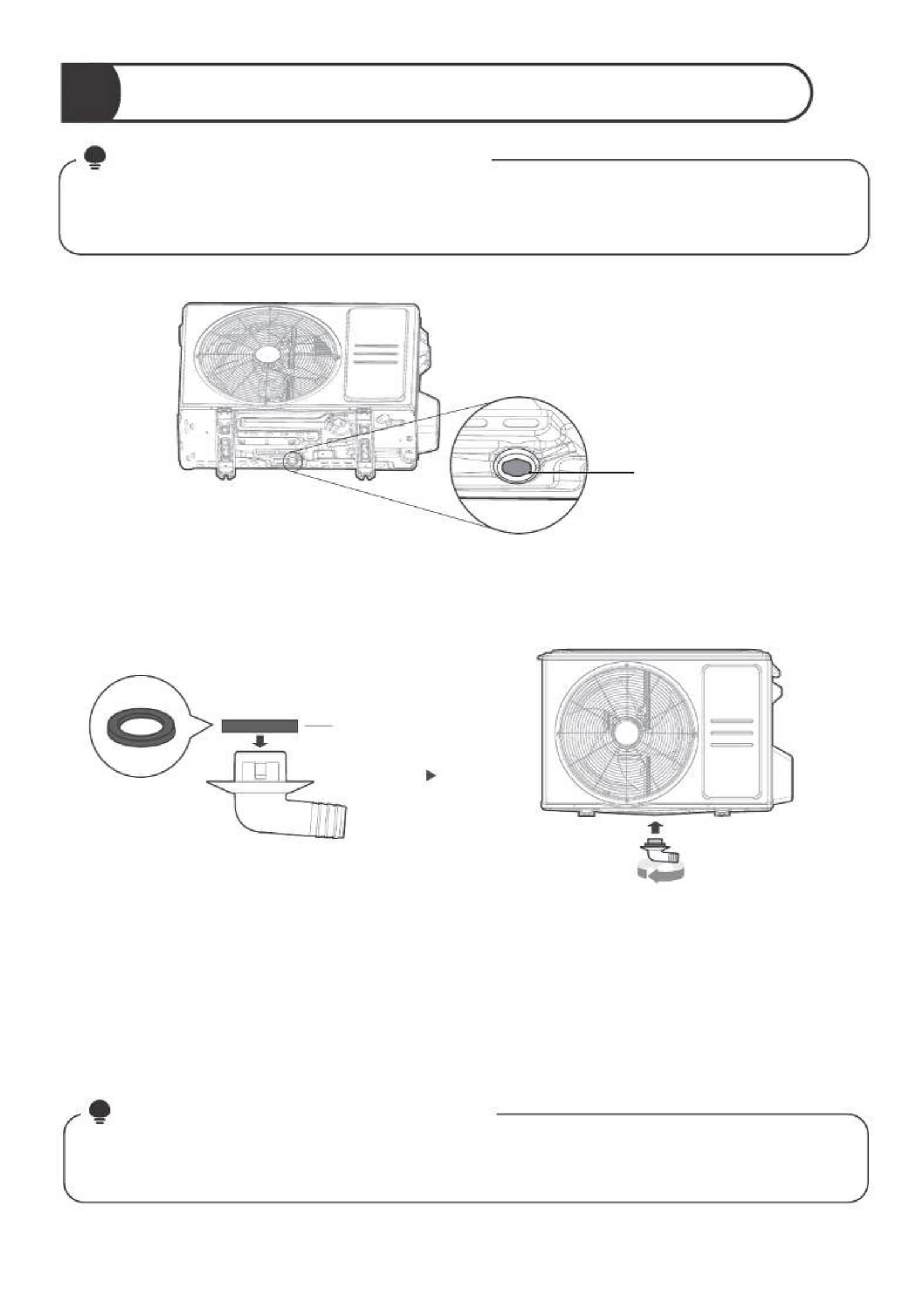

Base pan hole of
outdoor unit
Fit the rubber seal on the end of the drain joint that will connect to the
outdoor unit.
Insert the drain joint into the hole in the base pan of the unit. The drain joint
will click in place.
Connect a drain hose extension (not included) to the drain joint to redirect
water from the unit during heating mode.
●
●
●
Find out the base pan hole of outdoor unit.
Step 1:
Step 2:
Before bolting the outdoor unit in place, you must install the drain joint at the bottom of the unit.
For the units with base pan built-in with multiple holes for proper draining during defrost, the drain
joint is no need to be installed.
NOTE : PRIOR TO INSTALLATION

Anchor Outdoor Unit
3
22
The outdoor unit can be anchored to the ground or to a wall-mounted bracket with bolt(M10). Prepare
the installation base of the unit according to the dimensions below.
The following is a list of dierent outdoor unit sizes and the distance between their mounting feet.
Prepare the installation base of the unit according to the dimensions below.
W
H
Top view Front view
If you will install the unit on a wall-mounted
bracket , do the following:
Mark the position of bracket holes based on dimensions
chart.
Pre-drill the holes for the expansion bolts.
Place a washer and nut on the end of each expansion bolt.
Thread expansion bolts through holes in mounting
brackets, put mounting brackets in position, and hammer
expansion bolts into the wall.
Check that the mounting brackets are level.
Carefully lift unit and place its mounting feet on brackets.
Bolt the unit firmly to the brackets.
If allowed, install the unit with rubber gaskets to reduce
vibrations and noise.
If you will install the unit on the
ground or on a concrete mounting
platform, do the following :
Mark the positions for four expansion bolts
based on dimensions chart.
Pre-drill holes for expansion bolts.
Place a nut on the end of each expansion bolt.
Hammer expansion bolts into the pre-drilled
holes.
Remove the nuts from expansion bolts, and
place outdoor unit on bolts.
Put washer on each expansion bolt, the
replace the nuts.
Using a wrench, tighten each nut until snug.

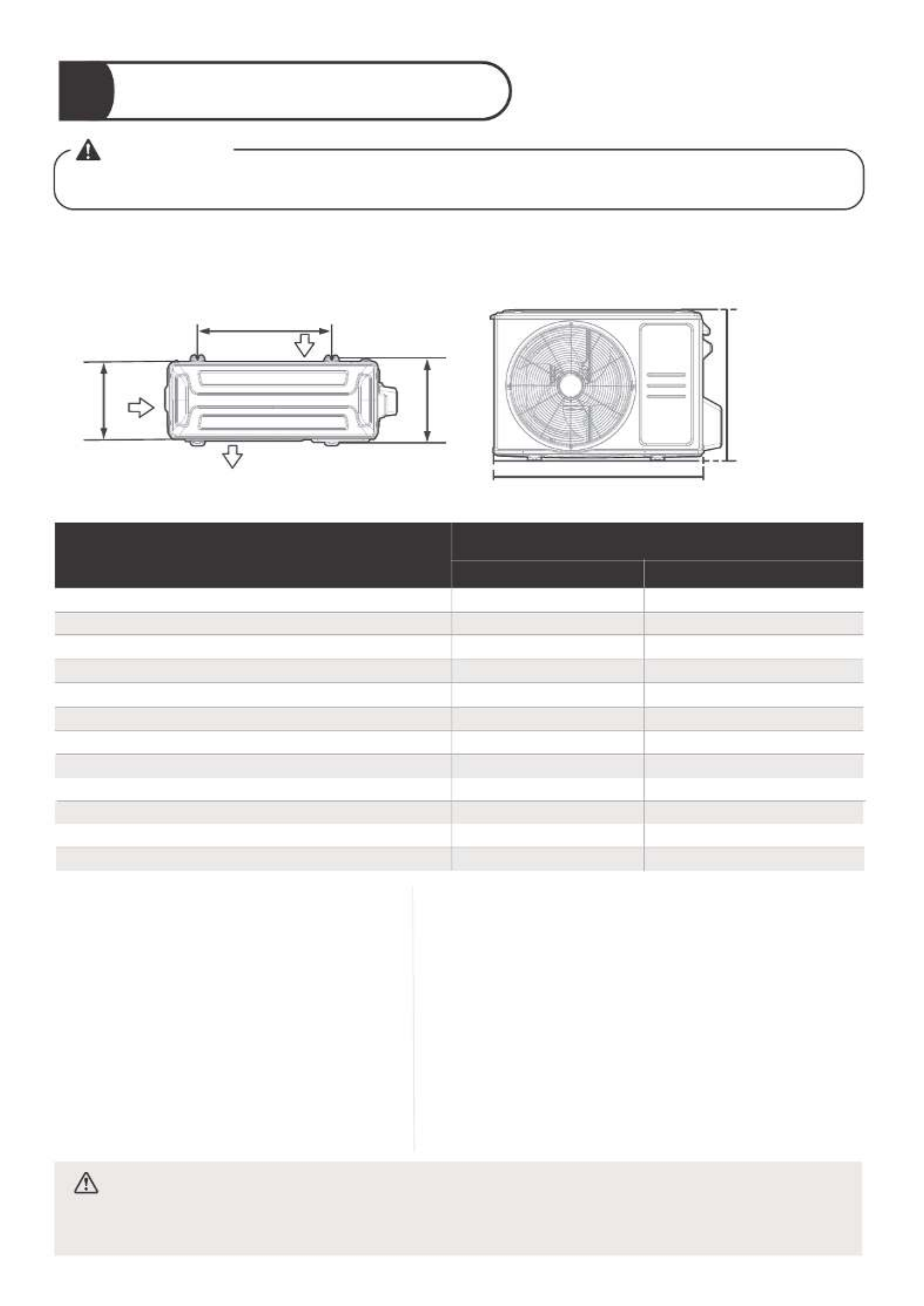

Outdoor Unit Dimensions (mm)
W x H x D
Mounting Dimensions
Distance A (mm) Distance B (mm)
765x555x303 (30.1”x 21.8”x 11.9”) 452 (17.8”) 286(11.3”)
890x673x342 (35.0”x 26.5”x 13.5”)
946x810x420 (37.2”x 31.9”x 16.5”)
663 (26.1”)
673 (26.5”)
354 (13.9”)
403 (15.9”)
946x810x410 (37.2”x 31.9”x 16.1”) 673 (26.5”) 403 (15.9”)
720x495x270 (28.3”x 19.5”x 10.6”) 452 (17.8”) 255 (10.0”)
680x542x248 (26.8”x 21.3”x 9.8”) 452 (17.8”) 230 (9.1”)
805x554x330 (31.7”x 21.8”x 12.9”) 511 (20.1”) 317 (12.5”)
D
A
B
Air inlet
Air inlet
Air outlet
WARNING
WHEN DRILLING INTO CONCRETE, EYE PROTECTION IS RECOMMENDED
AT ALL TIME.
CAUTION
Make sure that the wall is made of solid brick, concrete, or of similarly strong material.
The wall must be able to support at least four times the weight of the unit.
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
770x555x300 (30.3”x21.8”x11.8”) 487 (19.2”) 298 (11.7”)
800x554x333 (31.5”x21.8”x13.1”) 514 (20.2”) 340 (13.4”)
845x702x363 (33.3”x 27.6”x 14.3”) 540 (21.3”) 350 (13.8”)
700x550x275 (27.5”x 21.6”x 10.8”) 450 (17.7”) 260 (10.2”)
231 (9.1”)
430 (16.9”)
668x469x252 (26.3”x 18.5”x 9.9”)

WARNING
Connect signal and power cables
4
ALL WIRING WORK MUST BE PERFORMED STRICTLY IN ACCORDANCE WITH
THE WIRING DIAGRAM LOCATED INSIDE OF WIRE COVER OF THE OUTDOOR
UNIT.
BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK,TURN OFF THE
MAIN POWER TO THE SYSTEM.
- Before the Operation
23
●
●

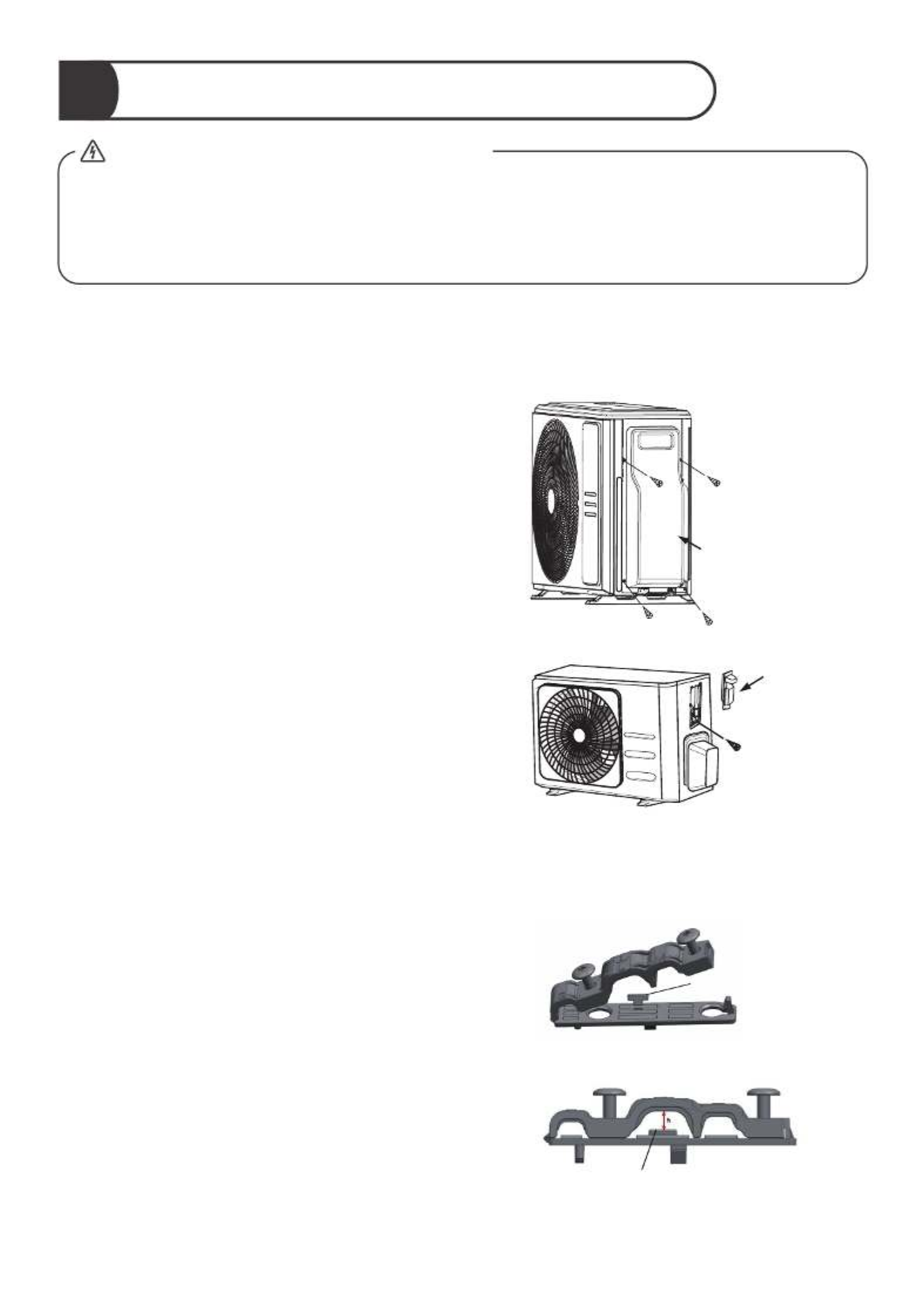

Unscrew the electrical wiring cover and remove
it.
Unscrew the cable clamp below the terminal
block and place it to the side.
Connect the wire according to the wiring
diagram, and firmly screw the u-lug of each
wire to its corresponding terminal.
After checking to make sure every connection is
secure, loop the wires around to prevent rain
water from flowing into the terminal.
Using the cable clamp, fasten the cable to the
unit. Screw the cable clamp down tightly.
Insulate unused wires with PVC electrical tape.
Arrange them so that they do not touch any
electrical or metal parts.
Replace the wire cover on the side of the unit,
and screw it in place.
The outside unit’s terminal block is protected by
an electrical wiring cover on the side of the unit.
A comprehensive wiring diagram is sticked on
the inside of the wiring cover.
●
●
●
●
●
●
●
●
●
●
Prepare the cable for connection
Please choose the right cable according
to the “Cable types” in page 15.
Using wire strippers, strip the rubber jacket
from both ends of cable to reveal about
40mm (1.57in) of the wires inside.
Strip the insulation from the ends of the wires.
Using a wire crimper, crimp u-lugs on the ends
of the wires.
Pay attention to live wire
While crimping wires, make sure you clearly
distinguish the Live (“L”) Wire from other wires.
Choose the right cable size
The size of the power supply cable, signal cable,
fuse, and switch needed is determined by the
maximum current of the unit. The maximum
current is indicated on the nameplate located
on the side panel of the unit.
Three size hole: Small, Large, Medium
When the calbe is not fasten enough, use the
buckle to prop it up , so it can be clamped tightly.
Buckle
NOTE: If the cable clamp looks like the
following, please select the appropriate
through-hole according to the diameter of
the wire.
Cover
Screw
NOTE: The unit you purchased may be slightly
dierent.The illustrations are for explanatory
purposes. The actual shape shall prevail.
Cover
Remove four
screws

In North America
24
GG
Wire Cover
Over 1-9/16"
(40mm)
Terminal block
Conduit panel
Connecting cable
Power supply cord
Please select the appropriate through-hole according
to the diameter of the wire.
Remove the wire cover from the unit by
loosening the 3 screws.
Dismount caps on the conduit panel.
Temperarily mount the conduit tubes(not
included) on the conduit panel.
Properly connect both the power supply and
low voltage lines to the corresponding
terminals on the terminal block.
Ground the unit in accordance with local codes.
Be sure to size each wire allowing several inches
longer than the required length for wiring.
Use lock nuts to secure the conduit tubes.
The outside unit’s terminal block is protected by
an electrical wiring cover on the side of the unit.
A comprehensive wiring diagram is sticked on
the inside of the wiring cover.
Step 2:Step 1:
How to properly connect the wire lines.
Loop
Insulation
Strip 25mm(15/16")
Solid wire
Round
terminal
Strip 10mm(3/8")
Strand wire
Screw with
special
washer
Round terminal
Terminal plate
Wire
Screw with
special
washer
Wire
Round
terminal
The treatment about the end of the wire. connecting the line to the corresponding terminals
on the terminal block.
●
●
●
●
●
●
●
NOTE: Please choose the right cable size
according to the Minimum Circuit Ampacity
indicated on the nameplate of the unit.

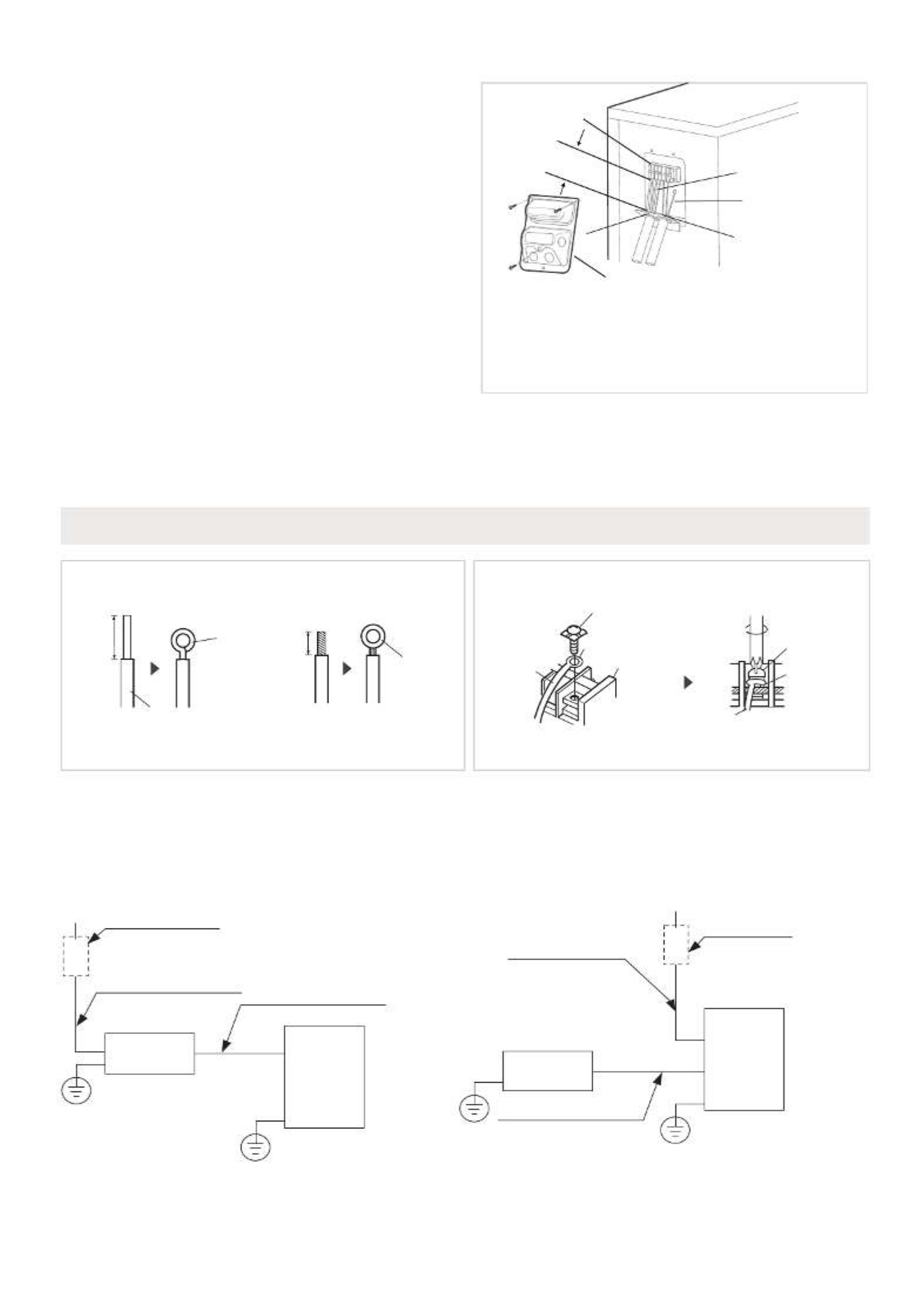

Indoor unit
Outdoor unit
Wall receptacle or
Air break switch(North America)
(purchased seperately)
Wall receptacle or
Air break switch
(North America)
(purchased seperately)
(purchased seperately)
Outdoor unit power wires
Indoor & Outdoor
connective wires
(A)
Indoor unit
Outdoor unit
(purchased seperately)
Indoor unit power wires
Indoor & Outdoor
connective wires
(B)

Piping Connection Precautions
Refrigerant Piping Connection
1
Note on Pipe Length
Connection Instructions – Refrigerant Piping

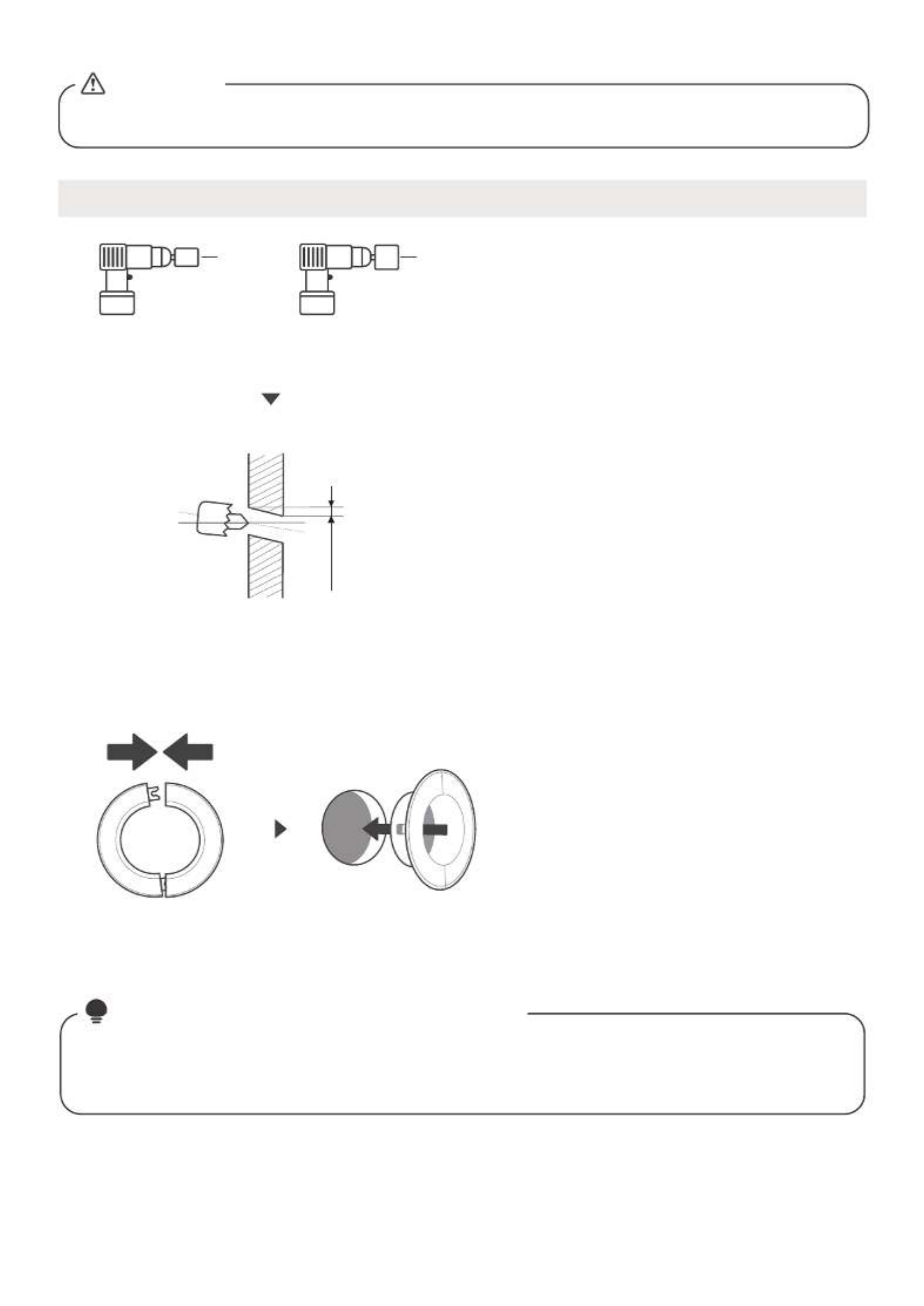

Step 1: Cut pipes
When preparing refrigerant pipes, take extra
care to cut and flare them properly. This will
ensure efficient operation and minimize the
need for future maintenance.
Measure the distance between the indoor
and outdoor units.
Using a pipe cutter, cut the pipe a little
longer than the measured distance.
Make sure that the pipe is cut at a perfect
90° angle.
Oblique Rough Warped
90°

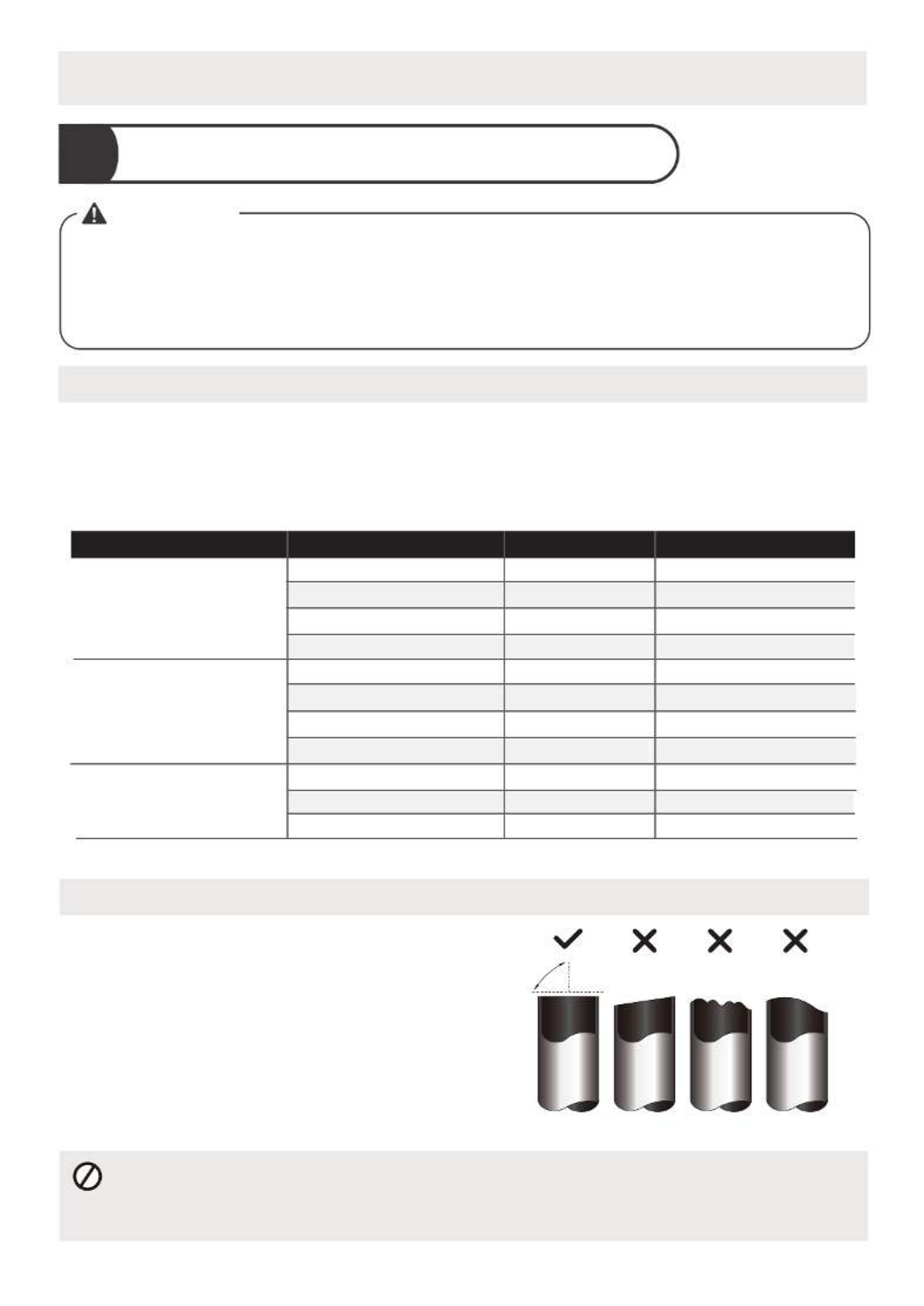

Maximum Length and Drop Height of Refrigerant Piping per Unit Model
DO NOT DEFORM PIPE WHILE CUTTING
WARNING
The length of refrigerant piping will aect the performance and energy eciency of the unit. Nominal
eciency is tested on units with a pipe length of 5 meters (16.5ft). ( In North America, the standard pipe
length is 7.5m (25’) For the R290 refrigerant models, no refrigerant can be added and the maximum .
length of refrigerant pipe should not exceed 5 meters(16.5ft).A minimum pipe run of 3 metres is
required to minimise vibration & excessive noise. Connection Instructions – Refrigerant Piping.
Be extra careful not to damage, dent, or deform the pipe while cutting. This will drastically reduce
the heating eciency of the unit.
25
●
●
●
Model
Capacity (BTU/h)
Max. Length (m)
Max. Drop Height (m)
R410A,R32 Inverter
Split Air Conditioner
R22 Fixed-speed
Split Air Conditioner
R410A, R32 Fixed-speed
Split Air Conditioner
< 15,000
< 18,000
25 (82ft) 10 (33ft)
10 (33ft) 5 (16ft)
≥ 15,000 and < 24,000 30 (98.5ft)
30 (98.5ft)
20 (66ft)
20 (66ft)
≥ 24,000 and < 36,000
≥ 36,000 and < 60,000
≥ 36,000 and < 60,000
50 (164ft) 25 (82ft)
65 (213ft) 30 (98.5ft)
≥ 21,000 and < 35,000
≥ 35,000 and < 41,000
10(33ft)
≥ 18,000 and < 21,000
≥ 18,000 and < 36,000
15 (49ft)
15 (49ft)
8(26ft)
8(26ft)< 18,000 20 (66ft)
25 (82ft) 10(33ft)
10 (33ft)25 (82ft)
WHEN CONNECTING REFRIGERANT PIPING, LET SUBSTANCES OR DO NOT
GASES OTHER THAN THE SPECIFIED REFRIGERANT ENTER THE UNIT. THE
PRESENCE OF OTHER GASES OR SUBSTANCES WILL LOWER THE UNIT’S
CAPACITY, AND CAN CAUSE ABNORMALLY HIGH PRESSURE IN THE
REFRIGERATION CYCLE. THIS CAN CAUSE EXPLOSION AND INJURY.
Produkt Specifikationer
Mærke: | Midea |
Kategori: | Klimaanlæg |
Model: | MFEP26VA-N |
Har du brug for hjælp?
Hvis du har brug for hjælp til Midea MFEP26VA-N stil et spørgsmål nedenfor, og andre brugere vil svare dig
Klimaanlæg Midea Manualer
25 Juli 2025
25 Juli 2025
25 Juli 2025
24 Juli 2025
24 Juli 2025
24 Juli 2025
24 Juli 2025
19 Juli 2025
19 Juli 2025
17 Juli 2025
Klimaanlæg Manualer
- Artrom
- VänEE
- Gutfels
- Exquisit
- ENDORFY
- Point
- Zymbo
- Nedis
- LG
- Evapolar
- Jocca
- Tripp Lite
- Tatung
- Suntec
- Koldfront
Nyeste Klimaanlæg Manualer
26 Juli 2025
26 Juli 2025
26 Juli 2025
26 Juli 2025
26 Juli 2025
25 Juli 2025
25 Juli 2025
25 Juli 2025
25 Juli 2025
25 Juli 2025
