mANTBox ax 15s

mANTBox ax 15smANTBox ax 15s

mANTBox ax 15s ( )L22UGS-5HaxD2HaxD-15S

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing

accidents.

Read the installation instructions before connecting the system to the power source.

This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for obtaining any

required local or national safety inspections of the structural integrity of the installation by the local authority/inspection department.

All installation methods for mounting an access point on any wall surface are subject to the acceptance of local jurisdiction.

The Installation of the equipment must comply with local and national electrical codes.

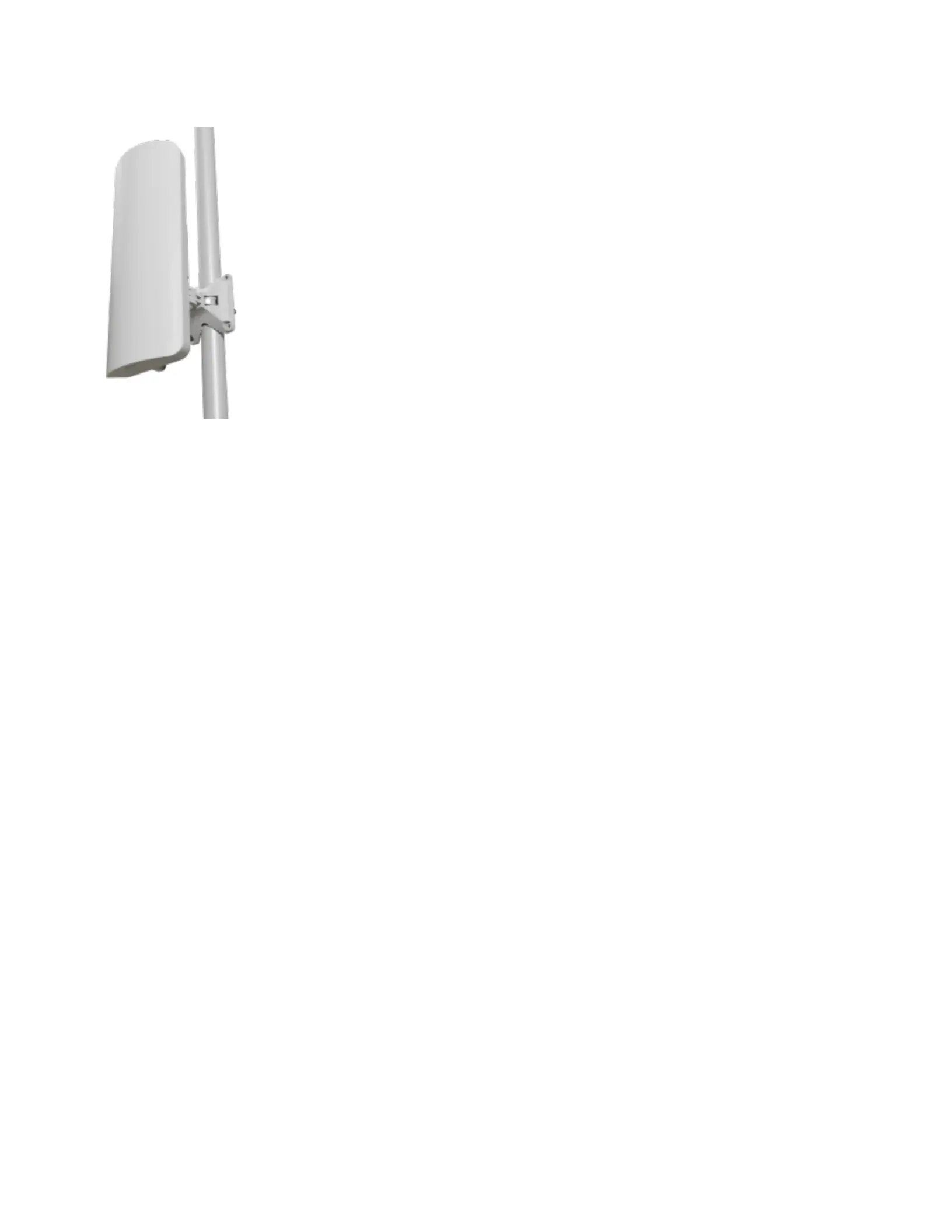

This unit is intended to be mounted outdoors on a pole. Please read the mounting instructions carefully before beginning installation.

Failure to use the correct hardware and configuration or to follow the correct procedures could result in a hazardous situation for people and damage to the

system.

We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your

own risk.

This device needs to be upgraded to RouterOS v7 or the latest version to ensure compliance with local authority regulations.

The mANTBox is a weatherproof outdoor device with a high-power wireless interface, and one Gigabit Ethernet connector, which supports MDI-X auto-

detection. The device has a built-in sectoral antenna. The device is packaged with a power adapter, a PoE injector, and a mounting kit.

This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an

Exposure to Radio Frequency Radiation:

Exposure to Radio Frequency Radiation:Exposure to Radio Frequency Radiation:

uncontrolled environment. This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the

general public.

First use

Unscrew the lid screw by hand;

The device accepts 12-28 V Passive PoE from a PoE injector (please compensate voltage for loss due to cable length) or from the power jack;

Connect the device to the included PoE injector with Ethernet cable;

Connect the PoE injector into the computer;

Connect the power adapter to the PoE injector;

Download the WinBox configuration tool ;https://mt.lv/winbox

There is no default IP address set, user name: and there is no password (or, for some models, check user and wireless passwords on the 

admin



sticker), usethe tab and connect through the MAC address;Neighbors

Once connected configure the device, so it has an active Internet connection ;https://mt.lv/configuration

Upload downloaded packages to theWinBoxFilesmenu and reboot the device. By upgrading your RouterOS software to the latest version, you

can ensure optimal performance, stability, and security updates;

In the wifi-interface menu set up the following: Choose your country, to apply country regulation settings; SSID; mode; See the manual page:WiFi

Set up your wireless network security profile;

Powering

The device comes with a 24 V 1.2 A power adapter. It can be used with the included PoE injector or the power jack. The device accepts 12-28 V for both

methods. The maximum power consumption of the device is 11 W at 21 W.

Connecting to a PoE Adapter:

Connect the Ethernet cable from the device to the PoE+DATA port of the PoE adapter;

Connect an Ethernet cable from your local network (LAN) to the PoE adapter;

Connect the power cord to the adapter, and then plug the power cord into a power outlet.

Configuration

We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest version to ensure the best performance and

stability. RouterOS includes many configuration options in addition to what is described in this document. We suggest visiting the RouterOS documentation

page to get yourself accustomed to the possibilities: .https://mt.lv/help

In case an IP connection is not available, the Winbox tool ( ) can be used to connect to the MAC address of the device from the LAN https://mt.lv/winbox

side (all access is blocked from the internet port by default).

Mounting

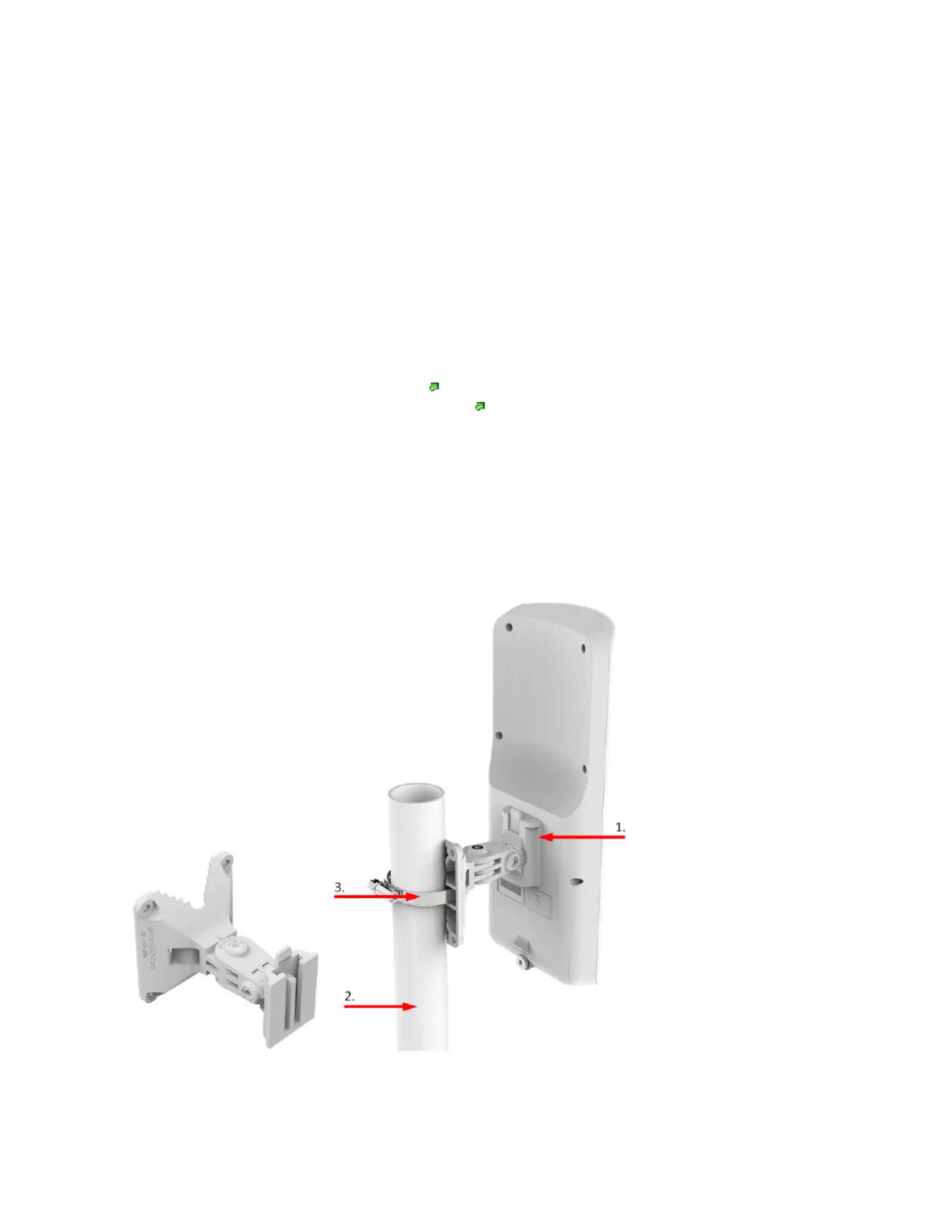

The mANTbox 12s and 15s come with a QuickMount adapter that can be attached to a wall using the included screws, or attached to a pole, using the

included metal mounting ring. The QuickMount allows the device to be adjusted horizontally and vertically.

Attach the quick mount to the back of the device.

Attach the device to the pole.

Secure it with a provided steel clamp. Clamping diameter 35 – 70 mm.
