R11e series

R11e seriesR11e series

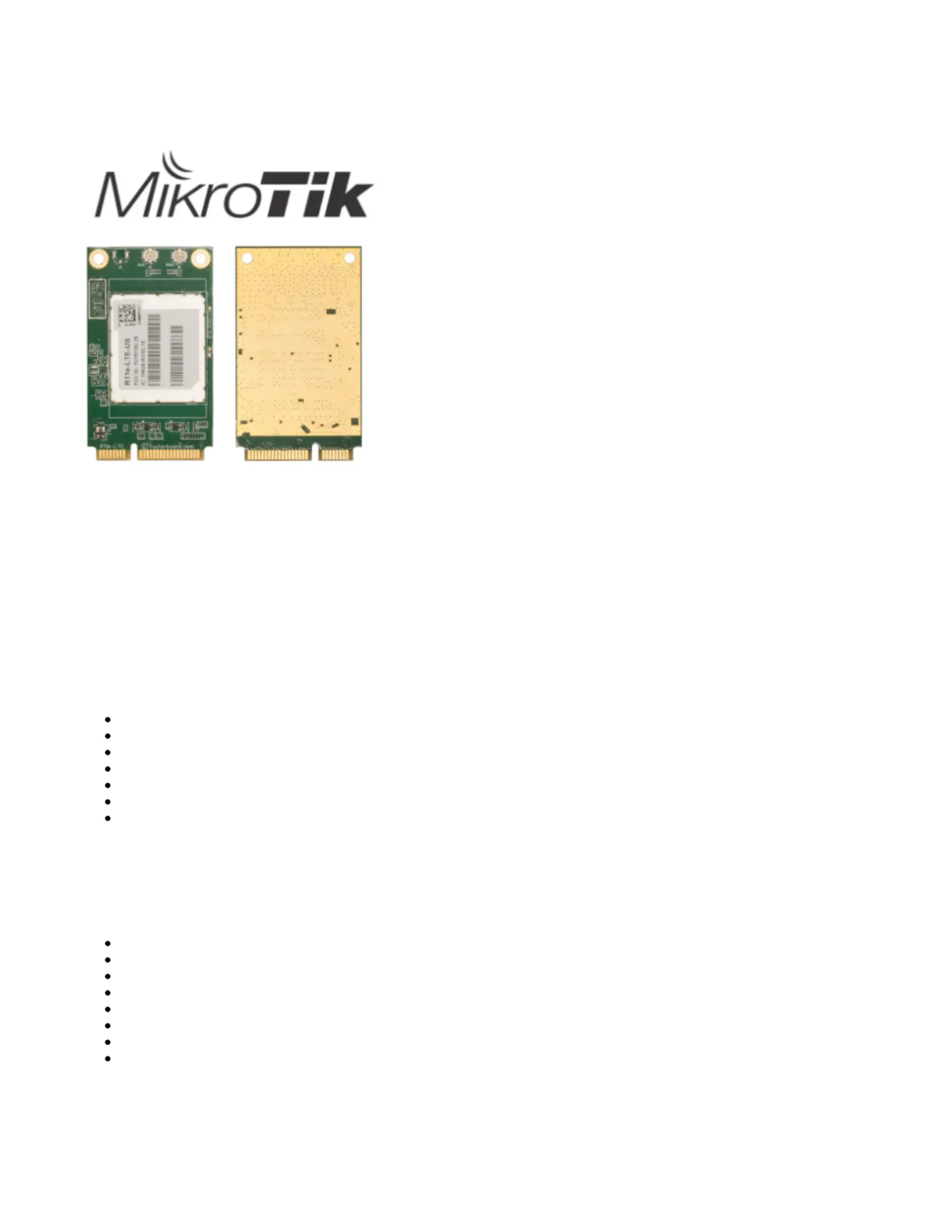

R11e-LTE-US is a Cat-4 modem. It can be integrated into any MikroTikproduct that has a miniPCI-e slot.

R11e-LTE-US

R11e-LTE

R11e-4G

R11e-LTE6

Specifications

Interface – Mini-PCIe;

Temperature Operating-30°C .. +70°C

LTE Channel Bandwidth:1.4/3/5/10/15/20 MHz

LTE Category:4 (150Mbps Downlink, 50Mbps Uplink)

3G Category: R7 (Cat14 - 21.1Mbps Downlink)

LTE (FDD) bands:2/4/5/12 (1900/1700/850/700)

3G bands:2/5 (1900/850)

Installing the module in your device

R11e-TE-US for professional use. Each of the cards comes in ESD protective packaging. When handling electrical equipment please observe the following

safety precautions:

Use a wrist grounding strap when unpacking and working with electrical components to avoid electrical discharge (ESD) damage;

After unpacking please place the card on the anti-static mat;

When installing make sure there are no objects that can damage or touch the PCB plate;

The card can be installed in your desired device using the factory provided screw holes in a PCB plate;

Locate miniPCIe slot on your device;

Unscrew two factory attached screws;

Optionally you can use the thermal pad by placing it under the card, the thermal pad is not included in the package;

Install the module to the miniPCIe slot and secure it with previously removed screws. Tightening torque 0,3 Nm;

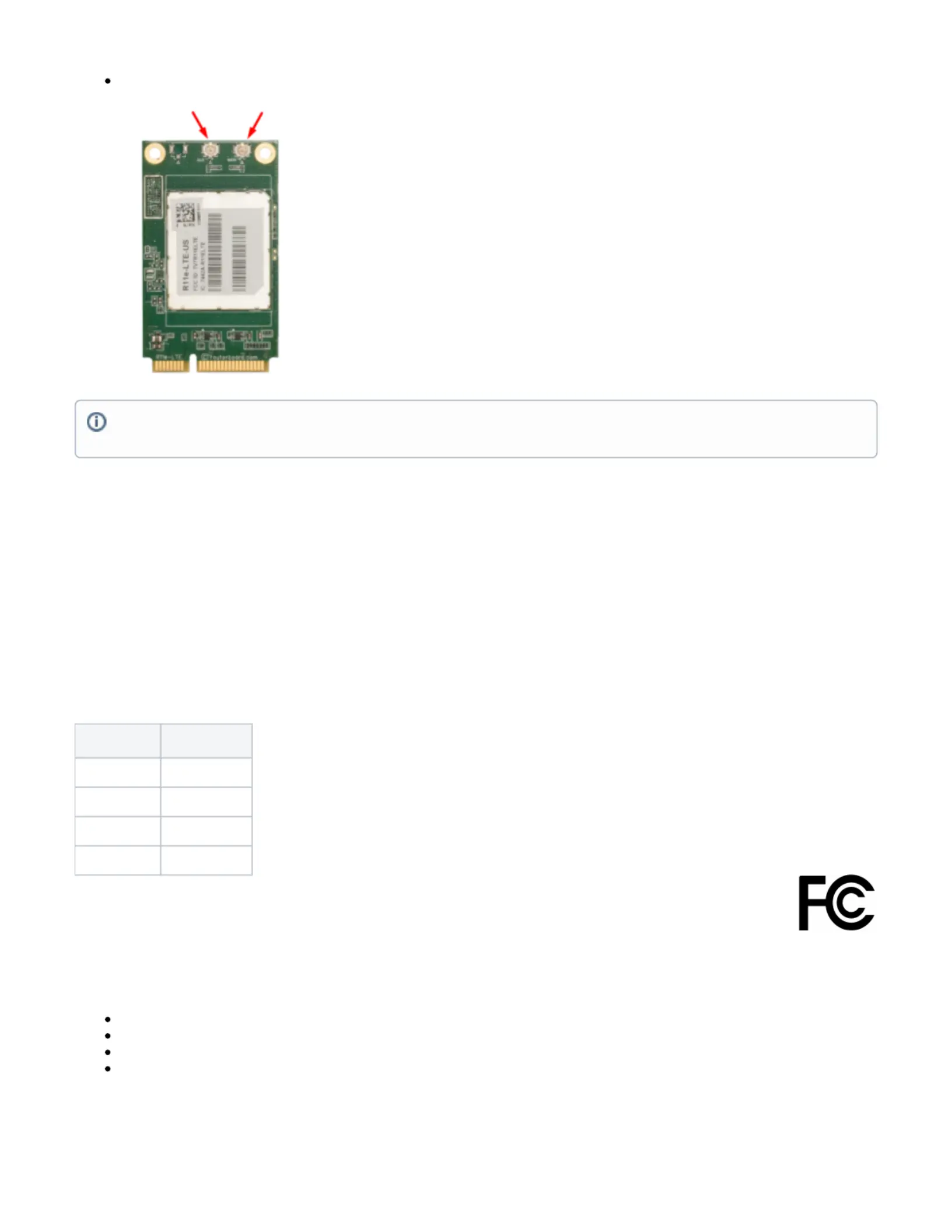

Attach antenna cables to the connectors on the module:

Configuration

The device will be automatically recognized when used in a MikroTik RouterOS powered device. Configuration can be set in the “Wireless” menu. More

information about the configuration of LTE can be found in our documentation: https://wiki.mikrotik.com/wiki/Manual:Interface/LTE

The device is tested with RouterOS v6 and above. It might be compatible with other operating systems, but drivers are not included with the card.

Operating system support

The module supports RouterOS. Other operating systems have not been tested.

Federal Communication Commission Interference Statement

Model

ModelModel FCC ID

FCC ID

FCC IDFCC ID

R11e-LTE-US TV7R11ELTE

R11e-LTE None

R11e-4G TV7R11E4G

R11e-LTE6 TV7R11ELTE6

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this

equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful

When installing outdoors please ensure that the device case is waterproof and is designed for outdoor use.

Mounting and configuration of this device should be done by a qualified person.

Produkt Specifikationer

Mærke:	Mikrotik
Kategori:	Ikke kategoriseret
Model:	R11e-LTE
Bredde:	51 mm
Dybde:	30 mm
Højde:	5 mm
Produktfarve:	Gold, Green
Driftstemperatur (T-T):	-30 - 70 °C
Forbindelsesteknologi:	Trådløs
Certificering:	CE
Understøttede netværksprotokoller:	IPv4, IPv6
Harmoniseret systemkode (HS):	85176990
Værtsgrænseflade:	Mini PCI Express
Intern:	Ja
Maksimal dataoverførselshastighed:	150 Mbit/s
