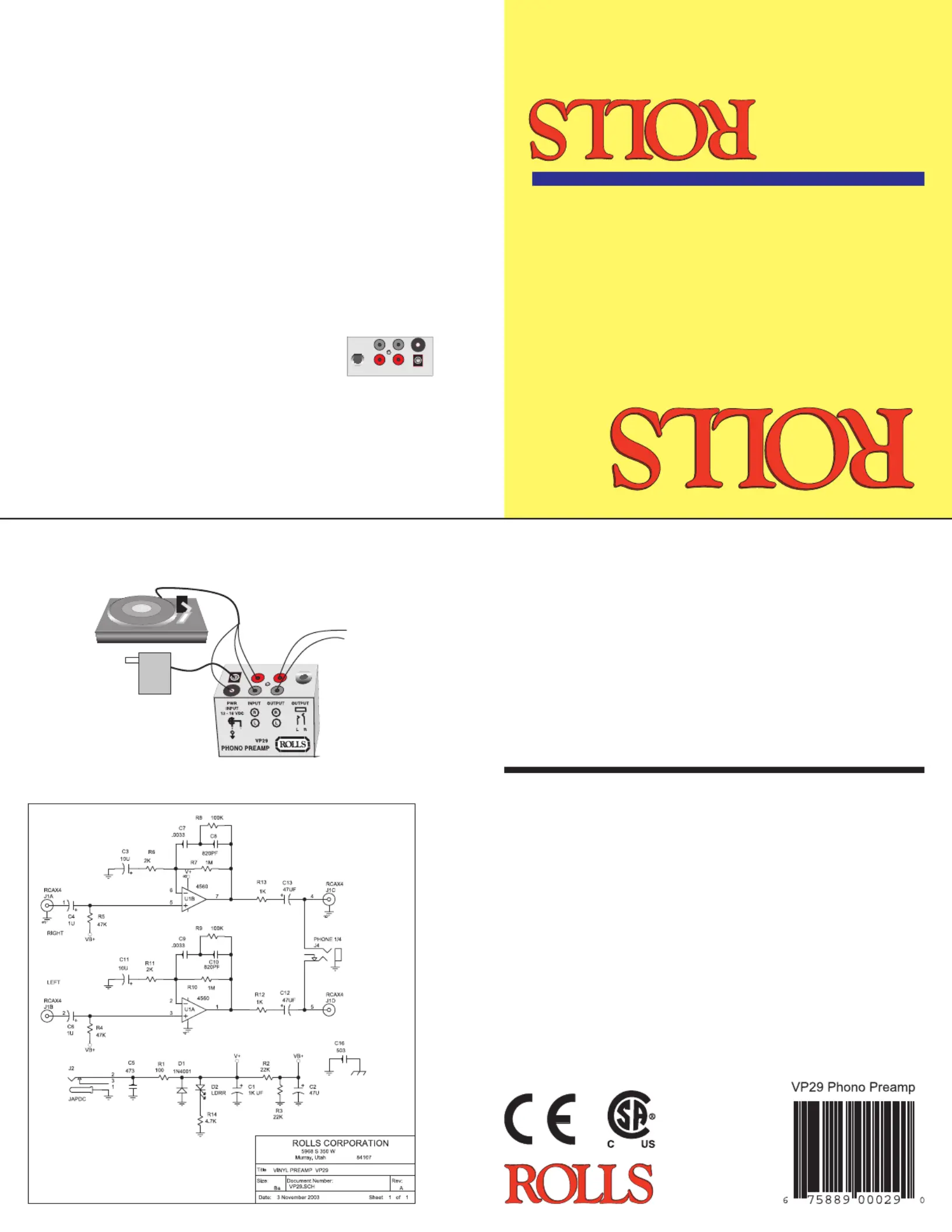

VP29 PHONO PREAMP

VP29

Phono Preamp

- Converts RIAA Phono signals to Line Level

- Works well with magnetic phono pickups

- Stereo RCA and 1/4" outputs

Phono players require special equalization because

of the frequency response of recording on vinyl.

The VP29 equalizes and amplifies the phono signal

to a clean, and full line level for professional ampli-

fication.

Rolls Corporation

Salt Lake City, UT

11/03

SPECIFICATIONS

I/ O Connectors: RCA, 1/4" TRS Stereo

Input Sensitivity: 35 dBV gain @

1kHz, 47k Ohms Input Z

Input Capacitance: 5pf + cable capacitance

Input Impedance: 50k Ohms

Output Impedance: 1 K Ohms

Max Output Level: >10dB @ 1kHz at at 1% dist.

Frequency Response: + / - 1.5dB 20 Hz - 20 kHz

(Conforms to RIAA

Equalization Curve)

THD .02% @ 1 kHz

S/N Ratio: >80 dB unweighted

PWR: 12 - 18 VDC

Size: 3.25 x 2 x 1.5

Weight: 1 lb

VP29

PHONO PREAMP

VP29

PHONO PREAMP

VP29

PHONO PREAMP

- Home

- Studio

- Broadcast

... anywhere you need clean RIAA EQ to

professional line level conversion.

Thank you for your purchase of the Rolls VP29 Phono Preamp.

The VP29 is designed to amplify an RIAA equalized phono signal

to a Hi-Fi level signal, and it works well with magnetic pickups.

INSPECTION

1. Unpack and Inspect the VP29 package

Your VP29 was carefully packed at the factory in a protective

carton. Nonetheless, be sure to examine the unit and the carton for

any signs of damage that may have occurred during shipping. If

obvious physical damage is noticed, contact the carrier immedi-

ately to make a damage claim. We suggest saving the shipping

carton and packing materials for safely transporting the unit in the

future.

WARRANTY:

For complete warranty information please visit our website at

www.rolls.com, and click on the Register Your Warranty Here

button.

DESCRIPTION

PWR INPUT: 12 - 16 Volts DC, tip negative jack.

GROUND CONNECTOR: Connects to the Ground of the phono

player

INPUT: Stereo RCA jacks for connection to the phono player

OUTPUT: Stereo RCA jacks for connection to a stereo system or

amplifier.

OUTPUT: 1/4" Tip-Ring-Sleeve jack for connection to a stereo

amplifier.

INPUT

OUTPUT

GROUND

PWR INPUT

OPERATION

Shown below is an example of how to connect your VP29.

SCHEMATIC

To stereo

amplifier and

speakers.

Pwr

Supply

Produkt Specifikationer

Mærke:	Music Hall
Kategori:	Modtager
Model:	VP29
Bredde:	83 mm
Dybde:	51 mm
Højde:	38 mm
Vægt:	455 g
Produktfarve:	Rød
Frekvensområde:	20 - 20000 Hz
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	2.0 kanaler
DC-in-stik:	Ja
LED-indikatorer:	Ja
DC indgangsspænding:	12 V
klirfaktor (THD):	0.02 %
Signal/støjforhold:	80 dB
Spidseffekt pr. kanal:	- W
Højttalere tilslutningstype:	RCA
Output impedans:	1000 ohm (Ω)
Indgangsimpedans:	50000 ohm (Ω)
