Side 1/2

550/551

A Division of Marshall Electronics

310-333-0606



800-800-6608



Fax: 310-333-0688

www.mxlmics.com



sales@mxlmics.com

Microphone

Ensemble

Warranty

MXL microphones are guaranteed against defects in materials and workmanship

for one year from the date of purchase. If you encounter any problem with this unit,

promptly contact the company from which you purchased it for assistance. The

original dated sales receipt will be necessary for any warranty claim. Do not send

any unit directly to us without prior authorization from our service department.

Warranty coverage is limited to repair or replacement (at our option) of the

microphone, and does not cover incidental damages due to use of this unit, nor

damage caused by accidental misuse of this product.

General Characteristics

These microphones have gold-sputtered diaphragms and a xed cardioid pickup

pattern. Condenser microphones are very sensitive, readily revealing very subtle

sonic details. They also tend to pick up sounds outside the pattern more than some

designs, which can lead to powerful feedback if you are not careful. We strongly advise

experimentation with placement and isolation requirements with the gain initially set

low to avoid equipment (and ear) damage. It is strongly advised to use a mesh pop-

lter to avoid moisture from damaging the capsule.

Contents

Unpack your MXL microphone package carefully and verify that all of the following

items are included:

• 15” Mogami Cable Windscreen

Power Requirements

IMPORTANT - These units require phantom power at 48 volts, +/- 4 volts. Each unit has

been thoroughly checked before shipping, so if you do not hear sound, check that the

phantom power on your mixer or separate power supply is switched on!

Microphone Cables

Your microphone cable can have a profound effect on the sound of any

microphone. Even the nest microphones will sound poor if the interconnect

cable allows noise to enter, or causes distortion and loss of information. We highly

recommend the Mogami® Cable supplied with the microphone.

Care

Dust and foreign material can degrade the performance of a microphone over time,

so always store the unit in its box. For vocals closer than 3”, use a pop lter or a foam

windscreen to avoid getting moisture on the diaphragm as this can substantially

degrade the microphone’s performance. Store the microphone in its original

packaging in a cool, dry place along with the included packet of silica gel.

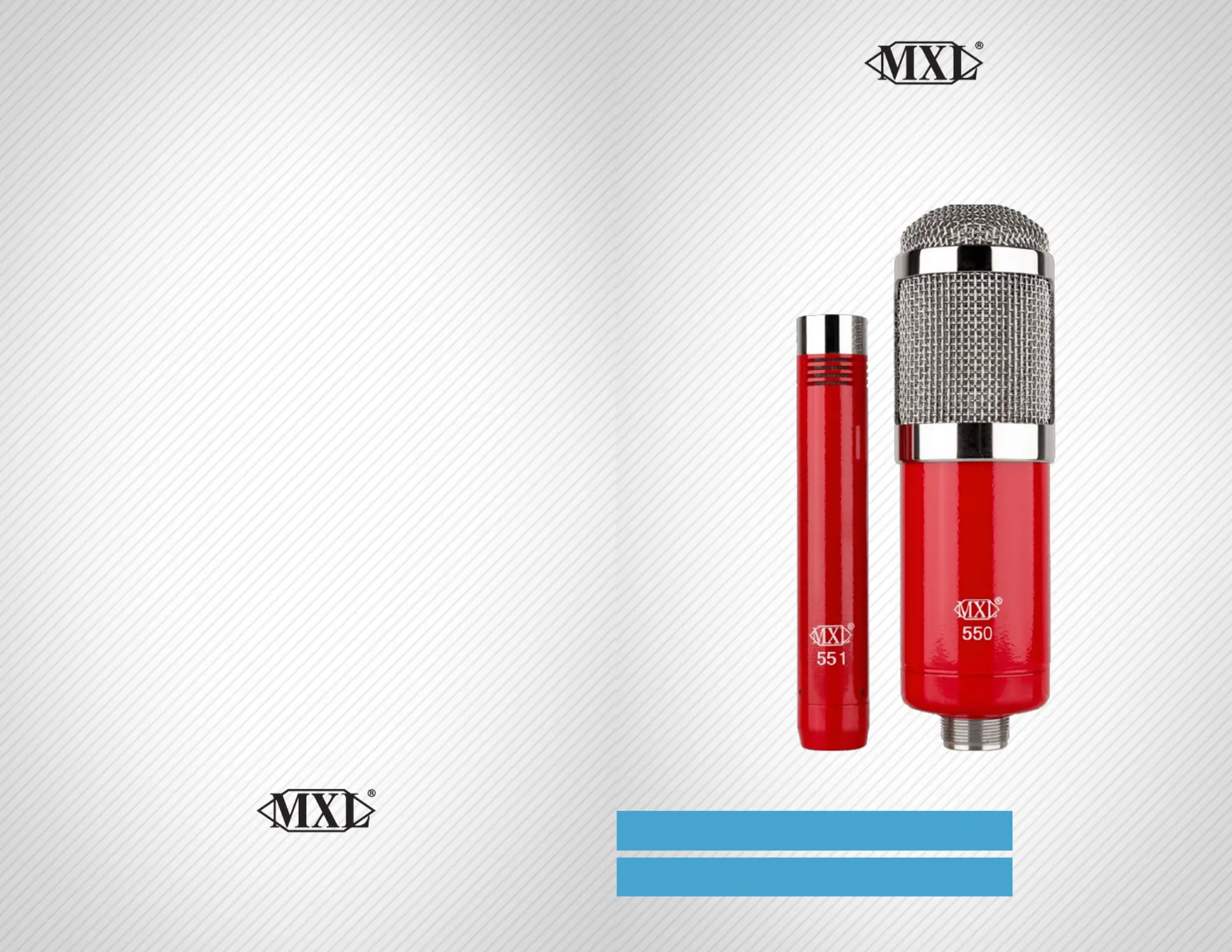

Thank you for choosing the MXL 550/551 Recording Ensemble. For best results,

please take a few moments to read this manual and familiarize yourself with

proper operation and care of your microphone.

Microphone Ensemble

550/551

• MXL 550 mic

• MXL 551R mic

• Hard Mount Mic Stand Adapter

• Hard Mount Instrument Mic Adapter

• Rugged Carrying Case

Type: ...........................................Pressure gradient condenser microphone

Frequency Range: .............................................................................. 30 Hz – 20 kHz

Polar Pattern: ......................................................................................................Cardioid

Sensitivity: ............................................................................................................15mV/Pa

Impedance: .................................................................................................................200Ω

S/N Ratio: 80dB (Ref. 1Pa A-weighted) ...................................................................

Equivalent Noise Level: ................................20dB (A weighted IEC 268-4)

Max SPL for 0.5% THD: 130dB ..........................................................................................

Power Requirements: ...................................48V Phantom Power (+/- 4V)

Current Consumption: ................................................................................... <3.0mA

Size: ............................................................................................................47mm x 170mm

Weight: ..........................................................................................................................0.8 lbs

Metal Finish: ...........................................................................Red with chrome grill

Frequency ChartPolar Pattern

Type: ...........................................Pressure gradient condenser microphone

Frequency Range: .............................................................................. 30 Hz – 20 kHz

Polar Pattern: ...................................................................................................... Cardioid

Sensitivity: ............................................................................................................15mV/Pa

Impedance: ....................................................................................................................110Ω

S/N Ratio: ....................................................................78dB (Ref. 1Pa A-weighted)

Equivalent Noise Level: ................................20dB (A weighted IEC 268-4)

Max SPL for 0.5% THD: ...........................................................................................137dB

Power Requirements: ...................................48V Phantom Power (+/- 4V)

Current Consumption: ................................................................................... <3.0mA

Size: ........................................................................................................... 22mm x 134mm

Weight: ..........................................................................................................................0.2 lbs

Metal Finish: ...........................................................................Red with chrome grill

550

Frequency ChartPolar Pattern

551

550/551 Technical Specifications
