MXL USB.009 Manual

MXL Mikrofon USB.009

Læs gratis den danske manual til MXL USB.009 (11 sider) i kategorien Mikrofon. Denne vejledning er vurderet som hjælpsom af 36 personer og har en gennemsnitlig bedømmelse på 5.0 stjerner ud af 18.5 anmeldelser. Har du et spørgsmål om MXL USB.009, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/11

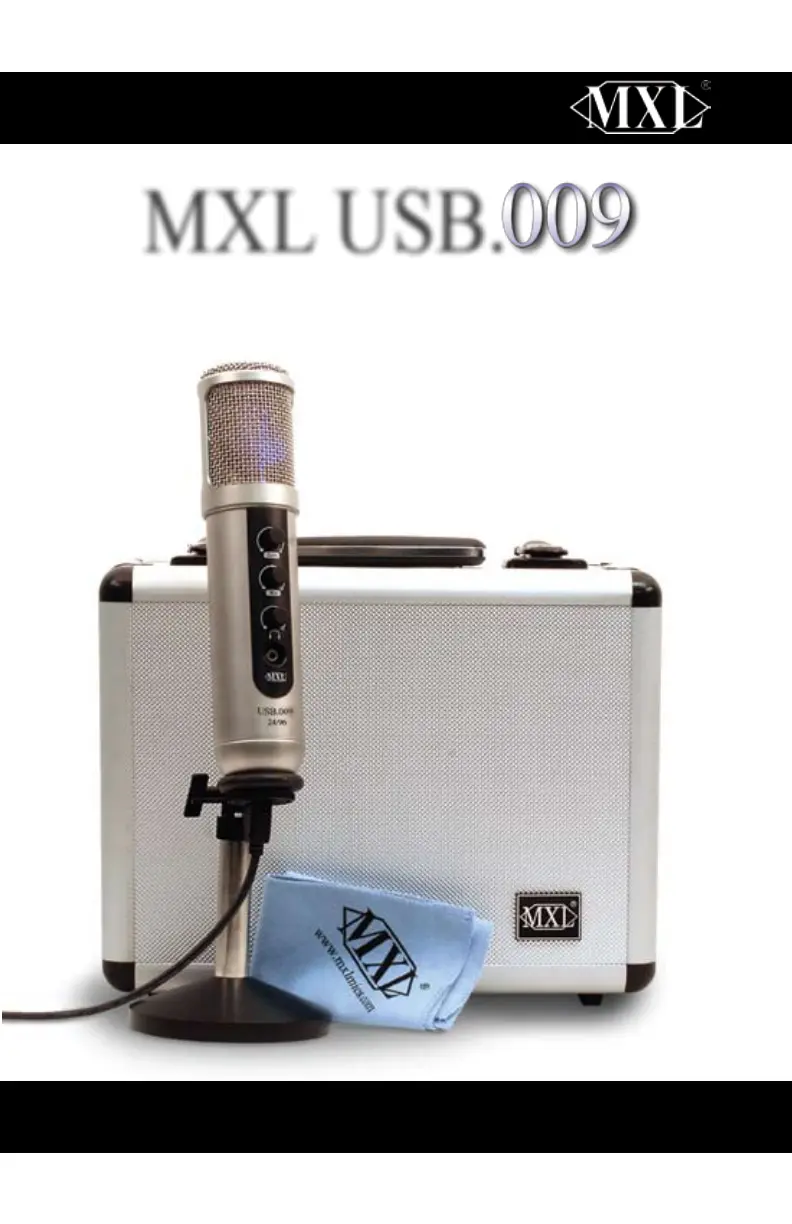

USB Condenser Microphone

MXL USB.

2 3

o n g r a t u l a t i o n s and thank you for purchasing the MXL

USB.009

microphone. With up to 24-bit, 96 kHz recording capability, and 114 dB

dynamic range, you will be able to achieve the highest level of sonic

detail while maintaining the simplest of recording setups. The latest advances in

digital technology, along with years of research, have enabled MXL

’s engineering

team to produce the audio quality normally found in expensive, high-end multi-

channel computer interfaces within the body of this microphone.

Producing a feature rich USB microphone solution for the professional

Broadcast and music industries meant no compromises on quality. Because of this,

hand selecting the best components for the USB.009 was very important. At MXL

we know that with audio, no matter how good specs may look on paper, your ears

are the ﬁnal judge.

Recording the best tracks demands a great mix with zero latency monitoring.

The MXL

USB.009 delivers with rotary knobs that enable you to dial in the

perfect mix. When it’s time to listen back to the tracks you’ve recorded, or even

just listen to the latest CD you’ve purchased, the MXL

USB.009 will dazzle with

its amazing detail and punch. What this means for you is a simple, feature-rich,

elegant all-in-one recording solution that is completely professional.

MXL

USB.009 Features

●

24-bit A/D and D/A converters with up to 96 KHz recording capability

●

114 dB dynamic range, -100 dB THD+N

●

32mm pressure gradient condenser capsule

●

Gold-sputtered diaphragm

●

Cardioid polar pattern

●

USB 1.1 and 2.0 compatible

●

Zero latency monitoring

●

Mix control adjusts balance between playback and live signals

●

Analog gain control adjusts live microphone record level

●

1/8-inch stereo headphone jack with adjustable volume control

●

Plug and Play with no special drivers* preamps, mixers or any other

external devices required.

●

Blue LED capsule illumination signiﬁes microphone is powered and active

●

USB powered – no external power supply required

* To optimize the performance of the MXL

USB.009 with windows we

Recommend downloading and using the free Asio4All driver from

www.ASIO4ALL.com

Instrument Handling

The MXL

USB mics are a professional quality, cardioid condenser studio

microphone designed speciﬁcally for recording. Unlike microphones designed for

live performance or lesser dynamic model microphones, this instrument requires

careful handling. Hence, you should observe the following:

ALWAYS… handle the microphone carefully, avoiding sudden shocks such as

dropping or bumping the microphone into other objects.

ALWAYS… maintain a distance of approximately 4 – 6 inches when speaking

or singing into the microphone. You are encouraged to use a pop ﬁlter for added

protection of the sensitive capsule and to shield the instrument from saliva and

sudden bursts of air.

NEVER… tap the microphone to check if it’s working. The BLUE LED behind

the microphone’s protective grill will tell you it’s on and that the correct side is

facing you.

NEVER… blow into the microphone to check if it’s working. The BLUE LED

behind the microphone’s protective grill will tell you it’s on and that the correct side

is facing you.

By following these few basic handling procedures, you can expect a long and

trouble-free relationship with your new microphone. Again, thank you for your

purchase of this outstanding MXL

microphone.

A Little Background Information

MXL

condenser microphones use what is known as a cardioid pickup pattern,

which is more sensitive to sound waves arriving at the front of the microphone as

opposed to those arriving from the sides or rear. Unlike other MXL

models, this

microphone beneﬁts from being a USB (Universal Serial Bus) device—meaning

this is a plug and play microphone that will interface with Windows and Macintosh

computers without the need for any special drivers. As a USB device, it carries the

added beneﬁt of not requiring an external microphone preamp, as is the case with

most condenser microphones.

We’ve already mentioned the importance of proper handling, but should you ﬁnd

yourself recording an outdoor performance, you would be well advised to use a

windscreen as protection for your microphone.

Produkt Specifikationer

Mærke:	MXL
Kategori:	Mikrofon
Model:	USB.009
