Installation

When installing the NF-P12 on a heatsink or radiator, please use the mounting mechanism supplied with your

heatsink or radiator (fan clips, screws, etc.) as described in the respective manual.

When installing the NF-P12 as a case fan, you can either use proprietary clip systems (if your case features a clip

system for fan installation) or the supplied mounting screws and silicone anti-vibration mounts. In order to install the

fan using the silicone mounts, please first pull the silicone mounts through the mounting holes of the case. Then put

the fan onto the silicone mounts and pull them through the mounting holes of the fan:

Connection

The NF-P12 comes with a 4-pin PWM fan connector for fully automatic speed control via your mainboard’s 4-pin

PWM fan headers. Please note that the fan can also be connected to your mainboard’s 3-pin fan headers though.

When connected to 3-pin fan headers, the NF-P12 will run at full speed (unless the mainboard supports voltage

based speed control).

If you’re using multiple NF-P12 fans, you can use the supplied y-cable (NA-YC1) to connect several fans to one PWM fan

header. This way, your mainboard will set all the connected fans to run at the same speed.

The NF-P12 features a short 20cm primary cable in order to help you minimise cable clutter in typical applications.

If you need a longer cable, please add the supplied 30cm extension (NA-EC1). The NF-P12 comes with a Low-Noise

Adaptor (NA-RC8) that allows you to reduce the fan speed from 1300 to 900rpm. You can either use the adaptor

to set the fan to a fixed speed of 900rpm (if speed control is deactivated) or to cap the maximum speed to 900rpm

during PWM speed control.

NF-P12 PWM

User Manual

Cleaning and Maintenance

Fans inside computer cases tend to accumulate dust over longer periods of usage. In order to maintain maximum

performance, please clean your fans regularly using a duster, slightly moist tissue or canned air. Please be careful

not to use too much force in order to prevent any damage to the fan. Please don’t use a vacuum cleaner as this may

apply excessive force to the fan.

In order to ensure flawless operation over many years of usage, the NF-P12’s premium grade SSO bearing is fully

sealed to prevent the entering of fine dust particles. Please note that the fan is not designed to be taken apart by the

user. Removing the impeller from the frame will break the sealing of the bearing and results in a loss of warranty.

Warranty and Support

Even with high-grade products and strict quality control, the possibility of defects cannot be eliminated entirely.

Therefore, we aim at providing the highest possible level of reliability and convenience by offering a warranty period

of 6 years and direct, fast and straightforward RMA service.

Should you encounter any problems with your NF-P12, please don’t hesitate to contact our support team (support@noctua.at).

Scan this code to display

multi-lingual manuals on

your mobile phone:

www.noctua.at

Designed in Austria, Noctua’s premium cooling components are internationally renowned for their superb

quietness, exceptional performance and thoroughgoing quality. Having received more than 1000 awards and

recommendations from leading hardware websites and magazines, Noctua’s fans and heatsinks are chosen by

more than a hundred thousand satisfied customers around the globe. sales@noctua.at

www.noctua.at

geräuschoptimierte Premium-Komponenten

sound-optimised premium components

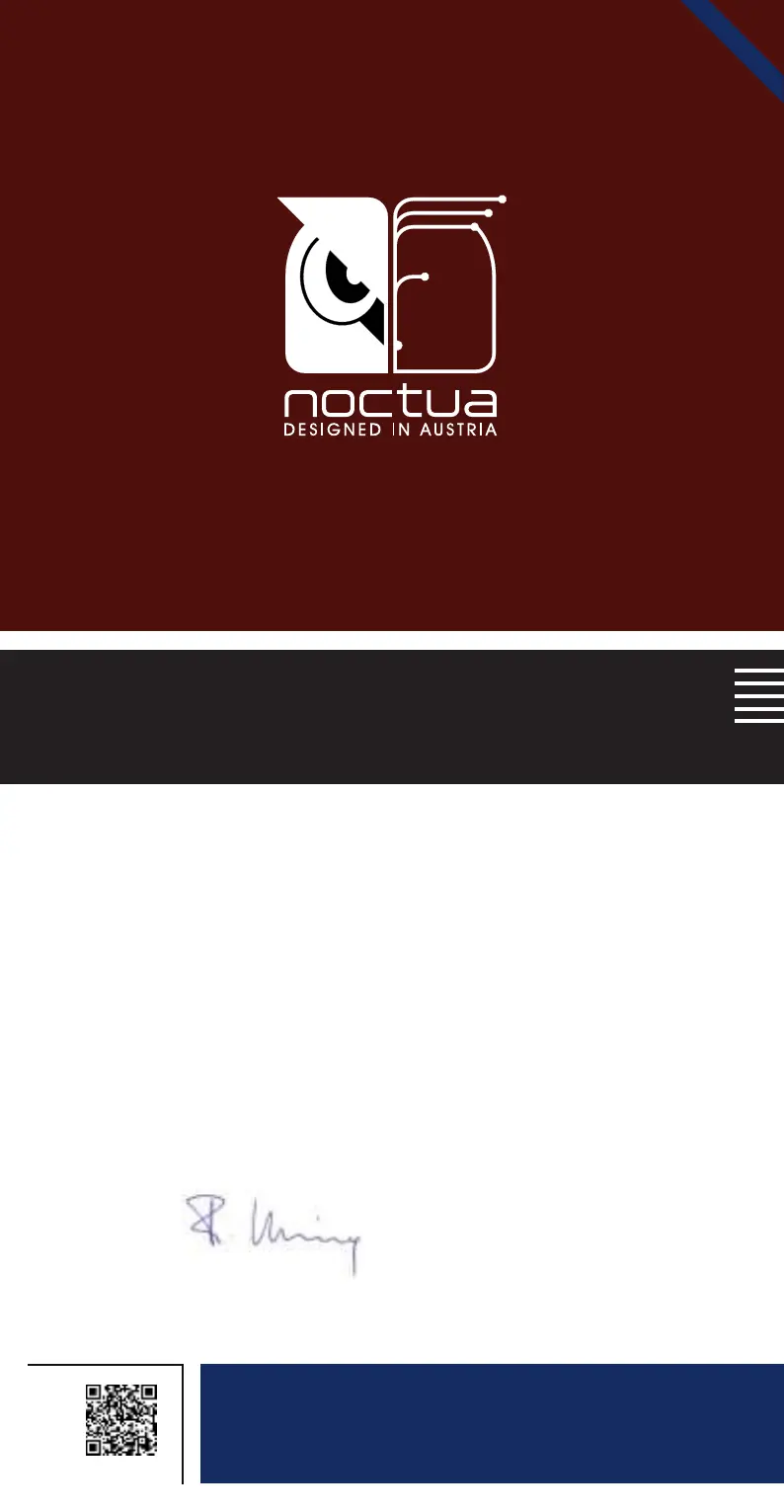

Dear customer,

Congratulations on choosing the Noctua NF-P12 PWM. The classic NF-P12 120mm fan helped to found

Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components and still

impresses users with its exquisite quietness and superb performance. Each fan is double checked for

flawless operation by our quality control team before it leaves the factory and I’m confident that you

will be able to sense some of the research, attention and care we’ve put into making this product.

Enjoy your NF-P12!

Yours sincerely,

Roland Mossig, Noctua CEO

This document includes some instructions for installing, running and cleaning your NF-P12. Should you have any

further questions, our support team (support@noctua.at) will be glad to assist you at any time.

USER MANUAL

Please also have a look at the regularly updated FAQs on our website: http://www.noctua.at/faqs

This document is also available in other languages at the following URL: http://www.noctua.at/manuals

Scan this code to display

multi-lingual manuals on

your mobile phone:

Produkt Specifikationer

Mærke:	Noctua
Kategori:	Processorkoeler
Model:	NF-P12 PWM
Type:	Ventilator
Bredde:	120 mm
Dybde:	120 mm
Højde:	25 mm
Antal pr. pakke:	1 stk
Produktfarve:	Brown, White
Omdrejningshastighed (min.):	300 rpm
Omdrejningshastighed (maks.):	1300 rpm
Strømforbrug (typisk):	0.6 W
Kabler inkluderet:	4-polet
Pakketype:	Kasse
Kølekapacitet i watt (maks.):	0.6 W
Kabellængde:	0.3 m
Harmoniseret systemkode (HS):	84733080
Luftstrøm:	92.3 m³/t
Spænding:	12 V
Gennemsnitstid mellem fejl (MTBF):	150000 t
Passende til rumtype:	Computerkabinet
Skruer inkluderet:	Ja
Ventilator diameter:	120 mm
Ventilatorens støjniveau (maks.):	12.6 dB
Ventilatorstik:	4-polet
Understøttelse af puls-bredde modulering (PWM):	Ja
Nominel strøm:	0.05 A
Antal skruer:	4
Lejetype:	Self-Stabilising Oil-pressure (SSO) bearing
Ventilator statisk tryk:	1.68 mmH2O
Monteringshul mønster (BxD):	105 x 105 mm
Støvniveau med LNA (maks.):	12.6 dB
Rotationshastighed med LNA (maks.):	900 rpm
Luftgennemstrømning med LNA (maks.):	63.4 m³/t
Maksimalt lufttryk med LNA:	1.21 mmH2O
