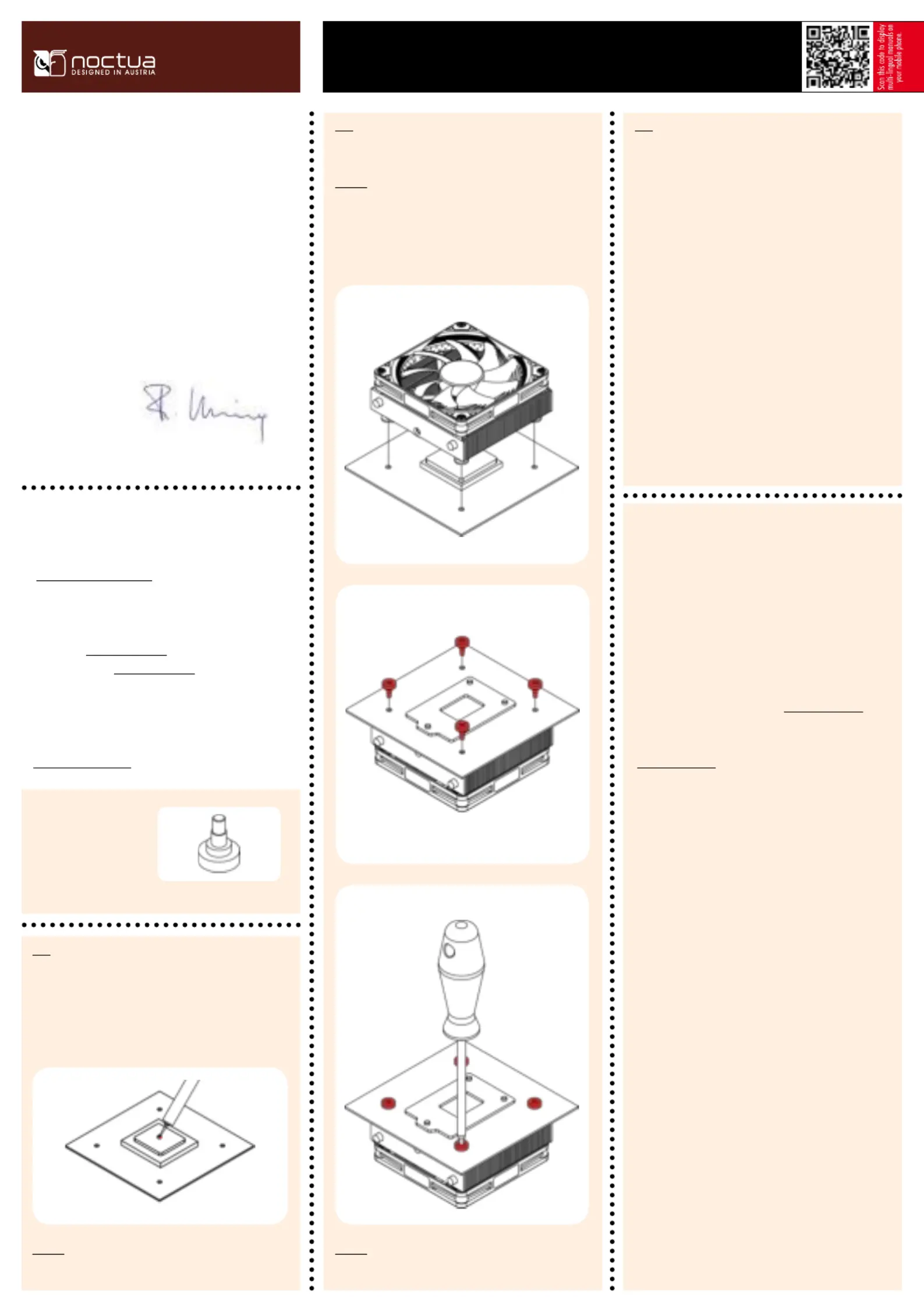

Noctua NH-L9i |

Installation Manual | LGA115x

Required mounting parts:

Dear customer,

Congratulations on choosing the Noctua NH-L9.

This small cooler packs all essential technologies of our award-

winning high-end models into a highly compact package in order

to give you the best possible quiet cooling experience for HTPCs

and small form factor builds. I’m confident that you will be able

to sense some of the research, attention and care we’ve put into

making this product.

Enjoy your NH-L9!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2™ mounting system step by step. Prior to installing

the cooler, please consult the compatibility list on our website

(www.noctua.at/compatibility) and verify that the cooler is fully

compatible with your motherboard.

Should you encounter any difficulties, please check the FAQs on

our website ( ) and don’t hesitate to contact www.noctua.at/faqs

our support team at support@noctua.at. Noctua cannot be held

responsible for any damage or losses caused by compatibility

issues.

Multilingual versions of this manual are available on our website:

www.noctua.at/manuals

Applying thermal paste

If there are residual traces of thermal paste or thermal pads on

your CPU, please clean them off first. Then press a small drop

(4-5mm diameter) of NT-H1 onto the centre of the heatspreader.

Caution: Applying too much thermal paste will lower the heat

conductivity and cooling performance!

4x NM-IBT4 Mounting-Screw

Even with high-grade products and strict quality control, the

possibility of defects cannot be eliminated entirely. Therefore,

we aim at providing the highest possible level of reliability and

convenience by offering a warranty period of 6 years and direct,

fast and straightforward RMA service.

Should you encounter any problems with your NH-L9, please don’t

hesitate to contact our support team (support@noctua.at).

Please also consult the FAQ section on our website:

www.noctua.at/faqs.

Warranty, Support and FAQs

Connect the fan to the mainboard.

Depending on your CPU and the temperature inside the case,

you may interconnect the supplied NA-RC7 Low-Noise Adaptor

(L.N.A.) in order to further reduce the fan’s operating noise.

Caution: When using the L.N.A., check the temperature of your

CPU using appropriate software (e.g. the respective applications

of your mainboard manufacturer), in order to evade automatic

throttling of the CPU due to the increased temperature. If the cool-

ing performance is insufficient, please increase case ventilation or

remove the L.N.A.

In case you would like to use a 92x25mm fan for further improved

performance, please first unscrew the preinstalled NF-A9x14 fan

and use the supplied longer screws to install the 92x25mm fan.

Fan Setup

Step 3

Step 1

Fastening the heatsink to the CPU

Caution: Tighten the screws until they stop, but don’t use exces-

sive force.

Caution: Please first remove the white protective film at the bot-

tom side of the heatsink.

Then put the heatsink onto the CPU and fix it from the rear side of

the motherboard using the mounting screws.

Step 2

Produkt Specifikationer

Mærke:	Noctua
Kategori:	Processorkoeler
Model:	NH-L9i
Type:	Køler
Bredde:	95 mm
Dybde:	95 mm
Højde:	23 mm
Vægt:	345 g
Produktfarve:	Beige, Brown, Silver
Strøm:	2.52 W
Omdrejningshastighed (min.):	300 rpm
Omdrejningshastighed (maks.):	2500 rpm
Dimensioner (BxDxH):	95 x 95 x 23 mm
Harmoniseret systemkode (HS):	84733080
Luftstrøm:	57.5 m³/t
Stik:	4-pin PWM
Spænding:	12 V
Gennemsnitstid mellem fejl (MTBF):	150000 t
Støjniveau (høj hastighed):	23.6 dB
Passende til rumtype:	Processor
Lejeteknologi:	SSO2
Ventilator diameter:	92 mm
Kompatibel processor serie:	Intel® Pentium®
Understøttede procesorsokler:	LGA 1150 (Socket H3), LGA 1155 (Socket H2), LGA 1156 (Socket H)
Maksimalt lufttryk:	2.11 mmH2O
