Side 1/6

Required mounting parts:

Dear customer,

The NH-D9L is a premium grade dual tower CPU cooler that has

been designed to provide excellent quiet cooling performance

at a height of only 110mm. Its comparably low profile (15mm

lower than classic 9cm tower coolers such as the NH-U9S)

doesn’t only guarantee full 3U compliance but also makes the

NH-D9L ideal for compact HTPC and Small Form Factor cases.

Enjoy your NH-D9L!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility list

on our website (www.noctua.at/compatibility) and verify that

the cooler is fully compatible with your motherboard.

Should you encounter any difficulties, please check the FAQs on

our website (www.noctua.at/faqs) and don’t hesitate to contact

our support team at support@noctua.at.

Noctua cannot be held responsible for any damage or losses

caused by compatibility issues.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

Removing the mainboard

In case you want to use the cooler on an assembled system and

your case doesn’t have a cut-out at the rear side of the mainboard

tray, you first have to remove the mainboard from the case in

order to be able to install the supplied backplate.

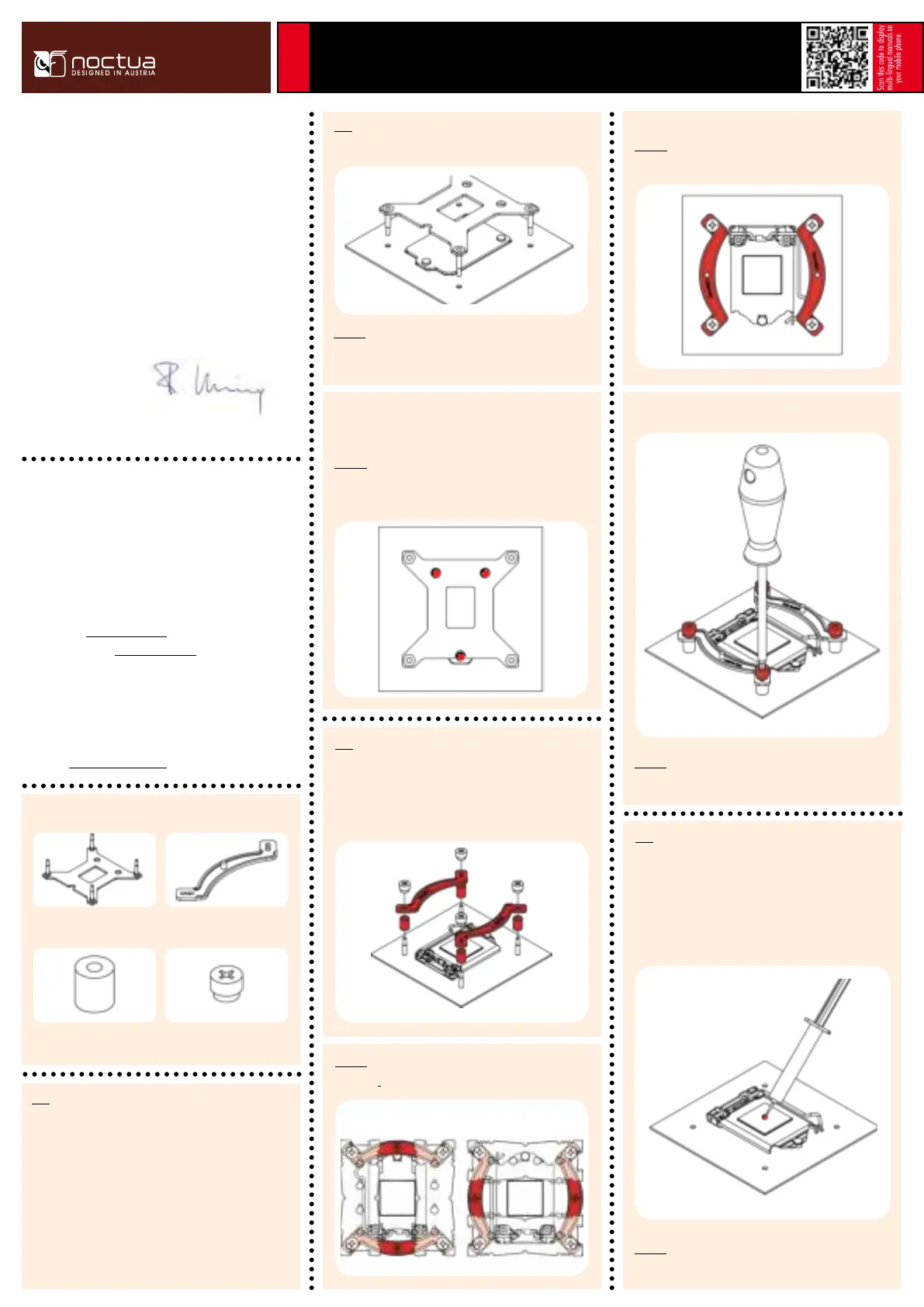

Step 1

2x NM-IMB2 Mounting Bars1x NM-IBP2 Backplate

4x NM-ITS1 Thumbscrews4x NM-IPS1 Spacers

Place the backplate on the rear side of the mainboard so that the

bolts stick through the mounting holes.

Caution: Please make sure that the three cut-outs in the

supplied backplate align with the screws of the mainboard’s stock

backplate.

Installing the mounting bars

Caution: Choose the alignment of the mounting bars according to

the desired final orientation of the cooler:

Step 3

First put the plastic spacers onto the bolts of the backplate, then

add the mounting bars.

Attaching the backplate

Caution: The supplied backplate will install over the mainboard’s

stock backplate, so the mainboard’s stock backplate must not be

taken off.

Step 2

Orientation A Orientation B

Noctua NH-D9L | Installation Manual | LGA115x

LGA115x

Caution: Make sure that the curved sides of the mounting bars are

pointing outwards.

Fix the mounting bars using the 4 thumb screws.

Caution: Gently tighten the screws until they stop, but don’t use

excessive force.

Applying thermal paste

If there are residual traces of thermal paste or thermal pads on

your CPU, please clean them off first. Then press a small drop

(4-5mm diameter) of NT-H1 onto the centre of the heatspreader.

Step 4

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

Then put the heatsink onto the CPU and screw it to the screw

threads of the mounting bars.

Caution: Tighten the screws until they stop.

Noctua NH-D9L | Installation Manual | LGA115x

LGA115x

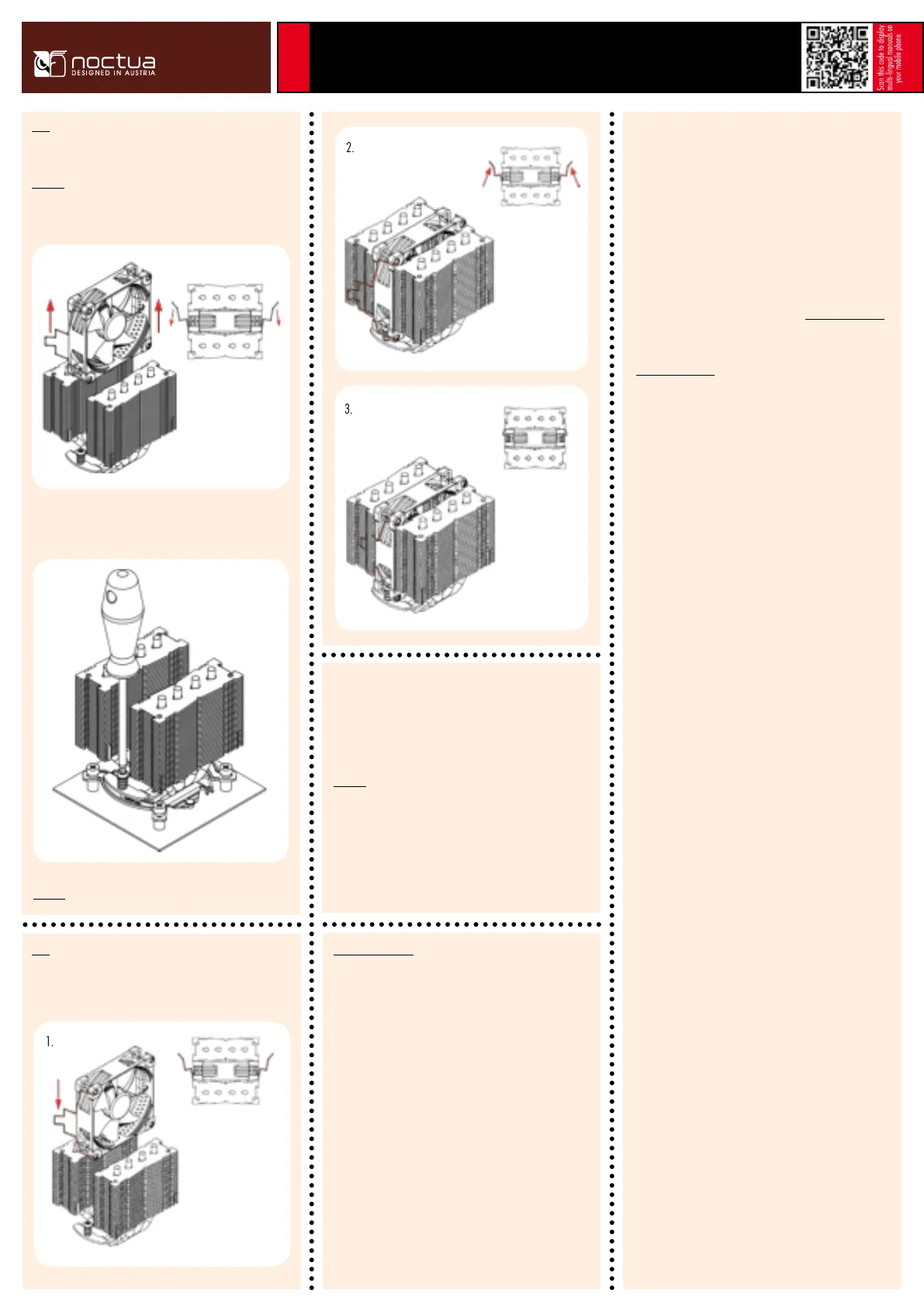

Fastening the heatsink to the CPU

Caution: Please first take off the fan and the cardboard between

the fan and the fins as well as the protection cover at the bottom

side of the heatsink.

Step 5

Fan Setup

Step 6

Reattach the centre fan using the supplied steel clips:

Connect the fan to the mainboard’s CPU fan header. Depending

on your CPU and the temperature inside the case, you may

interconnect the supplied NA-RC7 Low-Noise Adaptors (L.N.A.)

in order to further reduce the fans’ operating noise.

Caution: When using the L.N.A., check the temperature of your

CPU using appropriate software (e.g. the respective applications

of your mainboard manufacturer), in order to evade automatic

throttling of the CPU due to the increased temperature. If the

cooling performance is insufficient, please increase case

ventilation or remove the L.N.A.

Even with high-grade products and strict quality control, the

possibility of defects cannot be eliminated entirely. Therefore,

we aim at providing the highest possible level of reliability and

convenience by offering a warranty period of 6 years and direct,

fast and straightforward RMA service.

Should you encounter any problems with your NH-D9L, please

don’t hesitate to contact our support team (support@noctua.at).

Please also consult the FAQ section on our website:

www.noctua.at/faqs.

Warranty, Support and FAQs

Adding a second fan

The NH-D9L includes an extra set of fan clips and anti-vibration

strips for installing a second NF-A9 fan to the front fin stack in

push/pull mode in order to further improve cooling performance.

The y-cable supplied with the retail NF-A9 fan can be used to

control the speed of both fans via the same mainboard fan header.

Produkt Specifikationer

Mærke:	Noctua
Kategori:	Processorkoeler
Model:	NH-D9L
Type:	Køler
Bredde:	95 mm
Dybde:	95 mm
Højde:	110 mm
Vægt:	531 g
Produktfarve:	Metallic
Omdrejningshastighed (min.):	400 rpm
Omdrejningshastighed (maks.):	2000 rpm
Materiale:	Aluminium, Copper
Harmoniseret systemkode (HS):	84733080
Luftstrøm:	78.9 m³/t
Spænding:	12 V
Gennemsnitstid mellem fejl (MTBF):	150000 t
Støjniveau (lav hastighed):	16.3 dB
Støjniveau (høj hastighed):	22.8 dB
Antal blæsere:	1 blæser(e)
Passende til rumtype:	Processor
Ventilator diameter:	92 mm
Strømforsyning:	1.2 W
Understøttede procesorsokler:	Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1, Socket FM2
Ventilator tykkelse:	25 mm
Ventilator dimensioner (BxDxH):	92 x 92 x 25 mm
Dimensioner for kølelegeme (BxDxH):	95 x 95 x 110 mm
Kølelegemets vægt:	428 g
Ventilator vægt:	103 g
