WIRED / WIRELESS

DOOR CHIME

PUSHBUTTON

To register this product, visit: www.nutone.com

THIS PACKAGE INCLUDES:

n Cast Metal Escutcheon

n Wired Pushbutton

n Wireless Pushbutton and Battery

n Mounting Hardware

WIRED PUSHBUTTON INSTALLATION

WARNING

• TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY

TO PERSONS, OBSERVE THE FOLLOWING:

• Use this unit only in the manner intended by the manufacturer. If you

have questions, contact the manufacturer at the address or telephone

number listed in the warranty.

• Before servicing or cleaning unit, switch power off at service panel and

lock the service disconnecting means to prevent power from being

switched on accidentally. When the service disconnecting means

cannot be locked, securely fasten a prominent warning device, such

as a tag, to the service panel.

• Installation work and electrical wiring must be done by a qualified

person(s) in accordance with all applicable codes and standards,

including fire-rated construction codes and standards.

• When cutting or drilling into wall or ceiling, do not damage electrical

wiring and other hidden utilities.

• Use NuTone® 16 volt transformer with a minimum rating of 10 VA

(purchase separately).

• When stapling wires to studs or joists, do not allow staples to cut

through wire insulation.

1. Select pushbutton location

and drill a straight and

level 3/4” (19 mm) hole, 1”

(25 mm) deep.

2. Make sure that push button

assembly (A) is inserted

fully into escutcheon (B).

(Figure 1) Install chime

and transformer wires to

pushbutton terminals.

3. Install escutcheon/

pushbutton assembly

into hole and secure with

hardware provided.

4. Restore power at service entrance and press pushbutton to sound

chime.

INSTALLATION & OPERATING INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

WIRELESS PUSHBUTTON

INSTALLATION

The wireless pushbutton (C) is compatible with NuTone wireless

chimes. (Purchase separately) Refer to installation instructions

provided with wireless chime.

1. Open battery cover (D)

by sliding it in direction

indicated by arrow.

(Figure 2)

2. Install battery (E) into

wireless pushbutton.

(Figure 3)

3. Remove wired pushbutton

mechanism from pushbutton /

escutcheon assembly by

turning pushbutton mechanism

counterclockwise and pulling it

out. (Figure 4)

4. Insert wireless

pushbutton

mechanism and

twist clockwise.

(Figure 5)

5. Test operation.

Hold wireless

pushbutton near

chime and press

pushbutton. If

chime does not

sound - see a.

through c. on

page 2.

FIGURE 1

FIGURE 4

FIGURE 5

FIGURE 2

FIGURE 3

+ -

If chime does not sound when wireless pushbutton is pushed:

a. Confirm that code settings on chime mechanism and

wireless pushbutton are the same. (Figure 6)

b. Verify proper installation batteries in chime mechanism and

pushbutton. (Figure 3)

c. Check condition of batteries in chime mechanism and pushbutton.

Replace if required.

6. Close battery cover on wireless pushbutton.

7. To install wireless pushbutton / escutcheon assembly, drill a straight

and level 3/4” diameter x 3-1/2” deep hole.

8. Insert wireless pushbutton / escutcheon assembly into hole and

secure to wall using hardware provided.

More than one pushbutton can be used with NuTone wireless chimes.

Refer to Figure 7 to assign a door or tune to each wireless pushbutton.

BATTERY REPLACEMENT

Wireless Chime

Replace batteries following door chime instructions.

Wireless Pushbutton

Remove wireless pushbutton / escutcheon assembly from wall and follow

Step 1 in section titled “Wireless Pushbutton Installation”. Replace battery

with one N Cell, 1.5V alkaline battery. Close battery cover and re-install

wireless pushbutton / escutcheon assembly with hardware.

ADDITIONAL WIRELESS DOOR

CHIMES & PUSHBUTTONS

When installing other Wireless Door Chime sets, select different code

settings to avoid interference. If you want all chimes to ring at the same

time, set chimes to the same code settings.

TROUBLESHOOTING FOR WIRELESS

INSTALLATIONS

The range of the door chime depends on location, temperature and battery

condition. If you are having problems with this product, please try the

solutions listed below.

Chime rings on its own:

• A neighbor may have a wireless chime set with the same code settings.

Change the chime and pushbutton code settings. (Figure 6)

Chime doesn’t sound:

• Make sure the pushbutton and the chime code settings are the same.

• Check the batteries in the chime and wireless pushbutton. (Figure 3, 6)

Batteries are OK, but chime does not work when installed:

• Mounting the chime or pushbutton directly on metal, concrete or near

metal studs reduces the range.

• Do not mount the chime too close to ground level concrete slabs which

may also reduce the range. Mount the chime away from the floor.

• Try different locations for the chime closer to the pushbutton. Also, try

to orient the chime at a different angle to increase the range. Range is

most effective to the sides of the pushbutton.

Regulatory Information

The user is cautioned that changes or modifications not expressly

approved by the party responsible for regulatory compliance

could void the user’s authority to operate this equipment.

NUTONE ONE YEAR LIMITED WARRANTY

NuTone warrants to the original consumer purchaser of its products that such products

will be free from defects in materials or workmanship for a period of one year from the

date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE.

During this one-year period, NuTone will, at its option, repair or replace, without charge,

any product or part which is found to be defective under normal use and service.

THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES,

HALOGEN AND INCANDESCENT BULBS, FUSES, FILTERS, DUCTS, ROOF CAPS, WALL

CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal

maintenance and service or (b) any products or parts which have been subject to misuse,

negligence, accident, improper maintenance or repair (other than by NuTone), faulty instal-

lation or installation contrary to recommended installation instructions.

The duration of any implied warranty is limited to the one-year period as specified for the

express warranty. Some states do not allow limitation on how long an implied warranty

lasts, so the above limitation may not apply to you.

NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT NUTONE’S OPTION, SHALL BE

THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. NUTONE

SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES

ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some

states do not allow the exclusion or limitation of incidental or consequential damages, so

the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which

vary from state to state. This warranty supersedes all prior warranties.

To qualify for warranty service, you must (a) notify NuTone at the address or telephone

number below, (b) give the model number and part identification and (c) describe the

nature of any defect in the product or part. At the time of requesting warranty service, you

must present evidence of the original purchase date.

Broan-NuTone LLC, 926 W. State Street, Hartford, Wisconsin 53027

www.nutone.com 888-336-6151

WARRANTY

99528433B

123456

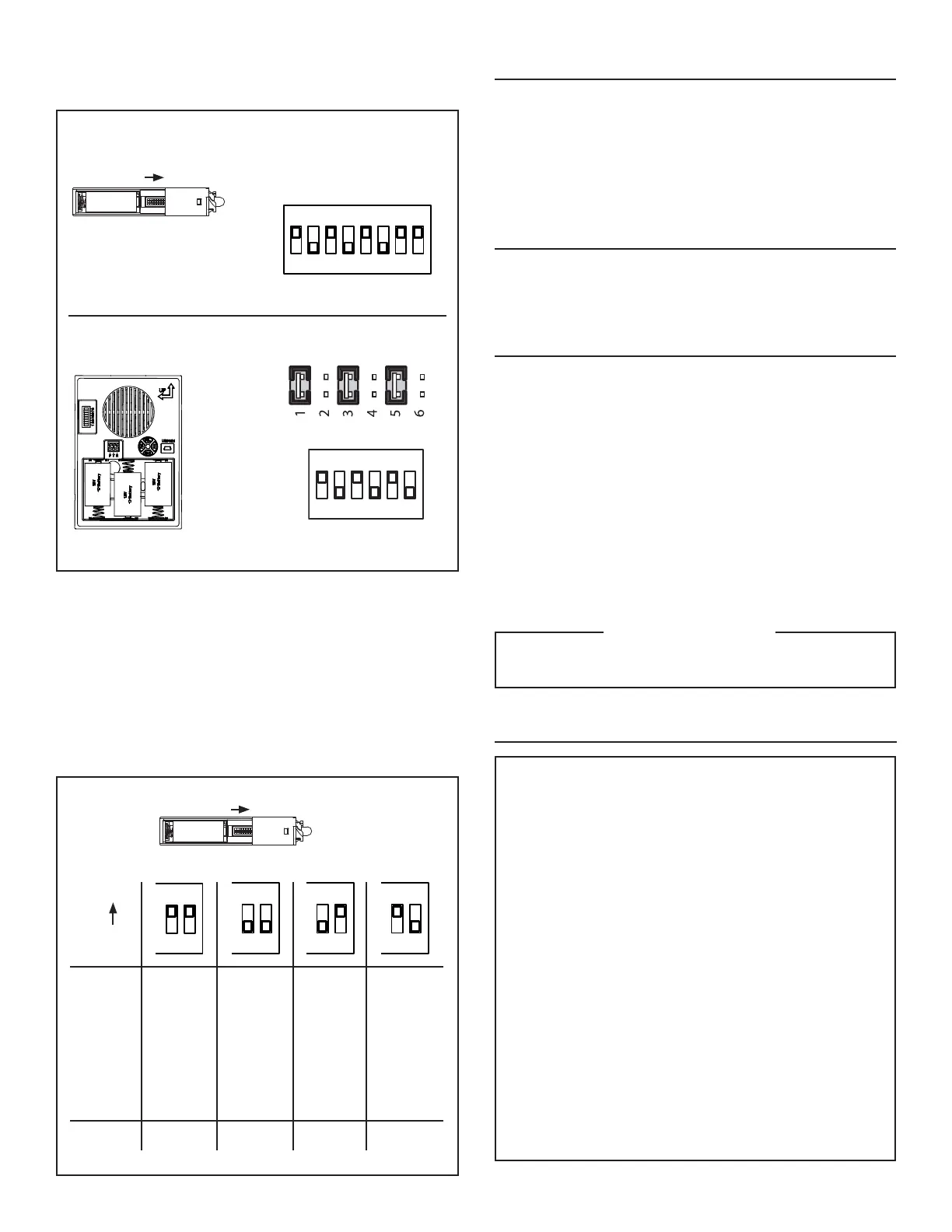

WIRELESS CHIME - EXAMPLE CODE SETTING

(Chime will have jumpers or switches)

JUMPERS REMOVED (OFF) FROM 2, 4, 6

SWITCHES 2, 4, 6 IN OFF POSITION

WIRELESS

CHIME

JUMPERS

{

WIRELESS

CHIME

SWITCHES

{

FIGURE 6

123456

7 8

SWITCHES 2, 4, 6

IN OFF POSITION

CODE SET

SWITCHES 1-6

{

WIRELESS PUSHBUTTON - EXAMPLE CODE SETTING

CODE SET

SWITCHES 1-6

{

CODE SET SWITCHES 7 & 8

{

WIRELESS PUSHBUTTON - ASSIGN TUNE(S) OR DOOR(S)

Models 7 8 7 8 7 8 7 8

LA203WH

LA203RWH

LA204WH

LA204RWH

LA205WH 1 Note 2 Note 3 Note 4 Note

LA206WH

LA522WH

LA532WH

LA533WH

LA600WH Front Back Front Back

1 8

FIGURE 7
