MODEL LA553WH
Page 1
PORTABLE PILOT™
WIRELESS CHIME
Installation & Operating Instructions
IMPORTANT: This wireless pushbutton and chime set is for
residential use, only. It will operate at an unobstructed distance
of 300 feet, minimum. Building materials may reduce operating
distance. Certain building materials; such as, but not limited to
metal, concrete, brick, stucco and foil-lined insulation; cause
greater interference than others; for example, wood or vinyl siding.
INSTALL PUSHBUTTON BATTERY
Refer to Figures 1 and 2.
1. Remove pushbutton and 3V lithium coin-battery from packaging.
2. Insert small, flat-blade screwdriver into bottom of pushbutton and twist
to separate its base.
3. Orient battery with “+” side viewable.
4. Insert battery into holder and press to seat.
5. Insert top of mounting base onto pushbutton and press bottom
together until mounting base snaps securely onto pushbutton.
Use only 3V (volt) lithium CR2032 style coin-battery for replacement.
INSTALL CHIME BATTERIES
Refer to Figures 3 and 4.
1. Remove chime from packaging.
2. Orient chime face-down.
3. Insert small, flat-blade screwdriver into top of battery cover, push
towards bottom of chime and tilt screwdriver to unlock battery cover
latch.
4. Lift battery cover and remove it from chime; set cover aside.
Figure 1
“PUSH”
TO OPEN COVER
3V LITHIUM
CR2032-STYLE
COIN
BATTERY
Figure 2
SLOT
5. Insert three (3) 1.5V “D” alkaline batteries (not supplied) oriented as
shown on front of battery compartment.
6. Replace and secure battery cover by inserting two (2) tabs into bottom
of battery compartment and pressing back-top of cover to latch.
“LEARN” PROCEDURE
Refer to Figure 5.
1. Set pushbutton and chime next to each other.
2. Press and release “Learn” button on chime.
3. LED lights to indicate “Learn” mode was entered.
4. Press and release pushbutton.
5. Confirm chime-tone is heard.
6. Repeat Step 4 to cycle through available chime-tones.
7. When desired chime-tone is heard, press and release “Learn” button
(Note: Chime may not respond to this button being pressed if it is too
soon after chime-tone sounds).
8. Press and release pushbutton; LED should turn off to confirm “Learn”
mode exited.
9. Press and release pushbutton and confirm chime-tone hasn’t change
from desired one.
• Up to four (4) pushbuttons can be used with a single chime by
selecting different chime-tones for each pushbutton.
• Chime can erase all “Learned” pushbuttons and tones by pressing
and holding “Learn” button; LED will light; within 15 seconds, LED will
turn off; release “Learn” button.
DETERMINE USABLE LOCATIONS
Do not plan to mount pushbutton directly on metal or concrete
surfaces; install a 1/8-1/4” wood spacer between pushbutton and
metal or concrete mounting surface.
Some stucco houses have metal mesh in the wall structure, which
will affect the wireless chime performance.
Experiment with various pushbutton and chime locations to
determine location that gives best performance before mounting
permanently.
Chime must not be located within 1-foot of any metal.
Pushbutton and chime should be located within 300-feet of each
other.
1. Place chime near desired mounting location.
2. Select a level location and hold pushbutton in desired mounting
location.
3. Press and release pushbutton.
4. Confirm chime-tone sounded.
5. If chime-tone does not sound, temporarily affix pushbutton to
mounting surface with double-stick or folded-over tape; repeat Steps 3
and 4.
6. If chime-tone still does not sound, move location of chime closer to
pushbutton; repeat Steps 3 and 4.
Figure 3 Figure 4
Figure 5
VOLUME BUTTON
LEARN BUTTON
LED
MODEL LA553WH
Page 2

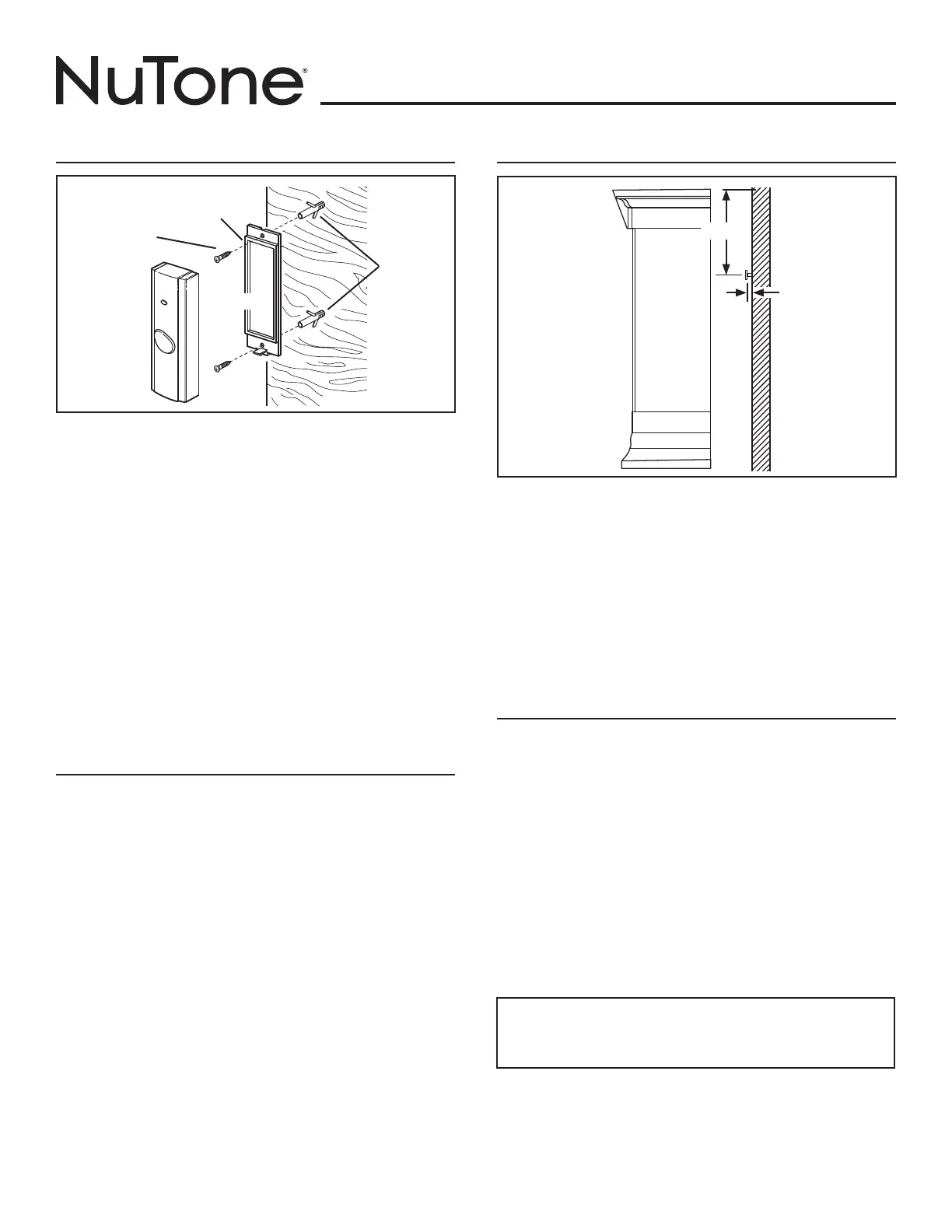

Figure 6
MOUNT PUSHBUTTON
Refer to Figures 1 and 6.
1. After selecting usable locations in previous section, go to pushbutton
location.
2. Insert small, flat-blade screwdriver into bottom of pushbutton and twist
to separate its mounting base.
3. Make sure pushbutton mounting location is level.
4. Position pushbutton mounting base with “TOP” arrow correctly
oriented and mark base mounting holes locations.
5. Drill two (2) holes, 1/16” diameter if using supplied screws alone or
3/16” diameter if using supplied plastic anchors and screws, at base
mounting hole locations.
6. If 3/16” diameter holes were drilled, insert supplied plastic anchors.
7. Secure pushbutton base to mounting location with two (2) supplied
screws.
8. Make sure black O-ring is completely seated in its mounting base
groove with round edge at top and flat edge at bottom.
9. Hook pushbutton top catch onto top of base, swing pushbutton into
position and press bottom of pushbutton until it securely snaps onto
base.
SET VOLUME PROCEDURE
Refer to Figure 5.
There are four (4) volume levels which are accessed sequentially.
1. Press and release pushbutton to sound chime tone.
2. Press and release “Volume” button to hear the next volume setting.
3. If chime tone is not sounding when “Volume” button is pressed then
chime will sound a beep to indicate volume setting.
4. Volume setting cycles from loud to medium-loud, medium-soft and soft
then back to loud.
5. Repeat Step 2 until desired volume level is set.
6. Last volume setting is remembered.
7. Press and release pushbutton to sound chime tone and confirm
desired volume setting.
BASE
PLASTIC
ANCHORS
TOP
BLACK
“O” RING
MOUNTING
SCREWS
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Regulatory Information
The user is cautioned that changes or modifications not expressly
approved by the party responsible for regulatory compliance
could void the user’s authority to operate this equipment.
MOUNT CHIME
Refer to Figure 7.
1. Go to selected chime location.
2. Measure 1-15/16” down and centered from top of chime location and
mark mounting screw position.
3. Drill a hole, 1/16” diameter if using supplied screw alone or 3/16”
diameter if using supplied plastic anchor and screw, at marked
mounting screw location.
4. If 3/16” diameter hole was drilled, insert supplied plastic anchor.
5. Insert and tighten top mounting screw until 1/8” remains protruding.
6. Place chime keyhole slot over mounting screw and apply slight
downward force to seat keyhole slot on mounting screw.
7. Level chime.
TROUBLESHOOTING GUIDE
1. Chime does not sound:
a. If pushbutton LED doesn’t light when pushbutton is pressed then:
1. Check battery polarity in pushbutton.
2. Replace battery in pushbutton.
b. Replace batteries in chime.
c. Bring pushbutton in area of chime and test:
1. If chime sounds then change location of chime.
2. If chime does not sound then conduct erase procedure per note
at end of “Learn” Procedure then conduct “Learn” Procedure,
Steps 1 through 9.
2. Chime loses volume or changes tone:
a. Change batteries in chime.
3. Chime sounds when pushbutton is not pressed:
a. Release pushbutton catch at bottom and check inside for signs of
moisture; check O-ring for cracks or damage.
b. Conduct erase procedure per note at end of “Learn” Procedure then
conduct “Learn” Procedure, Steps 1 through 9.
Figure 7
1/8”
1-15/16”
