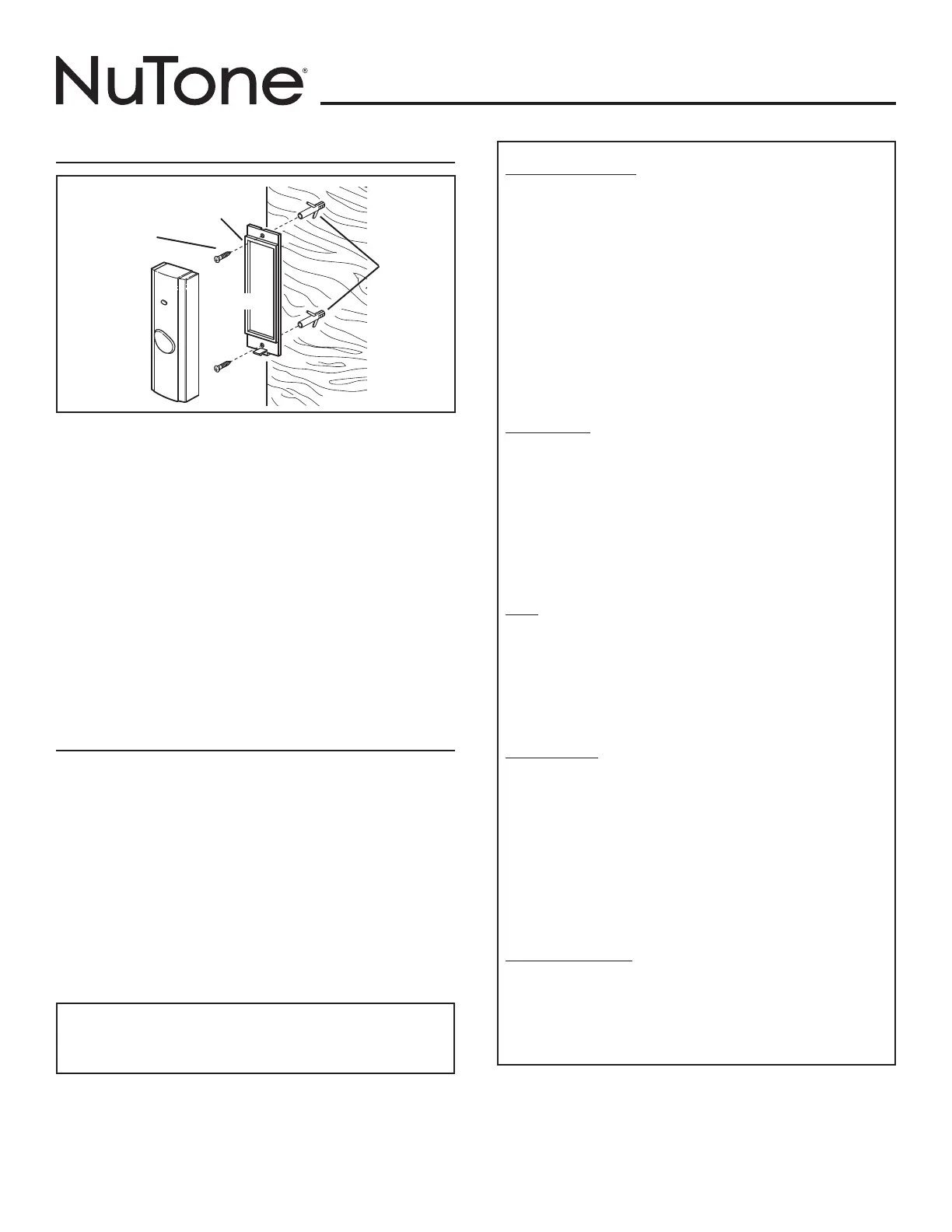

MODEL LA223WH

Page 1

PLUG-IN CHIME

Installation & Operating Instructions

IMPORTANT: This wireless pushbutton and chime set is for

residential use, only. It will operate at an unobstructed distance

of 100 feet. Building materials may reduce operating distance.

Certain building materials; such as, but not limited to metal,

concrete, brick, stucco and foil-lined insulation; cause greater

interference than others; for example, wood or vinyl siding.

INSTALL PUSHBUTTON BATTERY

Refer to Figures 1 and 2.

1. Remove pushbutton and 3V lithium coin-battery from packaging.

2. Insert small, flat-blade screwdriver into bottom of pushbutton and twist

to separate its base.

3. Orient battery with “+” side viewable.

4. Insert battery into holder and press to seat.

5. Insert top of mounting base onto pushbutton and press bottom

together until mounting base snaps securely onto pushbutton.

Use only 3V (volt) lithium CR2032 style coin-battery for replacement.

PLUG-IN CHIME

Refer to Figure 3.

1. Remove chime from packaging.

2. Go to selected chime location.

3. Plug chime into wall-mounted electrical outlet.

Figure 1

“PUSH”

TO OPEN COVER

3V LITHIUM

CR2032-STYLE

COIN

BATTERY

Figure 2

SLOT

Figure 4

LEARN BUTTON

“LEARN” PROCEDURE

Refer to Figure 4.

1. Bring pushbutton in area of plugged-in chime.

2. Press and release “Learn” button on chime.

3. Chime beeps twice to indicate “Learn” mode was entered.

4. Press and release pushbutton.

5. Confirm chime-tone is heard.

6. Repeat Step 4 to cycle through available chime-tones.

7. When desired chime-tone is heard, press and release “Learn” button

(Note: Chime may not respond to this button being pressed if it is too

soon after chime-tone sounds).

8. Chime beeps twice to indicate to confirm exit from “Learn” mode.

9. Press and release pushbutton and confirm chime-tone hasn’t changed

from desired one.

• Up to three (3) pushbuttons can be used with a single chime by

selecting different chime-tones for each pushbutton.

• Chime can erase all “Learned” pushbuttons and tones by pressing

and holding “Learn” button; chime will beep twice; after less than 15

seconds, chime will beep four times; release “Learn” button.

DETERMINE USABLE LOCATIONS

Do not plan to mount pushbutton directly on metal or concrete

surfaces; install a 1/8 to 1/4” wood spacer between pushbutton and

metal or concrete mounting surface.

Some stucco houses have metal mesh in the wall structure, which

will affect the wireless chime performance.

Experiment with various pushbutton and chime locations to

determine location that gives best performance before mounting

permanently.

Chime must not be located within 1-foot of any metal.

Pushbutton and chime should be located within 100-feet of each

other.

1. Go to desired location for pushbutton.

2. Select a level surface and hold pushbutton in desired mounting

position.

3. Press and release pushbutton.

4. Confirm chime-tone sounded.

5. If chime-tone does not sound, temporarily affix pushbutton to

mounting surface with double-stick or folded-over tape; repeat Steps 3

and 4.

6. If chime-tone still does not sound, move location of chime closer to

pushbutton; repeat Steps 3 and 4.

Figure 3
