MODEL LA226WH
Page 1
SELECT-A-TONE WIRELESS CHIME
Installation & Operating Instructions
IMPORTANT: This wireless pushbutton and chime set is for
residential use, only. It will operate at an unobstructed distance of
300 feet. Building materials may reduce operating distance. Certain
building materials; such as, but not limited to metal, concrete, brick,
stucco and foil-lined insulation; cause greater interference than
others; for example, wood or vinyl siding.
INSTALL PUSHBUTTON BATTERY
Refer to Figures 1 and 2.
1. Remove pushbutton and 3V lithium coin-battery from packaging.
2. Insert small, flat-blade screwdriver into bottom of pushbutton and twist
to separate its base.
3. Orient battery with “+” side viewable.
4. Insert battery into holder and press to seat.
5. Insert top of mounting base onto pushbutton and press bottom
together until mounting base snaps securely onto pushbutton.
Use only 3V (volt) lithium CR2032 style coin-battery for
replacement.
INSTALL CHIME BATTERIES
Refer to Figures 3 and 4.
1. Remove chime from packaging.
2. Orient chime face-up.
3. Insert small, flat-blade screwdriver into bottom of locking-tabs, push
and tilt screwdriver to unlock tabs.
4. Lift bottom of cover to separate and remove it from base; set cover
aside.
5. Insert four (4) 1.5V “D” alkaline batteries (not supplied) oriented as
shown on back of battery compartment.
Figure 1
“PUSH”
TO OPEN COVER
Figure 3
3V LITHIUM
CR2032-STYLE
COIN
BATTERY
Figure 2
SLOT
Figure 4
“PUSH”
TO OPEN
4 - “D” SIZE BATTERIES
Figure 5
VOLUME BUTTON
LEARN BUTTON
LED
“LEARN” PROCEDURE
Refer to Figure 5.
1. Set pushbutton and chime next to each other.
2. Press and release “Learn” button.
3. LED lights to indicate “Learn” mode was entered.
4. Press and release wireless pushbutton.
5. Confirm chime-tone is heard.
6. Repeat Step 4 to cycle through available chime-tones.
7. When desired chime-tone is heard, press and release “Learn” button
(Note: Chime may not respond to this button being pressed if it is too
soon after chime-tone sounds).
8. LED should turn off to confirm “Learn” mode exited.
9. Press and release wireless pushbutton and confirm chime-tone
doesn’t change.
• Up to four (4) wireless pushbuttons can be used with a single chime
by selecting different chime-tones for each pushbutton.
• Chime can erase all “Learned” pushbuttons and tones by pressing
and holding “Learn” button; LED will light; after approximately 18
seconds, LED will turn off; release “Learn” button.
DETERMINE USABLE LOCATIONS
Do not plan to mount pushbutton directly on metal or concrete
surfaces; install a 1/8 to 1/4” wood spacer between pushbutton and
metal or concrete mounting surface.
Some stucco houses have metal mesh in the wall structure, which
will affect the wireless chime performance.
Experiment with various pushbutton and chime locations to
determine location that gives best performance before mounting
permanently.
Chime must not be located within 1-foot of any metal.
Pushbutton and chime should be located within 300-feet of each
other.
1. Place chime near its desired mounting location.
2. Select a level location and hold pushbutton in its desired mounting
location.
3. Press and release pushbutton.
4. Confirm chime-tone sounded.
5. If chime-tone does not sound, temporarily affix pushbutton to
mounting surface with double-stick or folded-over tape; repeat Steps 3
and 4.
6. If chime-tone still does not sound, move location of chime closer to
pushbutton; repeat Steps 3 and 4.

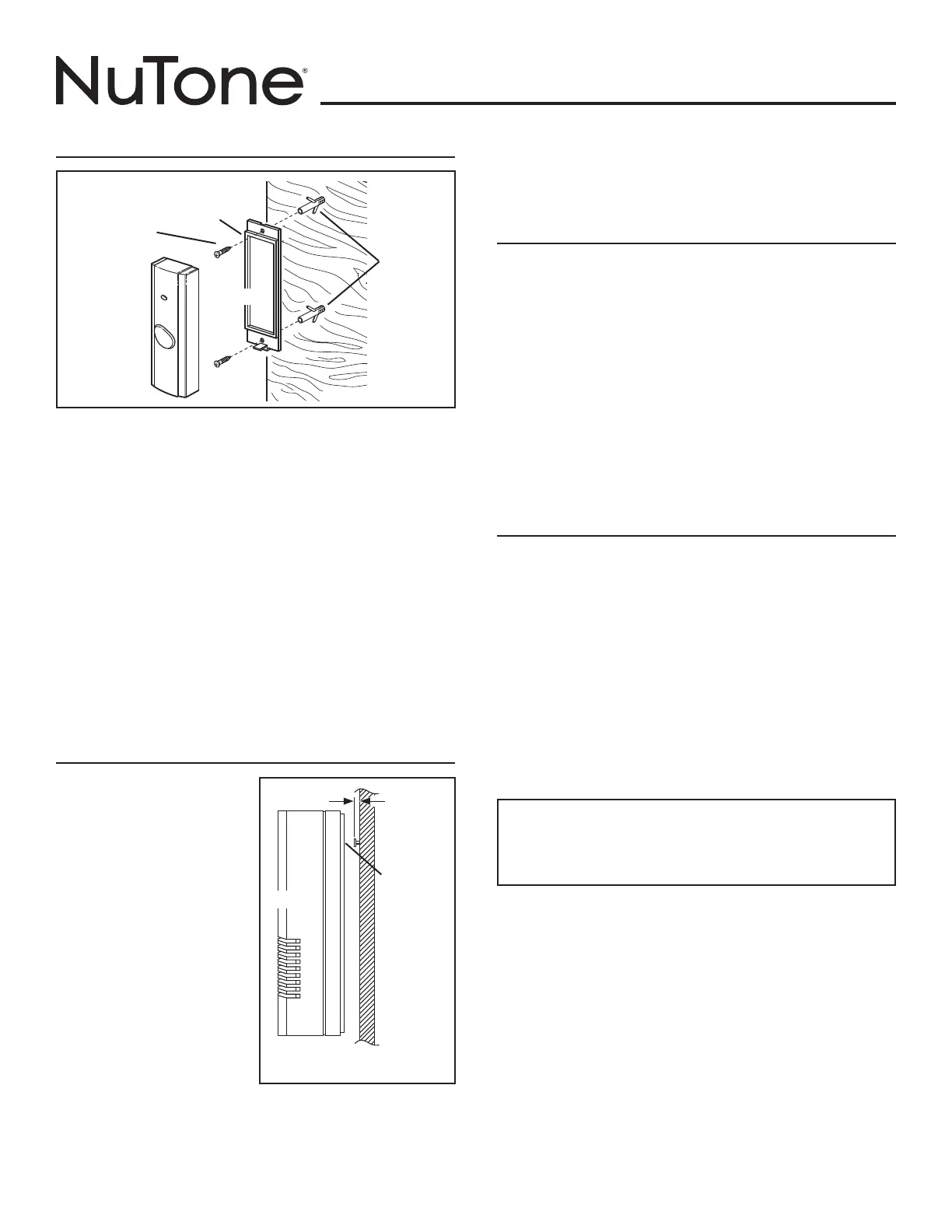

MODEL LA226WH
Page 2
Figure 6
MOUNT PUSHBUTTON
Refer to Figures 1 and 6.
1. After selecting usable locations in previous section, go to pushbutton
location.
2. Insert small, flat-blade screwdriver into slot in bottom of pushbutton
and twist to separate its mounting base.
3. Make sure pushbutton mounting location is level.
4. Position pushbutton mounting base with “TOP” arrow correctly
oriented and mark base mounting holes locations.
5. Drill two (2) holes, 1/16” diameter if using supplied screws alone or
3/16” diameter if using supplied plastic anchors and screws, at base
mounting hole locations.
6. If 3/16” diameter holes were drilled, insert supplied plastic anchors.
7. Secure pushbutton base to mounting location with two (2) supplied
screws.
8. Make sure black O-ring is completely seated in its mounting base
groove with round edge at top and flat edge at bottom.
9. Hook pushbutton top catch onto top of base, swing pushbutton into
position and press bottom of pushbutton until it securely snaps onto
base.
MOUNT CHIME
Refer to Figure 7.
1. Go to selected chime location.
2. Measure 3/4” down and
centered from top of chime
location and mark top mounting
screw position.
3. Measure 6 3/8” down and
centered from top of chime
location (5 5/8” from top screw
position) and mark bottom
mounting screw position.
4. Drill two (2) holes, 1/16”
diameter if using supplied
screws alone or 3/16” diameter
if using supplied plastic
anchors and screws, at marked
mounting screw locations.
5. If 3/16” diameter holes were
drilled, insert supplied plastic
anchors.
6. Insert and tighten top mounting
screw until 1/8” remains
protruding.
7. Remove four (4) “D” batteries from chime. (Note: Chime will remember
pushbutton “Learn” and tone when batteries are removed.)
8. Place chime keyhole slot over top mounting screw and apply slight
downward force to seat keyhole slot on top mounting screw.
9. Insert bottom screw through slot and start threads.
10.Level chime and tighten bottom screw.
11. Reinsert four (4) “D” batteries oriented as shown on back of battery
compartment.
SET VOLUME PROCEDURE
Refer to Figure 5.
There are four (4) volume levels which are accessed sequentially.
1. Press and release wireless pushbutton to sound chime tone.
2. Press and release “Volume” button to hear the next volume setting.
3. If chime tone is not sounding when “Volume” button is pressed then
chime will sound a beep to indicate volume setting.
4. Volume setting cycles from loud to medium-loud, medium-soft and soft
then back to loud.
5. Repeat Step 2 until desired volume level is set.
6. Last volume setting is remembered.
7. Press and release wireless pushbutton to sound chime tone and
confirm desired volume setting.
8. Hook top of cover to wall-mounted base and swing bottom into place.
9. Press bottom of front surface to secure locking-tabs.
TROUBLESHOOTING GUIDE
1. Chime does not sound:
a. Check battery polarity.
b. Replace batteries in chime and wireless pushbutton.
c. Bring pushbutton next to chime and test:
1. If chime sounds then change mounting location of chime.
2. If chime does not sound then conduct erase procedure per note
at end of “Learn” Procedure then conduct “Learn” Procedure,
Steps 1 through 9.
2. Chime loses volume or changes tone: Change batteries in chime.
3. Chime sounds when pushbutton is not pressed:
a. Release pushbutton catch at bottom and check inside for signs of
moisture; check O-ring for cracks or damage.
b. Conduct erase procedure per note at end of “Learn” Procedure then
conduct “Learn” Procedure, Steps 1 through 9.
Figure 7
BASE
PLASTIC
ANCHORS
TOP
BLACK
“O” RING
MOUNTING
SCREWS
CHIME
1/8”
KEYHOLE
SLOT
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Regulatory Information
The user is cautioned that changes or modifications not
expressly approved by the party responsible for regulatory
compliance could void the user’s authority to operate this
equipment.
