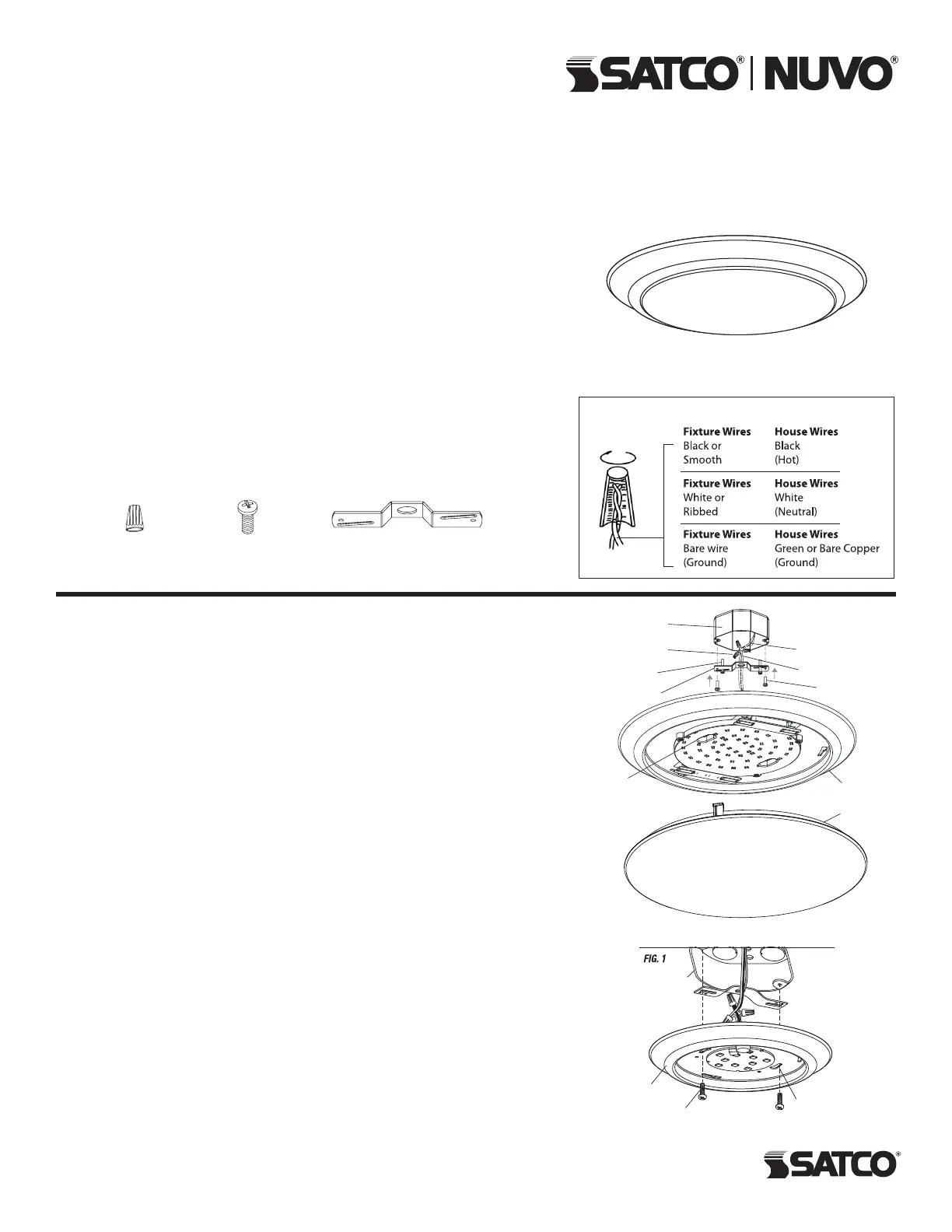

Side 1/2

WARNING: Risk of Fire or Electric Shock

• Disconnect power before installation or maintenance of the xture.

• This product must be installed in accordance with applicable installation

codes by a person familiar with mentioned above codes and hazards

involved. These xtures are designed to meet the latest NEC requirements

and are listed in full compliance with UL 1598.

• Supply wires must be rated minimum 90ºC. If uncertain consult an electrician.

• The product is purposed for interior use only, suitable for wet locations.

• Protect the product against direct contact with water.

• Assemble the product only with the use of parts provided and the housing;

improper assembly may result in device failing which could damage the

product, personal property or cause injury.

• CAUTION: When handling the xture, do not apply pressure to the LEDs.

Hold the xture by the base only.

HARDWARE INCLUDED

7" & 10" LED DISK LIGHTS

Models: 62-1660, 62-1661, 62-1662, 62-1663,

62-1670, 62-1671, 62-1672, 62-1673

Satco Products, Inc.

Brentwood, NY 11717

INSTALLATION

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

WIRING DIAGRAM

NOTE: Shut OFF the power at the circuit breaker and remove existing

xture, including the mounting hardware.

Carefully unpack your new xture and lay out all the parts on a clear

area. Be careful not to lose any small parts necessary for installation.

1. Twist lens cover counter-clockwise to remove from Disk Light.

2. Secure Crossbar to the Junction Box using Junction Box Screws.

The side of the mounting plate marked “GND” must face out.

3. Place the Disk Light over the Crossbar and secure with Junction Box

Screws through canopy Keyholes. Make sure Disk Light is ush to

the ceiling. See Figure 1.

4. Replace the lens back onto the Disk Light by turning clockwise.

ELECTRICAL CONNECTION

Connect the xture input wires to Junction Box wires as shown in the

Wiring Diagram, making sure all wire connectors are secure. If the Junction Box

has a Ground Wire (Green or Bare Copper), connect the xture’s Ground Wire

to it. After wires are connected, tuck them carefully inside the Junction Box.

Dimming

This product is compatible with most residential type dimmers available on the

market. The dimming performance will depend on kind of dimmer and dimmer

settings. Visit Satco.com for an up to date list of compatible dimmers.

Cleaning

Clean with a soft or damp cloth, make sure the power is OFF. Do not clean

with liquids or abrasives.

5-Year Limited Warranty

The purchased product is covered with a 5-year warranty in respect of any

defect in material or workmanship after purchase date.

Satco shall bear no responsibility on account of guarantee, as well as shall

bear no liability for any faults, in case of improper operation, use negligence,

accident or exposure to natural hazard, or excessive use over the limits

specied for the unit, or if any unauthorized alteration or repair followed.

62-1660 – 62-1663 = 7" (177.8mm)

62-1670 – 62-1673 = 10" (254mm)

Wire Connector

Qty: 3

Junction Box Screw

Qty: 2 + 2 Extra

Crossbar

Qty: 1

Ground Wire

Wires (Black, White)

Junction Box

Screws

Disk Light

Lens

Keyholes

Mounting Screws

Crossbar

Connectors

Junction Box

Keyholes

Disk Light

Junction Box

Screws
