WARNING: Risk of Fire or Electric Shock
• To reduce the risk of re, electrical shock or injury to persons;
read and follow all warnings and installation instructions before
installing.
• All installation should be performed by a qualied electrician.
• To avoid electric shock, ensure power is turned off before
installation or inspection. All wiring must be installed in
accordance with Electrical Code and local electrical code.
• To prevent re, this xture is rated for use in 120-277V, 50-60Hz
protected circuit and 75°C rated supply wire.
• External 1-10V only passive dimmers are supported.
Visit Satco.com for list of compatible controls.
• To prevent product malfunction and/or electrical shock, this
product must be properly grounded.
• To avoid damage and/or product malfunction, do not modify
the xture or replace accessories without conrming with the
supplier rst.
• To prevent wiring damage or abrasion, do not expose wiring to
edges of sheet metal or other sharp objects.
• Suitable for wet locations.
IMPORTANT: This product must be installed in accordance
with the applicable installation code by a person familiar with the
construction and operation of the product and the hazards involved.

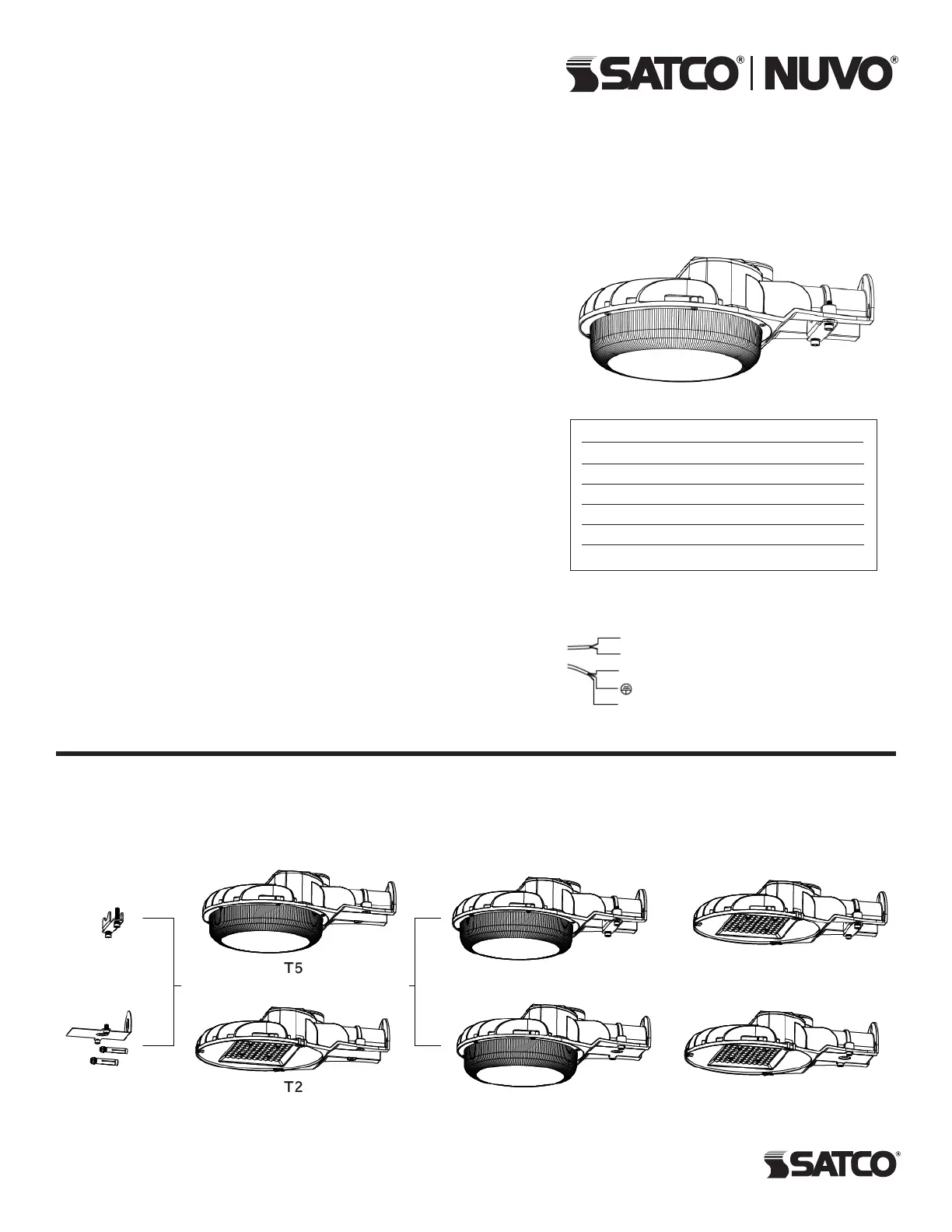

There are two optional brackets for this xture. The following are street light xtures with the different brackets.
1
CCT SELECTABLE LED DUSK TO
DAWN AREA LIGHT W/PHOTOCELL
Models: 65-681, 65-682, 65-683, 65-684, 65-685, 65-686
Satco Products, Inc.
Brentwood, NY 11717
Optional Brackets: (See page 2 for Installation Intructions)
INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing xture. Retain for future reference.
© Copyright 2020 Satco Products, Inc. 8/20
WIRING DIAGRAM
Item No. CCT Lumens
65-681 3000K/4000K/5000K 4060~4640
65-682 3000K/4000K/5000K 5600~6400
65-683 3000K/4000K/5000K 8400~9600
65-684 3000K/4000K/5000K 4060~4640
65-685 3000K/4000K/5000K 5600~6400
65-686 3000K/4000K/5000K 8400~9600
Pipe Arm
Installation
Wall
Installation
NOTE: Refer to
lamp label for
Dim+ and Dim–
wire color.
Dim+
Dim–
ACL: Black/Brown
Green/Yellow
ACN: White/Blue
