WARNING: Risk of Fire or Electric Shock

• To avoid damage, falling, electric shock or re, do not modify the lamp or

replace accessories without conrming with the supplier rst.

• Only authorized, qualied personnel should install this xture and should

follow the owner’s manual. Any improper installation might cause failure,

electric shock, re or other injury, damage or hazard.

• Disconnect power before installation or any maintenance of the xture.

• Do not dismantle the xture without the supplier’s authorization.

• Do not touch the power supply when the xture is operating.

• The external ﬂexible cable or cord of this xture cannot be replaced; if the

cord is damaged, the xture shall be destroyed.

• Terminal block not included. The electrical tting must be installed by a

licensed electrician.

• For use in environments where an accumulation of non-conductive dust

on the xture may be expected.

IMPORTANT: This product must be installed in accordance with the

applicable installation code by a person familiar with the construction and

operation of the product and the hazards involved.

LED UFO HIGH BAY

Models: 65-781R2, 65-782R2, 65-783R2, 65-784R2, 65-785R2, 65-786R2, 65-787R2, 65-788R2,

65-791R2, 65-792R2, 65-793R2, 65-794R2, 65-795R2, 65-796R2, 65-797R2, 65-798R2,

65-801R2, 65-802R2, 65-803R2, 65-804R2, 65-805R2, 65-806R2, 65-807R2, 65-808R2

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

SPECIFICATIONS

Model CCT Volts CRI

Operating

Temperature

65-781R2 4000K

100-277V 80

-40°C to +45°C

(-40°F to +113°F)

65-782R2 5000K

65-783R2 4000K

65-784R2 5000K

65-785R2 4000K

65-786R2 5000K

65-787R2 4000K

65-788R2 5000K

65-791R2 4000K

65-792R2 5000K

65-793R2 4000K

65-794R2 5000K

Model CCT Volts CRI

Operating

Temperature

65-795R2 4000K 120-277V

-40°C to +45°C

(-40°F to +113°F)

65-796R2 5000K 120-277V

65-797R2 4000K 120-277V

65-798R2 5000K 120-277V

65-801R2 4000K 200-480V

65-802R2 5000K 200-480V

65-803R2 4000K 200-480V

65-804R2 5000K 200-480V

65-805R2 4000K 200-480V

65-806R2 5000K 200-480V

65-807R2 4000K 200-480V

65-808R2 5000K 200-480V

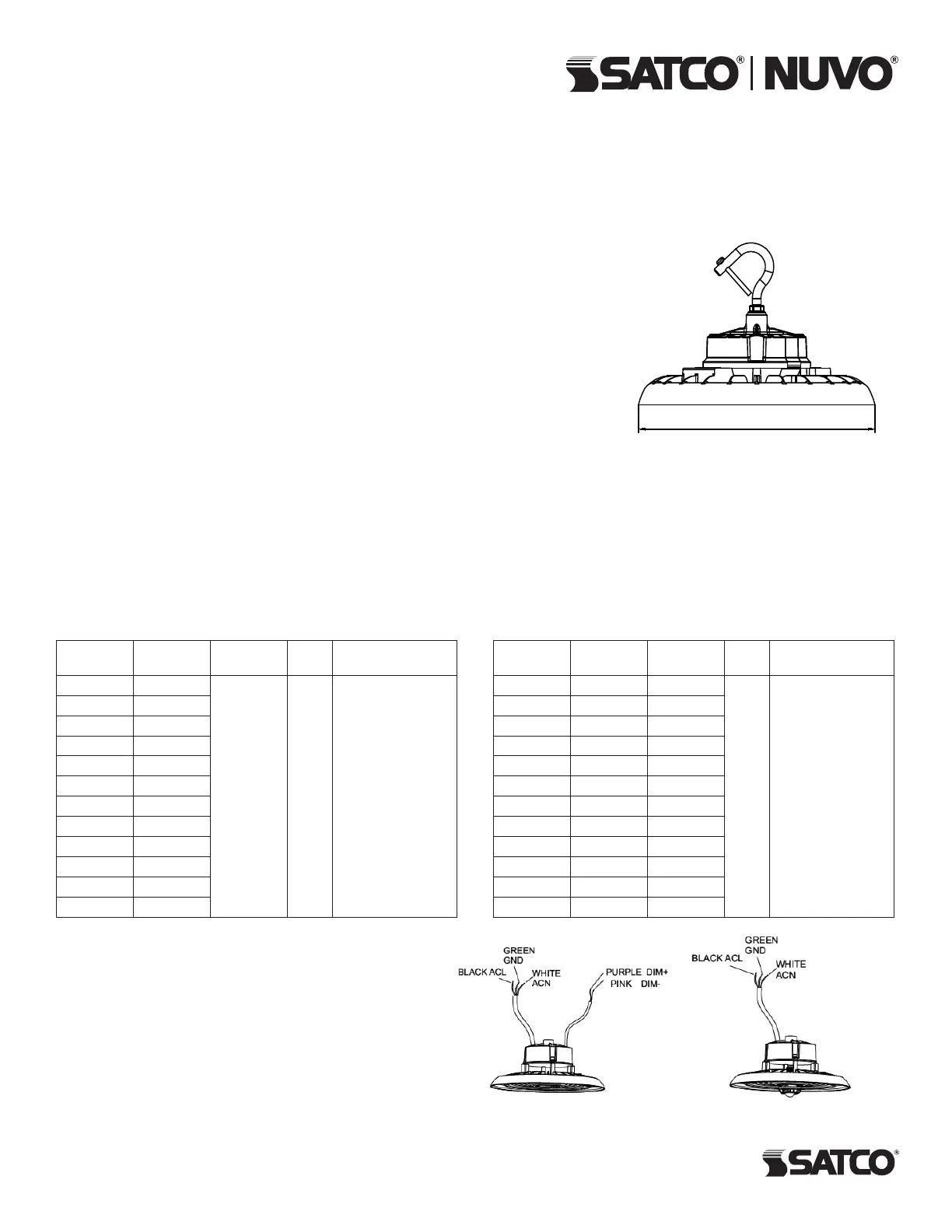

WIRING DIAGRAM & INSTRUCTIONS

The LED high bay light can be equipped with an

optional DC motion sensor (86/218 microwave

sensor, 86/217 - 6m mounting height or 86/220 -

12m mounting height PIR sensors). The sensor

needs to be set via remote (86/219). For standard

0-10V dimming applications, see wiring diagram.

65-781R2, 65-782R2, 65-783R2, 65-784R2,

65-791R2, 65-792R2, 65-793R2, 65-794R2,

65-801R2, 65-802R2, 65-803R2, 65-804R2

ø11" (280±5mm)

65-784R2, 65-785R2, 65-787R2, 65-788R2,

65-795R2, 65-796R2, 65-797R2, 65-798R2,

65-805R2, 65-806R2, 65-807R2, 65-808R2

ø13.4" (340±5mm)

A B: Motion Sensor

Satco Products, Inc.
