WARNING:
To reduce the risk of personal injury or property damage from re,
electric shock, falling parts, cuts/abrasions, and other hazards read
all warnings and instructions included with and on the xture and all
xture labels.
Commercial installation, service and maintenance of luminaries should
be performed by a qualied licensed electrician. For The installation:
If you are unsure about the installation or maintenance of the
luminaries, consult a qualied licensed electrician and check your
local electrical code.
Turn off electrical power at fuse or circuit breaker before wiring xture
to the power supply.
• Turn off the power when you perform any maintenance.
All connections should be capped with UL approved wire connectors.
• Minimum size 18 AWG or 14 AWG for continuous runs.
Risk of Burn. Disconnect power and allow xture to cool
before handling.
Verify that supply voltage is correct by comparing it with the
luminaire label information.
GROUNDING INSTRUCTIONS:
The grounding and bonding of the overall system shall be
done in accordance with NEC Article 600 and local codes.

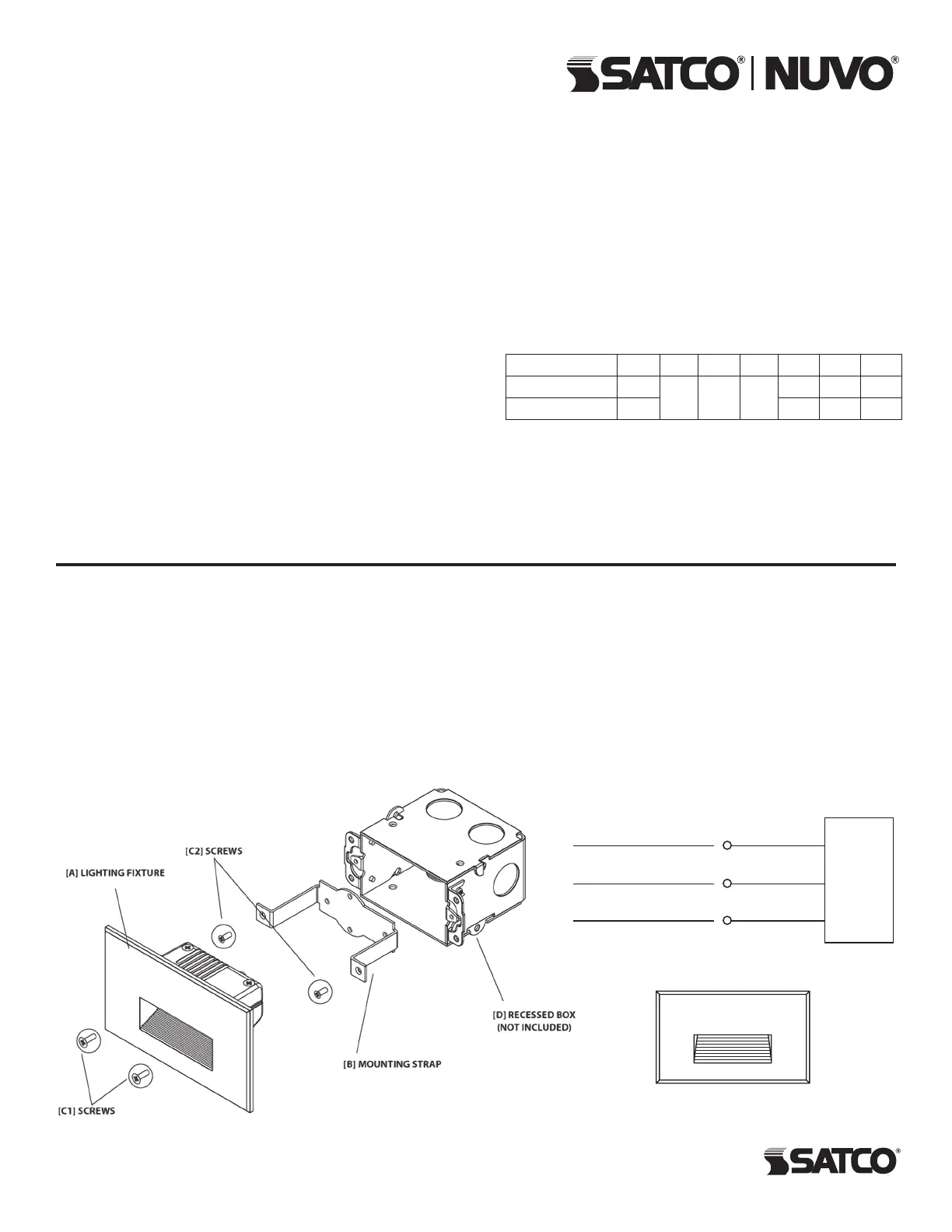

LED HORIZONTAL STEP LIGHT
Models: 65-403, 65-404, 65-407, 65-408, 65-411, 65-412
Satco Products, Inc.
Brent wo od, NY 11717
PRODUCT INFORMATION:
Dimensions: Length 5.03" x Width 3.07" x Height 1.57"
Weight: 0.46 lbs.
Recessed lighting xture. Housing made by aluminum alloy
with safety glass.
• Suitable for wet location.
• Suitable for mounting within 1.2m (4ft) off the ground.
• 5-Year Warranty.
PRODUCT SPECIFICATIONS:
Model # Volts Watts Lumens Kelvin Bronze White Gray
65-403, 65-407, 65-411 120V
5W 407 3000K
65-403 65-407 65-411
65-404, 65-408, 65-412 227V 65-404 65-408 65-412
ELECTRICAL REQUIREMENTS:
The LED driver must be suplied with 120 or 277V, 50/60 Hz
and connected to an individual, properly grounded branch circuit
protected by a 20 ampere circuit breaker. Use min. 75°C supply.
TOOLS REQUIRED:
Wire Strippers
Wire Cutters
INSTALLATION:
1. Turn off the power
2. Feed wires from [A] Lighting Fixture through the [B]
Mounting Strap into the [D] Recessed Box.
3. Connect Main Voltage supply wire to Black luminaire
wire (+). See Wiring Diagram.
4. Connect Neutral (Common) supply wire to White
luminaire wire (–). See Wiring Diagram.
5. Connect Green ground wire to Green luminaire wire.
See Wiring Diagram.
6. Assemble [B] Mounting Strip with [D] Recessed Box.
7. Assemble [A] Lighting Fixture with Fixed Mounting
Strap inside the Recessed Box. Make sure the lighting
xture is oriented correctly.
8. Turn on the power.
INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing xuture. Retain for future reference.
© Copyright 2017 Satco Products, Inc. 7/17
WIRING DIAGRAM
MAIN VOLTAGE SUPPLY
NEUTRAL (COMMON)
GROUND CONNECTION
BLACK WIRE (+)
WHITE WIRE (–)
GREEN WIRE
FIXTURE
