Side 1/24
1
AIRLESS PAINT
SPRAYER
700W
INSTRUCTION MANUAL
SPECIFICATIONS
Input Power: 700W
Voltage: 220-240V ~50Hz
Max. Pressure: 3,000psi (21MPa)
Max. Flow Rate: 1.0L/min
Spray Tip Size: 517 (Supplied)
Suitable Spray Tips: 0.013 - 0.021”
Max. Viscosity: 100DIN-s
Outlet Paint Connector: G¼”-19”
Max. Hose Pressure: 3,300psi (22.8MPa)
High Pressure Hose: 7.5m
Paint Temperature: 5-40°C
Weight: 10.5kg
ASG-7000
STANDARD EQUIPMENT
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
1 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 12 months from the
original date of purchase and is intended for DIY (Do It Yourself)
use only. If a product is defective it will be replaced in accordance
with the terms of this warranty. Warranty excludes consumable
parts, for example: valve adapters and accessories.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
Airless Sprayer
Spray Gun & High Pressure Hose
17
19
17
19
24
27
3 x Spanners, Spare Spray Gun
Filter, Fine Needle & Cleaning
Brush
4 x Bolts, 4 x Washers, 4 x Spring
Washers & Hex Key
1219
ONLINE MANUAL
Scan this QR Code with
your mobile device to take
you to the online manual.
Frame Connection
1. Insert the paint station into the frame,
aligning the 4 bolt holes (2 either side).
2. Place a spring washer and then a
washer onto each bolt. Insert the bolt
assemblies into the bolt holes and
tighten using the supplied hex key.
Hose Connection
Note: The air caps on the paint station and air hose will need to be
removed prior to connection.
1. Connect the high pressure hose to the
paint outlet and tighten clockwise.
2. Connect the other end of hose to the
gun inlet and tighten clockwise.
3. Ensure all connections have been
correctly tightened with a 19mm
spanner on the hose, and a 17mm
spanner to hold the connection.
4. Connect the inlet hose and return pipe
to the paint station.
5. Secure the inlet hose by
tightening the screw on the hose
clamp.

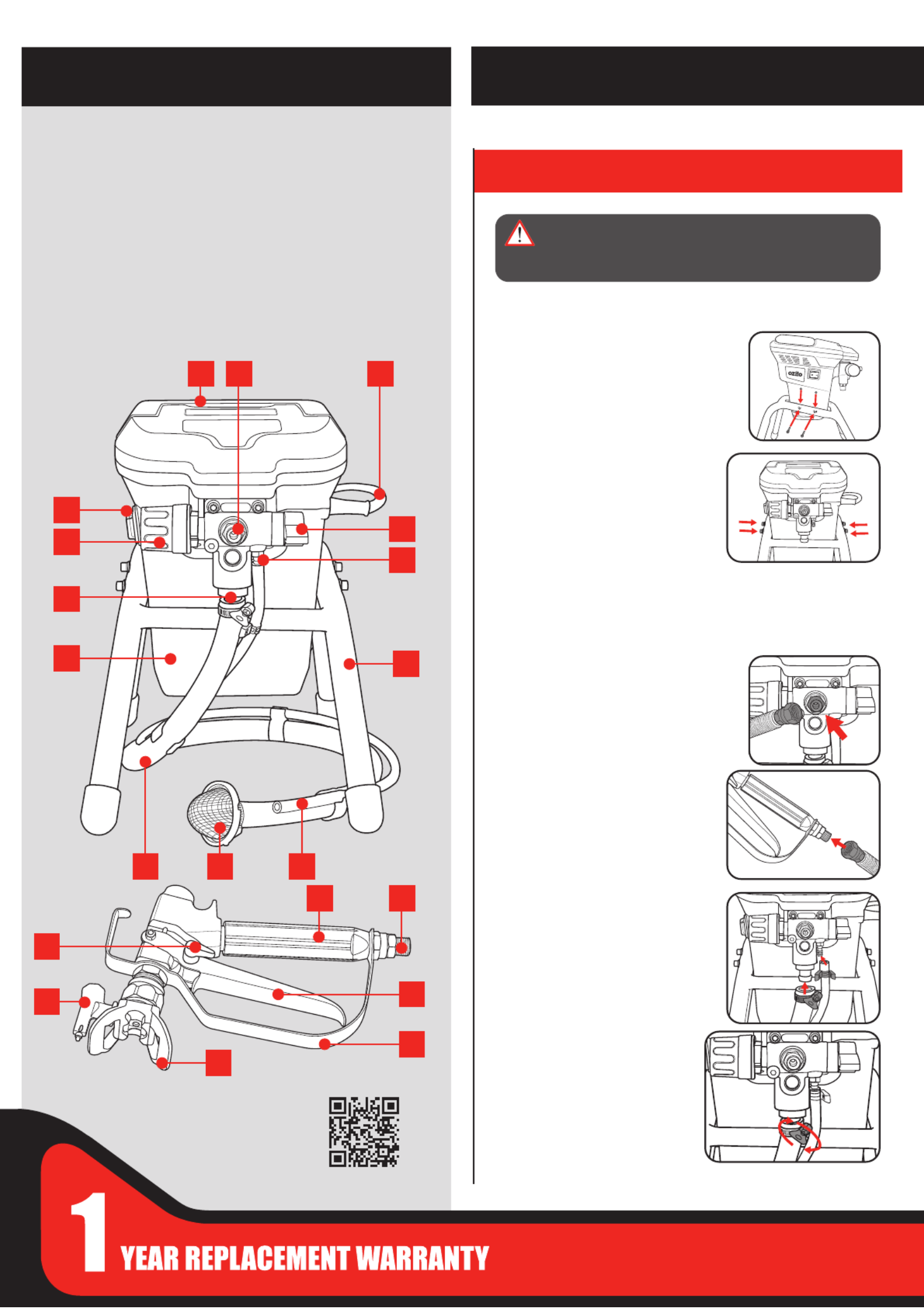

1. Carry Handle
2. Paint Outlet Port
3. Power Cord
4. Priming Lever
5. Return Pipe Port
6. Frame
7. Return Pipe
8. Inlet Filter
9. Inlet Hose
10. Sprayer Unit
11. Inlet Hose Port
12. Pressure Control Dial
13. On/O󰀨 Switch
14. Handle
15. Spray Gun Inlet
16. Spray Gun Trigger
17. Handle Guard
18. Tip Guard
19. Spray Tip
20. Trigger Locking Lever
AIRLESS SPRAY GUN
KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
1
14 15
2
11
3
4
5
6
18
17
16
13
19
10
12
20
789
WARNING! ENSURE THE TOOL IS TURNED OFF
AND DISCONNECTED FROM THE POWER SUPPLY
BEFORE PERFORMING ANY OF THE FOLLOWING
OPERATIONS.
