Side 1/6

PLUNGE

SAW KIT

1200W

INSTRUCTION MANUAL

SPECIFICATIONS

Motor: 1200W

Input: 230-240V ~ 50Hz

No Load Speed: 5,200/min

Blade Diameter: 165mm (6 ”)½

Blade Bore: 20mm

Depth of Cut: 55mm @ 90°

42mm @ 45°

Guide Rail Length: 700mm

Weight: 4.65kg

PLS-1214

WHAT’S IN THE BOX

Plunge Saw

Clamps x 2

Guide Rails x 2

IN ORDER TO MAKE A CLAIM UNDER THIS

WARRANTY YOU MUST RETURN THE PRODUCT

TO YOUR NEAREST BUNNINGS WAREHOUSE WITH

YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO

RETURNING YOUR PRODUCT FOR WARRANTY

PLEASE TELEPHONE OUR CUSTOMER SERVICE

HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

WARRANTY

TO ENSURE A SPEEDY RESPONSE PLEASE

HAVE THE MODEL NUMBER AND DATE OF

PURCHASE AVAILABLE. A CUSTOMER SERVICE

REPRESENTATIVE WILL TAKE YOUR CALL

AND ANSWER ANY QUESTIONS YOU MAY

HAVE RELATING TO THE WARRANTY POLICY

OR PROCEDURE.

OZITO Australia/New Zealand (Head Ofﬁce) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.

The beneﬁts provided under this warranty are in addition

to other rights and remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded

at law. You are entitled to a replacement or refund for a major

failure and for compensation for any other reasonably foreseeable

loss or damage. You are also entitled to have the goods repaired

or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure.

Generally you will be responsible for all costs associated with

a claim under this warranty, however, where you have suffered

any additional direct loss as a result of a defective product you

may be able to claim such expenses by contacting our customer

service helpline above.

ozito.com.au

0117

Hex Keys (3 & 5mm) &

Joiner

3 YEAR REPLACEMENT WARRANTY

Your product is guaranteed for a period of 36 months from

the original date of purchase. If a product is defective it will

be replaced in accordance with the terms of this warranty.

Warranty excludes consumable parts, for example: O-rings, bearing,

seals gaskets.

WARNING

The following actions will result in the warranty being void.

• Ifthetoolhasbeenoperatedonasupplyvoltageother

than that speciﬁed on the tool.

• Ifthetoolshowssignsofdamageordefectscaused

by or resulting from abuse, accidents or alterations.

• Failuretoperformmaintenanceassetoutwithinthe

instruction manual.

• Ifthetoolisdisassembledortamperedwithinanyway.

• Professional,industrialorhighfrequencyuse.

ONLINE MANUAL

Scan this QR Code with your

mobile device to take you to

the online manual.

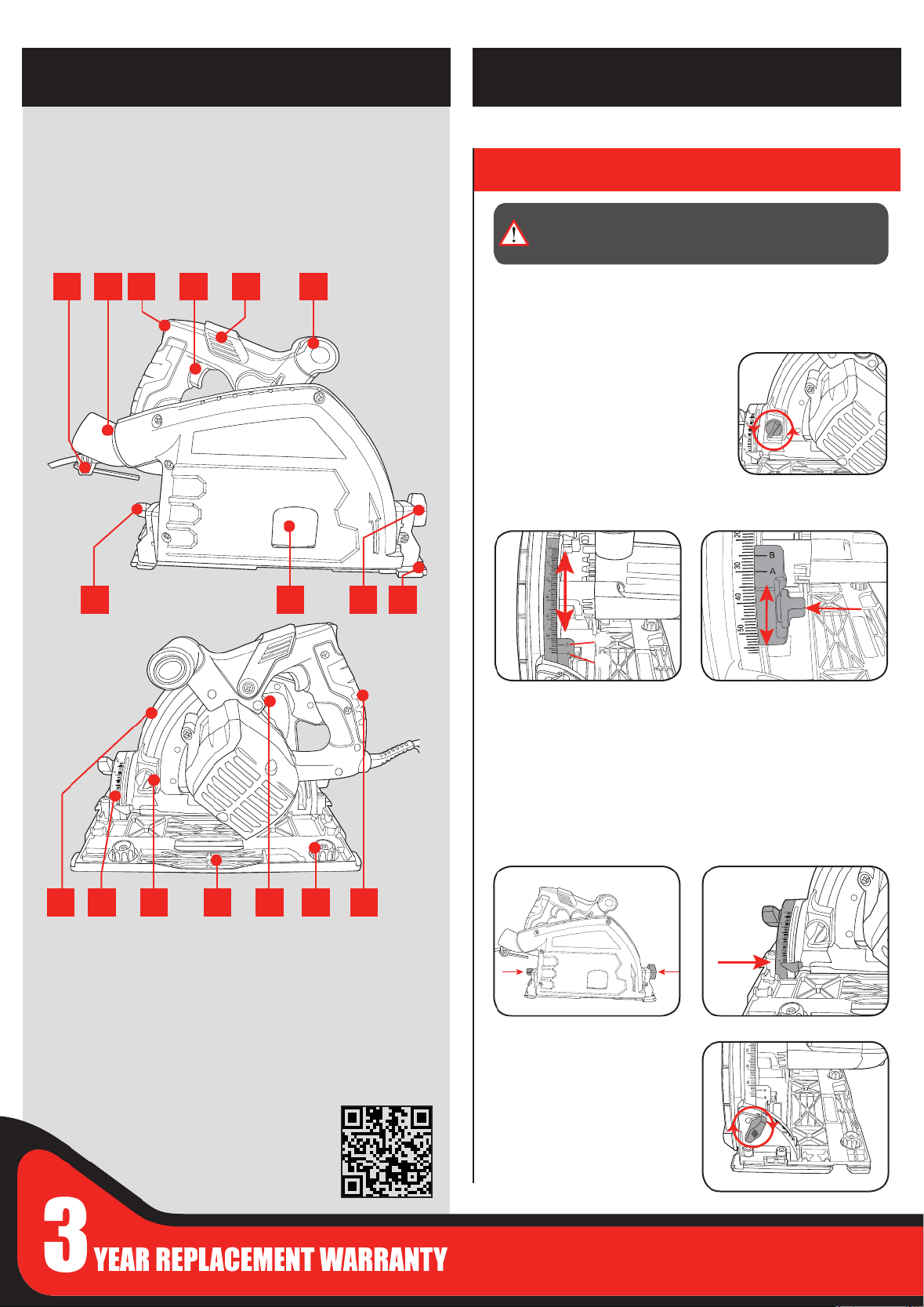

KNOW YOUR PRODUCT SETUP & PREPARATION

1. DEPTH & BEVEL ADJUSTMENT

1. Hex Key Holder

2. Dust Port

3. Safety Switch

4. On/Off Trigger

5. Blade Change Lever

6. Front Handle

7. Rear Bevel Locking Knob

8. Saw Blade

9. Front Bevel Locking Knob

10. Cutting Line Guide

PLUNGE SAW

1 2 3 4 5 6

7 8 9 10

11 12 13 15 16 1714

WARNING! ENSURE THE TOOL IS SWITCHED OFF AND

DISCONNECTED FROM THE POWER SUPPLY BEFORE

PERFORMING ANY OF THE FOLLOWING TASKS.

Cutting Depth Adjustment

Bevel Adjustment

¥ Cutting depth A WITHOUT shows the cutting depth Guide

rail tted.

¥ Cutting depth B WITH shows the cutting depth guide rail

tted.

1. Loosen the Cutting Depth

Knob.

1. Loosen both Bevel Locking

Knobs.

3. Tighten Bevel Locking

Knobs.

2. Press the Knob inwards and slide to set the desired depth

using the Cutting Depth Scale.

2. Align Base Plate to desired

angle on Bevel Angle Scale.

Depth should be adjusted so that no more than one tooth

is protruding through the timber. This helps to minimise

splintering.

11. Cutting Depth Scale

12. Bevel Angle Scale

13. Cutting Depth Knob

14. Base Plate

15. Blade Locking Lever

16. Guide Rail Adjusting Knob

17. Rear Handle

3. Tighten Cutting Depth Knob.
