Side 1/7

PAC-audio.com

Page 1

Rev: 2

Date:050225

Advanced Amplier Interface

for Select Ford Vehicles

AP4-FD32

The AP4-FD32 provides a 6-channel pre-amp output for use with aftermarket audio equipment. Using the digital

A2B audio data in conjunction with CAN data, the AP4-FD32 delivers a variable 5v RMS pre-amp output with fading,

balance, equalization, and level control capabilities. The module also retains audio from other vehicle features such

as factory navigation prompts, safety chimes, Bluetooth and voice activation. A data bus controlled remote amplier

turn on wire is also provided by the AP4-FD32. The module also provides a variable 2-channel ber optic digital audio

output (TOSLINK).

Introduction and Features

Important Notes

1. This interface is only compatible in vehicles equipped with an A2B data bus controlled premium sound system. To verify

compatibility, look for a B&O badge on the door speakers or dash speakers.

2. The AP4 interface installs at the factory amplier location. Included T-Harness installs behind radio to access factory

speaker wiring not available at factory amplier.

3. The factory amplier will be disconnected and will no longer power the vehicle speakers. An aftermarket amplier must be

added to power the vehicle's speakers. For example, you cannot only add a subwoofer, as the factory speakers that were

connected to the factory amplier will no longer function.

4. On most Ford models, some of the vehicle speakers will be connected to the radio module in addition to the external

amplier. These speakers will also stop working when the factory amplier is disconnected and will need to be powered by

an aftermarket amplier.

5. The chime volume and minimum volume levels are set to 50% by default. If this level is adequate, no additional adjustment

is required. Please refer to the Setup and Conguration section on page 4 for more details.

6. The level control knob must be connected in order to manually adjust the minimum volume settings.

7. The remote output is rated at 2A of current. If more current is needed, an external relay must be used.

8. Channels 5 and 6 are non-fading outputs. The output level of channels 5 and 6 can be controlled using the supplied level

control knob.

9. No adjustments can be made manually using the programming button, or the factory SWC, when the module is connected

to a PC.

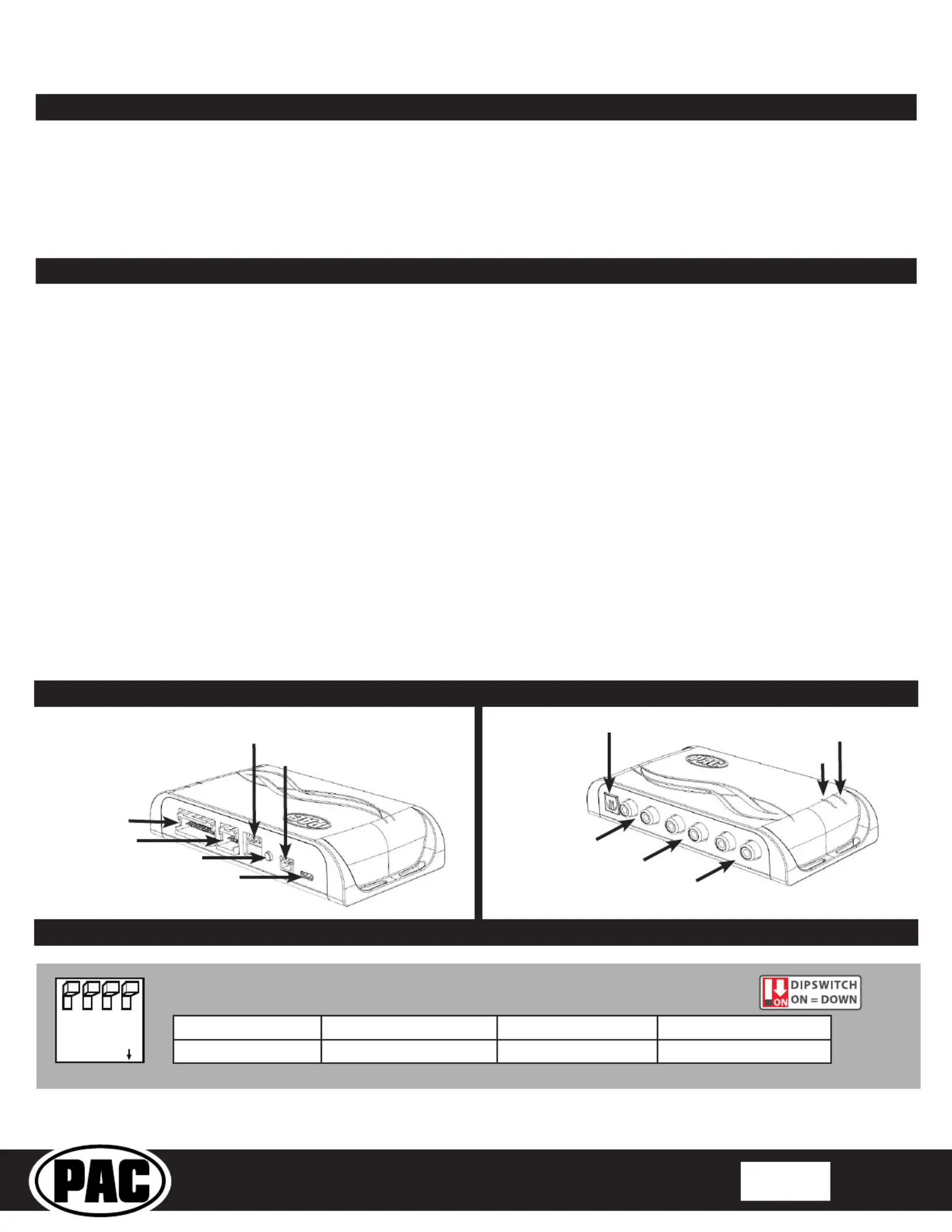

Module Layout

LED 1

Interface Connector 1

Expansion Port

TOSLINK Output

Programming Button

Feature Select

DIP switches

Front Output

Ch. 1(L) and 2(R)

Non-Fading Level Control

Knob Connection

USB Connection

Rear Output

Ch. 3(L) and 4(R)

SUB (Non-Fading)

Ch. 5 and 6

LED 2

DIP

1 2 3 4

Two Channel Mode 5v / 4v Preout Not Used Not Used

1 2 3 4

Set DIP switches to the ON position to activate the corresponding features.

Set DIP switches to the OFF position for any features that are not desired.

PAC-audio.com

Page 2

Rev: 2

Date:050225

Advanced Amplier Interface

for Select Ford Vehicles

AP4-FD32

Installation

1. Access the factory amplier (Audio Digital Sound Processing Module).

2. Disconnect the 20-pin, 8-pin and A2B 4-pin connectors from the amplier. The amplier can be removed or left in

the vehicle.

3. Plug the 20-pin, 8-pin and A2B Adapter cables into the matching connectors on the AmpPRO (AP4-FD32-HAR)

harness.

4. Before connecting the interface, set any feature DIP switches that apply to the install:

a. DIP switch 1 is used for two channel mode. In this mode, all outputs will be non-fading and all chimes are

diverted through channels 1 & 2 and TOSLINK.

b. Set DIP switch 2 on (down) to lower the RCA output voltage to 4v. Leave DIP switch 2 o󰀨 (up) to keep the RCA

output voltage at 5v. See troubleshooting section on Page 6 for more details.

c. DIP switch 3 & 4 are not used and should remain o󰀨 (up).

4. Connect the AmpPRO harness to the AmpPRO interface.

5. Connect the level control knob cable to the AmpPRO interface.

6. Connect the signal cables (RCA/TOSLINK) and remote input from the aftermarket amplier.

NOTE! The aftermarket amplier must have a very solid ground and the amplier power/ground

connections should be made before connecting the RCA's or Remote Turn On to the AP4-FD32!

On aluminum framed vehicles, it is recommended to ground directly to the battery.

7. Reference the Speaker Connections section on the next page to connect speaker wires.

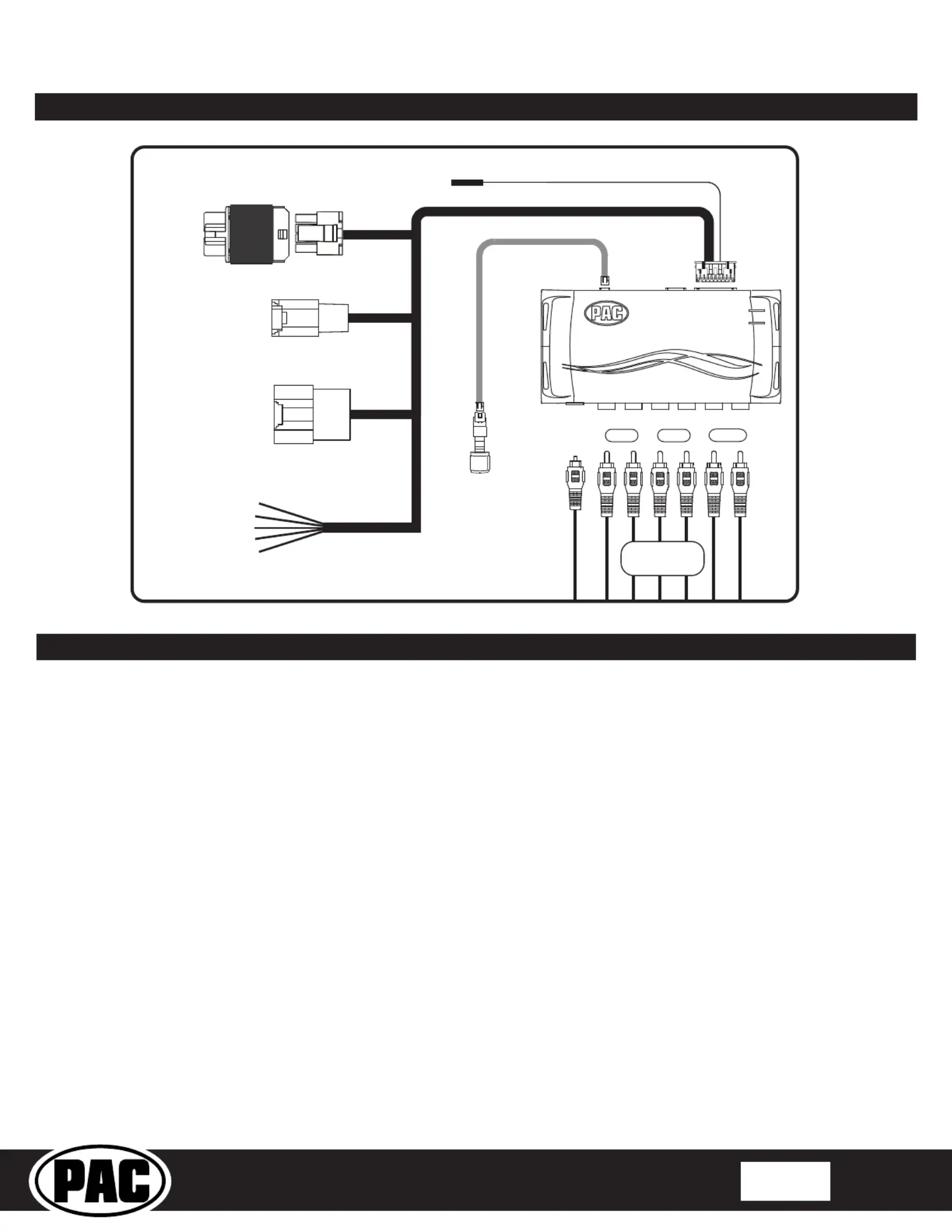

Wiring Connection Chart

Front

1/L

2/R

4/R

5 6

3/L

Remote Amp Turn On +

2A Max Output

Rear

Sub

TOSLINK

20-pin

Amplifier

8-pin

Amplifier

To Adapter

To Vehicle Amplifier Harness

Speaker

Leads

1-10

Non-Fading

Level Control

Knob

Vehicle

Adapter

Interface

Connector

To Aftermarket

Amplifier

AP4-FD32-HAR
