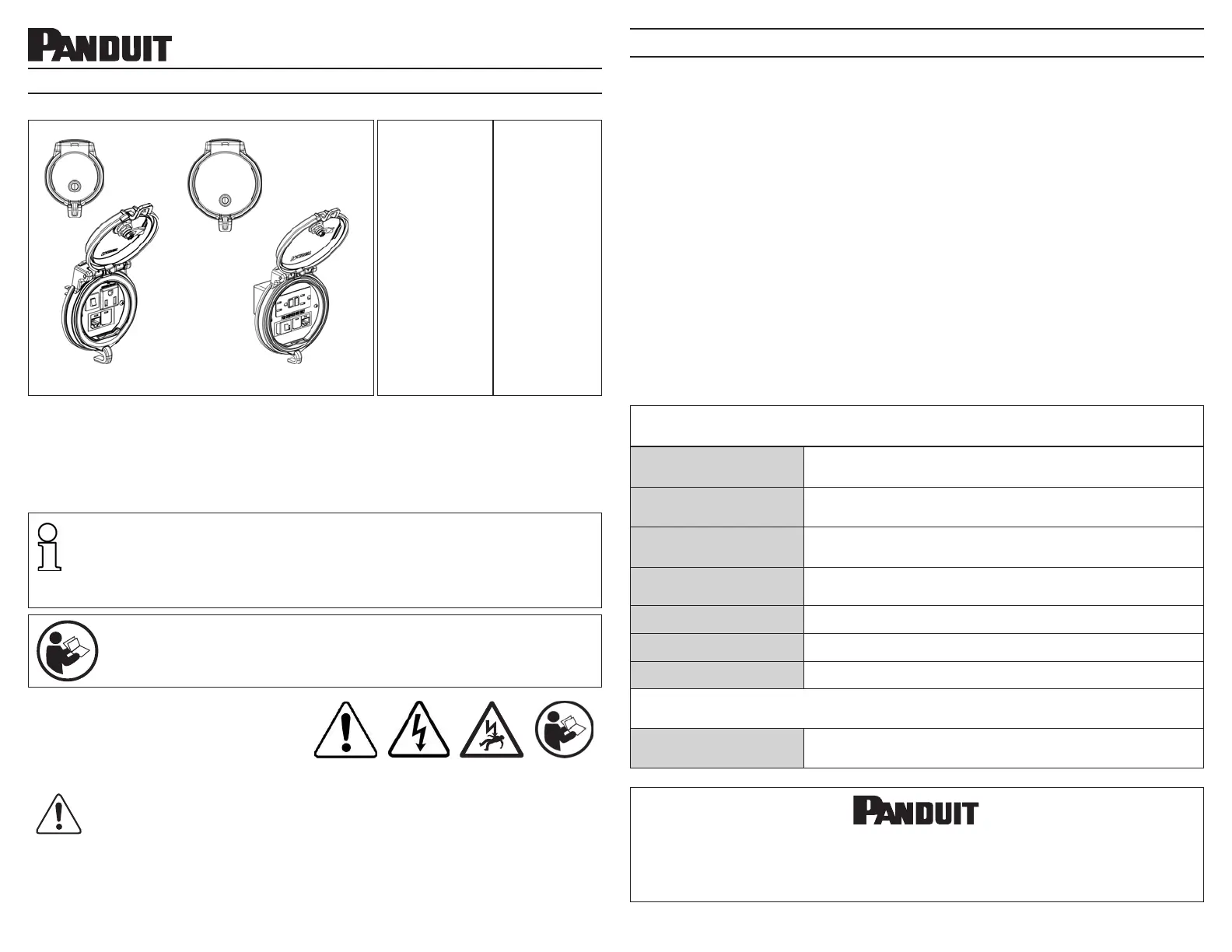

Side 1/2

DAP3 PART #:

DAP3BB-S0

DAP3BC-00

DAP3BC-00-55

DAP3BC-S0

DAP3BC-S0-4

DAP3BC-S0-5

DAP3BC-S0-55

DAP3BC-S0-5U

DAP3BC-S0-6

DAP3BC-S3-4

DAP3BC-S3-5

DAP3BC-S3-6

DATA ACCESS PORT

INSTALLATION INSTRUCTIONS

B21102

Rev: 00 3-2019

Data Access Ports (DAP), provide end users a safe and secure means to maintain and

monitor performance of PLCs, VFDs, and industrial networks.

Integrated security features shall prevent the disruption of service or unwanted

access by unauthorized personnel. Non-arc flash certified personnel can access networks

within the panel which reduces cost, increases efficiency, and promotes overall safety.

Furthermore, the new, innovative circular design allows for quick and easy installation.

NOTE: In the interest of higher quality and value, Panduit products are continually

being improved and updated. Consequently, pictures may vary from the

enclosed product.

NOTE: Updates to this Instruction Manual may be available.

Check www.panduit.com for the latest version of this manual.

TO REDUCE THE RISK OF INJURY, USER MUST READ

INSTRUCTION MANUAL

Safety Information

Failure to comply with the warnings and

information in this manual could result in

product failure, electrical shock, severe

injury or death.

Warning

• Always de-energize power before accessing an electrical enclosure.

• Always follow safety and lockout/tagout procedures when working on or near electrical

systems and equipment.

• Use proper personal protective equipment (PPE) when working around sources of

hazardous electrical energy.

• Do not use this product outside of the specified performance and environmental limits.

• This product must be installed by a qualified worker.

• Always comply with local installation codes and standards.

Information de Sécurité

• Toujours éteindre l'alimentation électrique avant d'accéder à un boîtier électrique.

• Suivez toujours les procédures de sécurité et de verrouillage / étiquetage (lockout/tagout)

quand vous travaillez sur ou à

proximité de systèmes et d'équipements électriques.

• Utilisez un équipement de protection individuelle approprié (EPI) lorsque vous travaillez

autour de sources d'énergie électrique dangereuse.

• N'utilisez pas ce produit en dehors des performances spécifiées et des limites

environnementales.

• Ce produit doit être installé par un ouvrier qualifié.

• Respectez toujours les codes et les normes d'installation locaux.

Page: 1 of 2

Shown: DAP3BC-G3-5

Shown: DAP4BC-G3-5

DAP4 PART #:

DAP4BB-G0

DAP4BC-G0

DAP4BC-G0-4

DAP4BC-G0-5

DAP4BC-G0-5U

DAP4BC-G0-6

DAP4BC-G3-4

DAP4BC-G3-5

DAP4BC-G3-6

DAP4BC-X0

Technical Specifications

Warning: Do not use this product outside of the specified performance and environmental

limits. Failure to comply with these specifications could result in product failure,

personal injury, or death.

Standards

UL 50E

ENCLOSURES FOR ELECTRICAL EQUIPMENT,

ENVIRONMENTAL CONSIDERATIONS

UL 50

ENCLOSURES FOR ELECTRICAL EQUIPMENT,

NON-ENVIRONMENTAL CONSIDERATIONS

CSA C22.2 NO. 94.1

ENCLOSURES FOR ELECTRICAL EQUIPMENT,

NON-ENVIRONMENTAL CONSIDERATIONS

CSA C22.2 NO. 94.2

ENCLOSURES FOR ELECTRICAL EQUIPMENT,

ENVIRONMENTAL CONSIDERATIONS

UL 508A STANDARD FOR INDUSTRIAL CONTROL PANELS

CSA C22.2 NO. 14-13 INDUSTRIAL CONTROL EQUIPMENT

IEC 60529 DEGREES OF PROTECTION REQUIRED BY ENCLOSURE

Application

Degree of Protection

For Flat Surface Mounting in a TYPE (UL, NEMA and CSA)

4, 4X, 12, 13, IP65 and IP66 Enclosures.

www.panduit.com

Technical Support:

1-800-777-3300

Email: techsupport@panduit.com

Produkt Specifikationer

Mærke:	Panduit
Kategori:	Ikke kategoriseret
Model:	DAP4BC-F3-5
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Driftstemperatur (T-T):	-5 - 50 °C
Sokler, antal:	2
Moduler, antal (maks.):	2 modul(er)
Sokkel type:	Type F + RJ-45
Netværkskabel kategori:	5e
