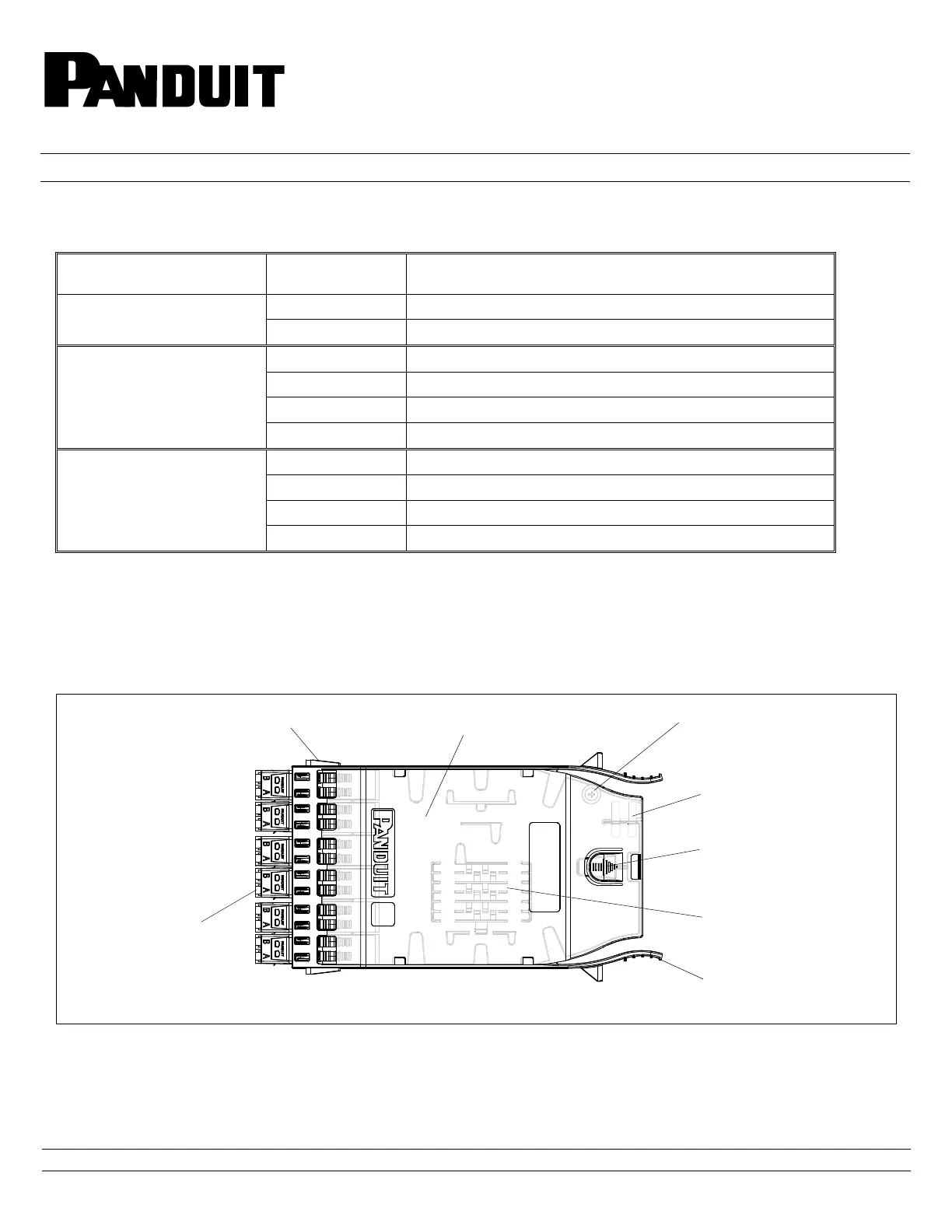

Side 1/3

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

FS117

Page 1 of 3

HD Flex LC Splice Cassette and

Fiber Adapter Panel (FAP)

Part Numbers: See chart below

Product Family

Cassette Part

Number

Cassette Description

12-Fiber LC Splice/FAP Cassette

(LC pigtails not included)

FHSXN-12-10N FAP (Fiber Adapter Panel) Cassette w/ Aqua Zirconia Adapters

FHS9N-12-10N FAP (Fiber Adapter Panel) Cassette w/ Blue Zirconia Adapters

12-Fiber LC Splice Cassette

(Pre-loaded with Discrete Pigtails)

FHSXO-12-10P 12-Fiber OM3 LC Discrete Pigtails; Optimized IL

FHSZO-12-10P 12-Fiber OM4 LC Discrete Pigtails; Optimized IL

FHSZA-12-10P 12-Fiber OM4 LC Discrete Pigtails; Ultra IL

FHS9N-12-10P 12-Fiber OS2 LC Discrete Pigtails; Standard IL

12-Fiber LC Splice Cassette

(Pre-loaded with Ribbon Pigtail)

FHSXO-12-10R 12-Fiber OM3 LC Ribbonized Pigtail; Optimized IL

FHSZO-12-10R 12-Fiber OM4 LC Ribbonized Pigtail; Optimized IL

FHSZA-12-10R 12-Fiber OM4 LC Ribbonized Pigtail; Ultra IL

FHS9N-12-10R 12-Fiber OS2 LC Ribbonized Pigtail; Standard IL



General Information and Contents

1. HD Flex LC Fiber Adapter Panel (FAP)

• Configured to accommodate pre-terminated cable assemblies.

2. HD Flex LC Preconfigured Splice Cassette – Available in 2 Configurations:

• Configured with 12 Discrete Pigtails, (12) 40mm Discrete Splice Sleeves, and 2 Pan-Ty Cable Ties.

• Configured with a 12-Fiber Ribbon Pigtail, (1) 40mm Ribbon Splice Sleeve, and 2 Pan-Ty Cable Ties.

WARNING: UNMATED CONNECTORS MAY EMIT INVISIBLE LASER RADIATION. MAINTAIN DUST CAPS ON UNMATED

CONNECTORS.

CAUTION:

Fiber optic cable is sensitive to excessive pulling, bending, and crushing forces. Consult the manufacturer’s cable specification sheet

for the specific cable in use.

Part Numbers

Cassette base Cassette cover

Screw – Aramid yarn

strain relief

Cable tie strain relief

Cover removal latch

Splice sleeve holders

(12 discrete / 1 ribbon)

Cassette release latches

6 Duplex shuttered

LC Adapters

Figure 1

(Fibers not shown)

For complete HD Flex Fiber Cassette Enclosure installation instructions, visit www.panduit.com and search FS111*.

Produkt Specifikationer

Mærke:	Panduit
Kategori:	Ikke kategoriseret
Model:	FHSXN-12-10N
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Bæredygtighedscertifikater:	RoHS
Antal forbindelser:	6
Stiktype:	LC
Fibertilstandsstruktur:	Multitilstand
Dupleks:	Ja
