Side 1/2

For Technical Support: www.panduit.com/resources/install_maintain.asp

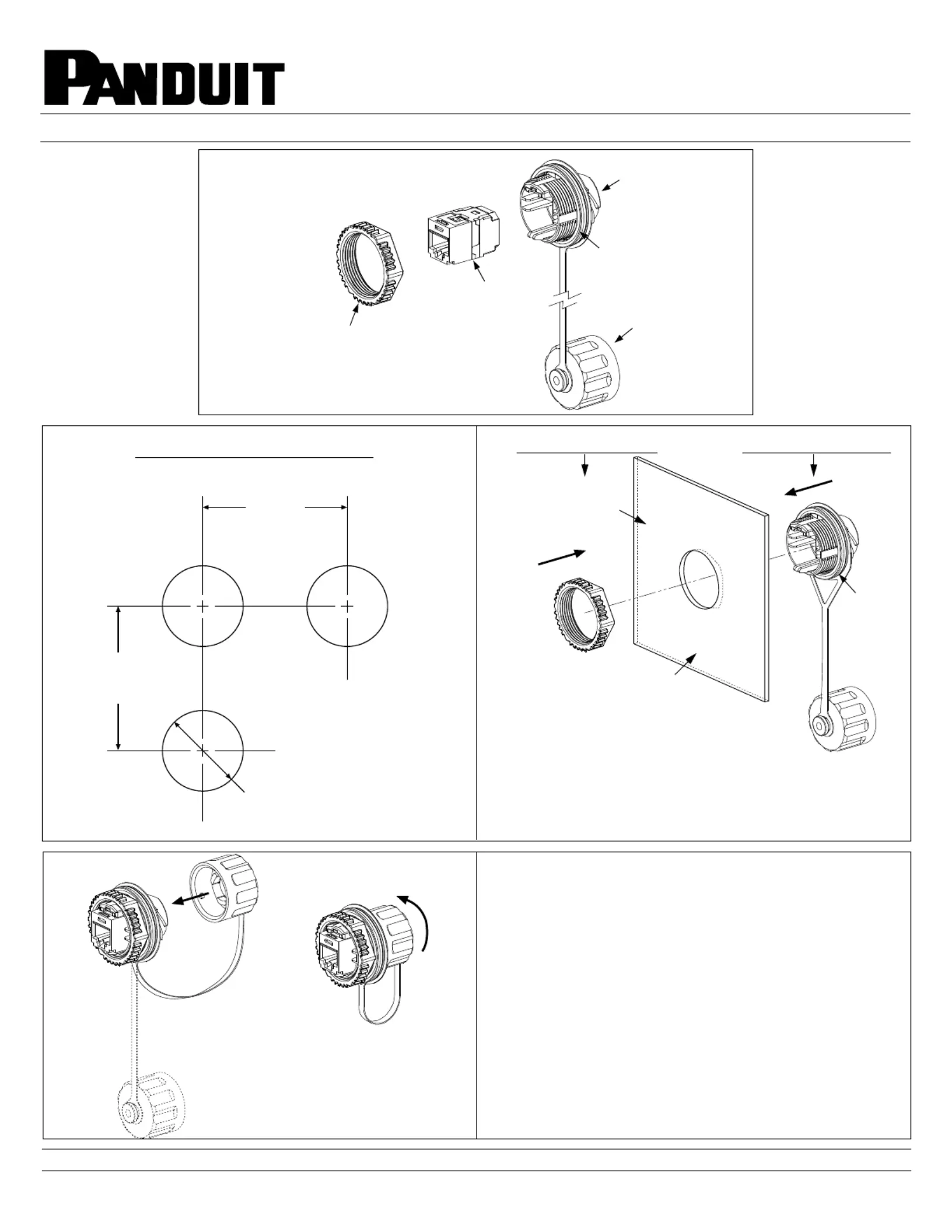

Page 1 of 2

INSTALLATION INSTRUCTIONS

PN376E

Bulkhead w/

Nut

Coupler

Tether w/

Cap

Module

Face Seal

Bulkhead

Seal

IndustrialNet

Bulkhead Couplers

Part Number: IAEBHC6, IAEBHC6XS, IAEBHC5E, IAEBHC5ES

(Enclosure wall removed for clarity)

Bulkhead Opening Requirements

Ø 1-13/64"

(30.6mm)

1-7/8"

(47.6mm)

1-7/8"

(47.6mm)

Enclosure Wall

Insert Bulkhead into prepared opening from outside of

enclosure. While holding Bulkhead in place, secure with Nut on inside of

enclosure. Hand turn Nut 4-1/4 to 5 full turns. Be careful not to tighten to

the point the Bulkhead Seal is over compressed and displaced from the

enclosure wall and the Bulkhead.

Note: If using wrench, flats on Nut should be on the outside.

Inside of Enclosure Outside of Enclosure

or Outlet Plate

Min. thickness: 0.035" (20 gauge)

Max. thickness: 0.135" (10 gauge)

Bulkhead

Seal

{not to scale}

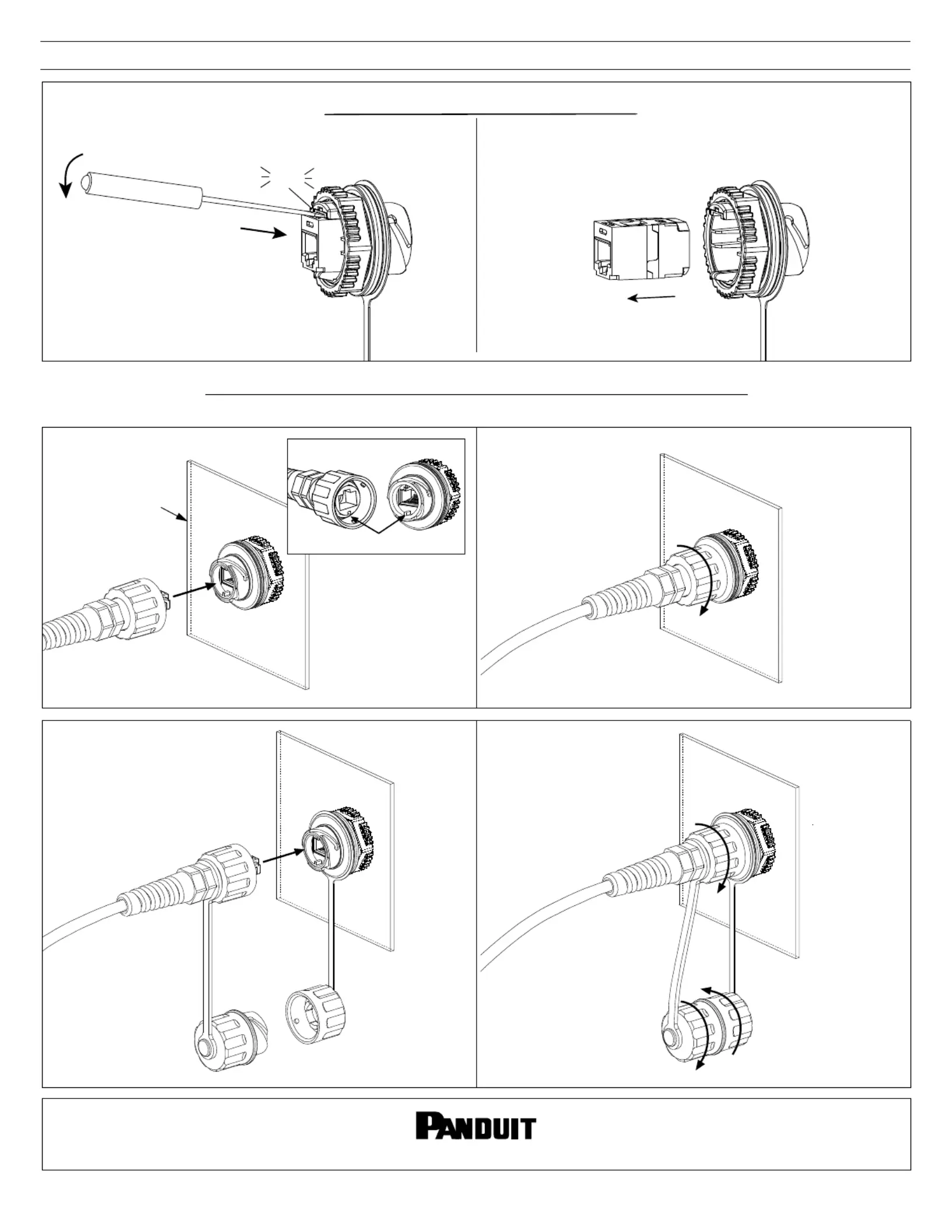

Page 2 of 2

INSTALLATION INSTRUCTIONS

PN376E

E-mail:

techsupport@panduit.com

Phone:

866-405-6654

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

www.panduit.com

Modular plug removed for clarity

Align key with keyway

Enclosure Wall

or Outlet Plate

Installation for use with IndustrialNet Modular Plug

Coupler Removal Instructions

Click

Note: Bulkhead combination must be used on a flat surface of a NEMA 4X Enclosure to maintain rating.

Produkt Specifikationer

Mærke:	Panduit
Kategori:	Ikke kategoriseret
Model:	IAEBHC6XS
Kode for international beskyttelse (IP):	IP67
Bredde:	37.8 mm
Dybde:	42.3 mm
Højde:	135.5 mm
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Stik:	RJ-45
Pakkevolumen:	0.016 cm³
AWG-ledningsstørrelse:	24
Standard for kabler:	Cat6
