Pioneer Elite VSX-LX304 Manual
Læs gratis den danske manual til Pioneer Elite VSX-LX304 (179 sider) i kategorien Modtager. Denne vejledning er vurderet som hjælpsom af 16 personer og har en gennemsnitlig bedømmelse på 4.8 stjerner ud af 8.5 anmeldelser. Har du et spørgsmål om Pioneer Elite VSX-LX304, eller vil du spørge andre brugere om produktet?
Side 1/179
Front Panel≫ Rear Panel≫ Remote≫
AV RECEIVER
Instruction
Manual
VSX-LX304
Table of contents ≫
Connections ≫
- Connecting Speakers ≫
Playback ≫
Setup ≫
Troubleshooting ≫
Appendix ≫
Supplementary Information ≫
En
2Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
What’s in the box 5
Additional Function (Firmware Update) 6
Update Information of the rmware 6
Operation of added new functions 6
Firmware Update Procedure 7
Part Names 10
Front Panel 10
Display 12
Rear Panel 13
Remote Controller 15
Connections
Connecting speakers 18
Speaker Installation 19
Speaker Connections and "Speaker Setup" Settings 37
Speaker combinations 50
Connecting the TV 51
To ARC TV 52

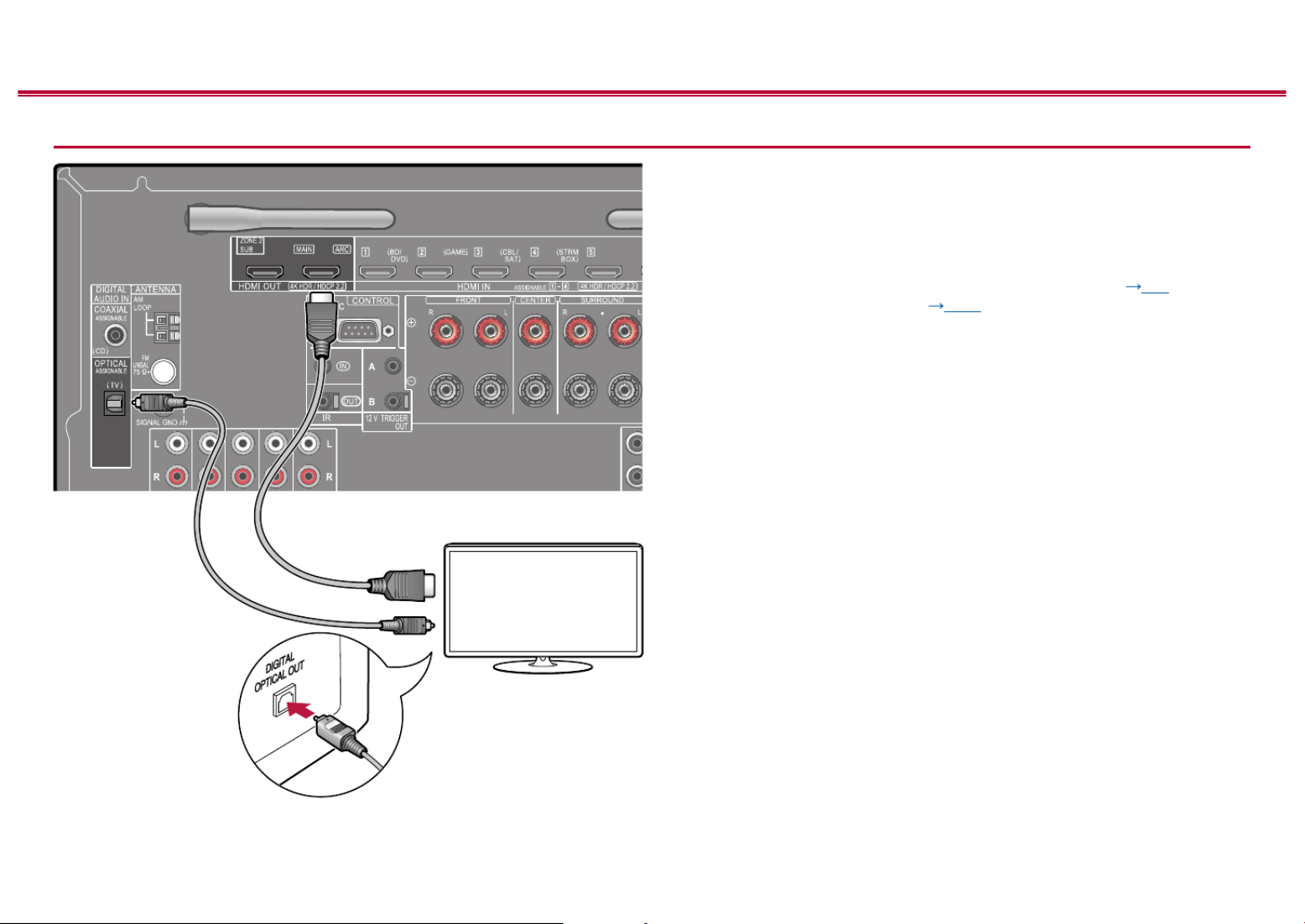

To Non-ARC TV 53
Connecting Playback Devices 54
Connecting an AV Component with HDMI Jack
Mounted 54

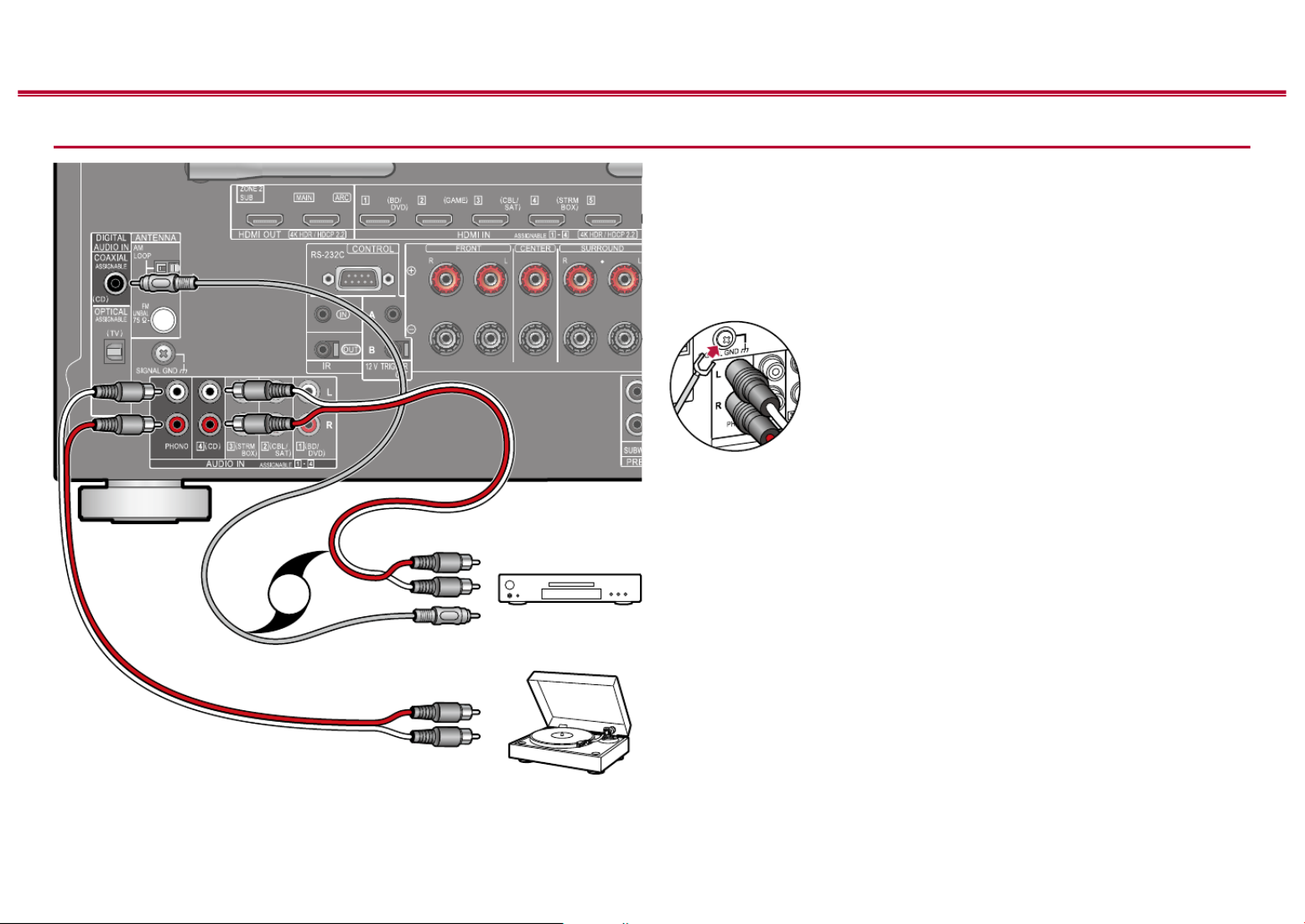

Connecting an Audio Component 55

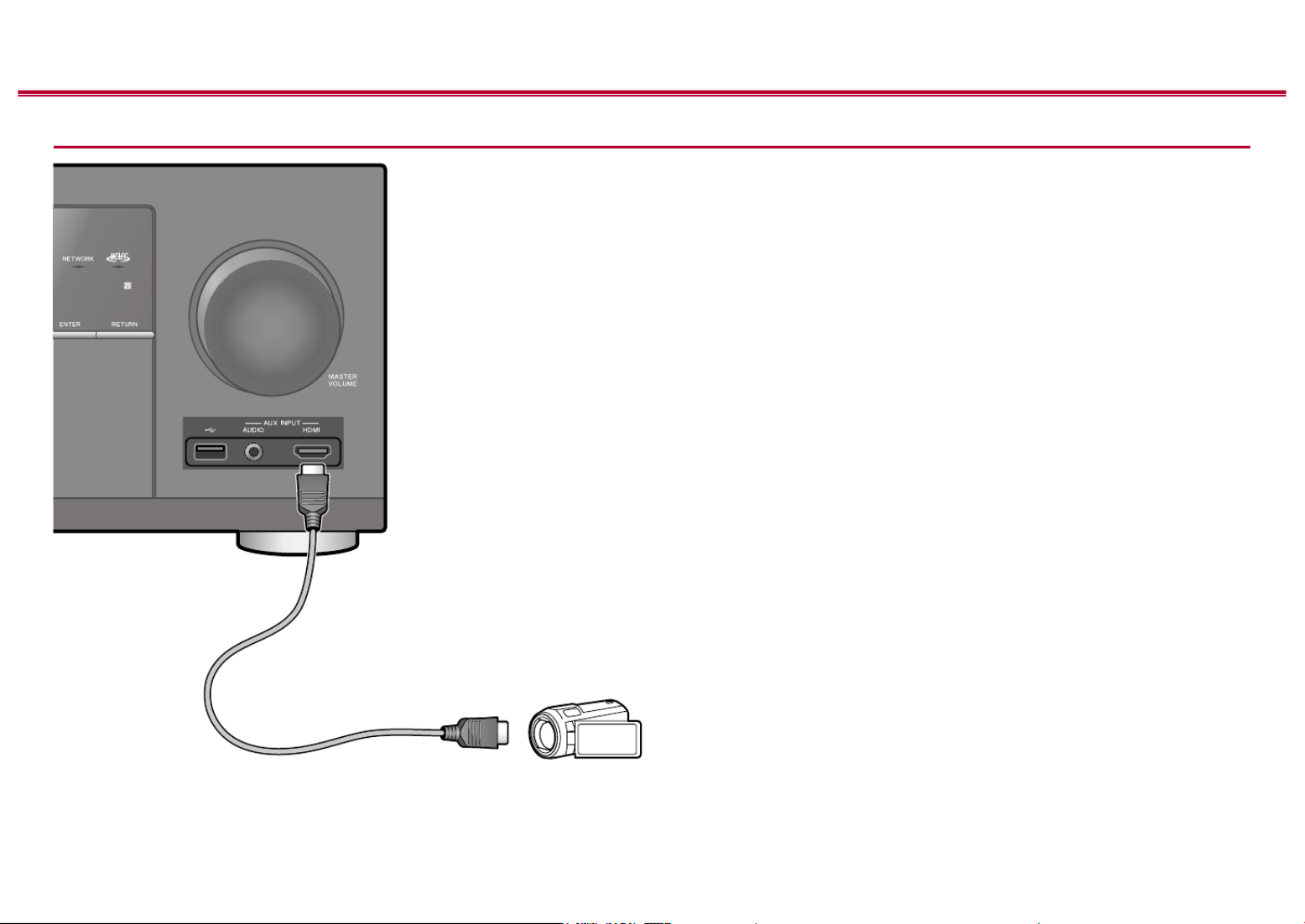

Connecting a Video Camera, etc. 56
Connecting an AV Component in a Separate Room
(Multi-zone Connection) 57
Connecting a TV (ZONE 2) 57
Connecting a Pre-main Amplier (ZONE 2) 58
Connecting ZONE B 59
Connecting a Pre-main Amplier, etc. (ZONE B) 59
Connecting Antennas 60
Network Connection 61
Connecting External Control Devices 62
IR IN/OUT port 62

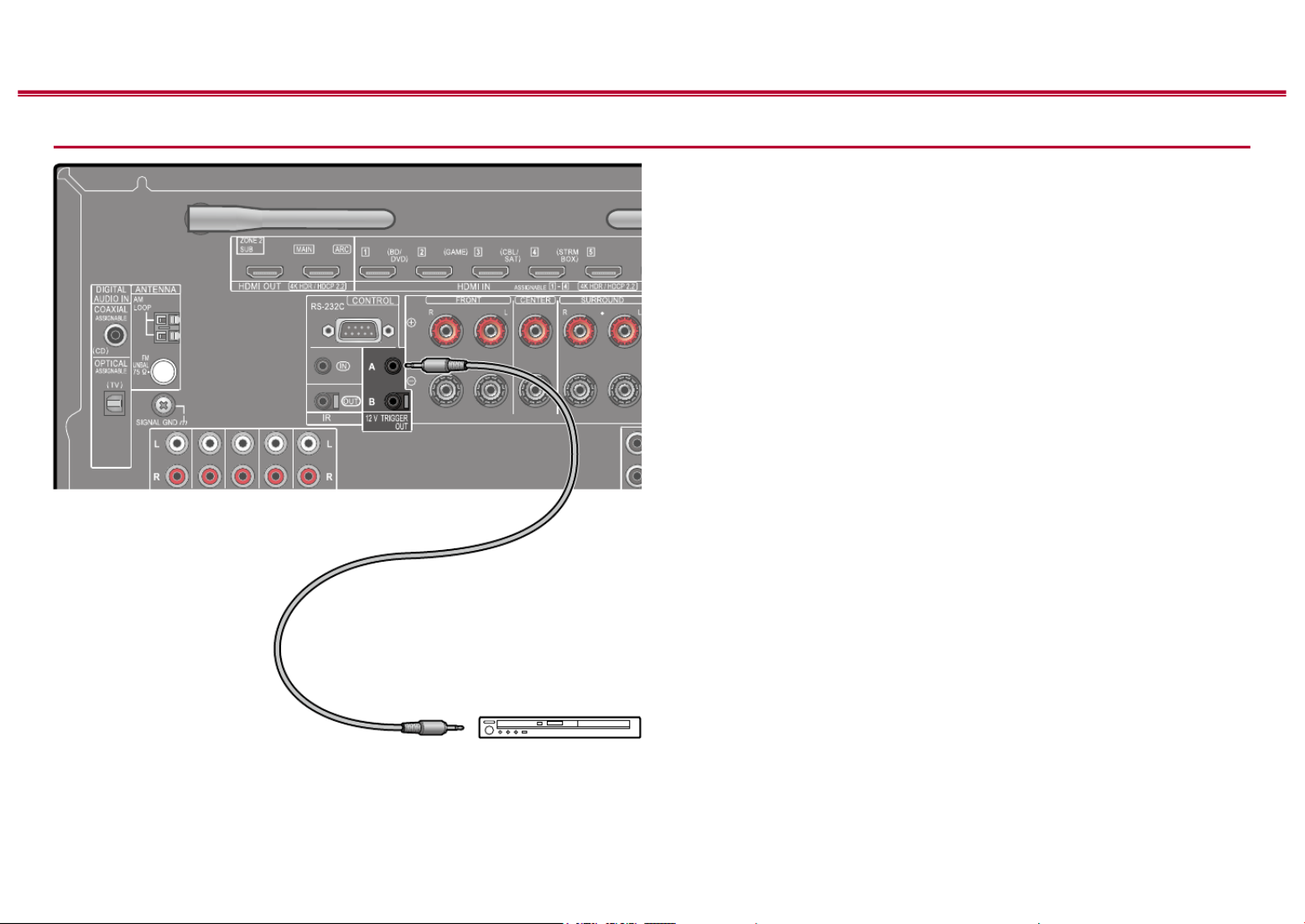

12V TRIGGER OUT jack 63
Connecting the Power Cord 64
Playback
AV Component Playback 66
Basic Operations 66
BLUETOOTH® Playback 67
Basic Operations 67
Internet Radio 68
Playing Back 68
Spotify 70
AirPlay® 71
Playing Back on This Unit 71
Playing Back on multiple devices (AirPlay2) 72
3Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
DTS Play-Fi® 73
Playing Back 73
FlareConnectTM 74
Playing Back 74
USB Storage Device 75
Basic Operations 75
Device and Supported Format 77
Playing back les on a PC and NAS (Music Server) 78
Windows Media® Player settings 78
Playing Back 79
Supported Audio Formats 82
Play Queue 83
Initial Setup 83
Adding Play Queue Information 83
Sort and Delete 84
Playing Back 84
Amazon Music 85
Registering this unit with Amazon Music 85
Playing Amazon Music 85
Connecting the Sonos System for Playback 86
Necessary Equipment 86
How to Connect This Unit and Sonos Connect 86
Setting Up 86
Playing Sonos on This Unit 87
Listening To the AM/FM Radio 88
Tuning into a Radio Station 88
Presetting a Radio Station 90
Using RDS (European, Australian and Asian models) 92
Multi-zone 93
Playing Back (ZONE 2) 94
Playing Back (ZONE 3) 96
ZONE B Playback 97
Playing Back 97
Convenience functions 98
Using PERSONAL PRESET 98
Adjusting the tone 100
Sleep Timer 102
Listening Mode 103
Selecting a Listening mode 103
Speaker Layouts and Selectable Listening Modes 106
Listening Mode Eects 109
Input Formats and Selectable Listening Modes 113
Inputting Characters 119
4Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
Setup
System Setup 120
Menu list 120
Menu operations 122
Input/Output Assign 123
Speaker 127
Audio Adjust 132
Source 134
Hardware 136
Multi Zone 144
Miscellaneous 145
Advanced MCACC 147
Menu operations 147
Full Auto MCACC 148
Manual MCACC 149
MCACC Data Check 151
Network/Bluetooth 152
Menu operations 152
Network 153
Bluetooth 155
AV Adjust 156
Menu operations 156
Web Setup 158
Menu operations 158
Initial Setup with Auto Start-up Wizard 159
Operations 159
Troubleshooting
When the unit is operating erratically 163
Troubleshooting 165
Appendix
Reducing the Power Consumption in Standby State 174
About HDMI 175
General Specications 177
5Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫

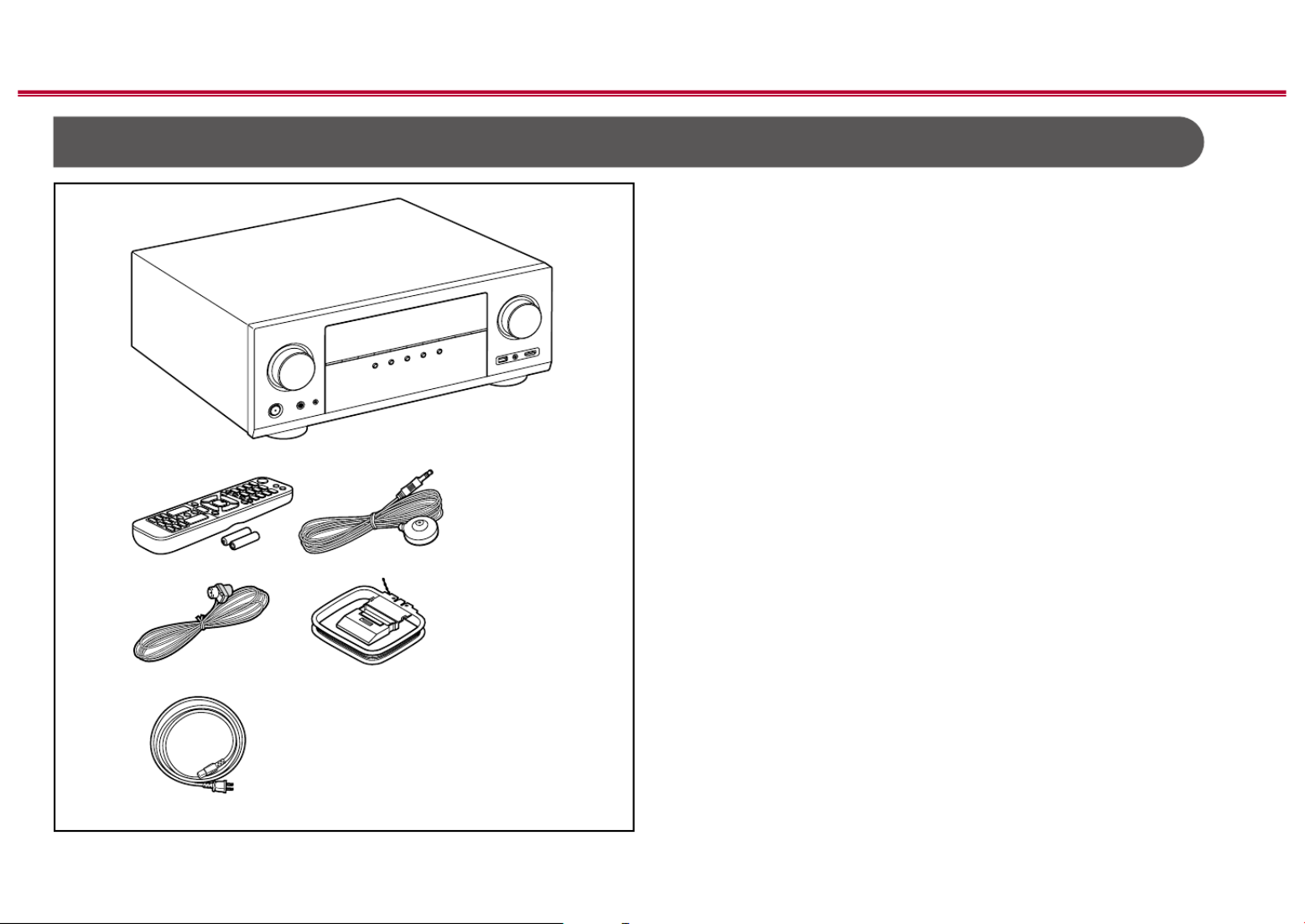

What’s in the box
1. Main unit (1)
2. Remote controller (RC-974R) (1), Batteries (AAA/R03) (2)
3. Speaker setup microphone (1)
• Used during Initial Setup.
4. Indoor FM antenna (1)
5. AM loop antenna (1)
6. Power cord (1)
• Quick Start Guide (1)
* This document is an online instruction manual. It is not included as an
accessory.
• Connect speakers with an impedance of 4 Ω to 16 Ω.
• The power cord must be connected only after all other connections are
completed.
• We will not accept any responsibility for damage arising from the connection
with equipment manufactured by other companies.
• Network services and content that can be used may no longer be available
if new functions are added by updating rmware or the service providers
terminate their services. Also, available services may dier depending on your
area.
• Details on the rmware update will be posted on our website and through
other means at a later date.
• Specications and appearance are subject to change without prior notice.
1
32
54
6
6Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
Additional Function (Firmware Update)
This unit is equipped with a function to update the rmware via network or USB port when the rmware update is announced after purchase. This enables various
functions to be added and operations to be improved.
Depending on the manufacturing timing of the product, the rmware may be switched to the updated one. In such a case, new functions may be added from the start.
For how to conrm the latest rmware contents and the rmware version of your product, see the following section.
Update Information of the rmware
For the latest rmware contents and the rmware version, visit our company’s website. If the rmware version of your product diers from the latest one, it is
recommended to update the rmware.
To conrm the rmware version of your product, press the button on the remote controller to display the Home screen, and refer to "System Setup" - "Miscellaneous"
- "Firmware Update" - "Version" ( p145).
Operation of added new functions
If functions are added or changed from contents described in the Instruction Manual, see the following reference.
Supplementary Information ≫
❏Firmware Update Procedure ( )p7
7Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
Firmware Update Procedure
The update may take approx. 20 minutes to complete via network or via USB
port. Existing settings are guaranteed in either updating method.
When this unit is connected to the network, notications of rmware updates may
be displayed. To update the rmware, select "Update Now" with the cursors on
the remote controller, and press the ENTER button. The unit automatically enters
standby mode after "Completed!" is displayed, and the update is completed.
Disclaimer: The program and accompanying online documentation are furnished
to you for use at your own risk.
Our company will not be liable and you will have no remedy for damages for
any claim of any kind whatsoever concerning your use of the program or the
accompanying online documentation, regardless of legal theory, and whether
arising in tort or contract.
In no event will our company be liable to you or any third party for any special,
indirect, incidental, or consequential damages of any kind, including, but not
limited to, compensation, reimbursement or damages on account of the loss of
present or prospective prots, loss of data, or for any other reason whatsoever.
Updating the Firmware via Network
• While updating the rmware, do not do the following:
– Disconnecting and reconnecting cables, USB storage device, speaker
setup microphone or headphones, or performing operations on the unit
such as turning the power o
– Accessing this unit from a PC or smartphone using their applications
• Check that the unit is turned on, and the connection to the Internet is secured.
• Turn o the controller components (PC etc.) connected to the network.
• Stop any playing Internet radio, USB storage device, or server content.
• If the multi-zone function is active, turn it o.
• If "HDMI CEC" is set to "On", set it to "O".
– Press to display the Home screen. Next, select "System Setup" -
"Hardware" - "HDMI", press ENTER, select "HDMI CEC" and select "O".
* The descriptions may dier from the actual on-screen displays, however, operations
and functions are the same.
Update
1. Press .
The Home screen is displayed on the TV screen.
2. Select "System Setup" - "Miscellaneous" - "Firmware Update" - "Update via
NET" with the cursors in order, then press ENTER.
• If "Firmware Update" is grayed out and cannot be selected, wait for a while
until it starts up.
• If there is no updatable rmware, "Update via NET" cannot be selected.
3. Press ENTER with "Update" selected, and start update.
• During the update, the TV screen may go black depending on the program
to be updated. In such a case, check the progress on the display of the
unit. The TV screen will remain black until the update is completed and the
power is turned on again.
• When "Completed!" is displayed, the update is complete.
4. Press STANDBY/ON on the main unit to turn the unit into standby mode.
The process is completed, and your rmware is updated to the latest version.
• Do not use on the remote controller.
8Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
If an Error Message is Displayed
If an error occurs, " - Error!" is displayed on the display of the unit. (" "
represents an alphanumeric character.) Refer to the following descriptions and
check.
Error Code
• -01, -10:
LAN cable not found. Connect the LAN cable properly.
• -02, -03, -04, -05, -11, -13, -14, -20, -06, -16, -17, -18,
-21:
Internet connection error. Check the following:
– Whether the router is turned on
– Whether this unit and the router are connected via the network
Unplug and plug the power cords of this unit and the router. This may solve
the problem. If you are still unable to connect to the Internet, the DNS server
or proxy server may be temporarily down. Check the server operation status
with your Internet service provider.
• Others:
After removing the power plug once, insert it to the outlet, and then start the
operation from the beginning.
Updating via USB
• While updating the rmware, do not do the following:
– Disconnecting and reconnecting cables, USB storage device, speaker
setup microphone or headphones, or performing operations on the unit
such as turning the power o
– Accessing this unit from a PC or smartphone using their applications
• Prepare a 256 MB or larger USB storage device. The format of USB storage
devices supports FAT16 or FAT32 le system format.
– Media inserted into a USB card reader may not be used for this function.
– USB storage devices equipped with the security function are not supported.
– USB hubs and USB devices equipped with the hub function are not
supported. Do not connect these devices to the unit.
• Delete any data stored on the USB storage device.
• Turn o control devices (PC etc.) connected to the network.
• Stop an Internet radio, USB storage device, or server content being played.
• If the multi-zone function is active, turn it o.
• If "HDMI CEC" is set to "On", set it to "O".
– Press to display the Home screen. Next, select "System Setup" -
"Hardware" - "HDMI", press ENTER, select "HDMI CEC" and select "O".
* Depending on the USB storage device or its content, long time may be required
for loading, the content may not be loaded correctly, or power may not be supplied
correctly.
* Our company will not be liable whatsoever for any loss or damage of data, or storage
failure arising from the use of the USB storage device. Please note this in advance.
* The descriptions may dier from the actual on-screen displays, however, operations
and functions are the same.
Update
1. Connect the USB storage device to your PC.
2. Download the rmware le from our company's website to your PC and unzip.
Firmware les are named as below.
PIOAVR _R .zip
Unzip the le on your PC. The number of unzipped les and folders varies
depending on the model.
3. Copy all unzipped les and folders to the root folder of the USB storage
device.
• Make sure to copy the unzipped les.
4. Connect the USB storage device to the USB port of this unit.
• If an AC adapter is supplied with the USB storage device, connect the AC
adapter, and use it with a household outlet.
• If the USB storage device has been partitioned, each section will be treated
as an independent device.
5. Press .
The Home screen is displayed on the TV screen.
10
Contents ≫
Connections ≫
Playback ≫ Setup ≫
Front Panel≫ Rear Panel≫ Remote≫
Part Names
Front Panel
❏For details, see ( )p11
12 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
Display
1. This may light when performing operations with the "NET", "USB" input
selector.
2. Lights in the following conditions.
Z2/Z3: ZONE 2/ZONE 3 is on.
: Connected by BLUETOOTH.
: Connected by Wi-Fi.
NET: Lights when connected to the network with the "NET" input selector. It
will blink if incorrectly connected to the network.
USB: Lights when the "USB" input selector is selected, a USB device is
connected and the USB input is selected. It will blink if the USB device is not
properly connected.
HDMI: HDMI signals are input and the HDMI input is selected.
DIGITAL: Digital signals are input and the digital input is selected.
3. Lights according to the type of input digital audio signal and the listening
mode.
4. Lights in the following conditions.
RDS (European, Australian and Asian models): Receiving RDS broadcasting.
TUNED: Receiving AM/FM radio.
STEREO: Receiving FM stereo.
SLEEP: Sleep timer is set. ( )p137
AUTO STBY: Auto Standby is set. ( p137)
5. Displays the audio output destination.
A: Outputs audio only to ZONE A.
B: Outputs audio only to ZONE B.
AB:
Outputs audio to both ZONE A and ZONE B.
6. Lights when headphones are connected.
7. Blinks when muting is on.
8. Displays various information of the input signals.
9. Lights when adjusting the volume.
10.
Speaker/Channel display: Displays the output channel that corresponds to the
selected listening mode.
2 6 7
543
1
8 9 bk
13
Contents ≫
Connections ≫
Playback ≫ Setup ≫
Front Panel≫ Rear Panel≫ Remote≫
Rear Panel
❏For details, see ( )p14
180°
90°
16
Contents ≫
Connections ≫
Playback ≫ Setup ≫
Front Panel≫ Rear Panel≫ Remote≫
21.
MODE button: Switches between automatic tuning and manual tuning for
AM/FM stations ( p88). Also, when an HDMI CEC function-enabled AV
component is connected to this unit, you can switch "4. Play buttons" between
"CEC MODE" and "RCV MODE" (normal mode).
17 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
Connections
Connecting speakers 18

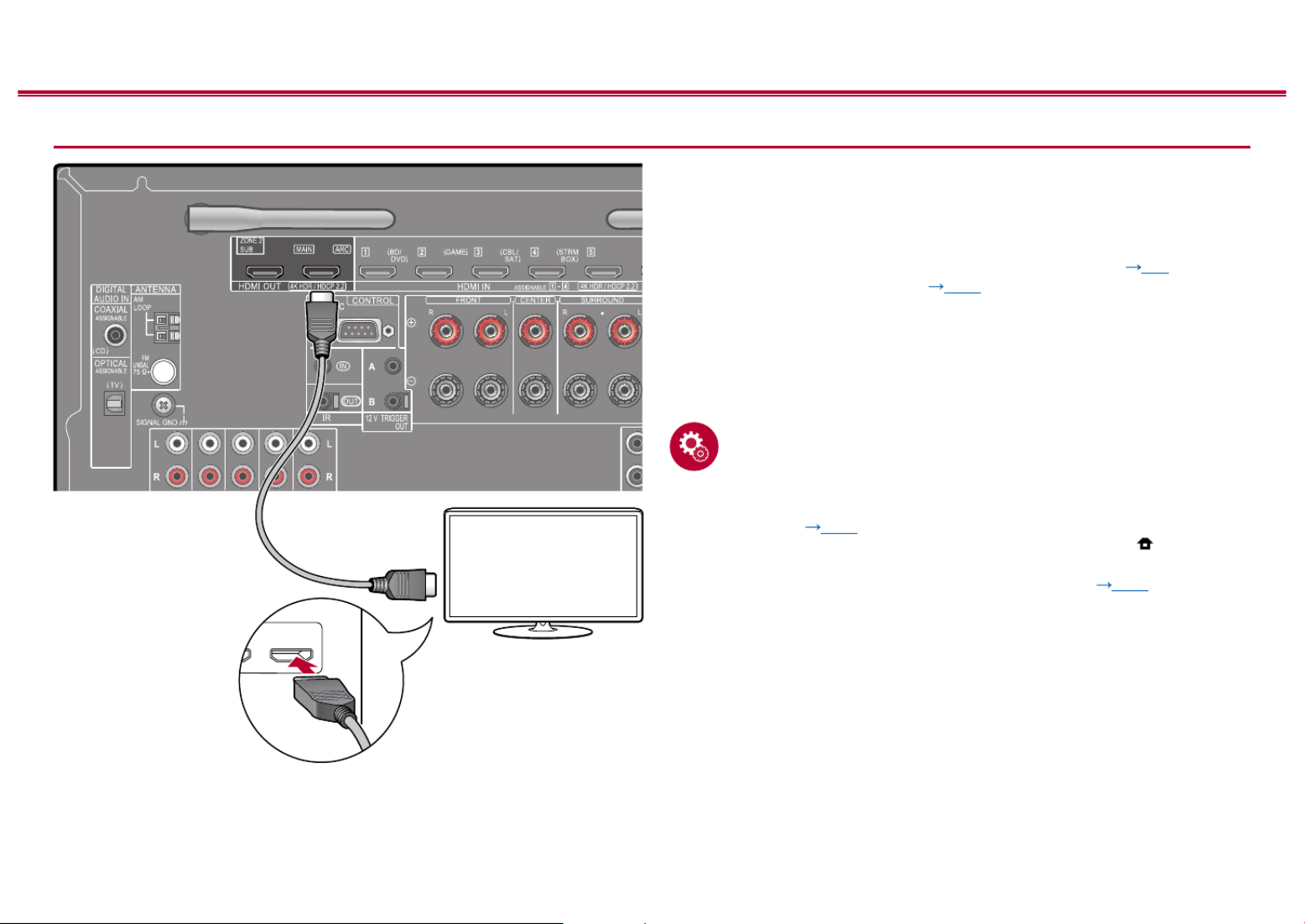

Connecting the TV 51
Connecting Playback Devices 54
Connecting an AV Component in a Separate Room
(Multi-zone Connection) 57
Connecting ZONE B 59
Connecting Antennas 60
Network Connection 61
Connecting External Control Devices 62
Connecting the Power Cord 64
18 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
Connecting speakers
You can select the layout of speakers to be installed from various patterns when using this unit. Use the following ow chart to select the speaker layout that suits your
speakers and usage environment. You can check the connection method and default settings.
Yes No
Use height speakers?
When using 1 set of Height Speakers
• 5.1.2 Channel System (p45)
• 5.1.2 Channel System + ZONE SPEAKER (p46)
• 5.1.2 Channel System (Bi-Amping the Speakers)
( ) p47
• 7.1.2 Channel System (p48)
When using 2 set of Height Speakers
• 5.1.4 Channel System (p49)
• 5.1 Channel System (p39)
• 5.1 Channel System + ZONE SPEAKER (p40)
• 5.1 Channel System (Bi-Amping the Speakers)
( ) p41
• 7.1 Channel System (p42)
• 7.1 Channel System + ZONE SPEAKER (p43)
• 7.1 Channel System (Bi-Amping the Speakers)
( ) p44
19 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
Speaker Installation

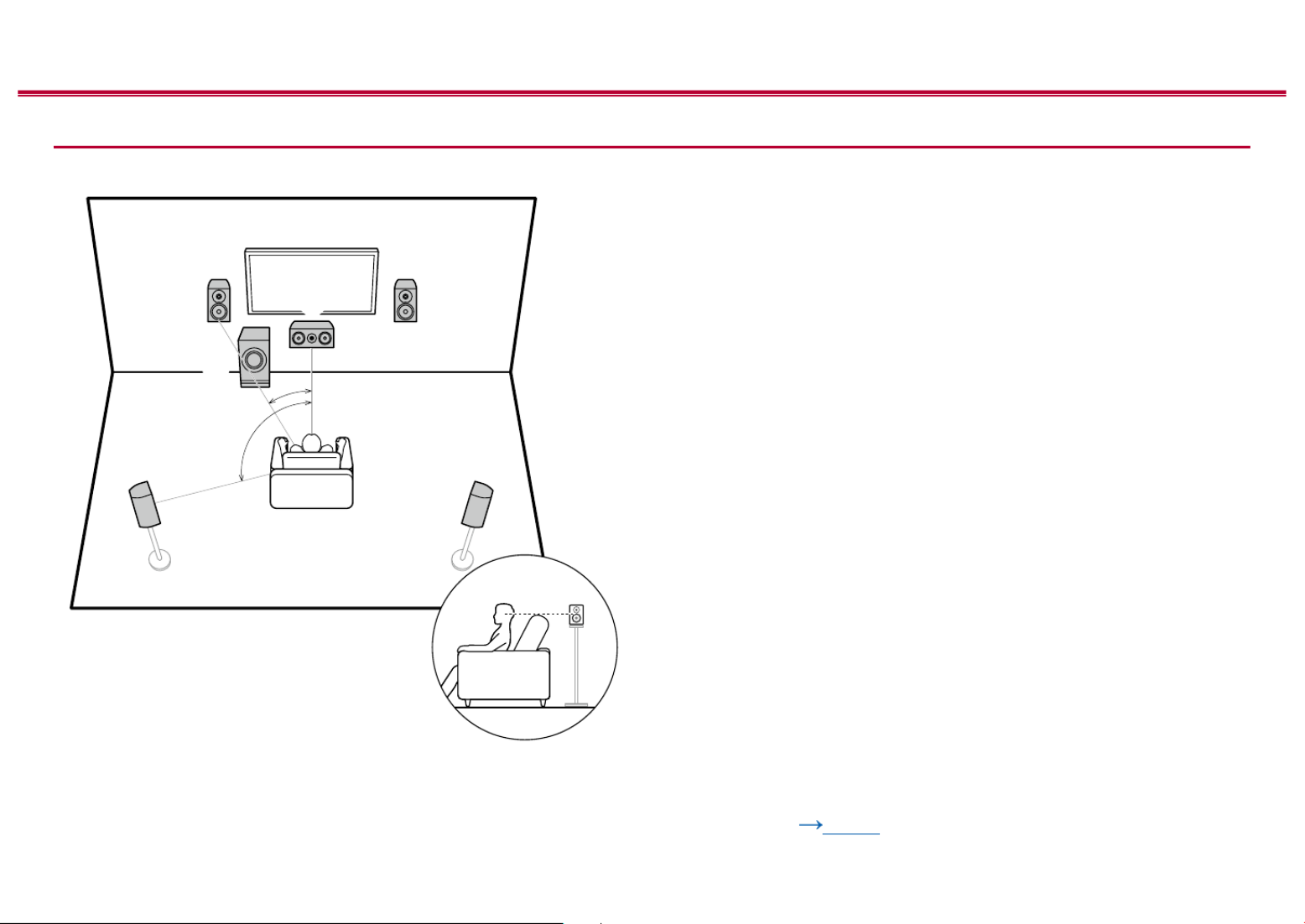

5.1 Channel System
a
b
12
45
3
6
a: 22° to 30°, b: 120°
This is a basic 5.1 Channel System. Front speakers output the front stereo
sound, and a center speaker outputs the sound of the center of the screen, such
as dialogs and vocals. Surround speakers create the back sound eld. Powered
subwoofer reproduces the bass sound, and creates the rich sound eld.
The front speakers should be positioned at ear height while the surround
speakers should be positioned just above ear height. The center speaker
should be set up facing the listening position at an angle. Placing the powered
subwoofer between the center speaker and the front speaker gives you a natural
sound even when playing music sources.
1,2 Front Speakers
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer
❏Speaker Layouts and Selectable Listening
Modes ( )p106
20 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
7.1 Channel System
a
b
c
12
5 4
8 7
3
6
a: 22° to 30°, b: 90° to 110°, c: 135° to 150°
This is a 7.1 Channel System that consists of the basic 5.1 Channel System
( ) and added surround back speakers. Front speakers output the p19
front stereo sound, and a center speaker outputs the sound of the center of the
screen, such as dialogs and vocals. Surround speakers create the back sound
eld. Powered subwoofer reproduces the bass sound, and creates the rich
sound eld. Surround back speakers improves the sense of envelopment and
connectivity of sound in the back sound eld, and provides a more real sound
eld.
The front speakers should be positioned at ear height while the surround
speakers should be positioned just above ear height. The center speaker
should be set up facing the listening position at an angle. Placing the powered
subwoofer between the center speaker and the front speaker gives you a natural
sound even when playing music sources. The surround back speakers should be
positioned at ear height.
• If surround back speakers are installed, be sure to install surround speakers
as well.
1,2 Front Speakers
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer
7,8 Surround Back Speakers
❏Speaker Layouts and Selectable Listening
Modes ( )p106
21 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
5.1.2 Channel System
A 5.1.2 Channel System is a speaker layout consisting of the basic 5.1 Channel System ( ) and added height speakers. Select the height speakers that suit p19
your speakers and usage environment from the following three types.
❏Front High Speakers/Rear High Speakers
Installation Example ( )p22
❏Ceiling Speakers Installation Example
( )p23
❏Dolby Enabled Speakers (Dolby Speakers)
Installation Example ( )p24
23 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫

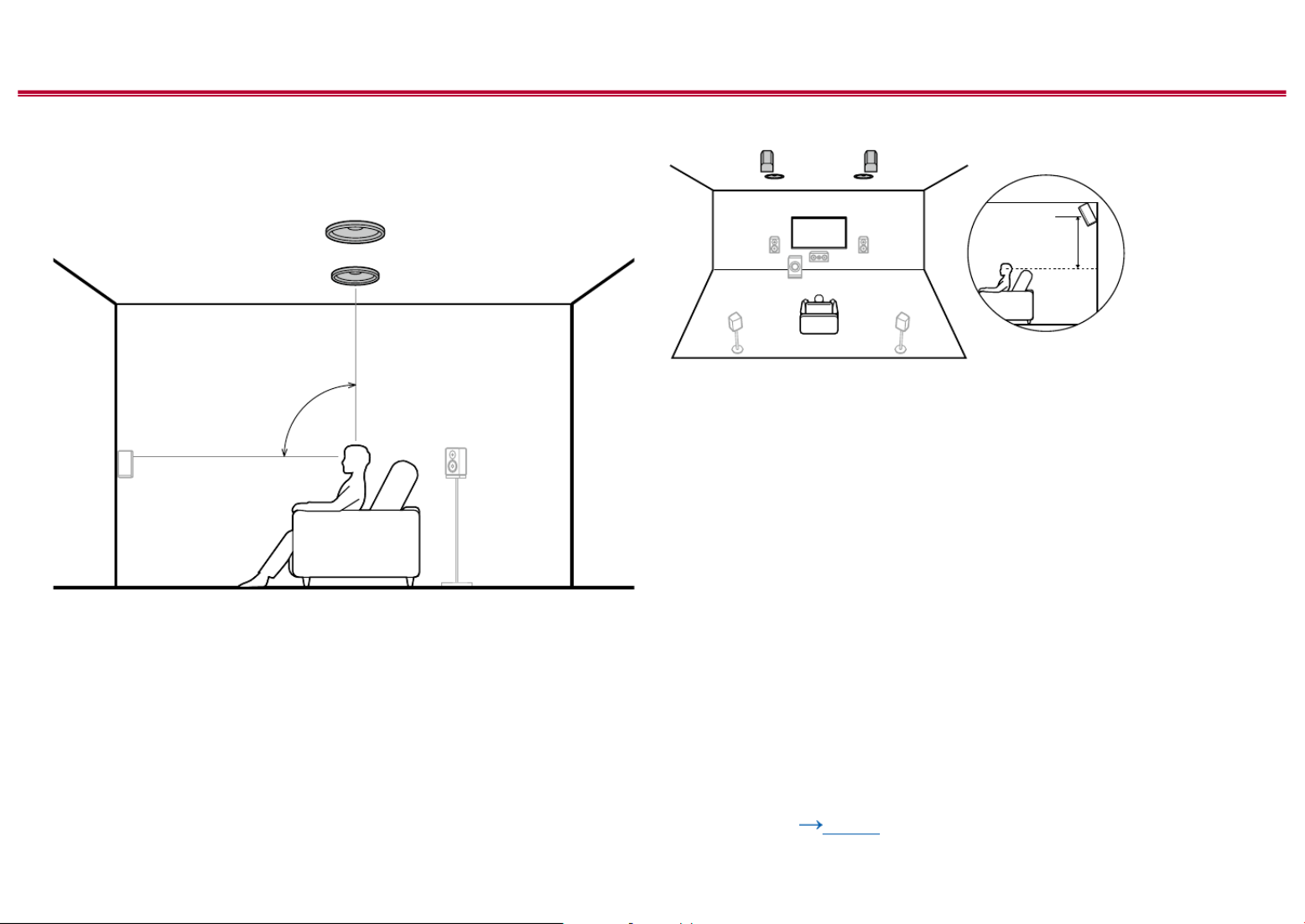

❏Ceiling Speakers Installation Example
a
b
c
7
8 8 8
7 7
a: 30° to 55°, b: 65° to 100°, c: 125° to 150°
This is a system with the basic 5.1 channel system ( p19) consisting of front
speakers, a center speaker, surround speakers and a powered subwoofer, and
added top front speakers or top middle speakers or top rear speakers combined.
Installing the height speakers will enrich the sound eld feeling in the upper
space. Install the top front speakers on the ceiling anterior to the seating position,
top middle speakers on the ceiling directly above the seating position, and top
rear speakers on the ceiling posterior to the seating position. The distance
between each pair should match the distance between the front speakers.
• Dolby Laboratories recommends the setups of these types of height speakers
to obtain the best Dolby Atmos eect.
7,8 Height Speakers
Choose one of the following:
• Top Front Speakers
• Top Middle Speakers
• Top Rear Speakers
❏Speaker Layouts and Selectable Listening
Modes ( )p106
26 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
❏Front High Speakers/Rear High Speakers
Installation Example
a
b
c
9bk
9bk
a: 22° to 30°, b: 90° to 110°, c: 135° to 150°
3´ (0.9 m)
or more
3´ (0.9 m)
or more
This is a system with the 7.1 channel system ( p20) consisting of front
speakers, a center speaker, surround speakers, surround back speakers and
a powered subwoofer, and added front high speakers or rear high speakers
combined. Installing the height speakers will enrich the sound eld feeling in the
upper space. Front high speakers or rear high speakers should be installed at
least 3´/0.9 m higher than the front speakers.
Front high speakers should be installed directly above the front speakers, and the
distance between the rear high speakers should match the distance between the
front speakers. In both cases, the speakers should be set up facing the listening
position at an angle.
9,10 Height Speakers
Choose one of the following:
• Front High Speakers
• Rear High Speakers
❏Speaker Layouts and Selectable Listening
Modes ( )p106
28 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫

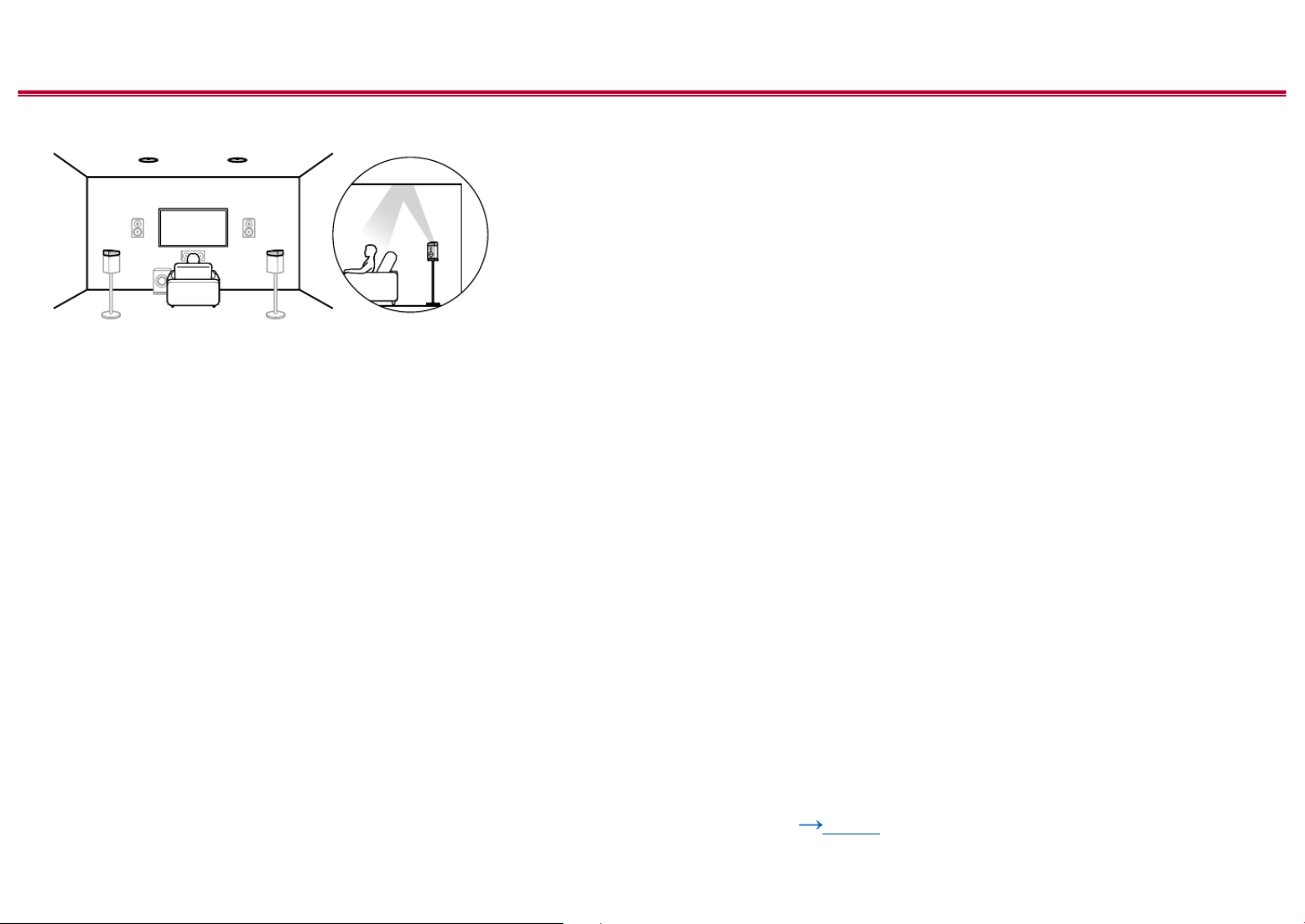

❏Dolby Enabled Speakers (Dolby Speakers)
Installation Example
c
a
b
9bk
9
9bk
bk
a: 22° to 30°, b: 90° to 110°, c: 135° to 150°
This is a system with the 7.1 channel system ( p20) consisting of front
speakers, a center speaker, surround speakers, surround back speakers and a
powered subwoofer, and added Dolby enabled speakers (front), Dolby enabled
speakers (surround) or Dolby enabled speakers (surround back) combined.
Dolby enabled speakers are special speakers designed to face the ceiling, so
that the sound is heard from overhead by bouncing the sound o the ceiling.
Installing the height speakers will enrich the sound eld feeling in the upper
space.
Install them either on the front speakers, on the surround speakers or on the
surround back speakers.
9,10 Height Speakers
Choose one of the following:
• Dolby Enabled Speakers (Front)
• Dolby Enabled Speakers (Surround)
• Dolby Enabled Speakers (Surround Back)
❏Speaker Layouts and Selectable Listening
Modes ( )p106
31 Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫

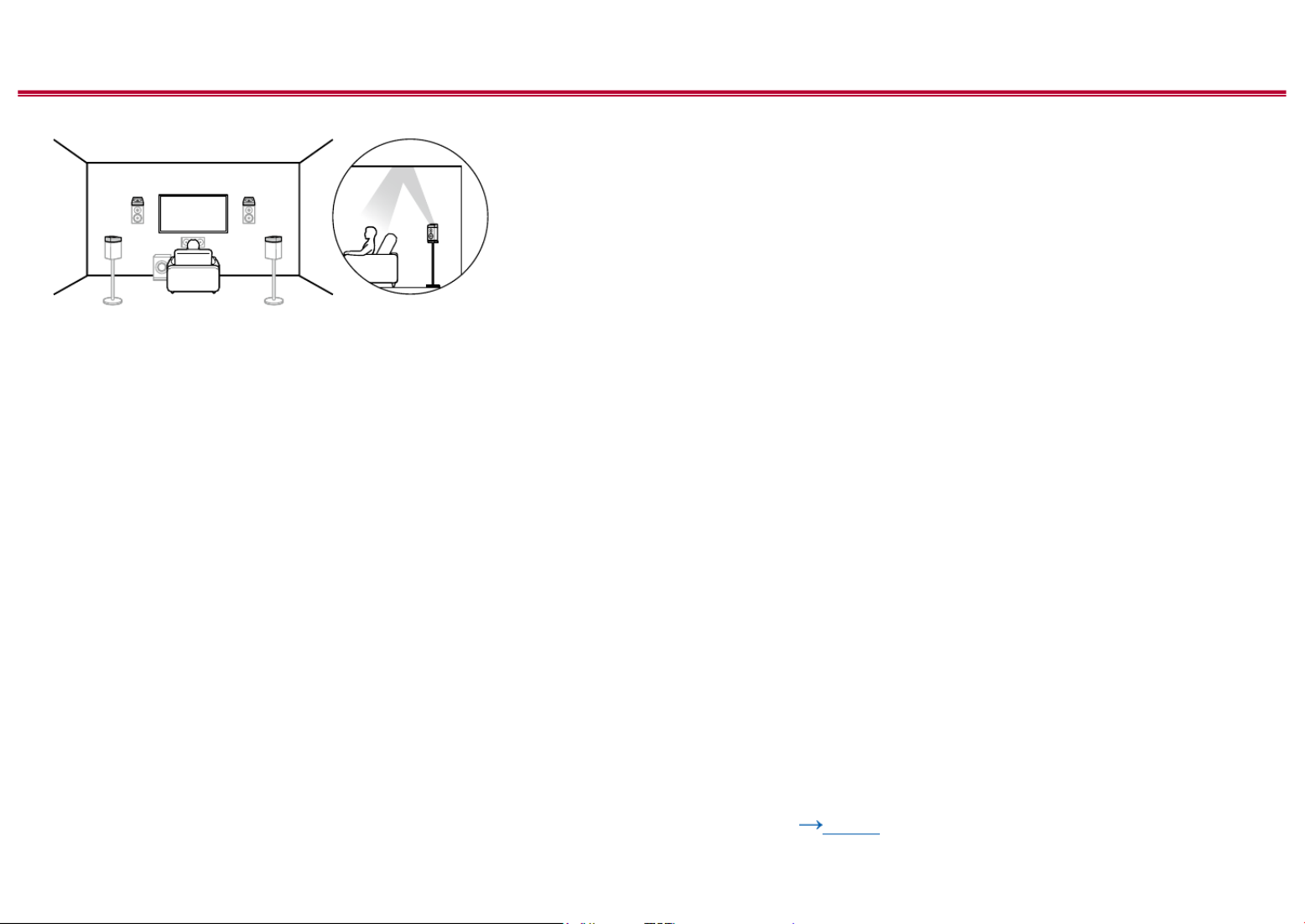

(Example 3) Use Dolby Enabled Speakers (Surround) at the rear
78
bk 9
The Dolby enabled speakers are the special speaker that the sound is emitted
toward the ceiling, and have the eect the sound to come from above by
reecting the sound on the ceiling.
The Dolby enabled speakers (surround) are installed on top of the surround
speakers.
9,10 Dolby Enabled Speakers (Surround)
❏Speaker Layouts and Selectable Listening
Modes ( )p106
32 Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
❏Combination example when Top Middle
Speakers are used at the front
About the top middle speakers
a
7
8
a: 65° to 100°
The top middle speakers are installed on the ceiling immediately above the
listening position, and the width between the left and right speakers is optimal to
match the one for the front speakers. When the top middle speakers are used in
front, the rear high speakers in the gure at the right can be used at the rear.
7,8 Top Middle Speakers
Use rear high speakers at the rear
78
bk 9
3´ (0.9 m)
or more
The width between the rear high speakers should match the one for the front
speakers, and they should be installed minimum of 3’/0.9 m higher than the front
speakers, and tilted so they will point toward the listener.
9,10 Rear High Speakers
❏Speaker Layouts and Selectable Listening
Modes ( )p106
33 Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
❏Combination example when Front High
Speakers are used at the front
About the front high speakers
78
b
a
a: 22° to 30°, b: 120°
3´ (0.9 m)
or more
Install the front high speakers immediately above the front speakers minimum of
3’/0.9 m higher, and tilted so they will point toward the listener. When the front
high speakers are used in front, the combination of the height speakers at the
rear can be selected from the following 4 examples shown at the right.
7,8 Front High Speakers
(Example 1) Use rear high speakers at the rear
3´ (0.9 m)
or more
The width between the rear high speakers should match the one for the front
speakers, and they should be installed minimum of 3’/0.9 m higher than the front
speakers, and tilted so they will point toward the listener.
9,10 Rear High Speakers
(Example 2) Use top middle speakers at the rear
c
c: 65° to 100°
The top middle speakers are installed on the ceiling immediately above the
listening position, and the width between the left and right speakers is optimal to
match the one for the front speakers.
9,10 Top Middle Speakers
❏Speaker Layouts and Selectable Listening
Modes ( )p106
35 Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
❏Combination example when Dolby Enabled
Speakers (Front) are used at the front
About the Dolby enabled speakers (front)
8 7
b
a
a: 22° to 30°, b: 120°
The Dolby enabled speakers are the special speaker that the sound is emitted
toward the ceiling, and have the eect the sound to come from above by
reecting the sound on the ceiling.
The Dolby enabled speakers (front) are installed on top of the front speakers.
When the Dolby enabled speakers (front) are used in front, the combination of
the height speakers at the rear can be selected from the following 3 examples
shown at the right.
7,8 Dolby Enabled Speakers (Front)
(Example 1) Use top rear speakers at the rear
c
bk
9
7
8
c: 125° to 150°
The top rear speakers are installed on the ceiling at rear of the listening position,
and the width between the left and right speakers is optimal to match the one for
the front speakers.
9,10 Top Rear Speakers
(Example 2) Use rear high speakers at the rear
8 7
bk 9
3´ (0.9 m)
or more
The width between the rear high speakers should match the one for the front
speakers, and they should be installed minimum of 3’/0.9 m higher than the front
speakers, and tilted so they will point toward the listener.
9,10 Rear High Speakers
❏Speaker Layouts and Selectable Listening
Modes ( )p106
36 Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
(Example 3) Use Dolby Enabled Speakers (Surround) at the rear
bk 9
8 7
The Dolby enabled speakers are the special speaker that the sound is emitted
toward the ceiling, and have the eect the sound to come from above by
reecting the sound on the ceiling.
The Dolby enabled speakers (surround) are installed on top of the surround
speakers.
9,10 Dolby Enabled Speakers (Surround)
❏Speaker Layouts and Selectable Listening
Modes ( )p106
37 Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
Speaker Connections and "Speaker Setup" Settings
Connections
(Note) Speaker Impedance
Connect speakers with an impedance of 4 Ω to 16 Ω. If any of the speakers to be connected has an impedance of 4 Ω or more and less than 6 Ω, set "Speaker
Impedance" to "4ohms" for "Speaker Setup" in the Initial Setup section ( ). When setting "Speaker Impedance" from the System Setup menu, press the p159
button on the remote controller to display the Home screen, and select "System Setup" - "Speaker" - "Conguration", then set "Speaker Impedance" ( p128) to
"4ohms".

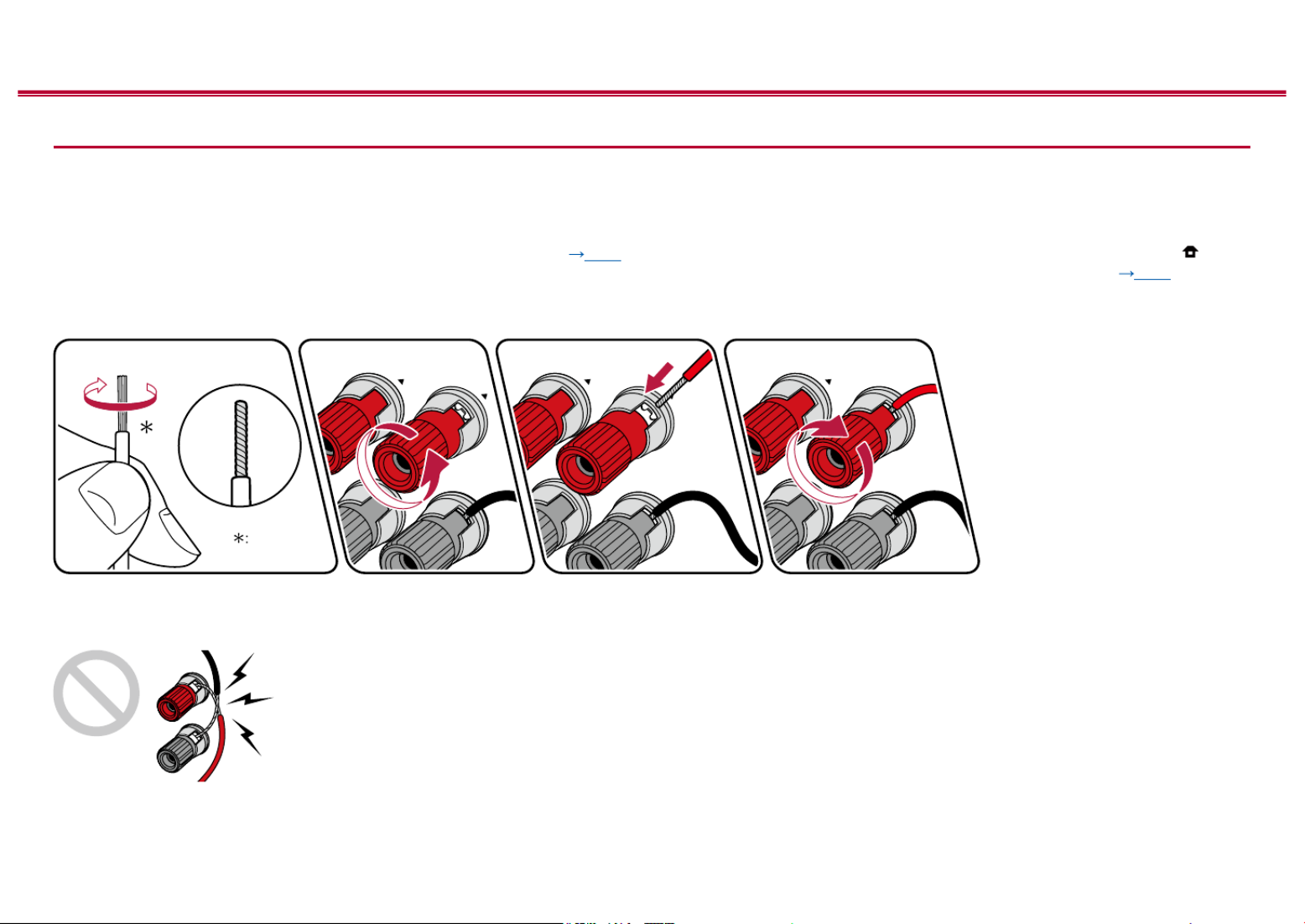

Connect the Speaker Cables
1/2˝
(12 mm)
Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass sound
will not be reproduced properly due to reverse phase. Twist the wires exposed from the tip of the speaker cable so that the wires do not stick out of the speaker terminal
when connecting. If the exposed wires touch the rear panel, or the + side and - side wires touch each other, a malfunction may occur.
39 Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
5.1 Channel System
12
45
3
6
This is a basic 5.1 Channel System. For details of the speaker layout, refer to "Speaker Installation" ( ).p19
"Speaker Setup" settings during
Initial Setup ( )p160
Speaker Setup
5.1 ch
Height 1 Speaker
Height 2 Speaker
Speaker Impedance 6 ohms or above
Zone 2 Preout
Zone 2
• Speaker Channels: 5.1 ch
• Subwoofer: Yes
• Height 1 Speaker: ---
• Height 2 Speaker: ---
• Zone Speaker: No
• Zone 2 Preout: Set any value
( )p128
• Bi-Amp: No
• Speaker Impedance: Set any
value ( )p37
41 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
5.1 Channel System (Bi-Amping the Speakers)
12
45
3
6
For high-
frequency
For low-
frequency
You can congure a 5.1 Channel System ( ) by connecting front speakers that support Bi-Amping connection. p19
The Bi-Amping connection can improve the quality of the low and high pitched ranges. Be sure to remove the jumper bar
connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction
manual of your speakers as well.
"Speaker Setup" settings during
Initial Setup ( )p160
Speaker Setup
5.1 ch
Height 1 Speaker
Height 2 Speaker
Speaker Impedance 6 ohms or above
Zone 2 Preout
Zone 2
• Speaker Channels: 5.1 ch
• Subwoofer: Yes
• Height 1 Speaker: ---
• Height 2 Speaker: ---
• Zone Speaker: No
• Zone 2 Preout: Set any value
( )p128
• Bi-Amp: Yes
• Speaker Impedance: Set any
value ( )p37
42 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
7.1 Channel System
12
5 4
8 7
3
6
This is a 7.1 Channel System that consists of the basic 5.1 Channel System and added surround back speakers.
For details of the speaker layout, refer to "Speaker Installation" ( ).p20
"Speaker Setup" settings during
Initial Setup ( )p160
Speaker Setup
Height 1 Speaker
Height 2 Speaker
Speaker Impedance 6 ohms or above
Zone 2 Preout
Zone 2
• Speaker Channels: 7.1 ch
• Subwoofer: Yes
• Height 1 Speaker: ---
• Height 2 Speaker: ---
• Zone Speaker: No
• Zone 2 Preout: Set any value
( )p128
• Bi-Amp: No
• Speaker Impedance: Set any
value ( )p37
43 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
7.1 Channel System + ZONE SPEAKER
ZONE 2
bk 9
MAIN ROOM
12
5 4
8 7
3
6
MAIN ROOM: This is a 7.1 Channel System that consists of the basic 5.1 Channel System and added surround back
speakers. For details of the speaker layout, refer to "Speaker Installation" ( ).p20
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where
this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also, dierent
sources can be played back in both rooms.
"Speaker Setup" settings during
Initial Setup ( )p160
Speaker Setup
Height 1 Speaker
Height 2 Speaker
Speaker Impedance 6 ohms or above
Zone 2 Preout
Zone 2
Zone 2
• Speaker Channels: 7.1 ch
• Subwoofer: Yes
• Height 1 Speaker: ---
• Height 2 Speaker: ---
• Zone Speaker: Zone 2
• Zone 2 Preout: Zone 2
• Bi-Amp: No
• Speaker Impedance: Set any
value ( )p37
Setup
To output the video and audio of
the HDMI input to ZONE 2, from
the Home screen, set "System
Setup" - "Input/Output Assign" -
"TV Out/OSD" - "Zone 2 HDMI"
( ) to "Use".p123
44 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫ Connections ≫ Playback ≫ Setup ≫
7.1 Channel System (Bi-Amping the Speakers)
12
5 4
8 7
3
6
For high-
frequency
For low-
frequency
You can congure a 7.1 Channel System ( ) by connecting front speakers that support Bi-Amping connection.p20
The Bi-Amping connection can improve the quality of the low and high pitched ranges. Be sure to remove the jumper bar
connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction
manual of your speakers as well.
"Speaker Setup" settings during
Initial Setup ( )p160
Speaker Setup
Height 1 Speaker
Height 2 Speaker
Speaker Impedance 6 ohms or above
Zone 2 Preout
Zone 2
• Speaker Channels: 7.1 ch
• Subwoofer: Yes
• Height 1 Speaker: ---
• Height 2 Speaker: ---
• Zone Speaker: No
• Zone 2 Preout: Set any value
( )p128
• Bi-Amp: Yes
• Speaker Impedance: Set any
value ( )p37
45 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
5.1.2 Channel System
78
1
3
2
45
6
This is a combination of the 5.1 Channel System and front high speakers. A front high speaker is a type of height speaker.
You can select only one set of height speakers from the following three types for connection.
❏ Front High Speakers/Rear High Speakers Installation Example ( p22)
❏ Ceiling Speakers Installation Example ( )p23
❏ Dolby Enabled Speakers (Dolby Speakers) Installation Example ( )p24
"Speaker Setup" settings during
Initial Setup ( )p160
Speaker Setup
5.1.2 ch
Front High
Height 1 Speaker
Height 2 Speaker
Speaker Impedance 6 ohms or above
Zone 2 Preout
Zone 2
• Speaker Channels: 5.1.2 ch
• Subwoofer: Yes
• Height 1 Speaker: Select the
type of height speaker actually
installed.
• Height 2 Speaker: ---
• Zone Speaker: No
• Zone 2 Preout: Set any value
( )p128
• Bi-Amp: No
• Speaker Impedance: Set any
value ( )p37
46 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
5.1.2 Channel System + ZONE SPEAKER
ZONE 2
bk 9
78
1
3
2
45
6
MAIN ROOM
MAIN ROOM: This is a combination of the 5.1 Channel System and front high speakers. A front high speaker is a type of
height speaker. You can select only one set of height speakers from the following three types for connection.
❏ Front High Speakers/Rear High Speakers Installation Example ( p22)
❏ Ceiling Speakers Installation Example ( )p23
❏ Dolby Enabled Speakers (Dolby Speakers) Installation Example ( )p24
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where
this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also, dierent
sources can be played back in both rooms.
"Speaker Setup" settings during
Initial Setup ( )p160
Speaker Setup
5.1.2 ch
Height 1 Speaker
Height 2 Speaker
Speaker Impedance 6 ohms or above
Zone 2 Preout
Zone 2
Front High
Zone 2
• Speaker Channels: 5.1.2 ch
• Subwoofer: Yes
• Height 1 Speaker: ---
• Height 2 Speaker:
Select the type
of height speaker actually installed.
• Zone Speaker: Zone 2
• Zone 2 Preout: Zone 2
• Bi-Amp: No
• Speaker Impedance: Set any
value ( )p37
Setup
To output the video and audio of
the HDMI input to ZONE 2, from
the Home screen, set "System
Setup" - "Input/Output Assign" -
"TV Out/OSD" - "Zone 2 HDMI"
( p123) to "Use".
47 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫

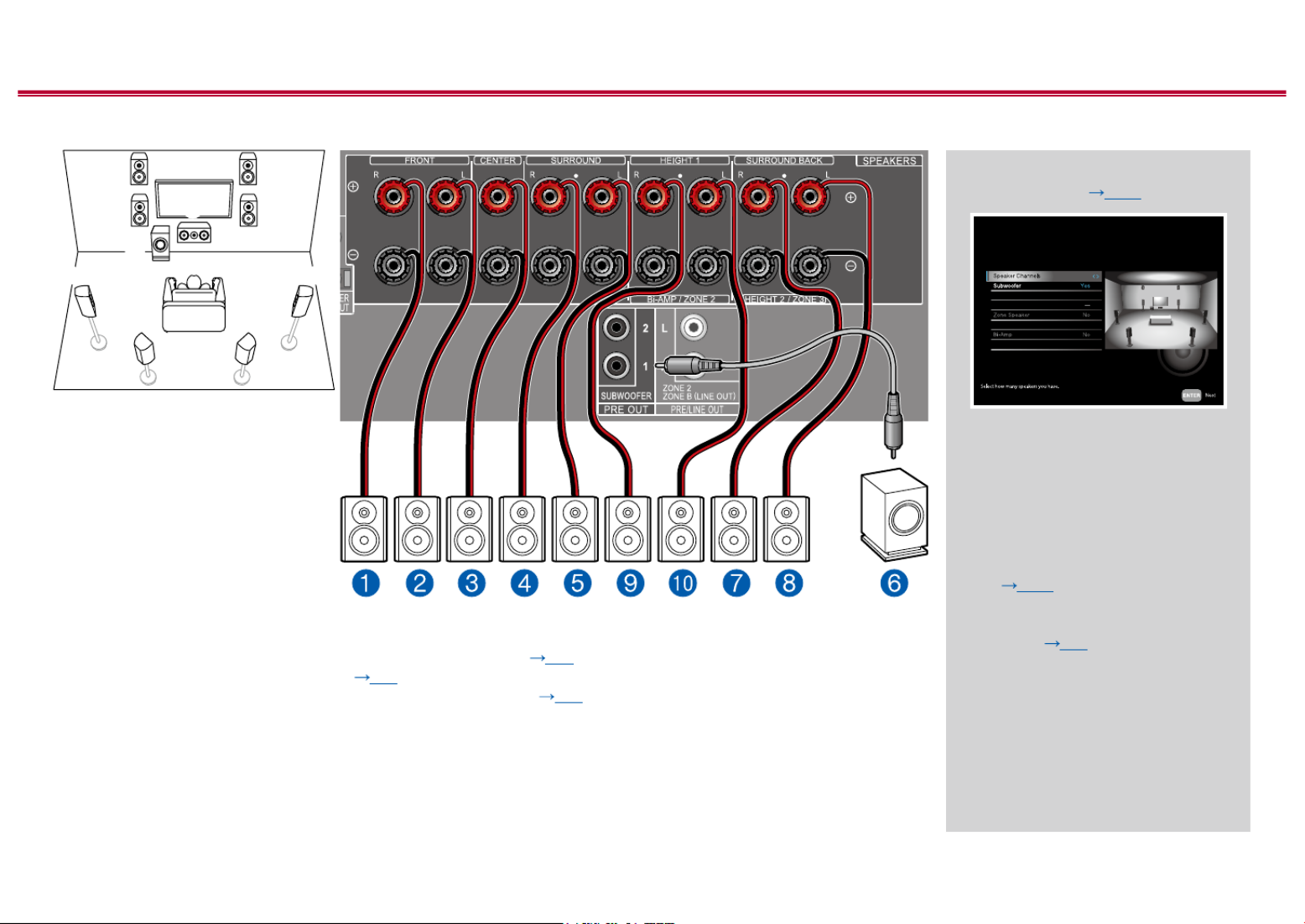

5.1.2 Channel System (Bi-Amping the Speakers)
78
1
3
2
45
6
For high-
frequency
For low-
frequency
This is a combination of the 5.1 Channel System and front high speakers. A front high speaker is a type of height speaker.
You can select only one set of height speakers from the following three types for connection.
❏ Front High Speakers/Rear High Speakers Installation Example ( p22)
❏ Ceiling Speakers Installation Example ( )p23
❏ Dolby Enabled Speakers (Dolby Speakers) Installation Example ( )p24
You can congure a 5.1.2 Channel System by connecting front speakers that support Bi-Amping connection. The Bi-
Amping connection can improve the quality of the low and high pitched ranges. Be sure to remove the jumper bar
connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction
manual of your speakers as well.
"Speaker Setup" settings during
Initial Setup ( )p160
Speaker Setup
5.1.2 ch
Height 1 Speaker
Height 2 Speaker
Speaker Impedance 6 ohms or above
Zone 2 Preout
Zone 2
Front High
• Speaker Channels: 5.1.2 ch
• Subwoofer: Yes
• Height 1 Speaker: ---
• Height 2 Speaker: Select the
type of height speaker actually
installed.
• Zone Speaker: No
• Zone 2 Preout: Set any value
( )p128
• Bi-Amp: Yes
• Speaker Impedance: Set any
value ( )p37
48 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
7.1.2 Channel System
12
9bk
5 4
8 7
3
6
This is a combination of the 7.1 Channel System and front high speakers. A front high speaker is a type of height speaker.
You can select only one set of height speakers from the following three types for connection.
❏ Front High Speakers/Rear High Speakers Installation Example ( p26)
❏ Ceiling Speakers Installation Example ( )p27
❏ Dolby Enabled Speakers (Dolby Speakers) Installation Example ( )p28
"Speaker Setup" settings during
Initial Setup ( )p160
Speaker Setup
7.1.2 ch
Height 1 Speaker
Height 2 Speaker
Speaker Impedance 6 ohms or above
Zone 2 Preout
Zone 2
Front High
• Speaker Channels: 7.1.2 ch
• Subwoofer: Yes
• Height 1 Speaker: Select the
type of height speaker actually
installed.
• Height 2 Speaker: ---
• Zone Speaker: No
• Zone 2 Preout: Set any value
( )p128
• Bi-Amp: No
• Speaker Impedance: Set any
value ( )p37
49 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
5.1.4 Channel System
2 1
78 9bk
5 4
63
This is an example of combining the top middle speakers at the front and the rear high speakers at the rear to the 5.1
Channel System. The height speakers in front can be selected from following 4 types. The height speakers that can be
combined at the rear dier depending on the height speakers used at the front.
❏ Combination example when Top Front Speakers are used at the front ( p30)
❏ Combination example when Top Middle Speakers are used at the front ( p32)
❏ Combination example when Front High Speakers are used at the front ( p33)
❏ Combination example when Dolby Enabled Speakers (Front) are used at the front ( p35)
"Speaker Setup" settings during
Initial Setup ( )p160
Speaker Setup
5.1.4 ch
Height 1 Speaker
Height 2 Speaker
Speaker Impedance 6 ohms or above
Zone 2 Preout
Zone 2
Top Middle
Rear High
• Speaker Channels: 5.1.4 ch
• Subwoofer: Yes
• Height 1 Speaker: Select the
type of height speaker actually
installed.
• Height 2 Speaker: Select the
type of height speaker actually
installed.
• Zone Speaker: No
• Zone 2 Preout: Set any value
( )p128
• Bi-Amp: No
• Speaker Impedance: Set any
value ( )p37
52 Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫ Setup
≫
To ARC TV
If the TV supports the ARC (Audio Return Channel) function (*), use only the
HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of the
TV for connection. You connect the HDMI cable to the port labeled OUT on the
receiver side.
• Another TV or projector can be connected to the HDMI OUT SUB jack. Switch
between MAIN and SUB using the HDMI MAIN/SUB button ( p15) on the
remote controller or "AV Adjust" ( ). Note that this jack is not ARC-p156
compatible.
• If devices with dierent resolutions are connected to HDMI OUT MAIN jack
and SUB jack, images are output with the lower resolution.
• If a 4K high-quality video is played, use a Premium High Speed HDMI Cable
or Premium High Speed HDMI Cable with Ethernet whose package has a
"PREMIUM Certied Cable" label.
Setup
• Settings are required to use the ARC function. Select "Yes" for "4. ARC Setup"
in Initial Setup ( ). If "No, Skip" is selected, settings are required in the p159
System Setup menu after Initial Setup is completed. Press the button on
the remote controller to display the Home screen, then set "System Setup" -
"Hardware" - "HDMI" - "Audio Return Channel" to "On". ( p137)
• For detailed settings for TV connection, CEC function and audio output, refer
to the instruction manual of the TV.
(*) ARC function: This function transmits the audio signals of the TV via an
HDMI cable, and plays the audio of the TV on this unit. Connection to an ARC-
compatible TV is complete with one HDMI cable. To check if the TV supports the
ARC function, refer to the instruction manual of the TV, etc.
a HDMI cable
IN(ARC)
a
TV
53 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
To Non-ARC TV
If the TV does not support the ARC (Audio Return Channel) function (*), connect
an HDMI cable and digital optical cable.
• If you use a cable set-top box, etc. connected to the input jack of this unit to
watch TV (without using a TV’s built-in tuner), connection with a digital optical
cable or analog audio cable is not required.
• Another TV or projector can be connected to the HDMI OUT SUB jack. Switch
between MAIN and SUB using the HDMI MAIN/SUB button ( p15) on the
remote controller or "AV Adjust" ( ). Note that this jack is not ARC-p156
compatible.
• If devices with dierent resolutions are connected to HDMI OUT MAIN jack
and SUB jack, images are output with the lower resolution.
• If a 4K high-quality video is played, use a Premium High Speed HDMI Cable
or Premium High Speed HDMI Cable with Ethernet whose package has a
"PREMIUM Certied Cable" label.
(*) ARC function: This function transmits the audio signals of the TV via an
HDMI cable, and plays the audio of the TV on this unit. Connection to an ARC-
compatible TV is complete with one HDMI cable. To check if the TV supports the
ARC function, refer to the instruction manual of the TV, etc.
a b HDMI cable, Digital optical cable
a
b
TV
54 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
Connecting Playback Devices
Connecting an AV Component with HDMI Jack Mounted
This is a connection example of an AV component equipped with an HDMI jack.
When connecting with an AV component that conforms to the CEC (Consumer
Electronics Control) standard, you can use the HDMI CEC function (*) that
enables linking with input selectors, etc. and the HDMI Standby Through function
that can transmit video and audio signals of the AV component to the TV even if
this unit is in standby mode.
• If a 4K high-quality video is played, use a Premium High Speed HDMI Cable
or Premium High Speed HDMI Cable with Ethernet whose package has a
"PREMIUM Certied Cable" label.
Setup
• The HDMI CEC function and HDMI Standby Through function are
automatically enabled if you select "Yes" for "4. ARC Setup" in Initial Setup
( ). If "No, Skip" is selected, settings are required in the System p159
Setup menu after Initial Setup is completed. Settings are made in "System
Setup" - "Hardware" - "HDMI" in Home displayed by pressing on the remote
controller. ( )p136
• To enjoy digital surround sound including Dolby Digital, set the audio output of
the connected Blu-ray Disc player etc. to the Bitstream output.
(*)The HDMI CEC function: This function enables various linking operations
with CEC-compliant devices, such as switching input selectors interlocking with
a CEC-compliant player, switching audio output between TV and this unit or
adjusting the volume using the remote controller of a CEC-compliant TV, and
automatically switching this unit to standby when the TV is turned o.
a HDMI cable
a
Streaming media
player
GAMEBD/DVD Cable/Satellite
set-top box
55 Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
Connecting an Audio Component
This is a connection example of an audio component. Connect a CD player using
a digital coaxial cable or analog audio cable. You can also connect a turntable
that has an MM-type cartridge to the PHONO jack.
• If the turntable has a built-in phono equalizer, connect it to any of the AUDIO
IN jacks other than the PHONO jack. Further, if the turntable uses an MC type
cartridge, install a phono equalizer compatible with the MC type cartridge
between the unit and the turntable, and then connect it to any of the AUDIO IN
jacks other than the PHONO jack.
If the turntable has a ground wire, connect it to the
GND terminal of this unit.
a Analog audio cable , Digital coaxial cableb
b
a
a
OR
Turntable
CD
56 Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
Connecting a Video Camera, etc.
Connect a video camera, etc. to the AUX INPUT AUDIO/HDMI jack on the front
panel using an HDMI cable or stereo mini plug cable (ø1/8″/3.5 mm).
a
Video camera
a HDMI cable
63 Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
12V TRIGGER OUT jack
When connecting a device equipped with a TRIGGER IN jack such as a BD/DVD
player to this unit, the device can be turned on or set to standby by interlocking
the operation on this unit. When the desired input is selected on the unit, power
link operation will be activated with a control signal of maximum 12 V/100 mA
from the 12V TRIGGER OUT A jack or maximum 12 V/25 mA when using the
12V TRIGGER OUT B jack. You can select the zone to output the control signal
by setting each of the inputs.
• For connection, use a monaural mini plug cable (ø1/8″/3.5 mm) without
resistance. Do not use a stereo mini plug cable.
a Monaural mini plug cable (ø1/8″/3.5 mm)
a
BD/DVD
65 Front Panel≫ Rear Panel≫ Remote≫
Contents
≫ Connections
≫ Playback
≫ Setup
≫
Playback
AV Component Playback 66
BLUETOOTH® Playback 67
Internet Radio 68
Spotify 70
AirPlay® 71
DTS Play-Fi® 73
FlareConnectTM 74
USB Storage Device 75
Playing back les on a PC and NAS (Music Server) 78
Play Queue 83
Amazon Music 85
Connecting the Sonos System for Playback 86
Listening To the AM/FM Radio 88
Multi-zone 93
ZONE B Playback 97
Convenience functions 98
Listening Mode 103
Inputting Characters 119
76 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
• To return to the previous screen, press .
• To display an album title, artist name and album art of a le in WAV format,
make the folder structure and le names as shown below when saving music
les. The album art can be displayed by saving a .jpg le to display on the
screen in the folder of bottom level. Note that a large volume of .jpg le may
take time to be displayed, or may not be displayed.
Folder 1
Artist name
Folder 1-1
Album name
file 1-1
file 2-1
file 3-1
Folder 1-2
Album name
file 1-2
file 2-2
file 3-2
.jpg file
.jpg file
• "Characters that cannot be displayed on this unit appear with "
• The USB port of this unit complies with the USB 2.0 standard. The transfer
speed may be insucient for some content you play, and sound interruptions,
etc. may occur.
• Note that operation is not always guaranteed for all USB storage devices.
• This unit can use USB storage devices that comply with the USB mass
storage class standard. Also the format of USB storage devices supports
FAT16 or FAT32 le system format.
❏Device and Supported Format ( )p77
86 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫
Connections ≫
Playback ≫ Setup ≫
Connecting the Sonos System for Playback
Once your unit is connected to the Sonos Connect you will be able to send any
music or source on your Sonos App to the unit. By going through the Sonos
Connect, you can play your unit through other Sonos devices in the network in
the same group, or you can just play on your unit. Further, the power of your
unit turns on automatically when music starts playing on the Sonos App, and the
linked function to switch input works.
• If "System Setup" - "Hardware" - "Power Management" - "Network Standby" is
set to "O " in the Home, manually turn the unit on and then press NET on the
remote controller. In the factory default setting, the Network Standby function
( ) is set to On.p138
Necessary Equipment
• Sonos Connect
• RCA Audio Cable (Supplied with Sonos Connect)
How to Connect This Unit and Sonos
Connect
1. Connect the Sonos Connect to the AUDIO IN jack of this unit with the RCA
cable supplied with the Sonos Connect. Any input can be used other than the
PHONO input.
• You can also connect with a digital cable. For details, refer to the instruction
manual of the Sonos.
• You can rename the input that is displayed on the unit to a more logical
name. For example, you can change the name of input that the Sonos
Connect is plugged into from "CD" (or other input) to "SONOS". Press the
button on the remote controller to display the Home screen, and select
"System Setup" - "Source" - "Name Edit" to change the name.
Setting Up
A setup is required to play Sonos on this unit. Make the setting according to the
following procedure.
1. Press the button on the remote controller to display the Home screen,
select "System Setup" - "Hardware" - "Works with SONOS", and press the
ENTER button.
2. / and set each item.Select the following items with the cursors
Input Selector:
Enable the interlocking function with the Sonos Connect. With the cursors
/ , select the input selector to which the Sonos Connect is connected.
Connected Device:
Press the ENTER button to display Sonos devices connected to the same
network as the network of this unit. Select the Sonos Connect connected to
the unit and press the ENTER button.
• Products (e.g. Play:3 unequipped with an output terminal) other than the
Sonos Connect are also displayed in the device list and selectable. In
that case, when playback on the Sonos side starts, the input is switched,
however, audio is not output. Select the room name of the connected
Sonos Connect.
• Up to 32 devices can be displayed on the Sonos product list screen. If you
cannot nd the Sonos Connect to be interlocked, return to the previous
screen, turn o the product you want to interlock, and try again.
Produkt Specifikationer
| Mærke: | Pioneer |
| Kategori: | Modtager |
| Model: | Elite VSX-LX304 |
| Bredde: | 435 mm |
| Dybde: | 370.5 mm |
| Højde: | 173 mm |
| Vægt: | 10800 g |
| Produktfarve: | Sølv |
| Wi-Fi: | Ja |
| Bluetooth: | Ja |
| Understøttede videotilstande: | 1080p,2160p |
| 3D: | Ja |
| Lyddekodere: | DTS 96/24,DTS-HD,DTS-HD Master Audio,DTS:X,Dolby Atmos,Dolby Digital Plus,Dolby TrueHD |
| HDCP: | Ja |
| Ethernet LAN-porte (RJ-45): | 1 |
| Udgange til hovedtelefoner: | 1 |
| Ethernet LAN: | Ja |
| Slumretimer: | Ja |
| Understøttede lydformater: | AIFF,ALAC,FLAC,WAV |
| Volumenkontrol: | Dreje |
| Bluetooth-version: | 4.2 |
| Bluetooth-profiler: | A2DP,AVRCP |
| Audio Return Channel (ARC): | Ja |
| Fjernbetjening inkluderet: | Ja |
| Forbindelsesteknologi: | Kabel & trådløs |
| Lyd-output kanaler: | 9.2 kanaler |
| Indbygget kortlæser: | Ingen |
| Video opskalering: | Ja |
| Pc lydindgang: | Ja |
| Antal USB-porte: | 2 |
| Understøttede radiobånd: | AM,FM |
| Bluetooth Low Energy (BLE): | Ja |
| Automatisk standby: | Ja |
| AC (strøm) indgang: | Ja |
| Digital signalbehandling (DSP): | Ja |
| Modtagertype: | Surround |
| Multi-rum streaming support (MRS): | Ja |
| AirPlay: | Ja |
| Højttalere tilslutningstype: | Fortøjningsstolpe |
| Antal forudindstillede stationer: | 40 |
| HSMI-indgang: | 7 |
| Antal HDMI-udgange: | 2 |
| Digital lyd koaksial indgang: | 1 |
| RS-232-porte: | 1 |
| Digital akustisk og optisk indgang: | 1 |
| Internetradio: | Ja |
| Antal FM-antenneporte: | 1 |
| Udgangseffekt pr. kanal (20-20KHz @8 Ohm): | - W |
| Optisk drev inkluderet: | Ingen |
| HDCP-version: | 2.2 |
| Fjernbetjening (IR) indgang: | 1 |
| Fjernbetjening (IR) udgang: | 1 |
| Audio D/A-konverter (DAC): | 32-bit/384kHz |
| 12V udløser: | Ja |
| Understøttede internet radiotjenester: | Amazon Music,Deezer,Spotify,Tidal,TuneIn |
| Apple docking: | Ingen |
| Udgangseffekt pr. kanal (1KHz @6 Ohm): | 185 W |
| Understøttelse af x.v. farve: | Ja |
| Understøttelse af dybe farver: | Ja |
| Pre-out-tilslutningsmulighed: | Ja |
| Antal AM-antenneporte: | 1 |
| Antal 12V triggerporte: | 2 |
| Udgangseffekt pr. kanal (1KHz @8 Ohm): | 170 W |
| Grafisk brugergrænseflade (GUI): | Ja |
| Antal surround-tilstande: | 10 |
Har du brug for hjælp?
Hvis du har brug for hjælp til Pioneer Elite VSX-LX304 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Modtager Pioneer Manualer
8 Juli 2025
4 Juli 2025
10 Oktober 2024
14 September 2024
2 September 2024
24 August 2024
24 August 2024
21 August 2024
20 August 2024
19 August 2024
Modtager Manualer
- Audio Pro
- PureLink
- Axton
- Winegard
- Astro
- Edision
- Fenton
- Nunoo
- Sommer
- Alfatron
- ESX
- Diamond Audio
- Legamaster
- Garmin
- QSC
Nyeste Modtager Manualer
13 August 2025
13 August 2025
12 August 2025
12 August 2025
12 August 2025
12 August 2025
12 August 2025
12 August 2025
12 August 2025
12 August 2025
