System Power Amplifier (SPA)
Installation Guide
SPA2-60 Amplifi er SPA4-60 Amplifi er
SPA2-200 Amplifi er SPA4-100 Amplifi er
EXPLANATION OF SYMBOLS
The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death.
The term “ ” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in CAUTION!
damage to the equipment that may not be covered under the warranty.
The term “IMPORTANT!” indicates instructions or information that are vital to the successful completion of the procedure.
The term " " is used to indicate additional useful information.NOTE
The intent of the lightning fl ash with arrowhead symbol in a triangle is to alert the user to the presence of un-insulated "dangerous"
voltage within the product's enclosure that may be of suffi cient magnitude to constitute a risk of electric shock to humans.
The intent of the exclamation point within an equilateral triangle is to alert the user to the presence of important safety, and operating
and maintenance instructions in this manual.

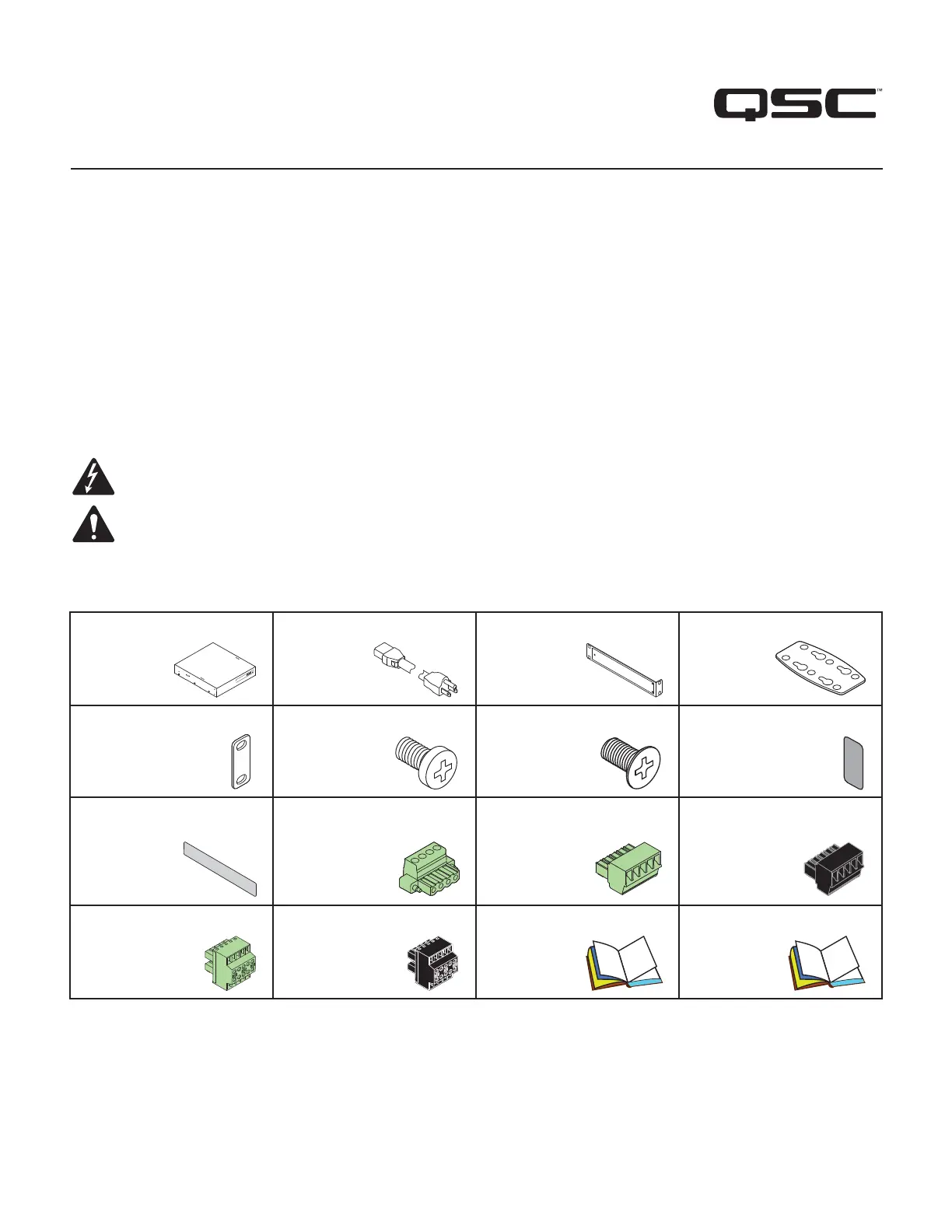

What's in the Box
(1x)
SPA2-60
SPA2-200
SPA4-60
SPA4-100
(1x)
AC Power Cord,
US
(2x)
Rack Ear
QSC P/N
CH-001344-00
(2x)
Joining Plate
QSC P/N
CH-001345-00
(2x)
Rack-Ear Spacer
QSC P/N
CH-001386-00
(6x)
Phillips Pan Head
M4 x 7 mm
(6x)
Phillips Flathead
M3 x 6 mm
(4x)
Foam Spacer
QSC P/N
PL-001023-00
(1x)
Rack-Ear Cover Label
QSC P/N
LB-001138-00
SPA 2-channel (1x)
SPA 4-channel (2x)
Euro Plug 3.5 mm,
4 pos, grn
QSC P/N
CO-000646-00
SPA 2-channel (1x)
Euro Plug 3.5 mm,
5 pos, grn
QSC P/N
CO-000644-00
SPA 2-channel (1x)
Euro Plug 3.5 mm,
4 pos, blk
QSC P/N
CO-000645-00
SPA 4-channel (1x)
Plug 3.5 mm,
10 pos, grn
QSC P/N
CO-000647-00
SPA 4-channel (1x)
Plug 3.5 mm,
10 pos, grn
QSC P/N
CO-000648-00
(1x)
Warranty
TD-000453
(1x)
Safety Information
TD-000337
TD-000500-01 -C
*TD-000500-01 *
2
TD-000500 -01 -C
Installation

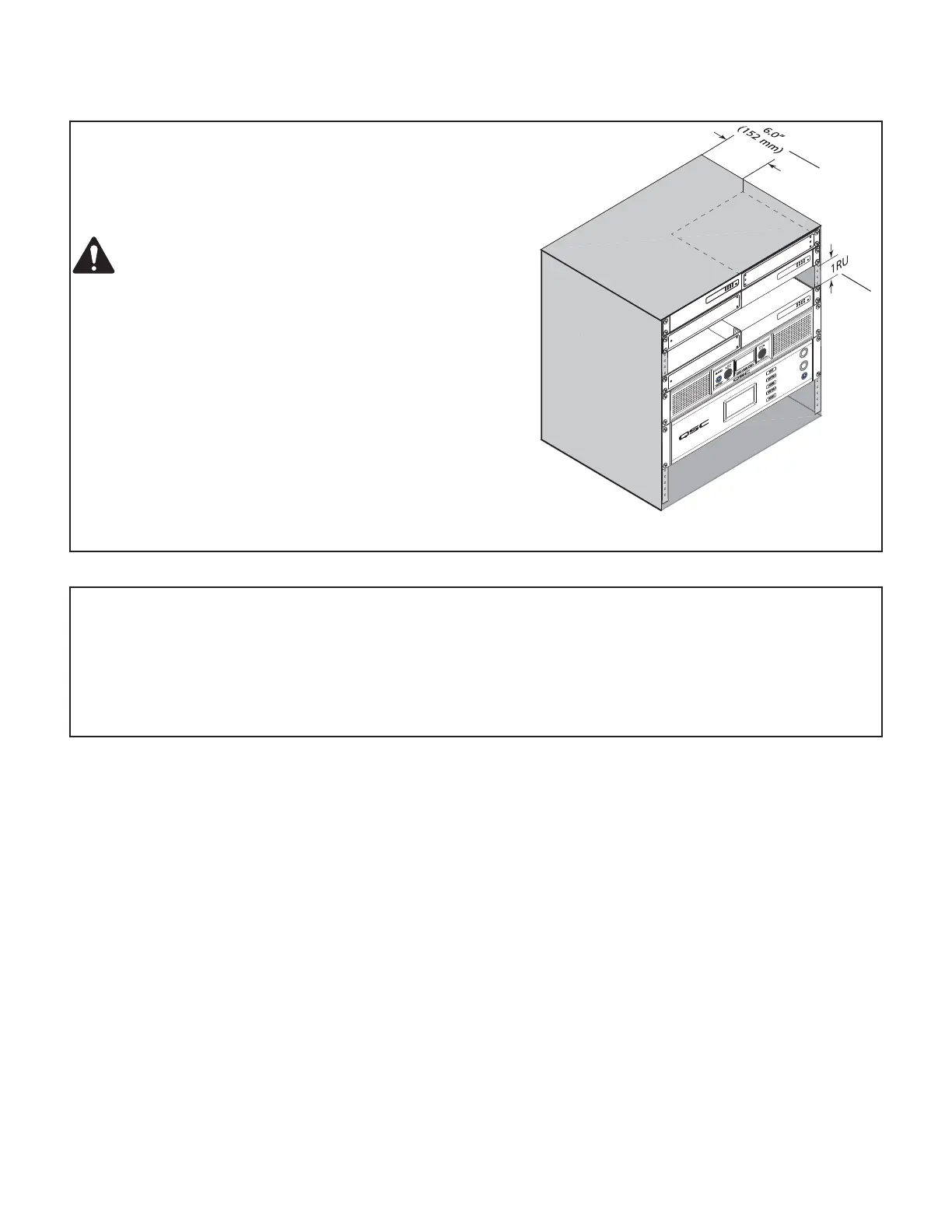

Ventilation
• Recommend 1RU (1.75 in / 44.45 mm) space above the amplifi er.
• Minimum open space of 6 inches measured from back of amplifi er.
NOTE:
QSC System Power Amplifi ers contain advanced protection
circuitry which allows them to reduce output power in order to
maintain safe operating temperatures. Insuffi cient ventilation may
result in the amplifi er reducing output power during normal
operation (indicated by Limiter/Protect LEDs illuminating red). To
reduce the possibility of thermal limiting, and allow proper heat
dissipation, we recommend that you keep the space directly above
and to the rear of these amplifi ers free of obstacles.
— Figure 1 —
2
1
Select the Amplifi er Installation Confi guration
Choose one of the following confi guration options:
A. One Amplifi er 19-inch Rack (Left or Right Mount) on page 3 D. Under Table or on Wall on page 4
B. Two Amplifi ers 19-inch Rack (Front or Rear Facing Out) on page 3 E. Free-Standing on Desk/Table on page 5
C. One Amplifi er Half Rack (Front or Rear Facing Out) on page 4 F. Plenum Installation on page 5
