QSC Powerlight PL340 Manual

QSC Modtager Powerlight PL340

Læs gratis den danske manual til QSC Powerlight PL340 (60 sider) i kategorien Modtager. Denne vejledning er vurderet som hjælpsom af 2 personer og har en gennemsnitlig bedømmelse på 3.6 stjerner ud af 1.5 anmeldelser. Har du et spørgsmål om QSC Powerlight PL340, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/60

SIGNAL

-20 dB

-10 dB

CLIP

POWER

PARALLEL

BRIDGE

ATTEN

PL325

PL340

PL380

2500 WATT POWER AMPLIFIER

4000 WATT POWER AMPLIFIER

8000 WATT POWER AMPLIFIER

TD-000235-00 rev. D

*TD-000235-00*

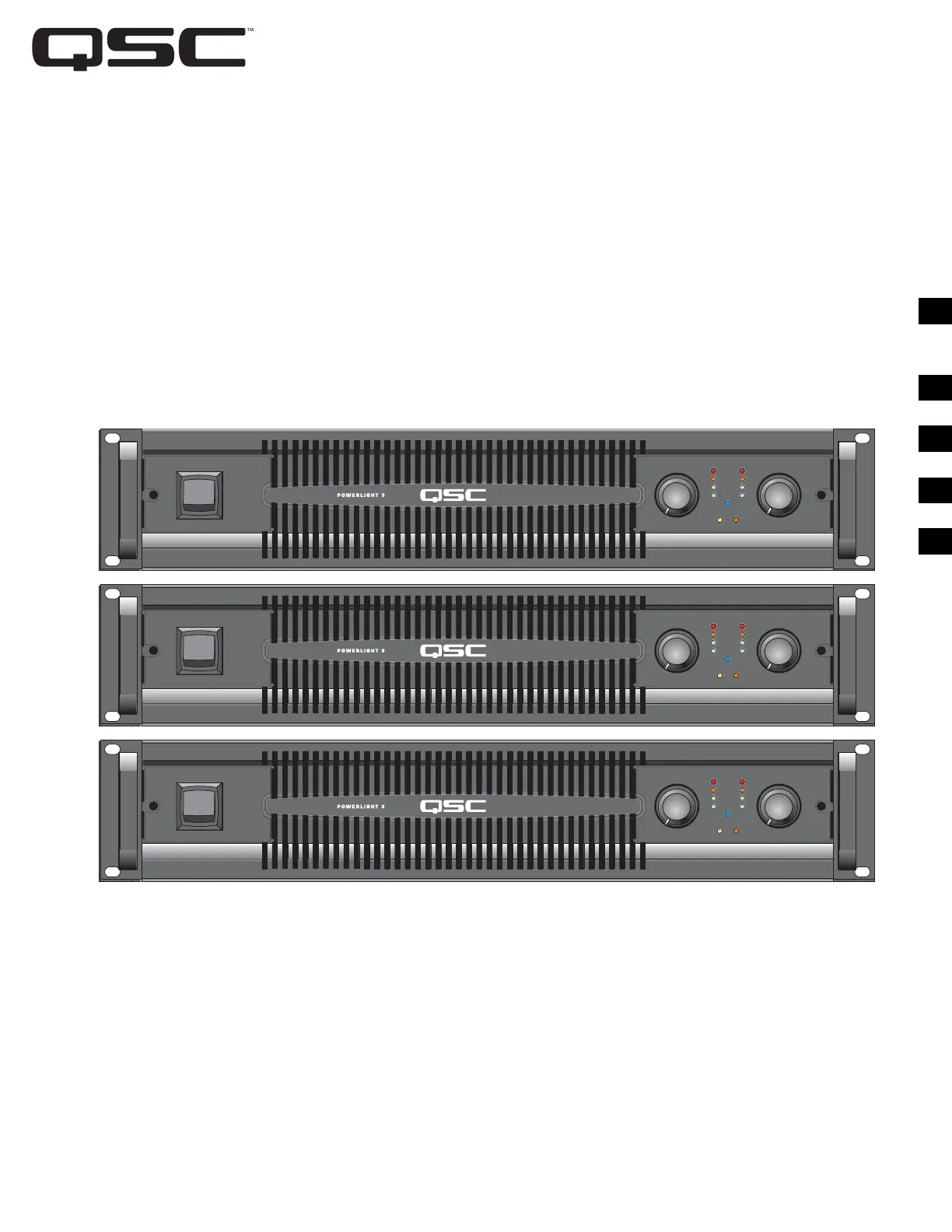

POWERLIGHT 3 SERIES

User Manual Manual del usuario Manuel d'utilisation Benutzerhandbuch 用户手册

PL325 1250 watts per channel at 2 ohms

PL340 2000 watts per channel at 2 ohms

PL380 4000 watts per channel at 2 ohms

Important Safety Precautions & Explanation of Symbols

1- Read these instructions.

2- Keep these instructions.

3- Heed all warnings.

4- Follow all instructions.

5- WARNING: To prevent fire or electric shock, do not expose this equipment to rain or moisture. Do not use this apparatus near water.

6- Clean only with a dry cloth.

7- Do not block any ventilation openings.

8- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.

A grounding plug has two blades and a grounding prong. The wide blade or third prong are provided for your safety. If the provided plug

does not fit your outlet, consult an electrician for the replacement of the obsolete outlet.

10- Protect the power cord from being walked on or pinched, particularly plugs, convenience receptacles, and the point where they exit

from the apparatus.

11- Use only attachments/accessories specified by QSC Audio Products, LLC

12- Use only with hardware, brackets, stands, and components sold with the apparatus or by QSC Audio Products, LLC

13- Unplug the apparatus during lightning storms or when unused for long periods of time.

14- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as

power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or has been dropped.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and main-

tenance (servicing) instructions in this manual.

The lightning flashes printed next to the OUTPUT terminals of the amplifier are intended to alert the user to the risk of hazardous

energy. Output connectors that could pose a risk are marked with the lightning flash. Do not touch output terminals while amplifier

power is on. Make all connections with amplifier turned off.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsu-

lated "dangerous" voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock

to humans.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED PERSONNEL.

WARNING: To prevent fire or electric shock, do not expose this equipment to rain or moisture.

FCC INTERFERENCE STATEMENT FOR PL325 & PL340 MODELS

NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio

frequency energy and if not installed and used in accordance to the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by switching the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio or TV technician for help.

FCC INTERFERENCE STATEMENT FOR PL380 MODEL

NOTE: This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio

frequency energy and if not installed and used in accordance to the instructions, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct at his own expense.

QSC® is a registered trademark of QSC Audio Products, LLC

"QSC" and the QSC logo are registered with the U.S. Patent and Trademark Office

Speakon® and PowerCon® are registered trademarks of Neutrik Inc. All trademarks are the property of their respective owners.

Produkt Specifikationer

Mærke:	QSC
Kategori:	Modtager
Model:	Powerlight PL340
Tænd-/slukkontakt:	Ja
Vekselstrømsindgangsspænding:	120-230 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	483 mm
Dybde:	397 mm
Højde:	89 mm
Vægt:	11000 g
Produktfarve:	Sort
Pakkevægt:	15200 g
Frekvensområde:	20 - 20000 Hz
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	- kanaler
Certificering:	UL, CE, FCC
DC-in-stik:	Ja
LED-indikatorer:	Ja
Bæredygtighedscertifikater:	RoHS
Formål:	Hjem
klirfaktor (THD):	1 %
Signal/støjforhold:	-104 dB
Forstærker klasse:	D
Spidseffekt pr. kanal:	8000 W
XLR indgang:	Ja
Rackkapacitet:	2U
Strøm (maks.):	16 A
Dæmpningsfaktor:	200
