System Power Amplifier (SPA)

Installation Guide

SPA2-60 Ampliﬁer SPA4-60 Ampliﬁer

SPA2-200 Ampliﬁer SPA4-100 Ampliﬁer

EXPLANATION OF SYMBOLS

The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death.

The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in

damage to the equipment that may not be covered under the warranty.

The term “IMPORTANT!” indicates instructions or information that are vital to the successful completion of the procedure.

The term "NOTE" is used to indicate additional useful information.

The intent of the lightning ﬂash with arrowhead symbol in a triangle is to alert the user to the presence of un-insulated "dangerous"

voltage within the product's enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to humans.

The intent of the exclamation point within an equilateral triangle is to alert the user to the presence of important safety, and operating

and maintenance instructions in this manual.

What's in the Box

(1x)

SPA2-60

SPA2-200

SPA4-60

SPA4-100

(1x)

AC Power Cord,

(2x)

Rack Ear

QSC P/N

CH-001344-00

(2x)

Joining Plate

QSC P/N

CH-001345-00

(2x)

Rack-Ear Spacer

QSC P/N

CH-001386-00

(6x)

Phillips Pan Head

M4 x 7 mm

(6x)

Phillips Flathead

M3 x 6 mm

(4x)

Foam Spacer

QSC P/N

PL-001023-00

(1x)

Rack-Ear Cover Label

QSC P/N

LB-001138-00

SPA 2-channel (1x)

SPA 4-channel (2x)

Euro Plug 3.5 mm,

4 pos, grn

QSC P/N

CO-000646-00

SPA 2-channel (1x)

Euro Plug 3.5 mm,

5 pos, grn

QSC P/N

CO-000644-00

SPA 2-channel (1x)

Euro Plug 3.5 mm,

4 pos, blk

QSC P/N

CO-000645-00

SPA 4-channel (1x)

Plug 3.5 mm,

10 pos, grn

QSC P/N

CO-000647-00

SPA 4-channel (1x)

Plug 3.5 mm,

10 pos, grn

QSC P/N

CO-000648-00

(1x)

Warranty

TD-000453

(1x)

Safety Information

TD-000337

TD-000500-00-D

*TD-000500-00*

TD-000500-00-D

Installation

Ventilation

• Recommend 1RU (1.75 in / 44.45 mm) space above the ampliﬁer.

• Minimum open space of 6 inches measured from back of ampliﬁer.

NOTE:

QSC System Power Ampliﬁers contain advanced protection

circuitry which allows them to reduce output power in order to

maintain safe operating temperatures. Insufﬁcient ventilation may

result in the ampliﬁer reducing output power during normal

operation (indicated by Limiter/Protect LEDs illuminating red). To

reduce the possibility of thermal limiting, and allow proper heat

dissipation, we recommend that you keep the space directly above

and to the rear of these ampliﬁers free of obstacles.

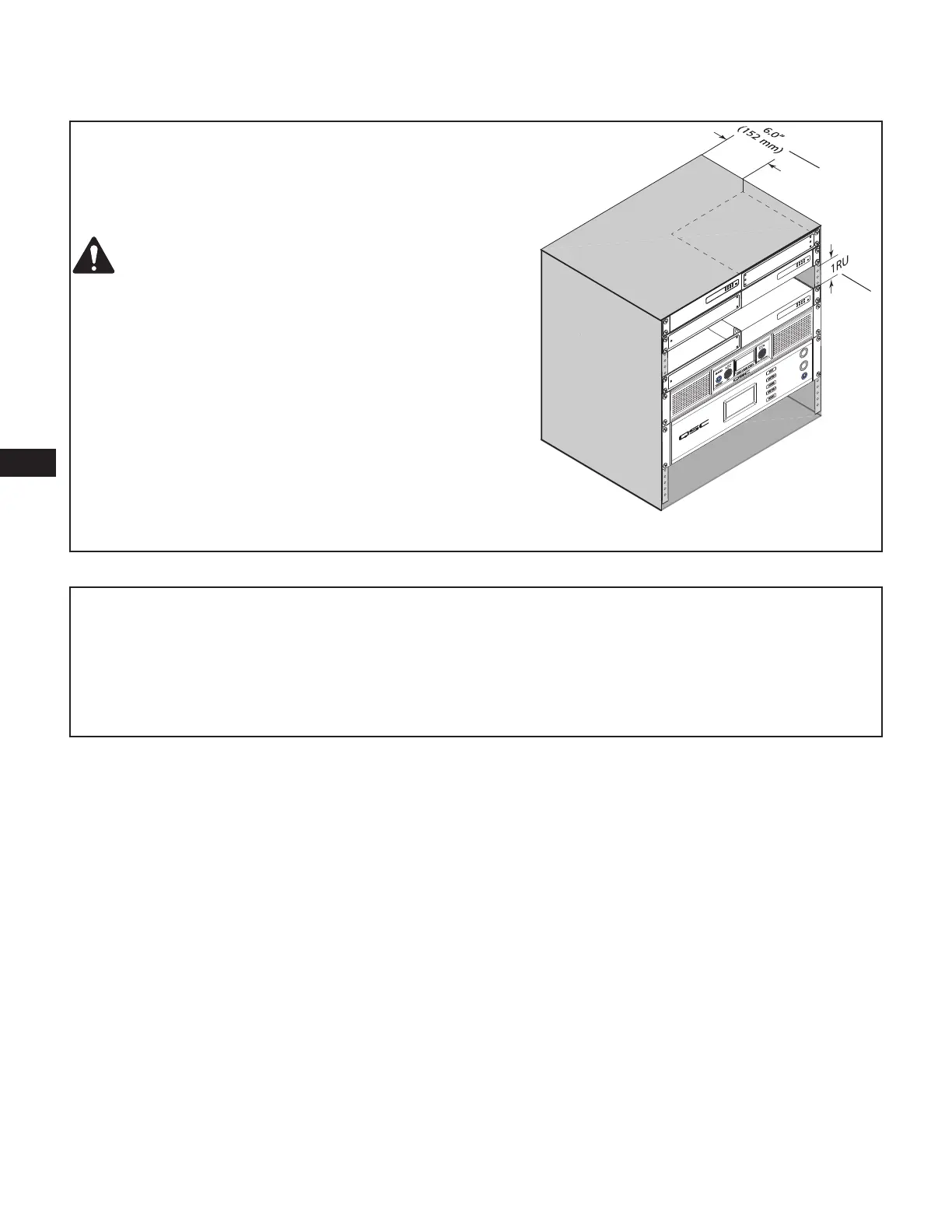

— Figure 1 —

Select the Ampliﬁer Installation Conﬁguration

Choose one of the following conﬁguration options:

A. One Ampliﬁer 19-inch Rack (Left or Right Mount) on page 3 D. Under Table or on Wall on page 4

B. Two Ampliﬁers 19-inch Rack (Front or Rear Facing Out) on page 3 E. Free-Standing on Desk/Table on page 5

C. One Ampliﬁer Half Rack (Front or Rear Facing Out) on page 4 F. Plenum Installation on page 5
