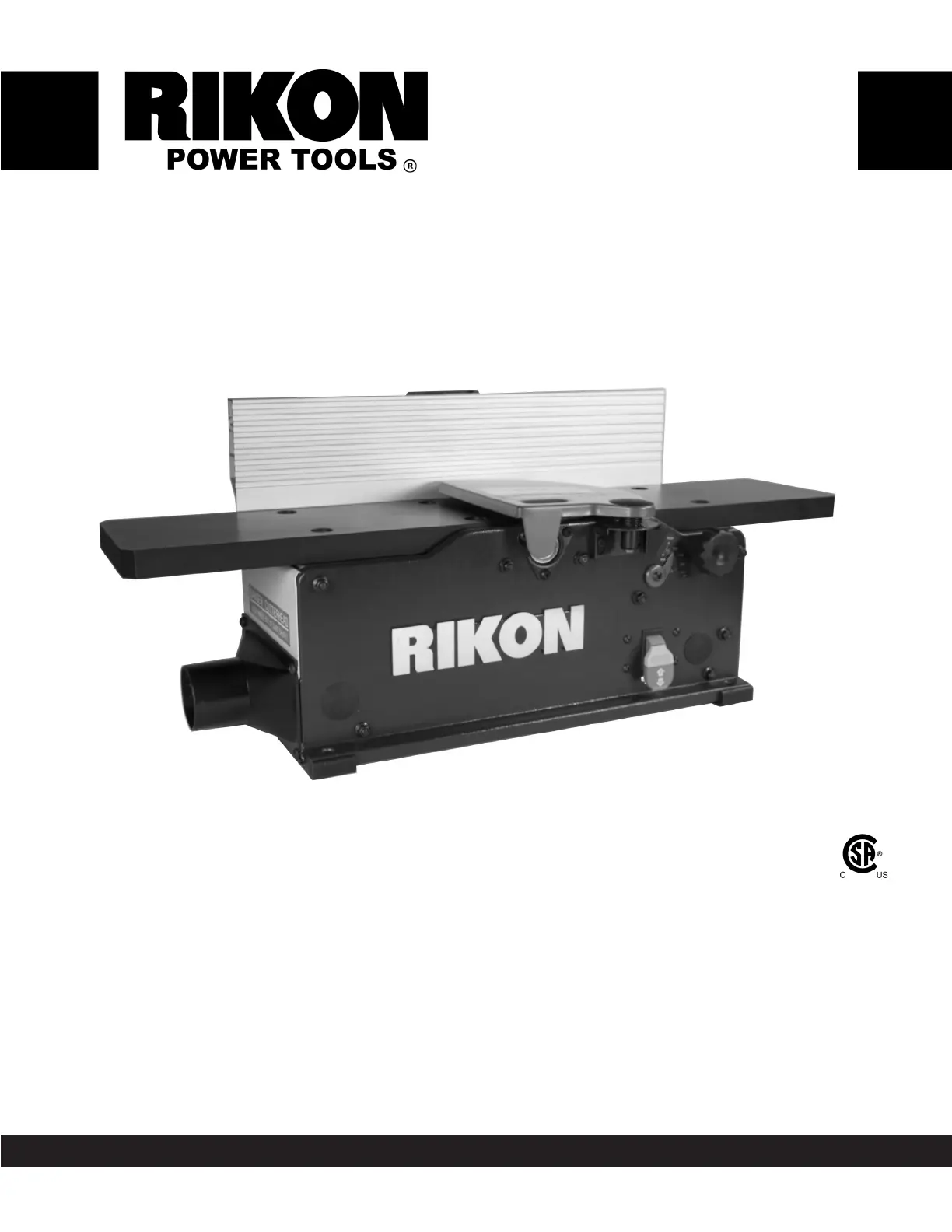

20-600HSP
www.rikontools.com
20-600HSPM1
6” Benchtop Jointer
with Helical-Style Cutterhead
Operator’s Manual
Record the serial number and date of purchase in your manual for future reference.
Serial Number: _________________________ Date of purchase: _________________________
For technical support, email techsupport@rikontools.com - For parts questions, email parts@rikontools.com
The serial number can be found on the specication label on the rear of your machine.
2
TABLE OF CONTENTS
SPECIFICATIONS
NOTE: The specications, photographs, drawings and information in this manual represent the current model
when the manual was prepared. Changes and improvements may be made at any time, with no obligation on
the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to
ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety,
assembly and operation of this machine.
Specications.....................................................................................................................2
Safety Instructions ........................................................................................................3 - 6
Getting To Know Your Machine ..............................................................................................7
Contents of Package .....................................................................................................7 - 8
Installation ......................................................................................................................8
Assembly .................................................................................................................... 9 - 11
Operation ..................................................................................................................12 - 13
Adjustments...............................................................................................................14 - 17
Maintenance ....................................................................................................................18
Electricals & Wiring Diagram .......................................................................................5 & 18
Troubleshooting .........................................................................................................19
Parts Diagrams & Parts Lists ..................................................................................20 - 21
Accessories ..........................................................................................................22
Notes ...............................................................................................................................22
Warranty ..........................................................................................................................23
Motor ........................................................................... 120V, 60Hz, 10A, PH1, AC
Motor Speed (no load)........................................................................ 20,000 RPM
Cutterhead Diameter .......................................................................................... 2”
Cutterhead Speed .............................................................................. 12,000 RPM
Number of HSS Knife Inserts, 2-sided............................................................... 12
Knife Insert Size (LxWxT) ................................................ 0.56” x 0.56” x 0.077”
Number of Cutterhead Insert Rows …...……….................…......................……. 6
Maximum Depth of Cut .................................................................................... 1/8”
Maximum Cutting Width ...................................................................................... 6”
Minimum Length of Stock ................................................................................. 10”
Minimum Width of Stock .................................................................................. 3/4”
Minimum Thickness of Stock ........................................................................... 1/2”
Table Size (2) (LxW) ……………...........……......………....……..... 14-3/8” x 6-1/8”
Overall Table Size (LxW) ..................................................................... 30” x 6-1/8”
Fence Size (LxW) …….........................................….............……. 19-3/4” x 4-3/8”
Fence Tilt ............................................................................................. 90° to 135°
Dust Port (O.D.)............................................................................................. 2-1/2”
Dust Collection Minimum CFM ........................................................................ 100
Noise Level (no load) ............................................................................... ≤ 100 dB
Overall Size (LxWxH)............................................................... 30” x 17-1/2” x 13”
Base Size (LxW).................................................................................. 19“ x 9-3/8”
Net Weight .................................................................................................... 36 lbs
