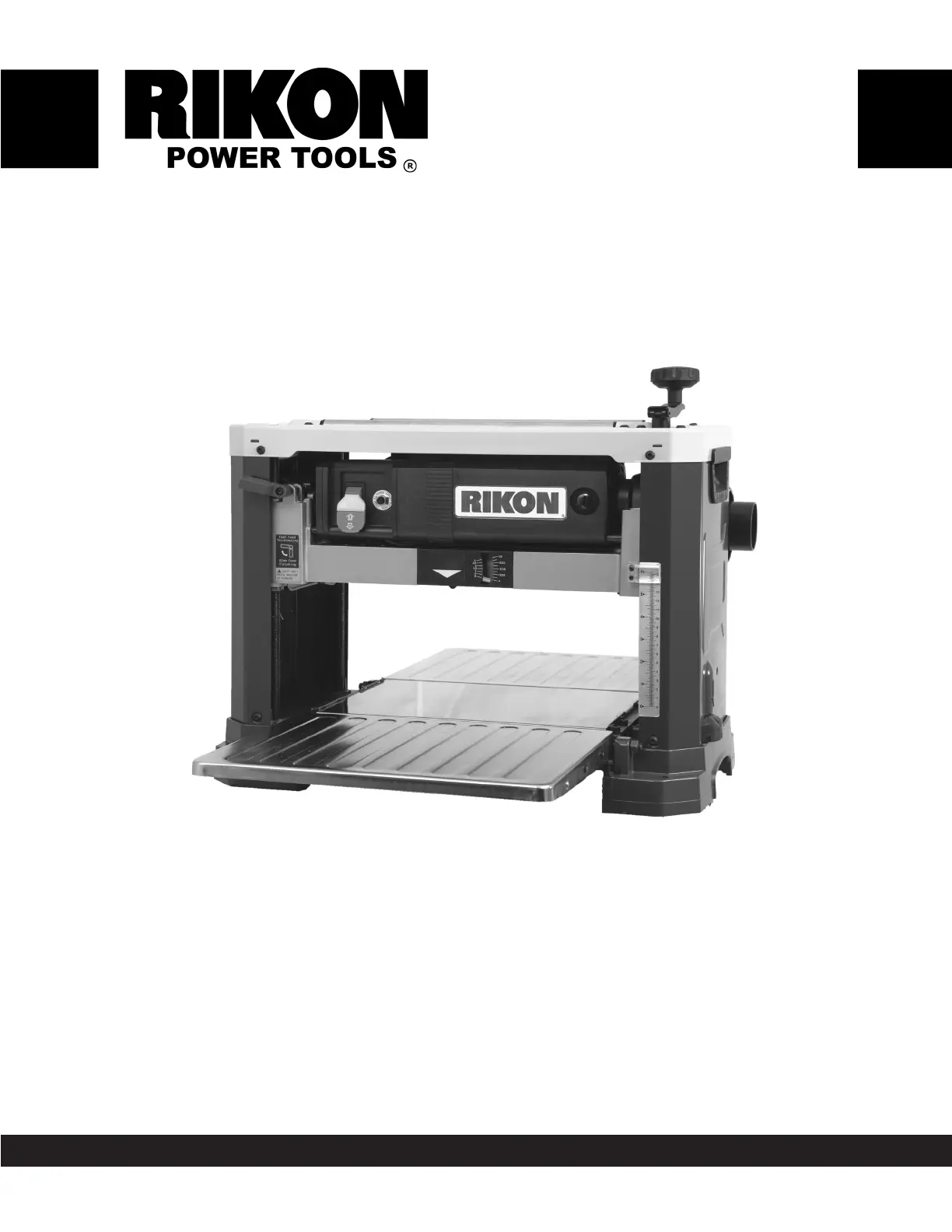

25-135H

www.rikontools.com

25-130HM3

13” Portable Planer

with Helical-Style Cutterhead

Operator’s Manual

Record the serial number and date of purchase in your manual for future reference.

Serial Number: _________________________ Date of purchase: _________________________

For technical support, email techsupport@rikontools.com - For parts questions, email parts@rikontools.com

The serial number can be found on the specication label on the rear of your machine.

TABLE OF CONTENTS

SPECIFICATIONS - 25-135H

NOTE: The specications, photographs, drawings and information in this manual represent the current model when the

manual was prepared. Changes and improvements may be made at any time, with no obligation on the part of RIKON

POWER TOOLS®. to modify previously delivered units. Reasonable care has been taken to ensure that the information in

this manual is correct, to provide you with the guidelines for the proper safety, assembly and operation of this machine.

Motor ........................................................................... 120V, 60Hz, 15A, PH1, AC

Motor Speed (no load)........................................................................ 22,000 RPM

Cutterhead Diameter .......................................................................................... 2

”

Cutterhead Speed ............................................................................. 10,000 RPM

Number of HSS Inserts, 2-sided........................................................................ 26

Number of Cutterhead Insert Rows ………………………..…......................……. 6

HSS Inserts Size, 2-sided............................................. 14.2mm x 14.2mm x 2mm

Maximum Depth of Cut .................................................................................... 1/8

”

Maximum Cutting Width ....................................................................................13”

Maximum Cutting Depth (Height) ....................................................................... 6”

Minimum Length of Stock ................................................................................... 7”

Minimum Width of Stock .................................................................................. 3/4”

Minimum Thickness of Stock ......................................................................... 3/16”

Two Feed Speeds SF/min .........................................................................16 & 26

Table Size (LxW) ………..….................………………...…….... 9-7/16

” x 13-1/16”

Extension Table (2) Sizes (LxW) ……...................…...……...……..…….. 12” x 14”

Dust Port (O.D.)................................................................... 4” or 2-1/2” Diameter

Dust Collection Minimum CFM ........................................................................ 650

Noise Level (no load) .............................................................................. ≤ 100 dB

Overall Size (LxWxH)...................................................... 22

” x 34-1/4” x 19-1/4”

Base Size (L xW)............................................................................. 13-3/8” x 22”

Net Weight ....................................................................................................68 lbs

Specications.....................................................................................................................2

Safety Instructions ........................................................................................................3 - 6

Getting To Know Your Machine ..............................................................................................7

Contents of Package .....................................................................................................7 - 8

Installation ......................................................................................................................8

Assembly .................................................................................................................... 9

Adjustments...............................................................................................................10 - 11

Operation ..................................................................................................................12 - 13

Maintenance .......................................................................................................... 14 - 16

Electricals & Wiring Diagram .......................................................................................5 & 16

Troubleshooting .........................................................................................................17

Parts Diagrams & Parts Lists ..................................................................................18 - 21

Accessories ..........................................................................................................22

Notes ...............................................................................................................................22

Warranty ..........................................................................................................................23
