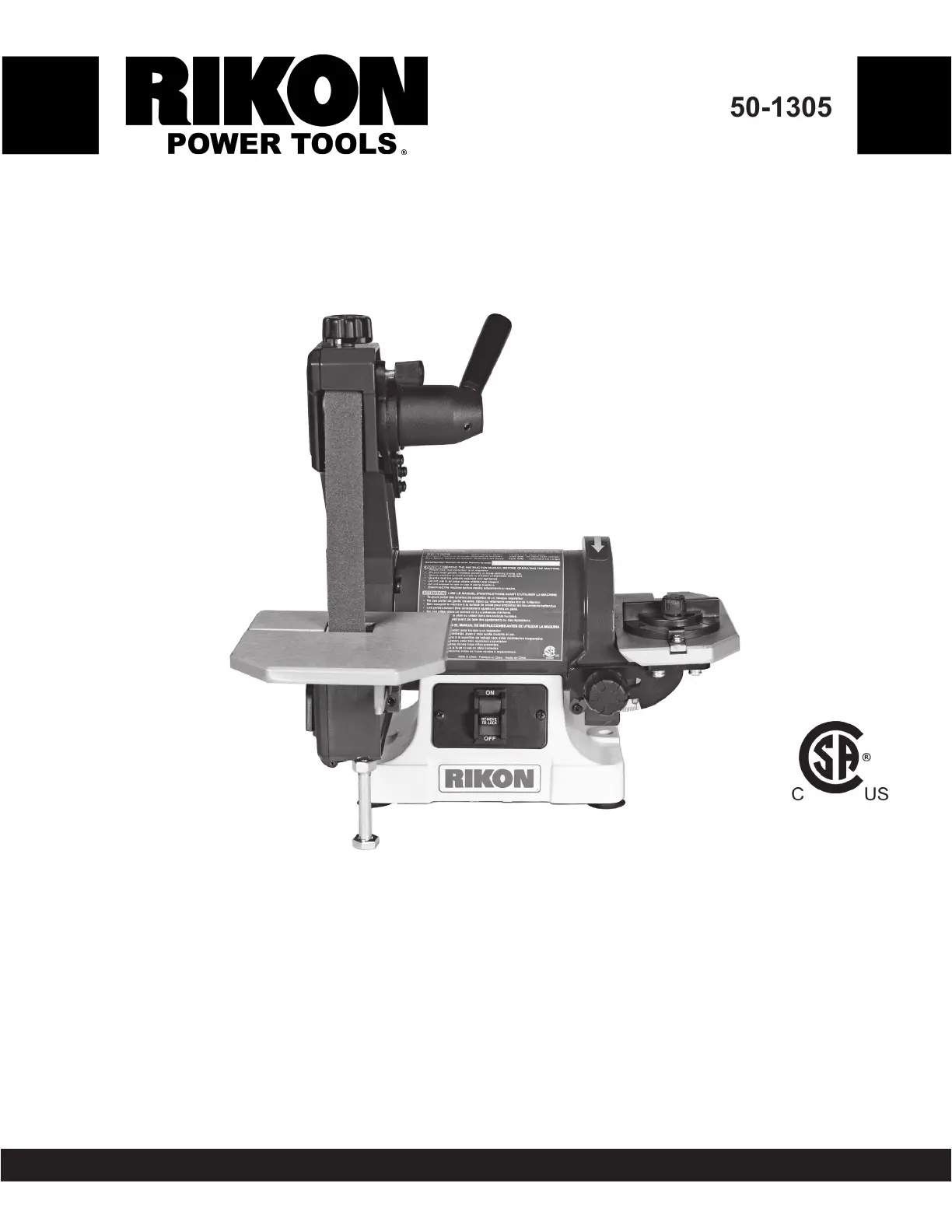

1 X 30 Belt / 5 Disc Sander” ” ”

Operator’s Manual

Record the serial number and date of purchase in your manual for future reference.

Serial Number: _________________________ Date of purchase: _________________________

For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877 )884-5167

TABLE OF CONTENTS

SPECIFICATIONS

Specications ........................................................................................................................................2

Safety Instructions..............................................................................................................................3 - 6

Electrical Requirements ..............................................................................................................5, 15

Sander Safety Rules .......................................................................................................................6

Contents of Package ............................................................................................................................................7

Getting to Know Your Sander .................................................................................................................................8

Assembly ...........................................................................................................................8 - 10

Adjustments & General Use............................................................................................................10 - 13

Maintenance ...................................................................................................................................13

Trouble Shooting........................................................................................................................................14 - 15

Wiring Diagram.................................................................................................................................15

Parts Explosion................................................................................................................................16

Parts List .....................................................................................................................................17, 18

Accessories .................................................................................................................................................18

Warranty .........................................................................................................................................19

NOTE: The specications, photographs, drawings and information in this manual represent the current model when the manual

was prepared. Changes and improvements may be made at any time, with no obligation on the part of Rikon Power Tools, Inc.

to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to

provide you with the guidelines for the proper safety, assembly and operation of this machine.

This owner’s manual is not a teaching aid and is intended to show

assembly, adjustments, and general use.

Motor .........................................................1/3HP, 120V, 2.3A, 60Hz

Motor Speed .................................................................. 3,580 RPM

Belt Size .............................................................................. 1 x 30” ”

Belt Speed ............................................. 3,390 SFPM (1033 m/min)

Belt Table Size ......................... 5-11/16 x 5-11/16 (145 x 145mm)” ”

Belt Table Tilt ........................................................................... 0-45°

Disc Size .............................................................................. 5 PSA”

Disc Speed .................................................................... 3,580 RPM

Disc Table .................................. 6-11/16 x 3-11/16 (170 x 95mm)” ”

Disc Table Tilt .......................................................................... 0-45°

Miter Gauge ....................................................................... Included

Miter Gauge Slot ............................... 31/64 x 15/64” (12.2 x 6mm)”

Machine Height ........................................................... 15 (380mm)”

Machine Width ...................................................... 14-3/8 (365mm)”

Machine Depth ..................................................... 13-3/8 (340mm)”

Base Size ...................................... 8-5/16 x 5-7/8 (210 x 150mm)” ”

Dust Ports (2) .........1-3/8 OD x 1-3/16 ID (35mm OD x 30mm ID)” ”

Net Weight .......................................................... 17 lbs. (7.71 kgs.)

Shipping Weight ............................................... 19.8 lbs. (8.98 kgs.)

Shipping Carton ........................................... 17-3/4 x 12-3/8” ” x 13”

(450 x 315 x 330mm)
