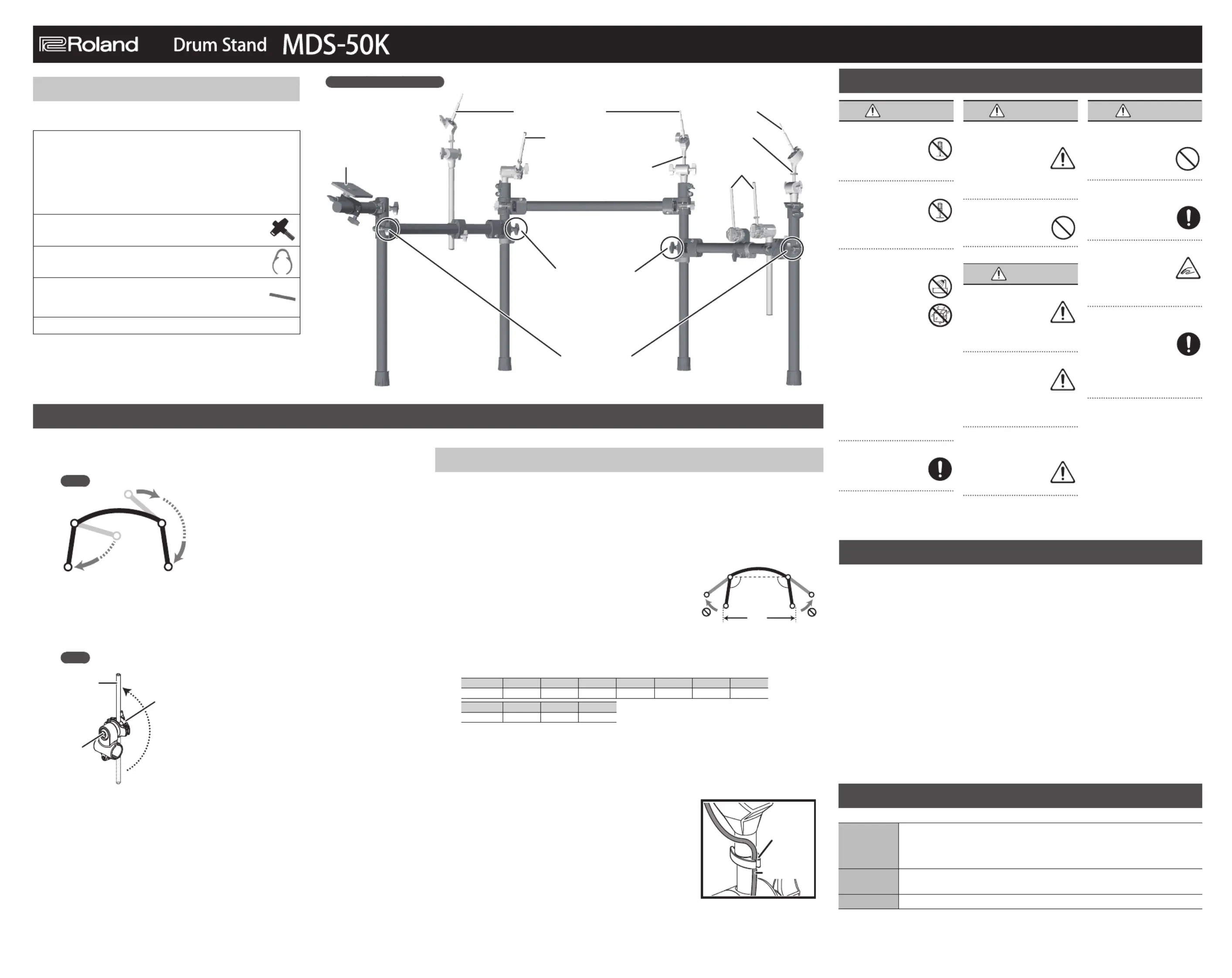

Side 1/1

Main Specications

Roland MDS-50K: Drum Stand

Required space

for setup

1,350 (W) x 1,050 (D) x 1,100 (H) mm, 53-3/16 (W) x 41-3/8 (D) x 43-5/16 (H) inches

(drum stand only)

1,500 (W) x 1,300 (D) x 1,250 (H) mm, 59-1/16 (W) x 51-3/16 (D) x 49-1/4 (H) inches

(including sound module, kick pad, cymbals, and drum throne)

Tube diameter

Stand: 38.1 mm, 1-1/2 inches

Pad arm/Cymbal arm: 22.2 mm, 7/8 inches

Weight 14.5 kg, 32 lbs (including pad mounts and cymbal mounts)

* This document explains the specications of the product at the time that the document was issued. For

the latest information, refer to the Roland website.

Before using this unit, carefully read “USING THE UNIT SAFELY” and “IMPORTANT NOTES.” After reading, keep the document(s)

where it will be available for immediate reference.

Check the Included Items

After opening the package, check that all of the included items are

present. If anything is missing, contact your dealer.

Stand

• Cymbal mount x 3 (with stand)

* Two of the cymbal mount rods are in a separate box.

• Pad mount x 3 (with stand)

• Connection cables (with stand)

• Sound module mounting plate

Drum key

Cable clip x 6

Cable tie x 3

* When shipped from the factory, these are wrapped around the

pipes to bundle the connection cables.

Owner’s Manual (this leaet)

Setting Up the Stand

1. Loosen hand knobs “A” (two locations) and spread open the left and right legs of the stand

as shown in the illustration (Fig. 2).

Fig. 2

2. Attach cymbal mount rods as shown in the illustration (Fig. 1).

3. Adjust pad mounts “B” (three locations) as shown in the illustration (Fig. 3).

Fig. 3

1. Loosen the bolt using the drum key, then

remove the ball clamp.

2. Position the rod in the upright position, then

reattach the ball clamp.

Bolt

Rod

Ball clamp

4. Adjust cymbal mounts “C” (three locations) as shown in the illustration (Fig. 1).

5. If the stand wobbles, loosen hand knobs “D” (two locations) and adjust the height.

* Do NOT loosen any bolts other than hand knobs except when changing the parts or cables

for repairing.

Caution in Setting Up the Stand

5The tip of the mount is sharp. Handle it with care.

5When setting up or storing the stand, be careful not to pinch the ngers and the connection

cables you use to handle the stand.

5Regarding the way of mounting a sound module, pads, or cymbals, please refer to the owner’s

manual supplied with them.

5Do not open the stand wider than 135 degrees outward.

Be sure the two pipes at the ends tare no more than 1.3

meters apart. Doing so can damage the cables inside the

stand or cause the stand to fall over.

5Never pull on any cables with excessive force.

5There are labels on the ends of the cables allowing easy

connection to your sound module. For the details on connections, refer to the owner’s manual

that came with your sound module.

The names on the labels correspond to trigger input jack names as follows.

Label KIK T1 T2 T3 T4 HH HHC

Jack KICK TOM 1 TOM 2 TOM 3 TOM 4 HI-HAT HH CTRL

Label CR1 CR2 AX1

Jack CRASH1 CRASH2 AUX 1

* SNARE/RIDE/BELL/TOM 2 connection cables are not included. Please obtain them

separately.

* When connecting to a V-pad or V-cymbal that is equipped with a DIGITAL TRIGGER OUT

port, use the connection cable included with that product.

5Use the cable clips as shown in the illustration, to secure

the cables.

5We recommend using an optional Roland drum mat

(TDM series) to prevent scarring or discoloration of

ooring by the rubber feet of the stand.

1.3 m

(51-3/16”)

135˚

View of stand when spread open

Cable clip

Cable

English

Owner’s Manual

IMPORTANT NOTES

USING THE UNIT SAFELY

WARNING

Do not disassemble or modify by yourself

Do not carry out anything

unless you are instructed to

do so in the owner’s manual.

Otherwise, you risk causing

malfunction.

Do not repair or replace parts by yourself

Refer all servicing to

your retailer, the nearest

Roland Service Center,

or an authorized Roland

distributor, as listed on the

“Information.”

Do not use or store in the following types

of locations

• Subject to temperature

extremes (e.g., direct

sunlight in an enclosed

vehicle, near a heating

duct, on top of heat-

generating equipment);

or are

• Damp (e.g., baths, washrooms, on

wet oors); or are

• Exposed to steam or smoke; or are

• Subject to salt exposure; or are

• Exposed to rain; or are

• Dusty or sandy; or are

• Subject to high levels of vibration

and shakiness; or are

• Placed in a poorly ventilated

location.

Do not place in an unstable location

Otherwise, you risk injury

as the result of the unit

toppling over or dropping

down.

WARNING

Be cautious to protect children from

injury

Always make sure that an

adult is on hand to provide

supervision and guidance

when using the unit in

places where children are present, or

when a child will be using the unit.

Do not drop or subject to strong impact

Otherwise, you risk causing

damage or malfunction.

CAUTION

Use only stand manufactured by Roland

This stand for use only with

specic Roland musical

instruments. See apparatus

instructions. Use with other

models is capable of resulting in

instability causing possible injury.

Evaluate safety issues before using stands

Even if you observe the

cautions given in the

owner’s manual, certain

types of handling may allow

cause the stand to overturn. Please

be mindful of any safety issues before

using this product.

Route all power cords and cables in such a

way as to prevent them from getting

entangled

Injury could result if

someone were to trip on a

cable and cause the unit to

fall or topple.

CAUTION

Avoid climbing on top of the unit, or

placing heavy objects on it

Otherwise, you risk injury

as the result of the unit

toppling over or dropping

down.

Disconnect all cords/cables before

moving the unit

Damage or malfunction

may result if you fail to

disconnect all cables before

moving the unit.

Take care so as not to get ngers pinched

When setting up or storing

the stand, be careful not to

pinch the ngers you use

to handle the stand. An

adult should always be in charge of

handling these items.

Keep small items out of the reach of

children

To prevent accidental

ingestion of the parts listed

below, always keep them

out of the reach of small

children.

Included Parts:

• Screws

Placement

• Do not allow lighting devices that

normally are used while their light

source is very close to the unit

(such as a piano light), or powerful

spotlights to shine upon the same

area of the unit for extended

periods of time. Excessive heat

can deform or discolor the unit.

• Do not paste stickers, decals, or

the like to this instrument. Peeling

such matter o the instrument

may damage the exterior nish.

• Depending on the material and

temperature of the surface on

which you place the unit, its

rubber feet may discolor or mar

the surface.

Maintenance

• Never use benzine, thinners,

alcohol or solvents of any

kind, to avoid the possibility of

discoloration and/or deformation.

Additional Precautions

• When disconnecting all cables,

grasp the connector itself—never

pull on the cable. This way you will

avoid causing shorts, or damage

to the cable’s internal elements.

Trademarks

• Roland and V-Drums are either

registered trademarks or

trademarks of Roland Corporation

in the United States and/or other

countries.

• Company names and product

names appearing in this

document are registered

trademarks or trademarks of their

respective owners.

A: Hand knobs

D: Hand knobs

C: Cymbal mounts

B: Pad mount

Sound module

mounting plate

Fig. 1 Fully assembled view

Rod

B: Pad mounts

C: Cymbal mount

Rod
