SI-AD4 / SO-DA4 Installation Manual

This guide describes how to install SI-AD4 (input) and SO-DA4 (output) modules in your S-4000S.

Before you attempt installation, please read this document carefully.

ROLAND CORPORATION.

When installing or detaching the SI-AD4 or SO-DA4, be sure to consult your RSS Authorized Service Center.

After installing the SI-AD4 or SO-DA4, please be sure to return this document to the purchaser.

• Always turn the unit off and unplug the AC plug before attempting installation of the

SI-AD4 or SO-DA4.

• Install only the specified option. Remove only the specified screws.

• To avoid the risk of damage to internal components that can be caused by static electricity,

please carefully observe the following whenever you handle the board.

❍

Before you touch the board, always first grasp a metal object (such as a water pipe), so

you are sure that any static electricity you might have been carrying has been

discharged.

❍

When handling the board, grasp it only by its edges. Avoid touching any of the

electronic components.

❍

Save the bag in which the board was originally shipped, and put the board back into it

whenever you need to store or transport it.

• Do not touch any of the printed circuit pathways.

• Never use excessive force when installing a circuit board. If it doesn’t fit properly on the

first attempt, remove the board and try again.

• When the SI-AD4 or SO-DA4 installation is complete, double-check your work.

• Use a Philips screwdriver of the appropriate size to avoid damaging the screw heads (a

number of 2 screwdriver).

• Turn the screwdriver counter-clockwise to loosen the screws-turn it clockwise to tighten

them.

• Be careful not to let the screws drop inside the each unit.

• Never leave a module uninstalled. Cover any unused slots with optional S-BP blank panels.

• Be careful not to cut your hand on the edge of the circuit board or the opening edge while

removing the S-BP.

For the Purchaser — Please Read

For the Installer (Service Technician) — Please Read

Cautions When Installing the SI-AD4 or SO-DA4

tightenloosen

* 0 4 2 3 2 8 3 4 - 0 3 *

04232834 08-03-3N

SI-AD4 / SO-DA4 Installation Manual

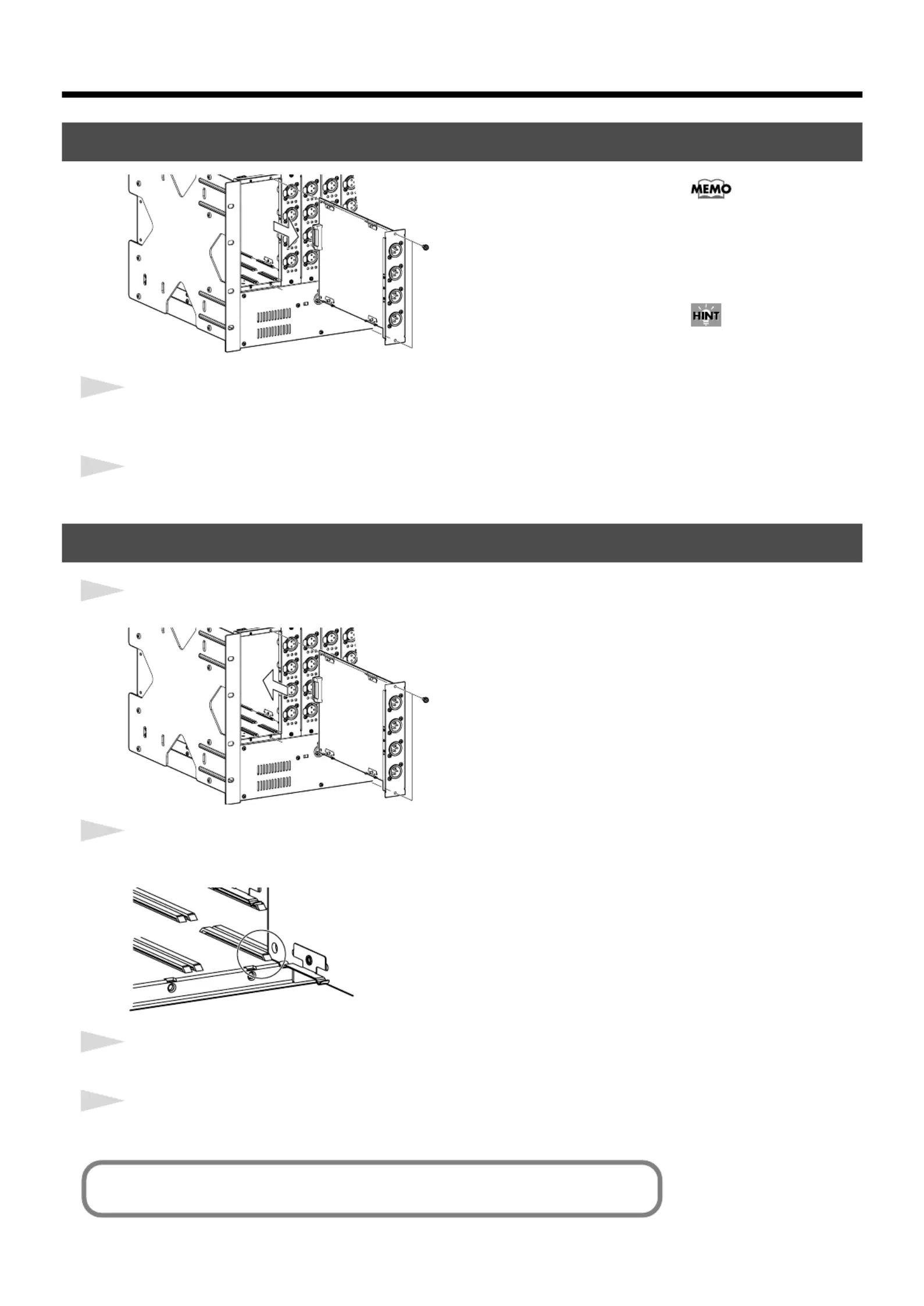

Remove the two screws from each module (SI-AD4 or SO-DA4) installed in the

S-4000S.

Extract the module from the S-4000S.

Load the modules (SI-AD4 or SO-DA4) into the S-4000S.

Align the module's circuit board with the slot in the S-4000S, and insert

slowly.

Press in the module firmly until you feel resistance.

Secure the module in place using the two screws removed when detaching

the module.

Uninstalling an SI-AD4/SO-DA4

Installing an SI-AD4/SO-DA4

The module shown in the

figure is the SO-DA4. The

removal procedures for the

SI-AD4 and SO-DA4 are the

same.

Extraction of the SI-AD4 or

SO-DA4 may be accomplished

more easily by inserting an

XLR plug into a connector on

the module, then pulling out

the module while gripping the

plug.

Refer to the Service Notes issued by Roland and perform the operational checks

necessary to ensure that each module has been installed correctly.
