SAB HELI DIVISION
GOBLIN BLACK THUNDER

Goblin Thunder T
Release 1.1 - March 2017
WORLD DISTRIBUTION
www.goblin-helicopter.com
For sales inquiries, please email:
sales@goblin-helicopter.com
For info inquiries, please email:
support@goblin-helicopter.com
Attention: If you are a consumer and have questions or need of assistance,
please contact in a first time the Goblin retailer where you made the purchase
EUROPEAN DISTRIBUTION
www.sabitaly.it
For sales inquiries, please email:
sales@sabitaly.it
For info inquiries, please email:
info@sabitaly.it
Attention: If you are a consumer and have questions or need of assistance,
please contact in a first time the Goblin retailer where you made the purchase

IMPORTANT NOTES
*This radio controlled helicopter is not a toy.
*This radio controlled helicopter can be very dangerous.
*This radio controlled helicopter is a technically complex device which has to be built and handled very carefully.
*This radio controlled helicopter must be built following these instructions. This manual provides the necessary information
to correctly assemble the model. It is necessary to carefully follow all the instructions.
*Inexperienced pilots must be monitored by expert pilots.
*All operators must wear safety glasses and take appropriate safety precautions.
*A radio controlled helicopter must only be used in open spaces without obstacles, and far enough from people to minimize
the possibility of accidents or of injury to property or persons.
*A radio controlled helicopter can behave in an unexpected manner, causing loss of control of the model, making it very
dangerous.
*Lack of care with assembly or maintenance can result in an unreliable and dangerous model.
*
Neither SAB Heli Division nor its agents have any control over the assembly, maintenance and use of this product.
Therefore, no responsibility can be traced back to the manufacturer. You hereby agree to release SAB Heli Division from
any responsibility or liability arising from the use of this product.
SAFETY GUIDELINES
*Fly only in areas dedicated to the use of model helicopters.
*Follow all control procedures for the radio frequency system.
*It is necessary that you know your radio system well. Check all functions of the transmitter before every flight.
*The blades of the model rotate at a very high speed; be aware of the danger they pose and the damage they may cause.
*Never fly in the vicinity of other people.
NOTES FOR ASSEMBLY
Please refer to this manual for assembly instructions for this model.
Follow the order of assembly indicated. The instructions are divided into chapters, which are structured in a way that
each step is based on the work done in the previous step. Changing the order of assembly may result in additional or
unnecessary steps.
Use thread lockers and retaining compounds as indicated. In general, each bolt or screw that engages with a metal part
requires thread lock.

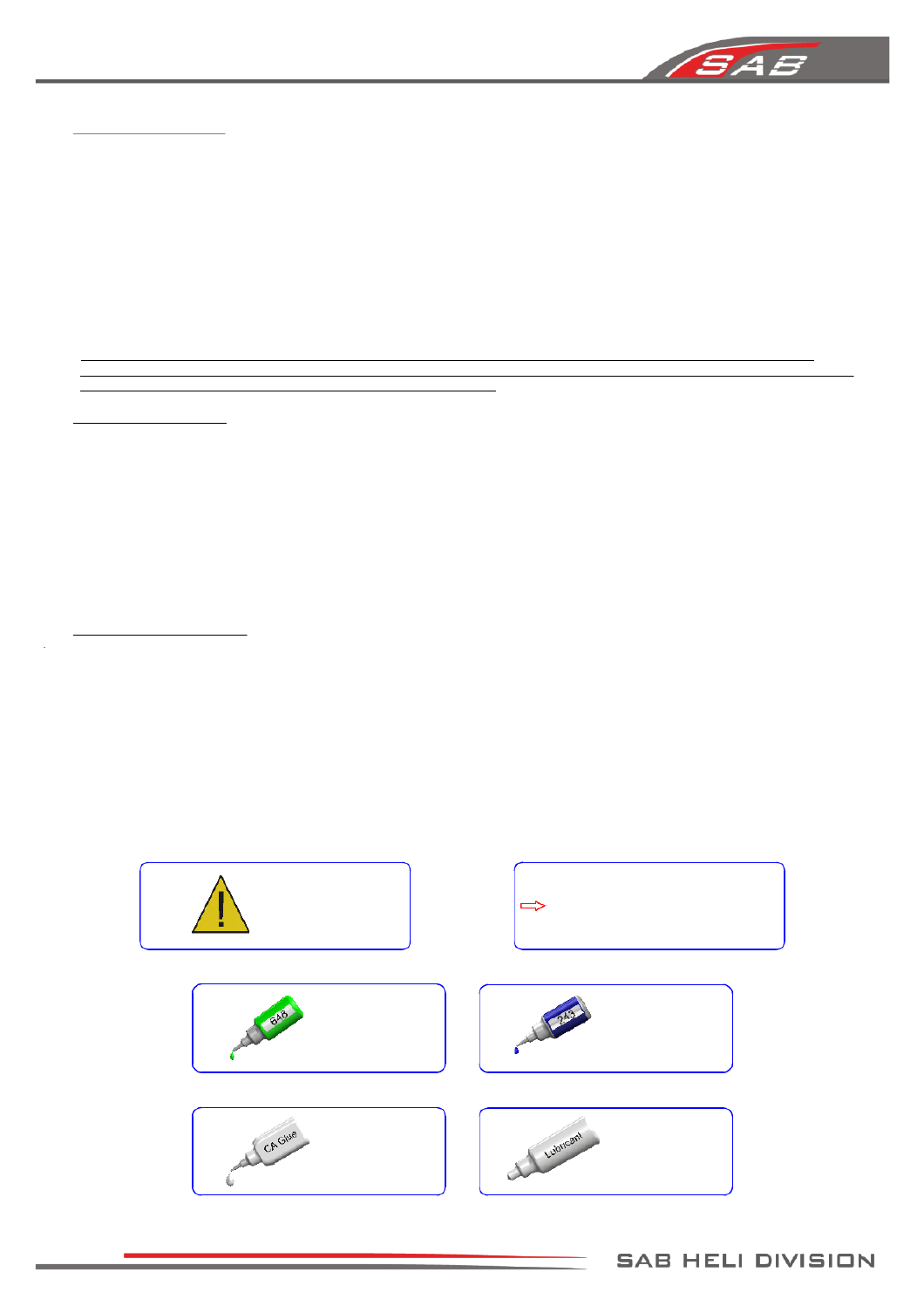

It is necessary to pay attention to the symbols listed below:
Important
Use retaining
compound
(eg Loctite 648)
Use retaining
compound
(eg Loctite 243)
Use CA Glue
Use Proper
Lubricant
Indicates that for this
assembly phase you need
materials that are in bag xx.
Bag xx
Page 2

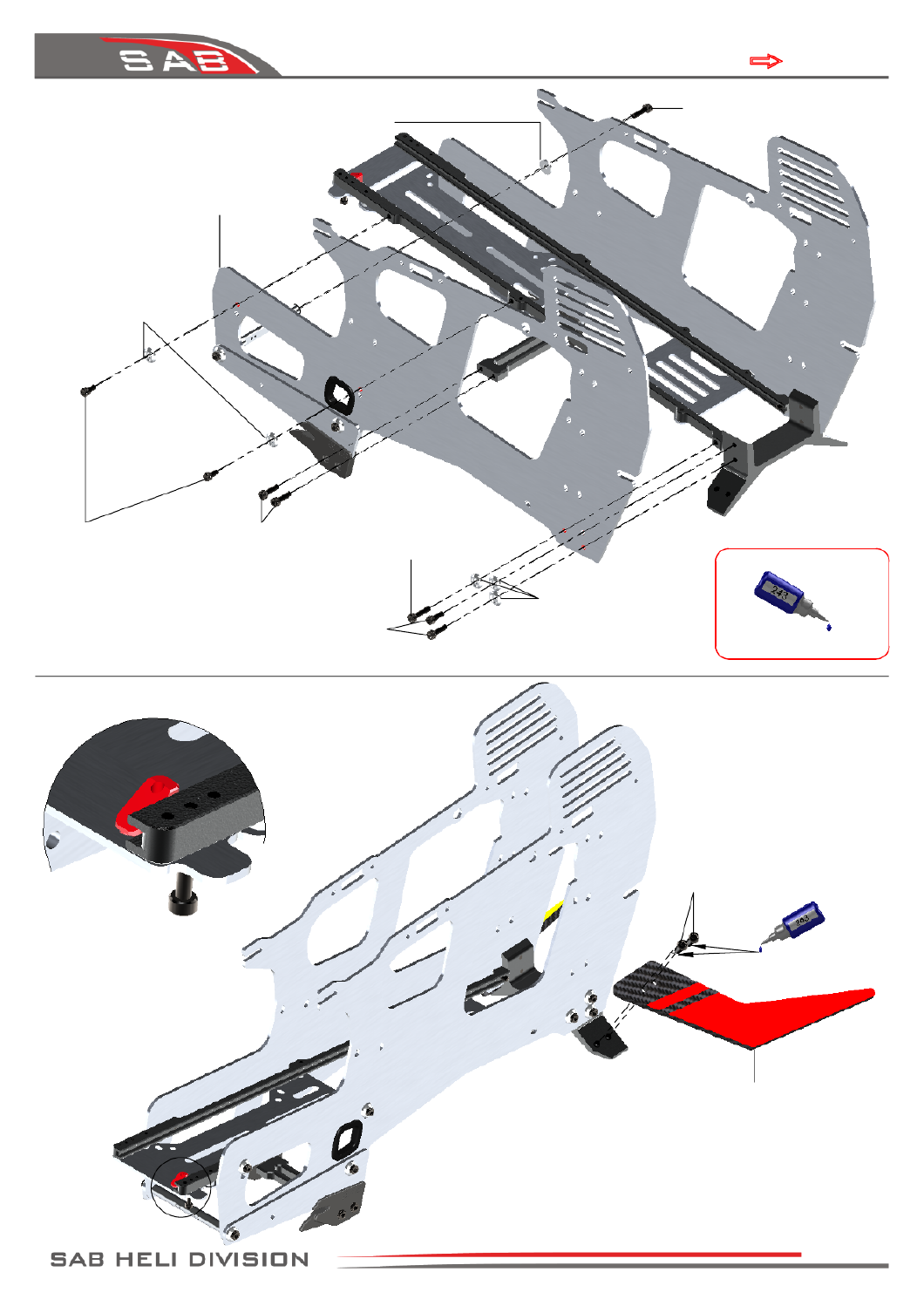

Chapter 2, Important Notes

A
Socket Head Cap
Screw M3x6mm
(HC044-S)
BAG 1.4, BAG 1.5
Button Head Cap
Screw M4x8mm
(HC098-S)
Finishing
Washer M3
(H0007-S)
CF Landing Gear
(H0699-S)
Socket Head Cap
Screw M3x10mm
(HC056-S)
Socket Head Cap
Screw M3x8mm
(HC050-S)
Finishing
Washer M3
(H0007-S)
Left Main Frame
Assembly
Socket Head Cap
Screw M3x12mm
(HC062-S)
Use Loctice in all Screw
Note
Finishing
Washer M3
(H0007-S)
Socket Head Cap
Screw M3x10mm
(HC056-S)
DETAIL A
Page 7
Chapter 4, Carbon Frame

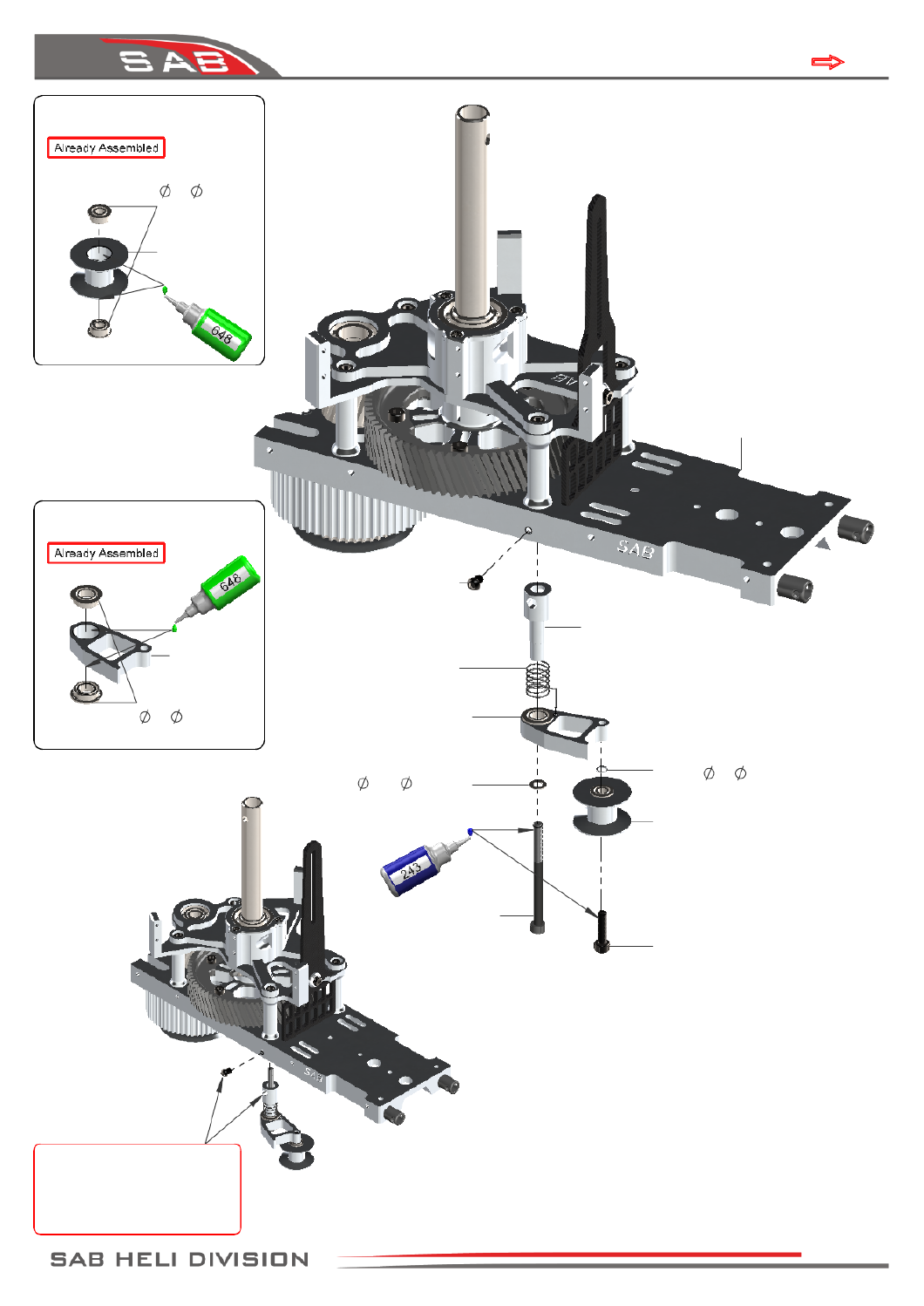

Belt Tensioner
Arm
Washer
3x
4x0.5mm
(HC176-S)
Belt Tensioner Support
(H0174-S)
Socket Head Cap
Screw M3x12mm
(HC062-S)
Tail Belt Idler Assembly
(H0174-S)
Belt Tensioner Arm
Assembly
Washer
3.2x
6x0.5mm
(HC180-S)
Socket Head Cap Screw
Shoulder M3x40mm
(HC091-S)
Main Structure
Assembly
Tail Belt Idler
Assembly
Button Head Cap
Screw M3x4mm
(HC038-S)
Belt Tensioner Arm Assembly
(H0174-S)
Note:
Position without preload.
Insert the screw in the
hole through the aluminum
support as in the picture.
Flanged Bearing
3x
7x3mm
(HC402-S)
Tail Belt Idler
[H0069]
Flanged Bearing
5x
9x3mm
(HC410-S)
Spring
de 8 / df0.5 / LL8
[HC312]
(HC315-S)
BAG 4
Page 11
Chapter 5, Transmission Assembly
Produkt Specifikationer
Mærke: | SAB |
Kategori: | Radiostyret legetøj |
Model: | SG715 |
Bredde: | 220 mm |
Vægt: | 3380 g |
Motortype: | Elektrisk motor |
Produkttype: | Helikopter |
Husmateriale: | Aluminium, Carbon fibre |
Længde: | 1395 mm |
Konstruktionstype: | Monteringssæt |
Antal rotorer: | 2 rotorer |
Rotor diameter: | 1548 mm |
Stabiliseringssystem: | Flybarless (FBL) rotorhoved |
Kopi: | Ingen |
Antal hoved rotorblade: | 2 |
Hoved bladlængde: | 690 mm |
