Side 1/4

W9 1636671 01 A03

02 - 2011

1/4

www.schneider-electric.com

LT47

0.5 - 6 A

Type

LT 4706

LT 4730

LT 4760

Relay setting range

3 - 30 A

5 - 60 A

Operating and Function

b LT47, solid state overload relay, compares motor

current with preset load current threshold (LOAD).

b Motor currents are monitored through two internal

current transformers.

b CT hole size is 12 mm in diameter. Please don't

allow excessive force on CTs.

b D-Time counts down and is only available for motor starting.

During steady state, if motor current is greater than current

setting(overloaded), LT47 switches its contacts after O-Time.

b For shear-pin (mechanical shock) protection, set O-Time knob

to its minimum in order to trip in 0.2-0.3 s.

DANGER

HAZARD OF ELECTRIC SHOCK,

EXPLOSION, OR ARC FLASH

Disconnect all power before servicing

equipment.

Failure to follow these instructions

will result in death or serious injury.

PLEASE NOTE:

b Electrical equipment should be installed, operated,

serviced, and maintained only by qualied personnel.

b No responsibility is assumed by Schneider Electric

for any consequences arising out of the use of this

material.

b This document is also available in French, Spanish,

Italian, German, and Chinese for download on our

website at www.schneider-electric.com.

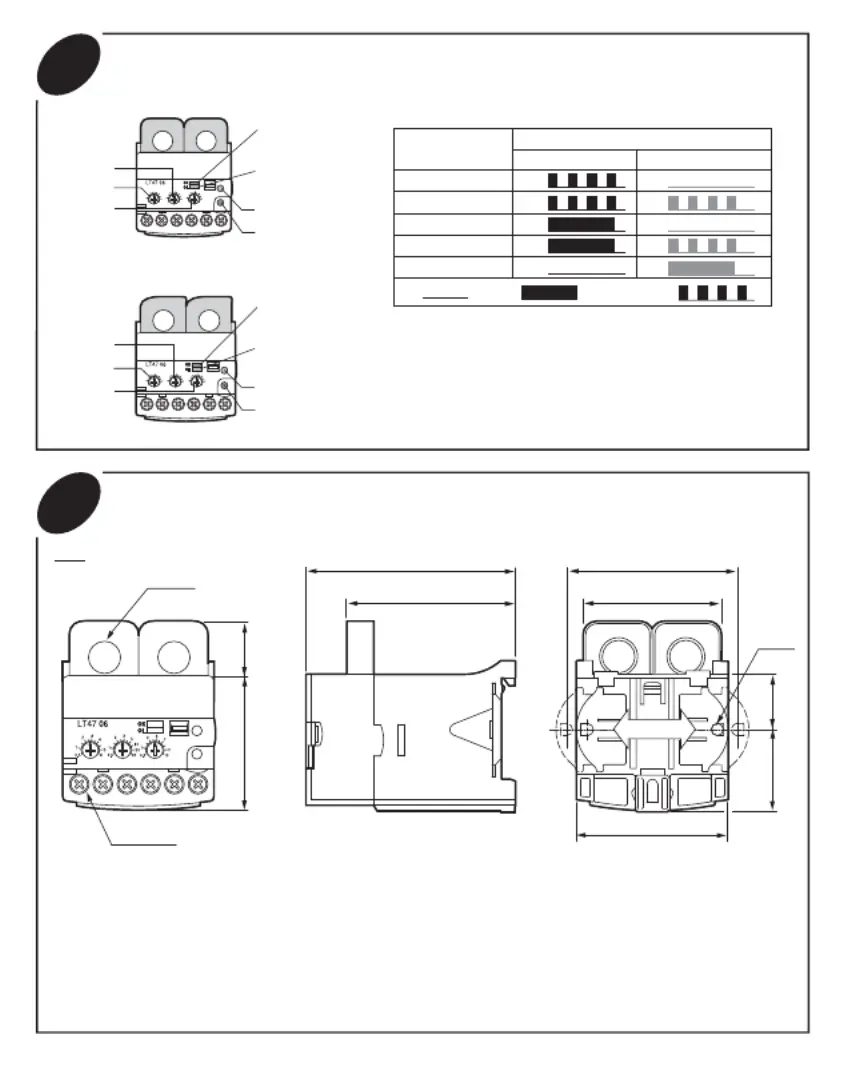

2/4

W9 1636671 01 A03

in.

TEST/STOP

RESET

O-TIME

(s)

LOAD

(A)

D-TIME

(s)

A1 A2 97 NO NC98 95 96

Ø 0.47

Ø 12

6 x M3.5

50.8

2.00

19.5

0.77

PULLPULL

Ø0.18

Ø4.5

2.01

2.48

2.20

30.4

1.20

20.4

0.80

77,2

3.04

62,2

2.45

A1 A2 97 NO NC98 95 96

Auto Reset type

D-Time

Load

O-Time

R-Time

O-Time

A1 A2 97 NO NC98 95 96

O

Condition

LED Signal

Green LED Red LED

Power on

Starting

Steady state

Overloading

Trip

Flickering

Combined signals from red and green LEDs indicate

motor status including trip cause.

Standard type (Manual / Electrical reset)

Test/Stop

Reset

Green LED

(LED OK)

Red LED

(LED OL)

Test/Stop

Reset

Green LED

(LED OK)

Red LED

(LED OL)

Produkt Specifikationer

Mærke:	Schneider
Kategori:	Ikke kategoriseret
Model:	LT4706
Kode for international beskyttelse (IP):	IP20
Bredde:	71 mm
Dybde:	77.2 mm
Højde:	70.3 mm
Vægt:	192 g
Pakkevægt:	193 g
Pakkedybde:	83 mm
Pakkebredde:	76 mm
Pakkehøjde:	66 mm
Opbevaringstemperatur (T-T):	-30 - 80 °C
Driftstemperatur (T-T):	-25 - 60 °C
Indgangsfrekvens:	50/60 Hz
Garantiperiode:	1.5 År
Nominel impulsmodstandsspænding (Uimp):	6 kV
Nominel isolationsspænding:	600 V
