Side 1/4

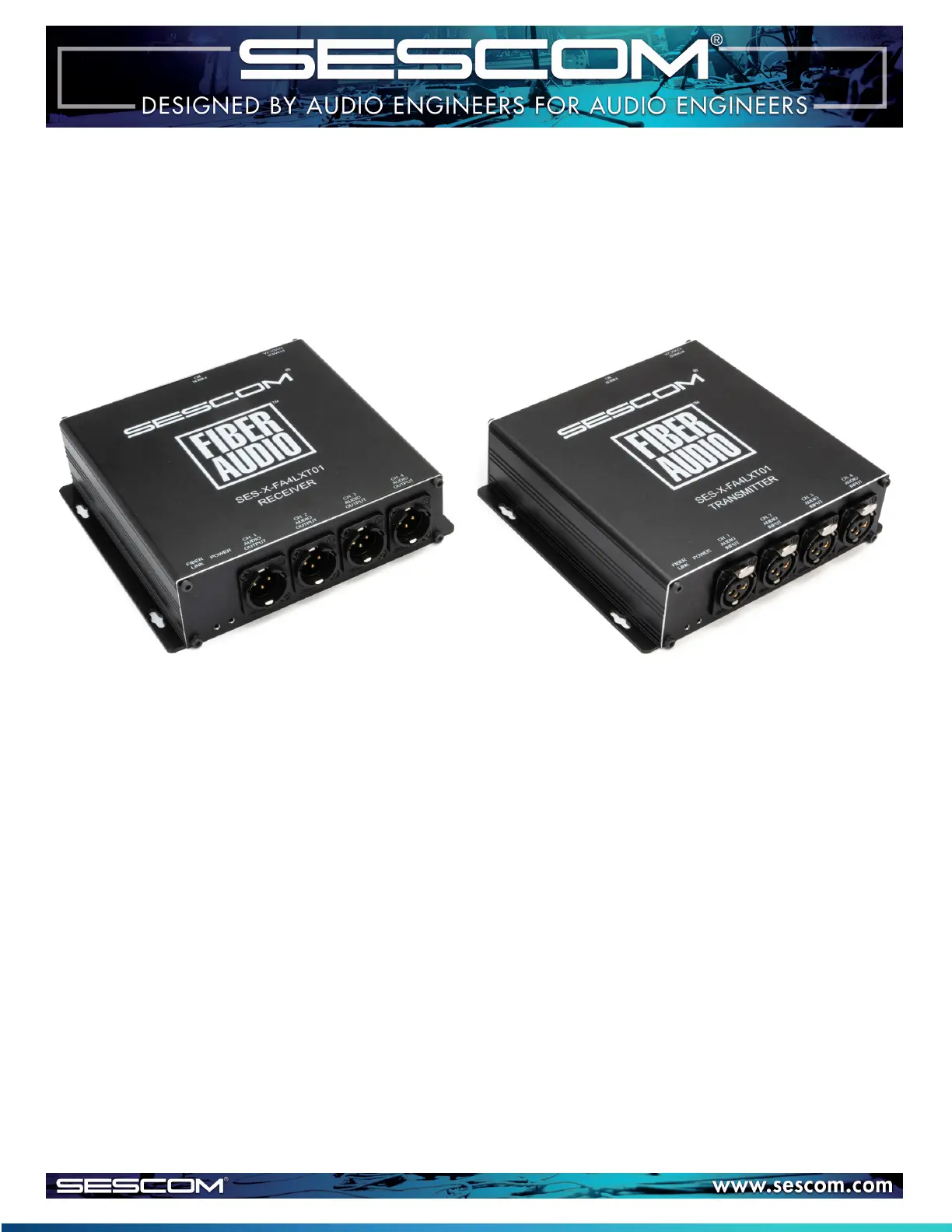

SES-X-FA4LXT01 4 CH Balanced XLR Line Level

Audio over Fiber Extender

FEATURES



4-Channel XLR Audio over Fiber with Singlemode Simplex ST Fiber Connector

 24-Bit Digitally Encoded Analog Audio

 Transmission Distance up to 12.4 miles over Singlemode Fiber

 Adjustment Free Plug & Play Operation

 Enable Cascaded Audio Setups

 1 Year Warranty

 FCC & RoHS Certified

Set Up Instructions

1. Secure the units in a safe location, where they will not be subject to impact and where there is room around the

unit so nothing will interfere with the fiber optic cabling causing it to bend sharply in a tight radius in any way that

can severely affect the signal transfer.

2. Use proper cable management and handling for routing fiber optic cable.

3. Carefully connect your source(s) to the transmitter input(s) and the receiver unit output(s) to your receiving device

input(s) using the XLR connectors on the transmitter and on the receiver unit.

4. CLEAN* the ST fiber optical cable contacts that will be used for connecting the Tx and Rx units and attach the fiber

cable to the ST connections and secure, as you would secure a bayonet BNC. While pressing lightly in on the

connector, twist it in a clockwise direction about 1/8 to 1/4 of a turn and then release. The connector should stay

inserted and have backwards spring pressure holding the bayonet in place.

5. Connect the included power supplies to the transmitter and receiver units, and plug them both into an AC power

source (100-240VAC 50/60Hz).

* CLEAN: All fiber optical cable contacts require cleaning each time before inserting into a device’s outputs or

inputs. Failure to clean the contacts can damage the unit’s optics over time and can also permanently damage

the cable and the device.

Use cleaning kits designed specifically for fiber optics.

SES-X-FA4LXT01 AUDIO FIBER EXTENDER

SPECIFICATIONS

Unity Gain 0dB In, 0dB Out

Total Harmonic Distortion

<0.05%

Signal to Noise Ratio

> 90dB Ref. 4dBu, A Weighting

Maximum Balanced Input Signal 18dBu

Max Line Input/Output Voltage 17.4Vp-p

OpƟcal Wavelength 1310nm

Frequency Response 20Hz—20KHz

Sample Rate 48KHz, 24K bit rate

Input Power 12VDC/2A

Unit Dimensions Each Unit

6.5 x 6.25/7.125 with fiber connector x 2.0 in

Power Consumption <2W

Includes (2) 12VDC/2A Power Adapters
